Active Control Engine Mount: Wiring Diagram

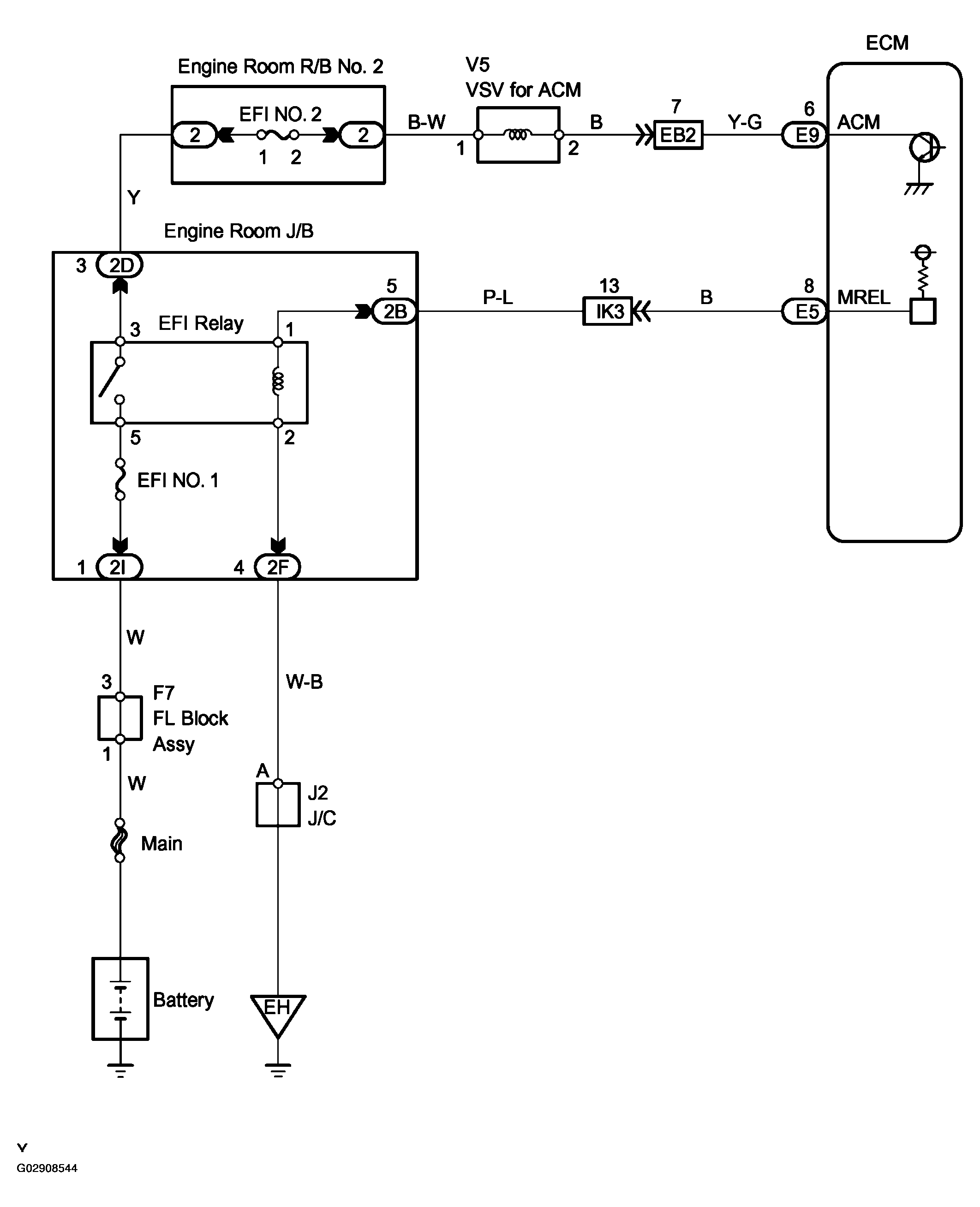

Fig 1: Wiring Diagram - Active Control Engine Mount

G02908544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
