ACIS Control Circuit: Wiring Diagram

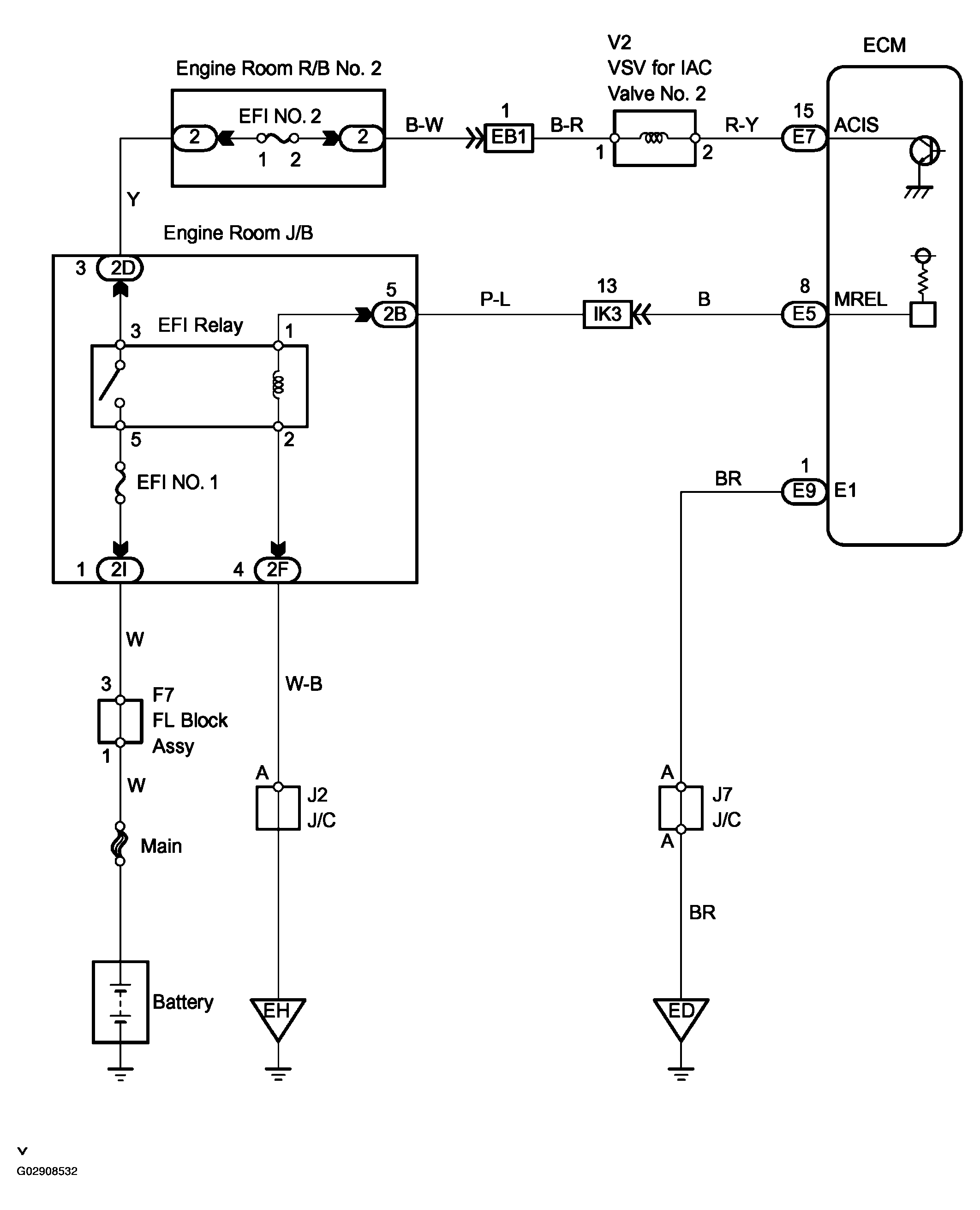

Fig 1: Wiring Diagram - Acoustic Control Induction System

G02908532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
