Automatic Transmission Assembly - U151E/U151F: Replacement
- REMOVE ENGINE ASSEMBLY WITH TRANSAXLE (See REPLACEMENT )
- REMOVE FRONT DRIVE SHAFT ASSY LH (See
REMOVAL & INSTALLATION
)
SST 09520-01010, 09520-24010 (09520-32040)
- REMOVE FRONT DRIVE SHAFT ASSY RH (2WD DRIVE TYPE) (See REMOVAL & INSTALLATION )
- REMOVE FRONT DRIVE SHAFT ASSY RH (4WD DRIVE TYPE) (See
REMOVAL & INSTALLATION
)
SST 09520-01010, 09520-24010 (09520-32040)
- REMOVE TRANSMISSION CONTROL CABLE BRACKET NO.2
- Remove the bolt and transmission control cable bracket No.2.
- REMOVE WIRE HARNESS CLAMP

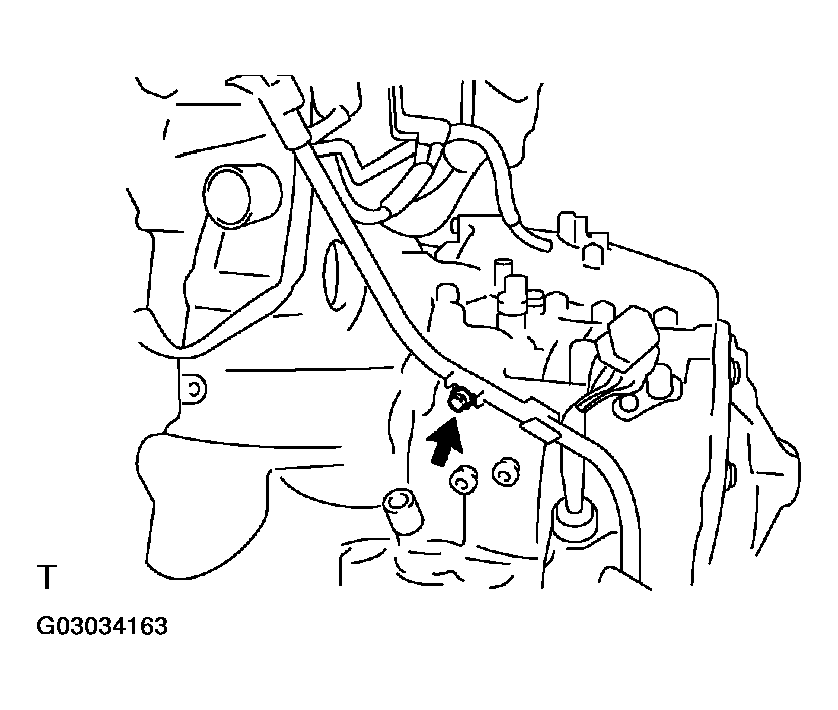

- Disconnect the wire harnesses from the clamps.

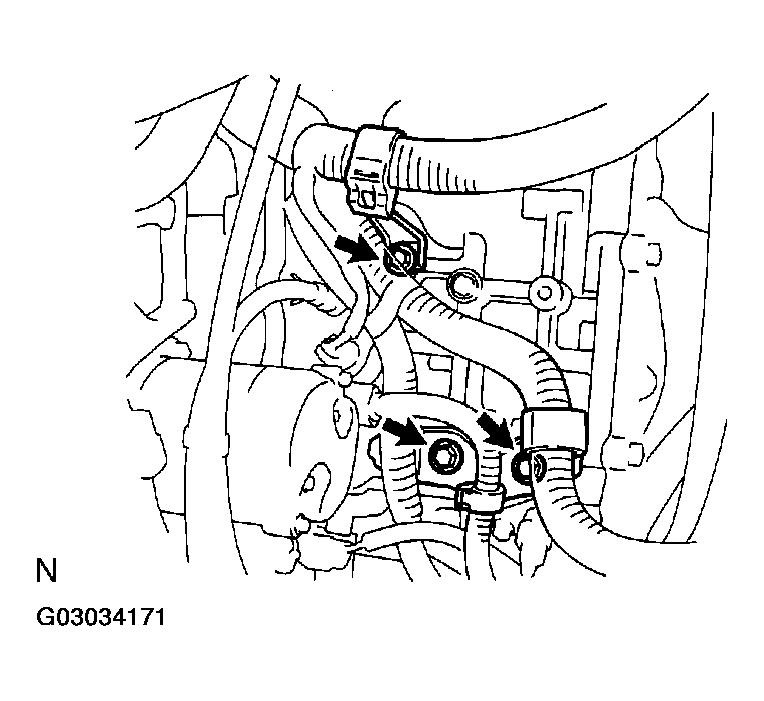

- Remove the 3 bolts and 2 clamps.
- DISCONNECT WIRE HARNESS

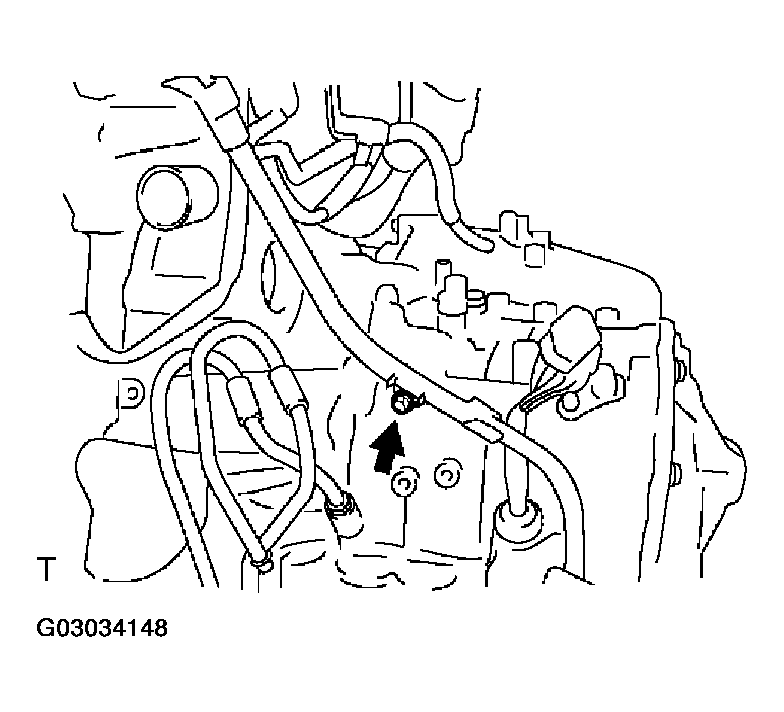

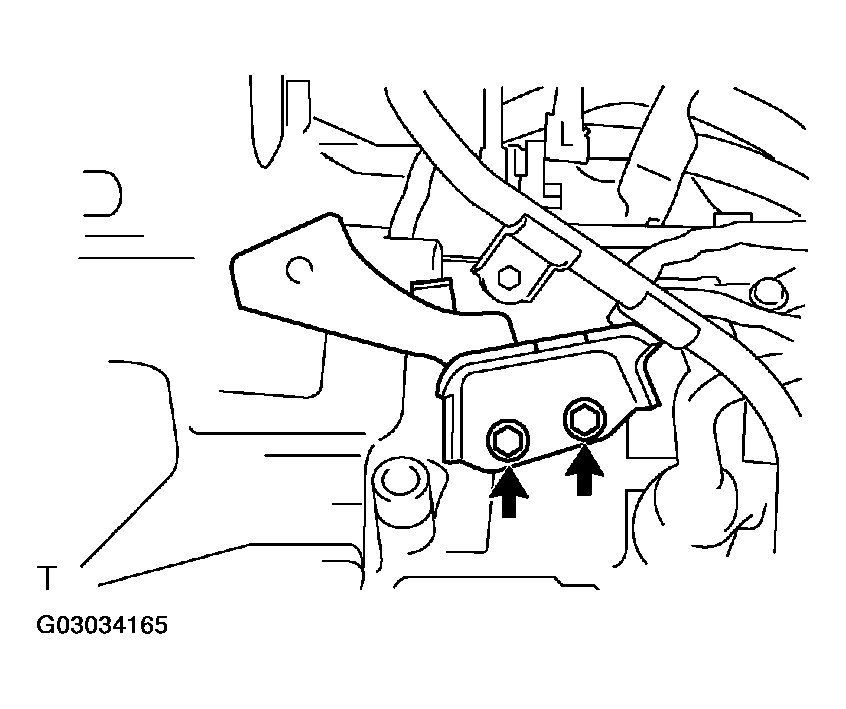

- Remove the bolt and wire harness.
- REMOVE STARTER ASSY

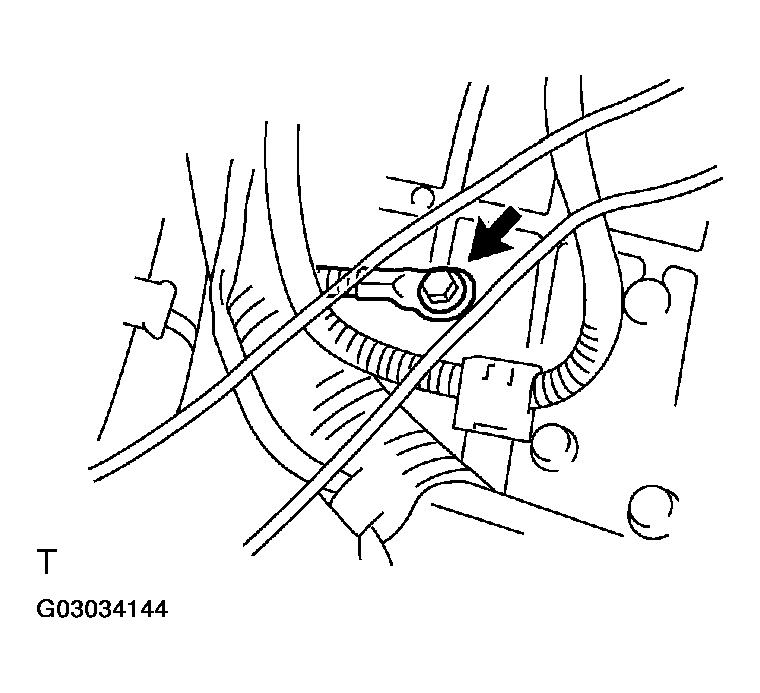

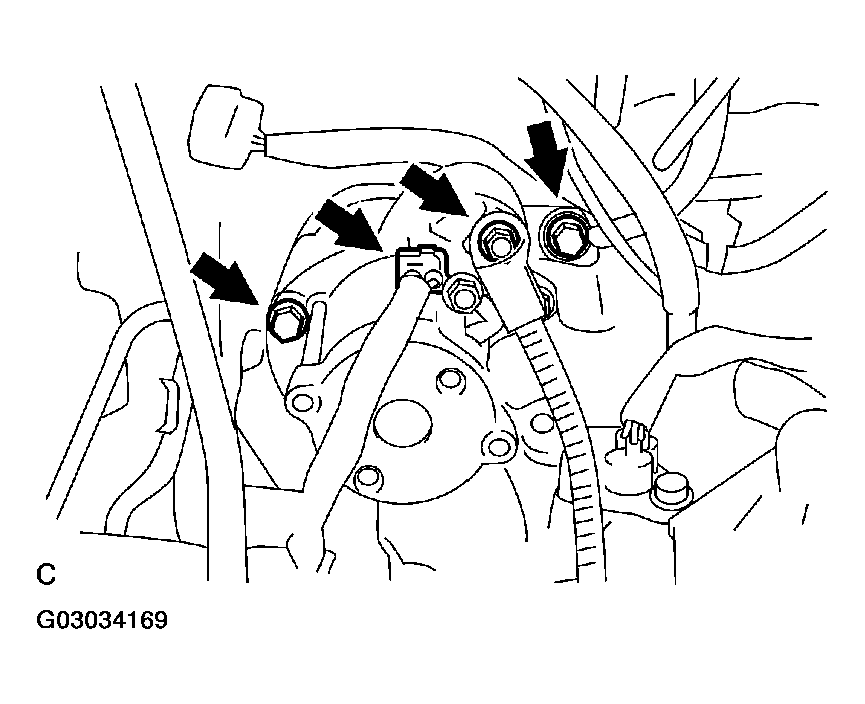

- Remove the nut and disconnect the starter wire.
- Disconnect the connector.
- Remove the 2 bolts and starter assy.
- DISCONNECT CONNECTOR

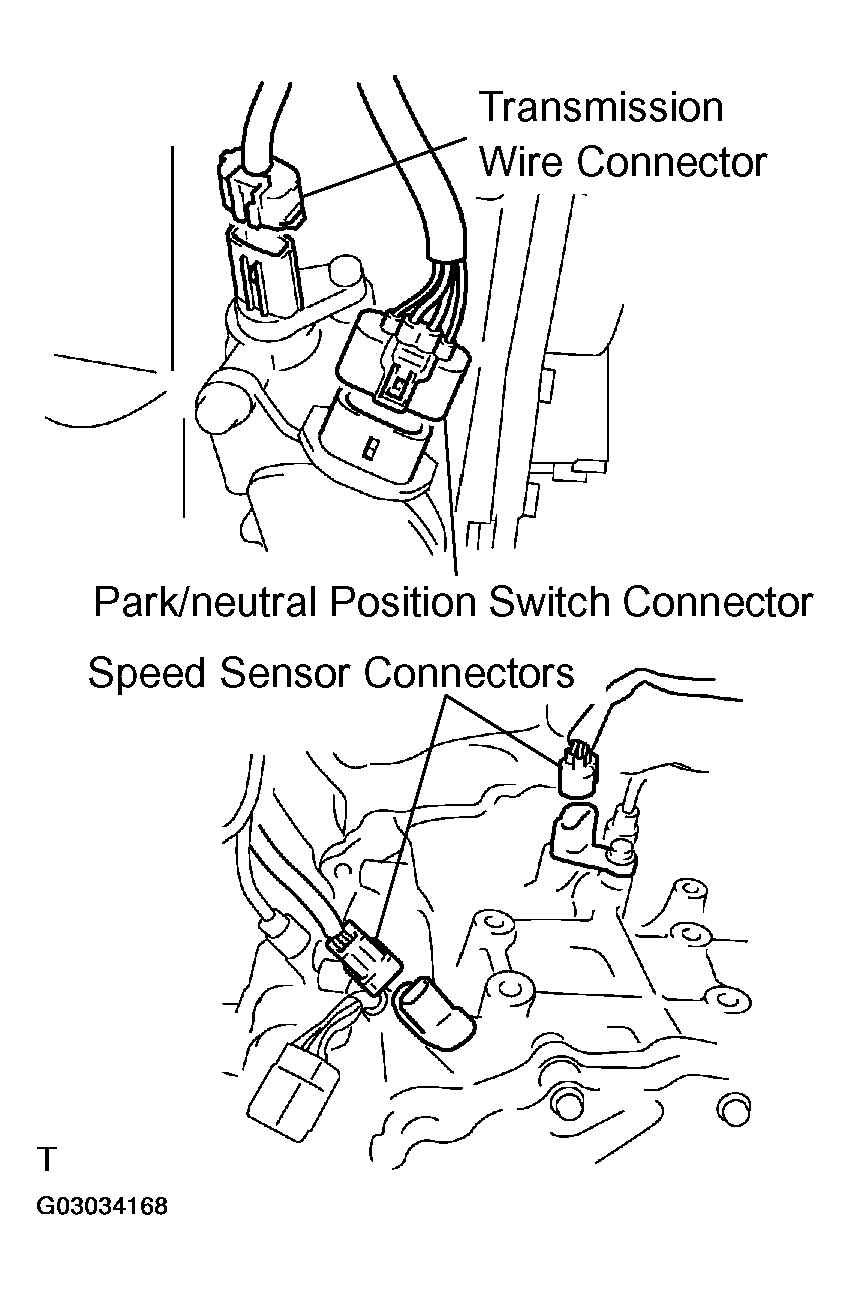

- Disconnect the transmission wire connector.
- Disconnect the park/neutral position switch connector.
- Disconnect the 2 speed sensor connectors.
- REMOVE TRANSMISSION CONTROL CABLE BRACKET NO.1

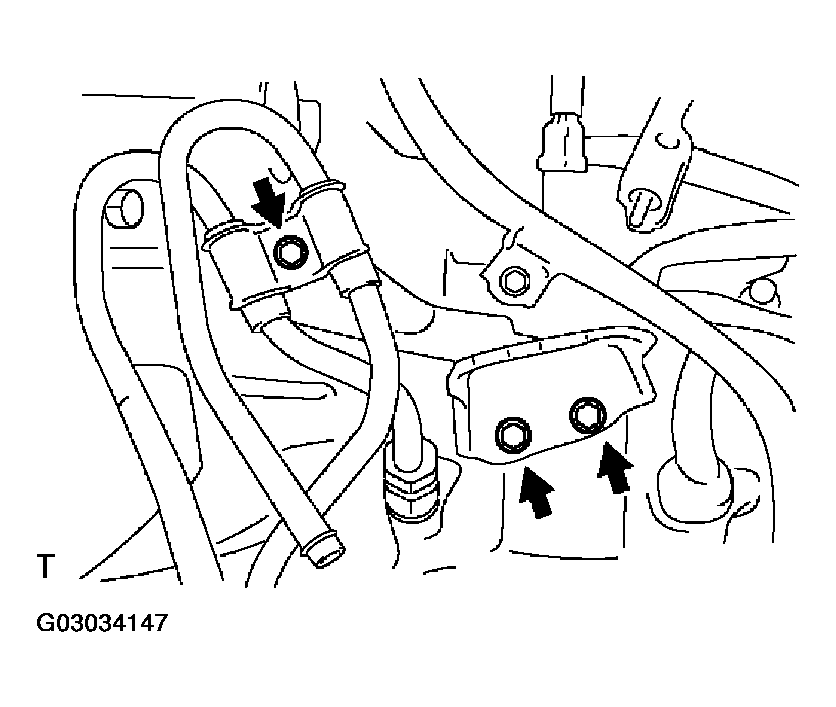

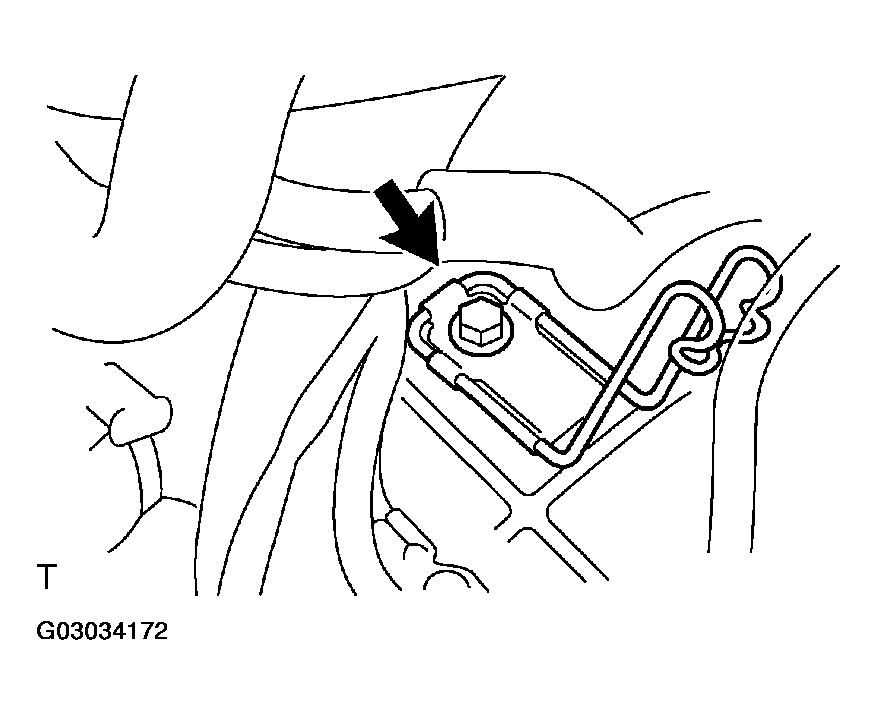

- Remove the bolt and automatic transmission oil cooler tube clamp.
- Remove the 2 bolts and transmission control cable bracket No.1.
- REMOVE TRANSMISSION OIL FILLER TUBE SUB-ASSY
- Remove the transmission oil level gauge sub-assy.

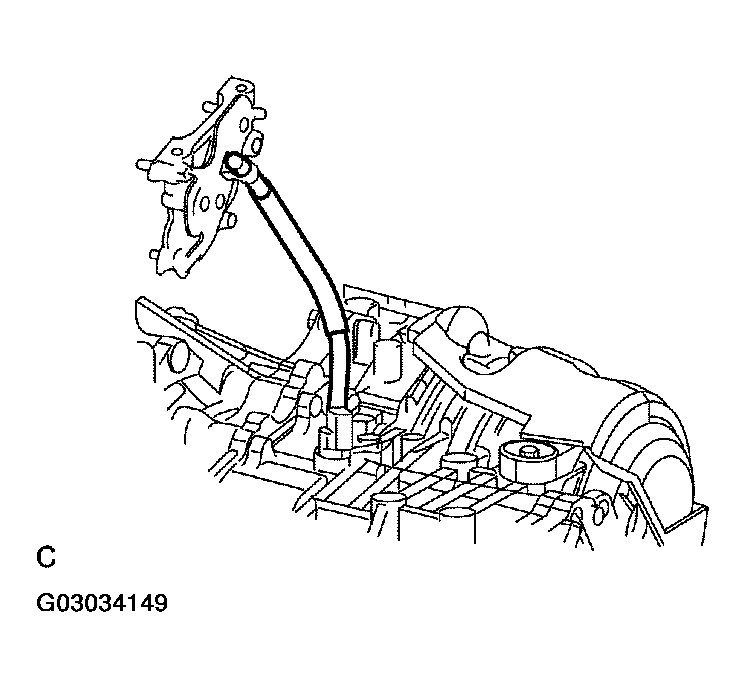

- Remove the bolt and transmission oil filler tube sub-assy.
- Remove the O-ring from the transmission oil filler tube sub-assy.
- Disconnect the breather hose from the wire harness bracket.
- REMOVE OIL COOLER INLET TUBE NO.1

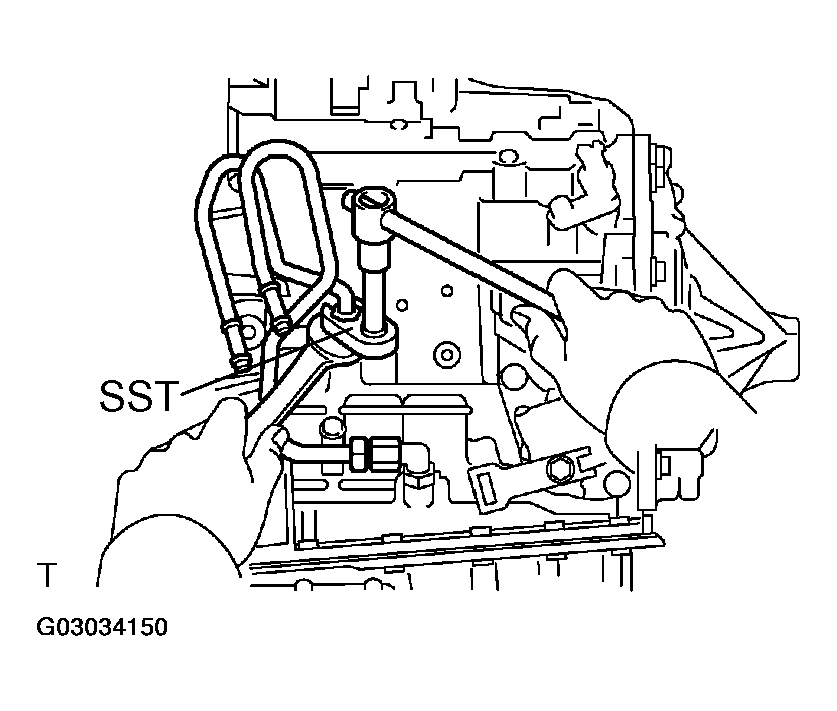

- Using SST and a spanner, disconnect the oil cooler inlet tube No.1.
SST 09023-12700
- Using SST and a spanner, disconnect the oil cooler inlet tube No.1.
- REMOVE OIL COOLER OUTLET TUBE NO.1

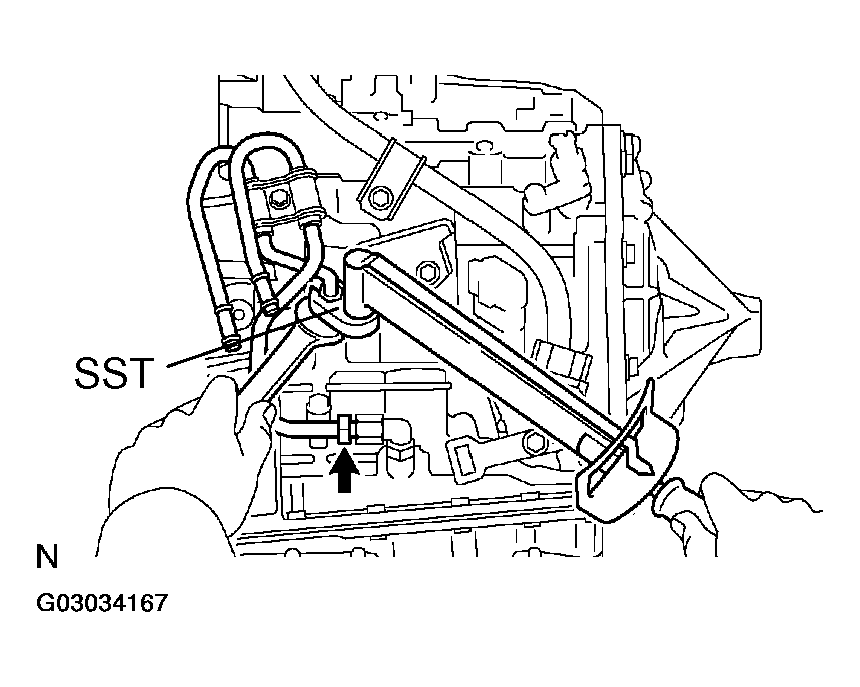

- Using SST and a spanner, disconnect the oil cooler outlet tube No.1.
SST 09023-12700
- Using SST and a spanner, disconnect the oil cooler outlet tube No.1.
- REMOVE ENGINE MOUNTING BRACKET FR
- Remove the 3 bolts and engine mounting bracket FR.
- REMOVE AUTOMATIC TRANSAXLE ASSY

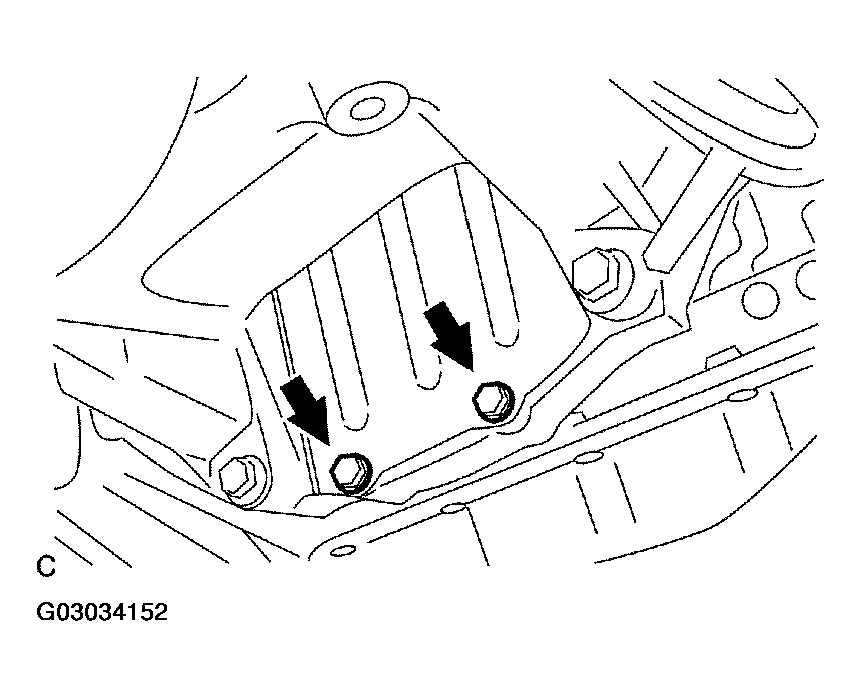

- Remove the 2 bolts and flywheel housing under cover.

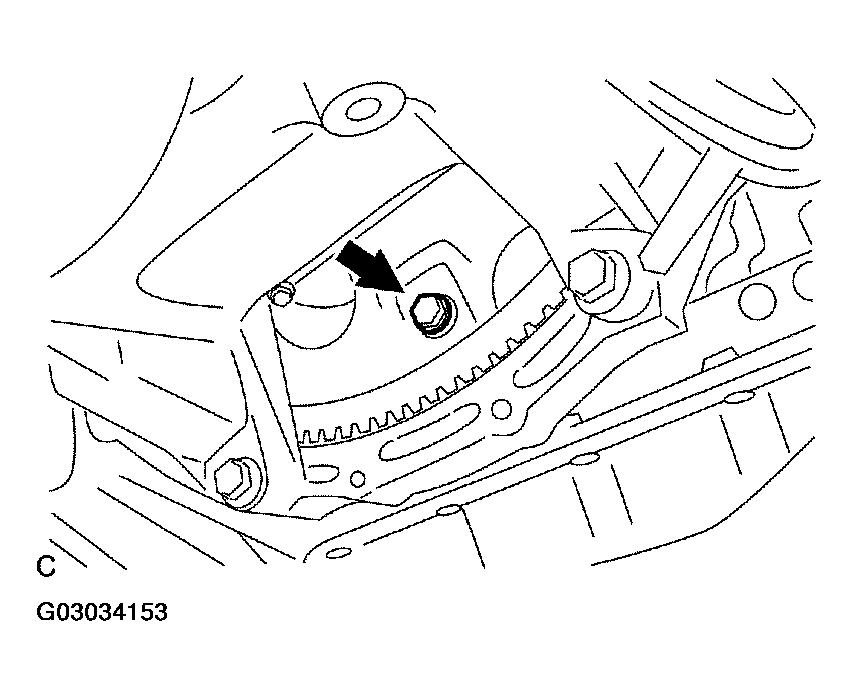

- Turn the crankshaft to gain access and remove the 6 bolts while holding the crankshaft pulley bolt with a wrench.
HINT:
There will be one green colored bolt.

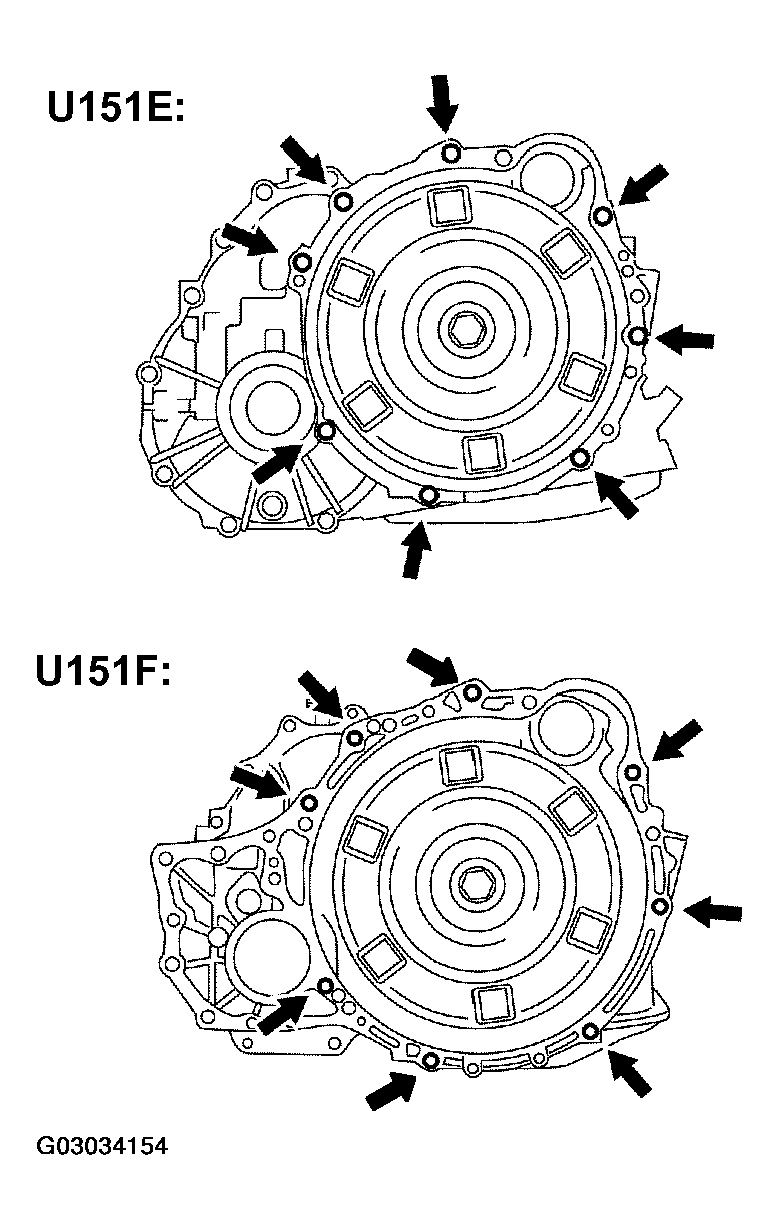

- Remove the 8 bolts.
- Separate and remove the automatic transaxle.
- REMOVE TRANSFER0STIFFENER PLATE RH (4WD DRIVE TYPE)

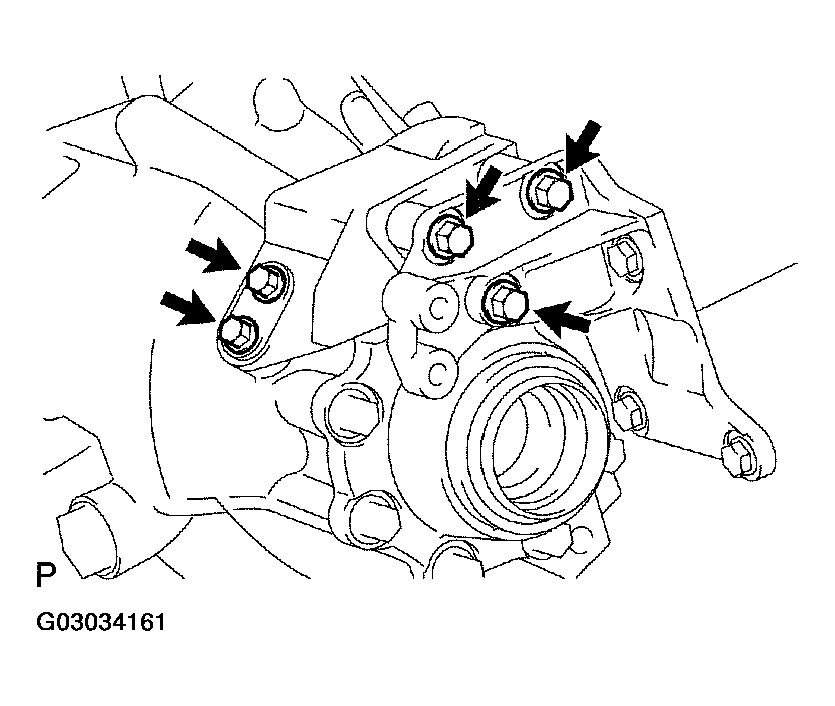

- Remove the 5 bolts and transfer0stiffener plate RH.
- REMOVE TRANSFER ASSY (4WD DRIVE TYPE) (See OVERHAUL )
- REMOVE TORQUE CONVERTER CLUTCH ASSY
- INSPECT TORQUE CONVERTER CLUTCH ASSY (See
AUTOMATIC TRANSAXLE FLUID (ATM)
)
SST 09350-32014 (09351-32010, 09351-32020)
- INSTALL TORQUE CONVERTER CLUTCH ASSY
- Install the torque converter clutch to the automatic transaxle.

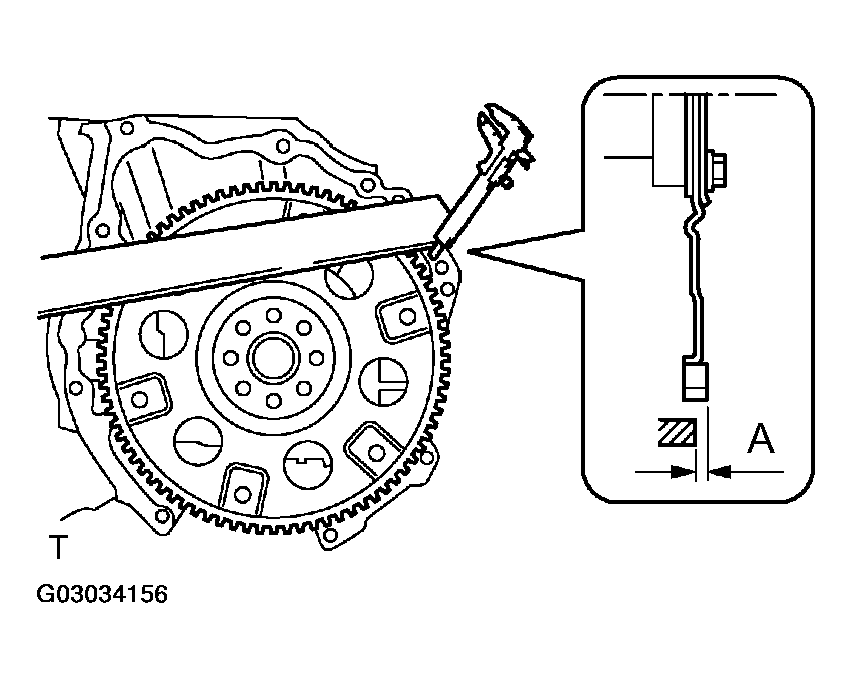

- Using vernier calipers and a straight edge, measure the dimension "A" between the transaxle fitting part of the engine and the converter fitting part of the drive plate.

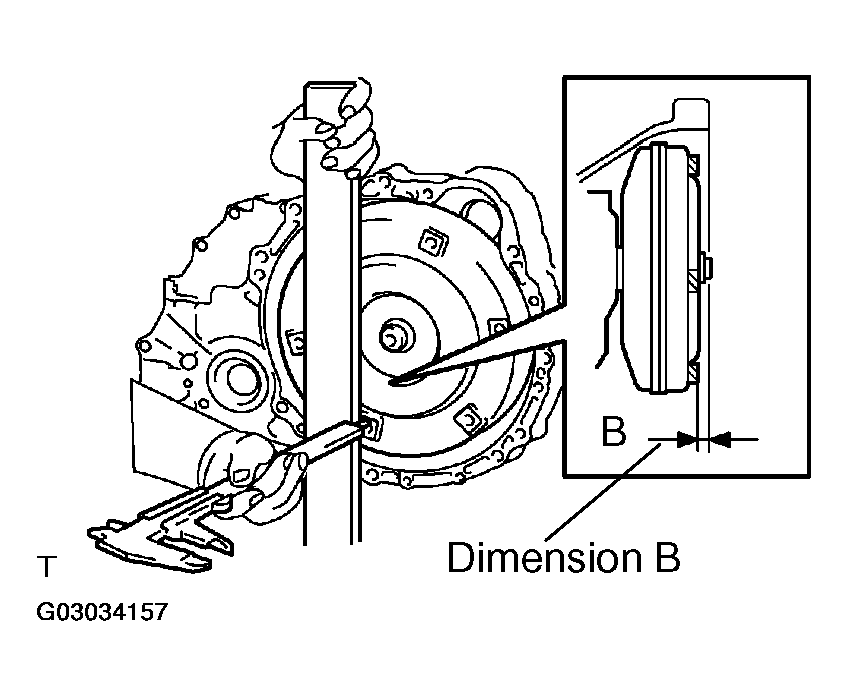

- Using vernier calipers and a straight edge, measure the dimension "B" shown in the illustration and check that "B" is greater than "A", previously measured. See step 20 (b).
Standard: A + 1 mm or more
NOTE: Remember to minus the thickness of the straight edge. - INSTALL TRANSFER ASSY (4WD DRIVE TYPE) (See OVERHAUL ).
- INSTALL AUTOMATIC TRANSMISSION W/TRANSFER

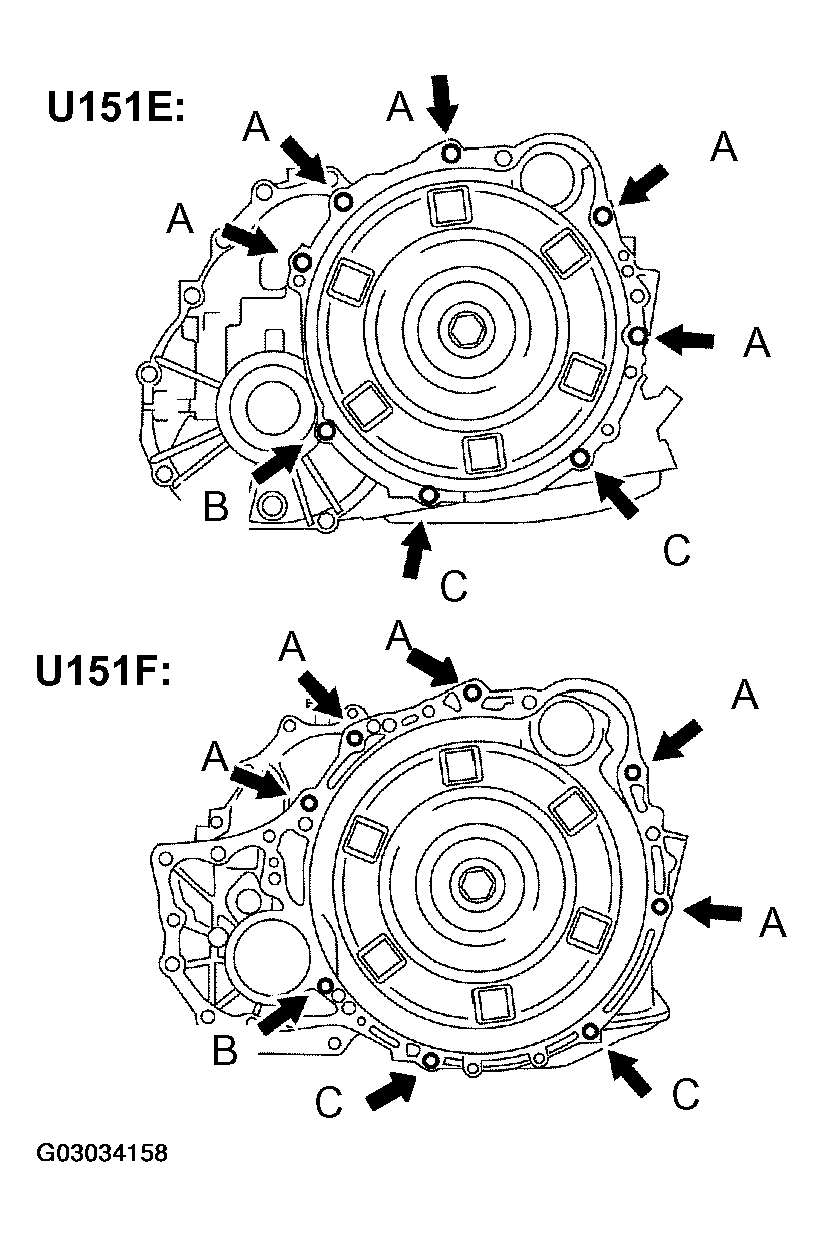

- Install the automatic transaxle w/ transfer with the 8 bolts to the engine.
Torque:
Bolts A: 64 N.m (650 kgf°Cm, 47 ft.lbf)
Bolt B: 46 N.m (470 kgf°Cm, 34 ft.lbf)
Bolts C: 37 N.m (377 kgf°Cm, 27 ft.lbf)
- Apply a few drops of adhesive to each of 2 threads on the tip of the 6 torque converter clutch mounting bolts.
Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent
- Install the 6 torque converter clutch mounting bolts.
Torque: 41 N.m (418 kgf°Cm, 30 ft.lbf)
HINT:

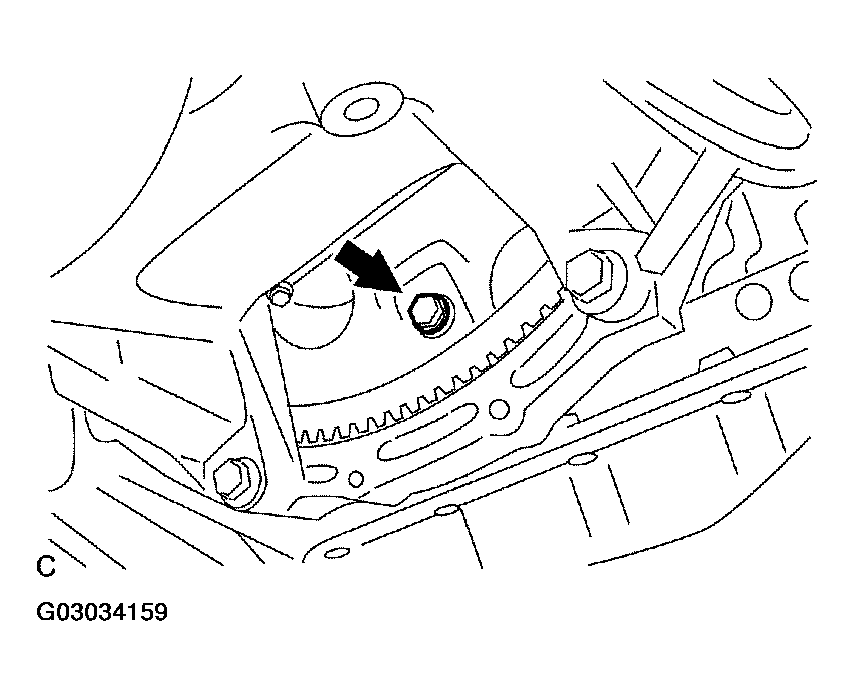

First install the green colored bolt and then the remaining 5 bolts.
- Install the flywheel housing under cover to the automatic transaxle with the 2 bolts.
Torque: 7.8 N.m (80 kgf°Cm, 69 in.lbf)
- Install the automatic transaxle w/ transfer with the 8 bolts to the engine.
- INSTALL TRANSFER0STIFFENER PLATE RH (4WD DRIVE TYPE)
- Install the transfer0stiffener plate RH with 5 bolts to the transfer and engine mounting bracket RR.
Torque: 34 N.m (350 kgf°Cm, 25 ft.lbf)
- Install the transfer0stiffener plate RH with 5 bolts to the transfer and engine mounting bracket RR.
- INSTALL ENGINE MOUNTING BRACKET FR
- Install the engine mounting bracket FR and 3 bolts to the automatic transaxle.
Torque: 64 N.m (653 kgf°Cm, 47 ft.lbf)
- Install the engine mounting bracket FR and 3 bolts to the automatic transaxle.
- INSTALL TRANSMISSION OIL FILLER TUBE SUB-ASSY
- Coat a new O-ring with ATF, and install it to the transmission oil filler tube sub-assy.
- Install the transmission oil filler tube sub-assy and bolt to the automatic transaxle.
Torque: 5.5 N.m (56 kgf°Cm, 49 in..lbf)
- Install the transmission oil level gauge sub-assy.NOTE:
- The breather hose should be on the left side of the vehicle.
- Connect the breather hose to the wire harness bracket.
- INSTALL TRANSMISSION CONTROL CABLE BRACKET NO.1
- Install the transmission control cable bracket No.1 and 2 bolts.
Torque: 12 N.m (122 kgf°Cm, 9 ft.lbf)
- Install the transmission control cable bracket No.1 and 2 bolts.
- INSTALL OIL COOLER INLET TUBE NO.1
- Temporarily install the oil cooler outlet tube No.1.

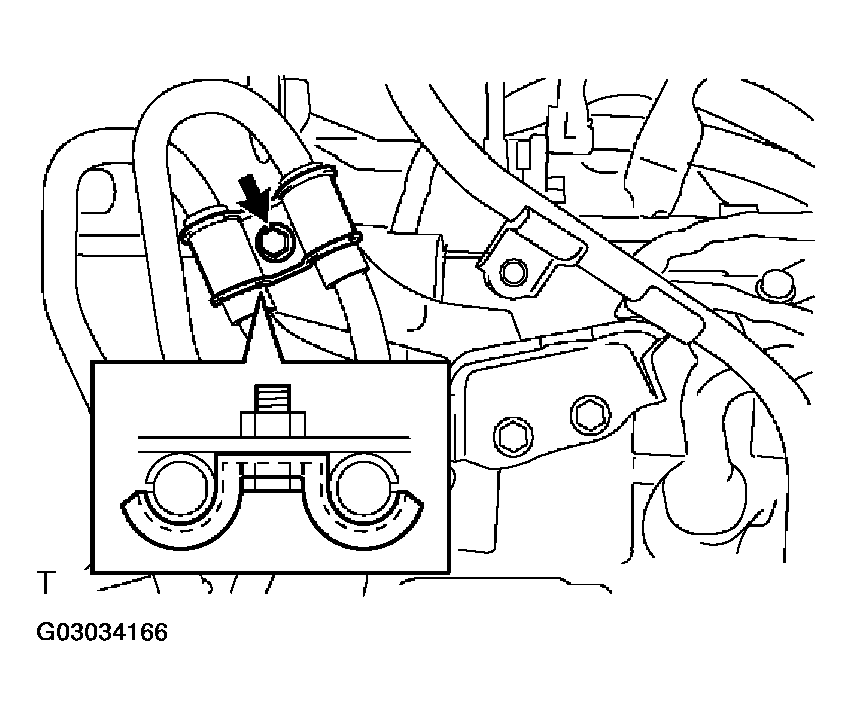

- Temporarily install the oil cooler inlet tube No.1.
- Install the automatic transmission oil cooler tube clamp and bolt.
Torque: 5.4 N.m (55 kgf°Cm, 48 in..lbf)
HINT:
Install the automatic transmission oil cooler tube clamp and bolt so that the oil cooler tube cushion is positioned as illustrated.
- Using SST and a spanner, tighten the oil cooler inlet tubeNo.1.
SST 09023-12700
Torque: 34 N.m (347 kgf°Cm, 25 ft.lbf)
- INSTALL OIL COOLER OUTLET TUBE NO.1
- Using SST and a spanner, tighten the oil cooler outlet tube No.1.
Torque: 34 N.m (347 kgf°Cm, 25 ft.lbf)
SST 09023-12700
- Using SST and a spanner, tighten the oil cooler outlet tube No.1.
- CONNECT CONNECTOR
- Connect the transmission wire connector.
- Connect the park/neutral position switch connector.
- Connect the 2 speed sensor connectors.
- INSTALL STARTER ASSY
- Install the starter assy and 2 bolts.
Torque: 37 N.m (377 kgf°Cm, 27 ft.lbf)
- Connect the connector.
- Install the starter wire and nut.
Torque: 9.8 N.m (100 kgf°Cm, 87 in..lbf)
- Install the starter assy and 2 bolts.
- INSTALL WIRE HARNESS
- Install the wire harness and bolt.
Torque: 13 N.m (130 kgf°Cm, 9 ft.lbf)
- Install the wire harness and bolt.
- INSTALL WIRE HARNESS CLAMP
- Install the 2 clamps and 3 bolts.
Torque: 8.4 N.m (86 kgf°Cm, 74 in..lbf)
- Connect the wire harnesses to the clamps
- Install the 2 clamps and 3 bolts.
- INSTALL TRANSMISSION CONTROL CABLE BRACKET NO.2
- Install the transmission control cable bracket No.2 with the bolt.
Torque: 12 N.m (122 kgf°Cm, 9 ft.lbf)
- Install the transmission control cable bracket No.2 with the bolt.
- INSTALL FRONT DRIVE SHAFT ASSY LH (See REMOVAL & INSTALLATION )
- INSTALL FRONT DRIVE SHAFT ASSY RH (2WD DRIVE TYPE) (See REMOVAL & INSTALLATION )
- INSTALL FRONT DRIVE SHAFT ASSY RH (4WD DRIVE TYPE) (See REMOVAL & INSTALLATION )
- INSTALL ENGINE ASSEMBLY WITH TRANSAXLE (See REPLACEMENT )
- RESET MEMORY (see INITIALIZATION )
- PERFORM INITIALIZATION (See IDENTIFICATION INFORMATION )
