Automatic Transmission Assembly - U151E/U151F: Components

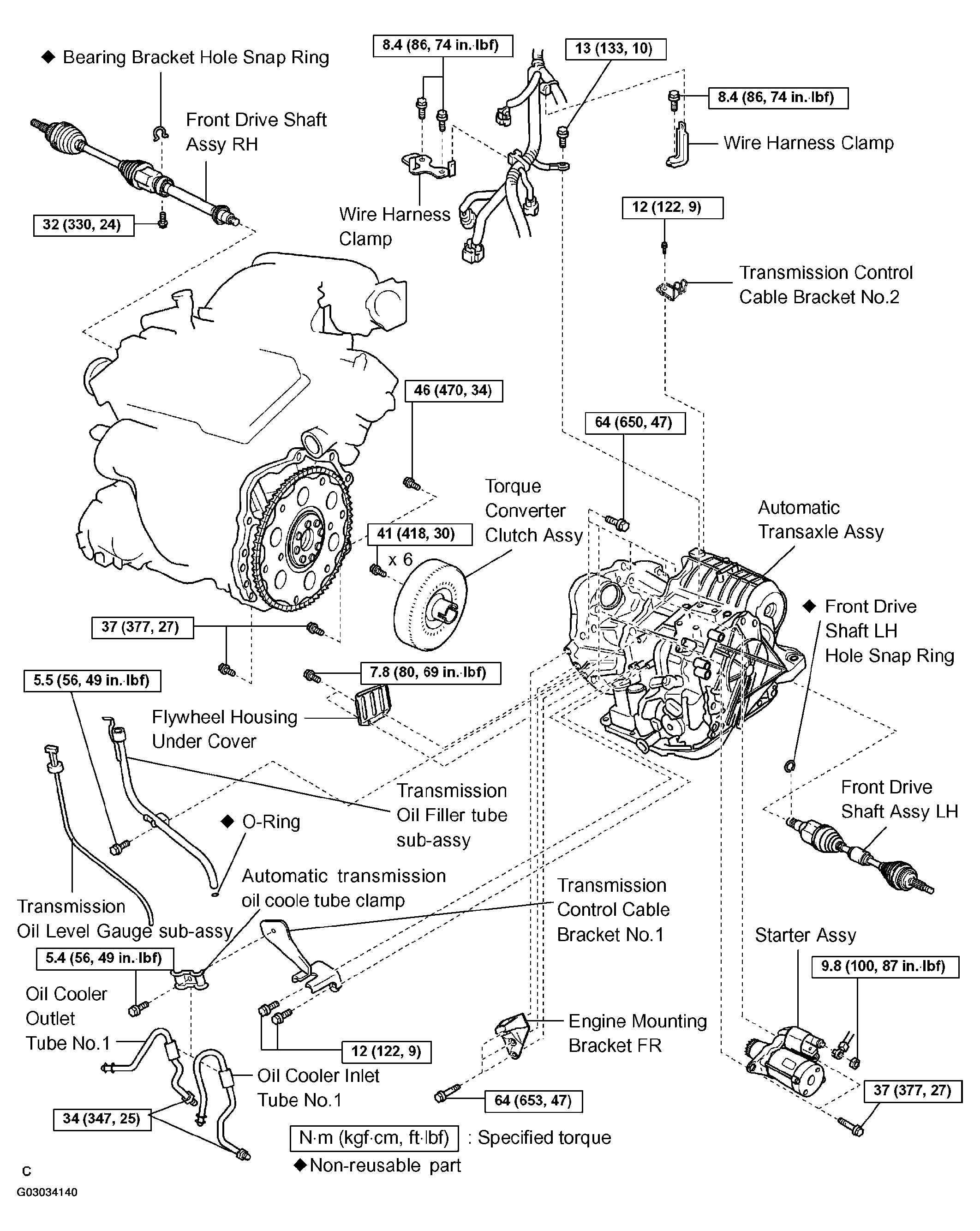

Fig 1: Identifying Automatic Transaxle Assy Components (U151E/U151F) (1 Of 2)
G03034140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

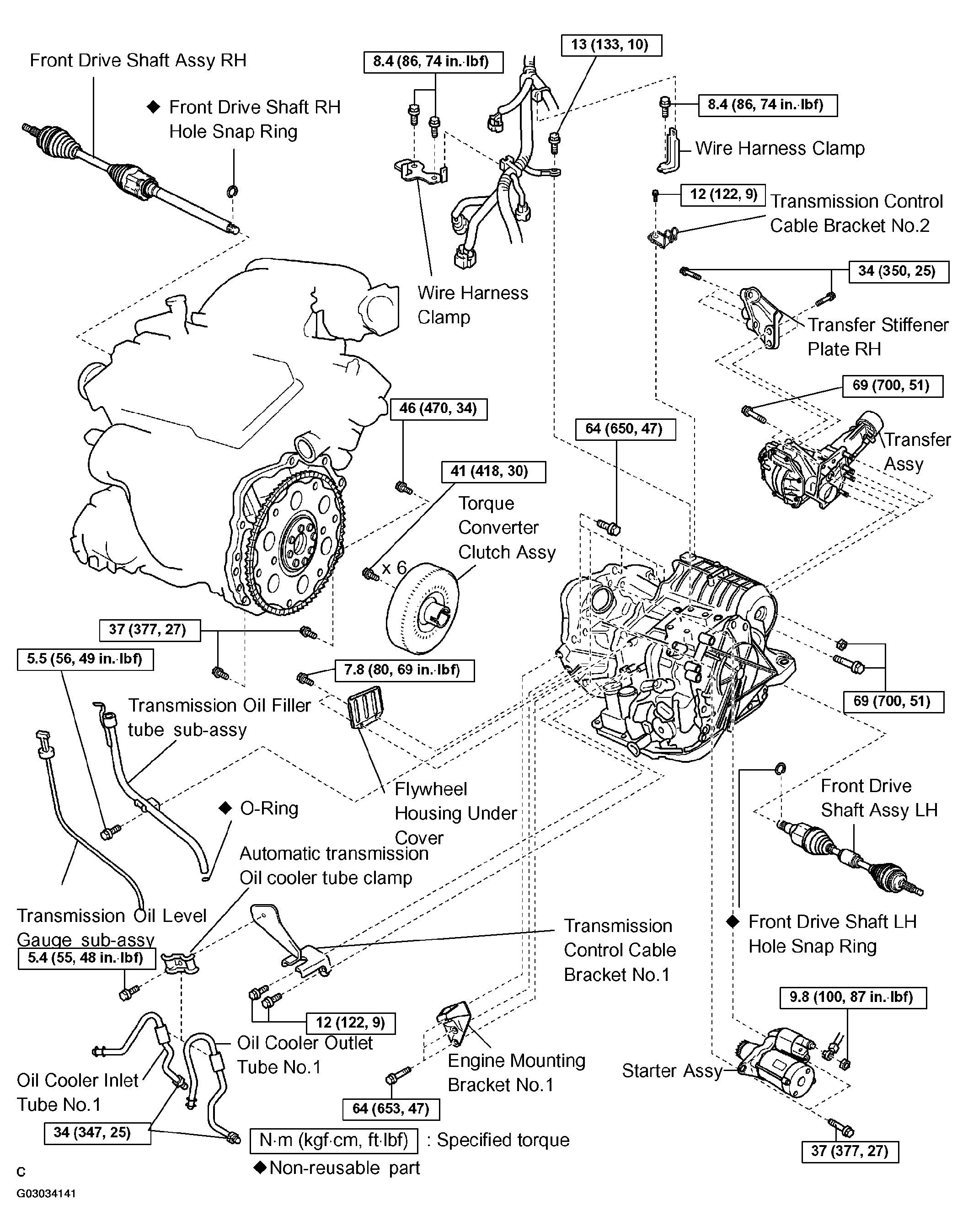

Fig 2: Identifying Automatic Transaxle Assy Components (U151E/U151F) (2 Of 2)
G03034141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
