Exploded View

WARNING: This page is about a different car, the 2013 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

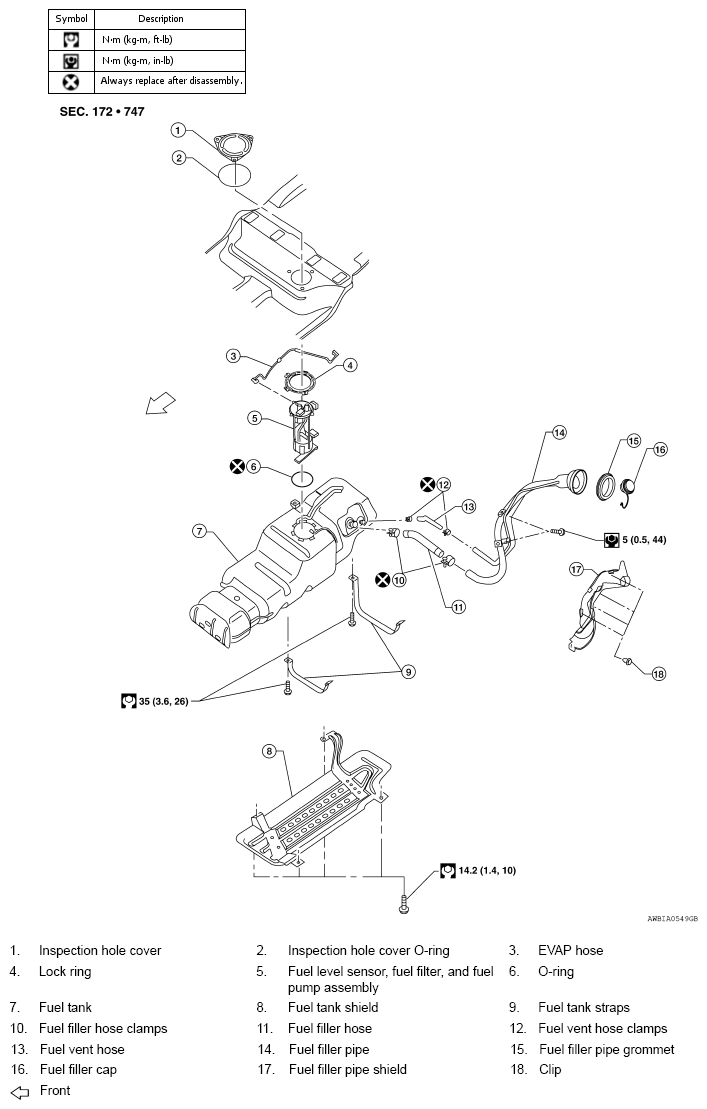

Fig 1: Exploded View Of Fuel Tank With Torque Specifications
G08693902Courtesy of NISSAN NORTH AMERICA, INC.
