Fuel Tank ASSY (2AZ-FE): Components

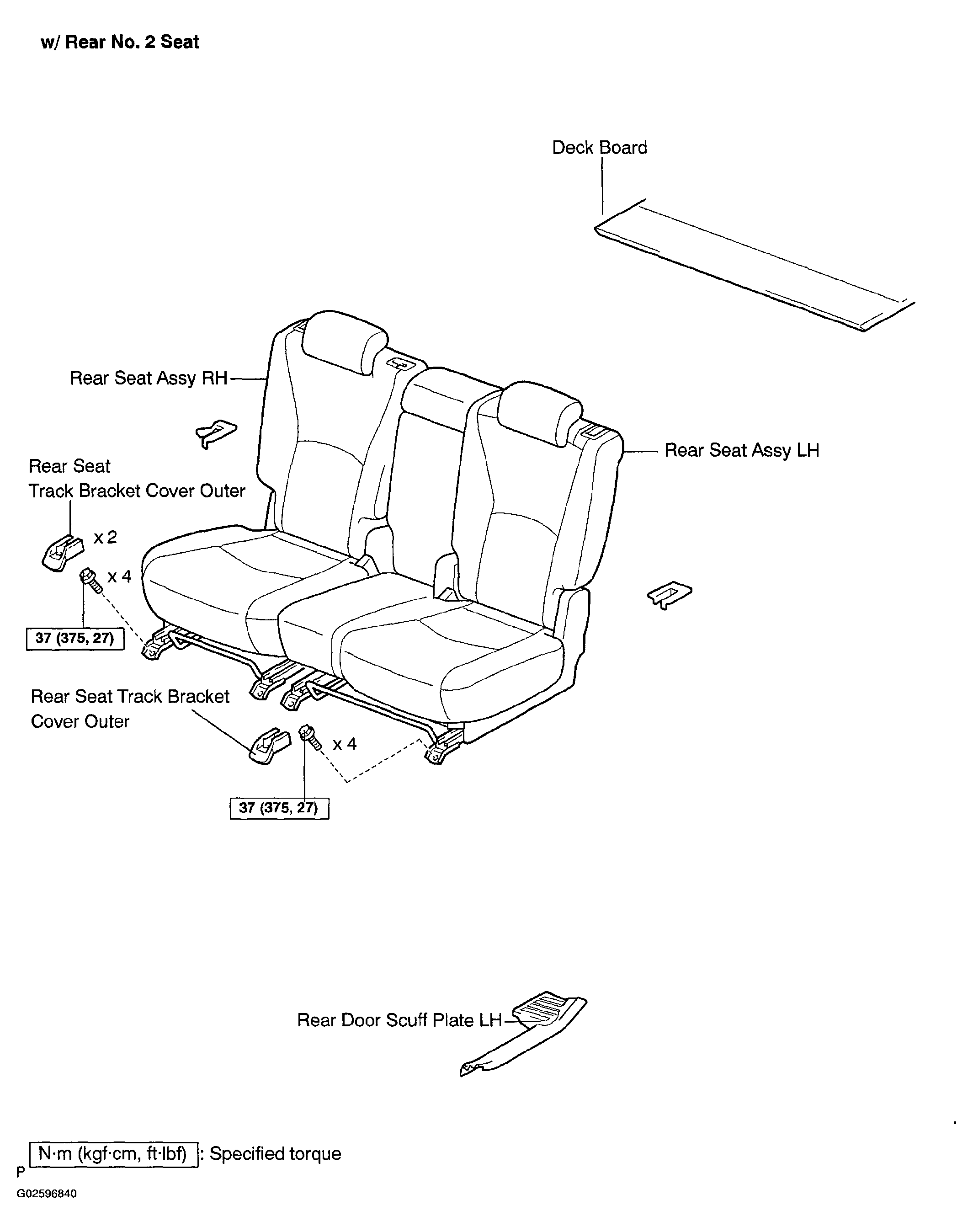

Fig 1: Identifying Fuel Tank Assy Components (2AZ-FE) (1 Of 6)
G02596840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

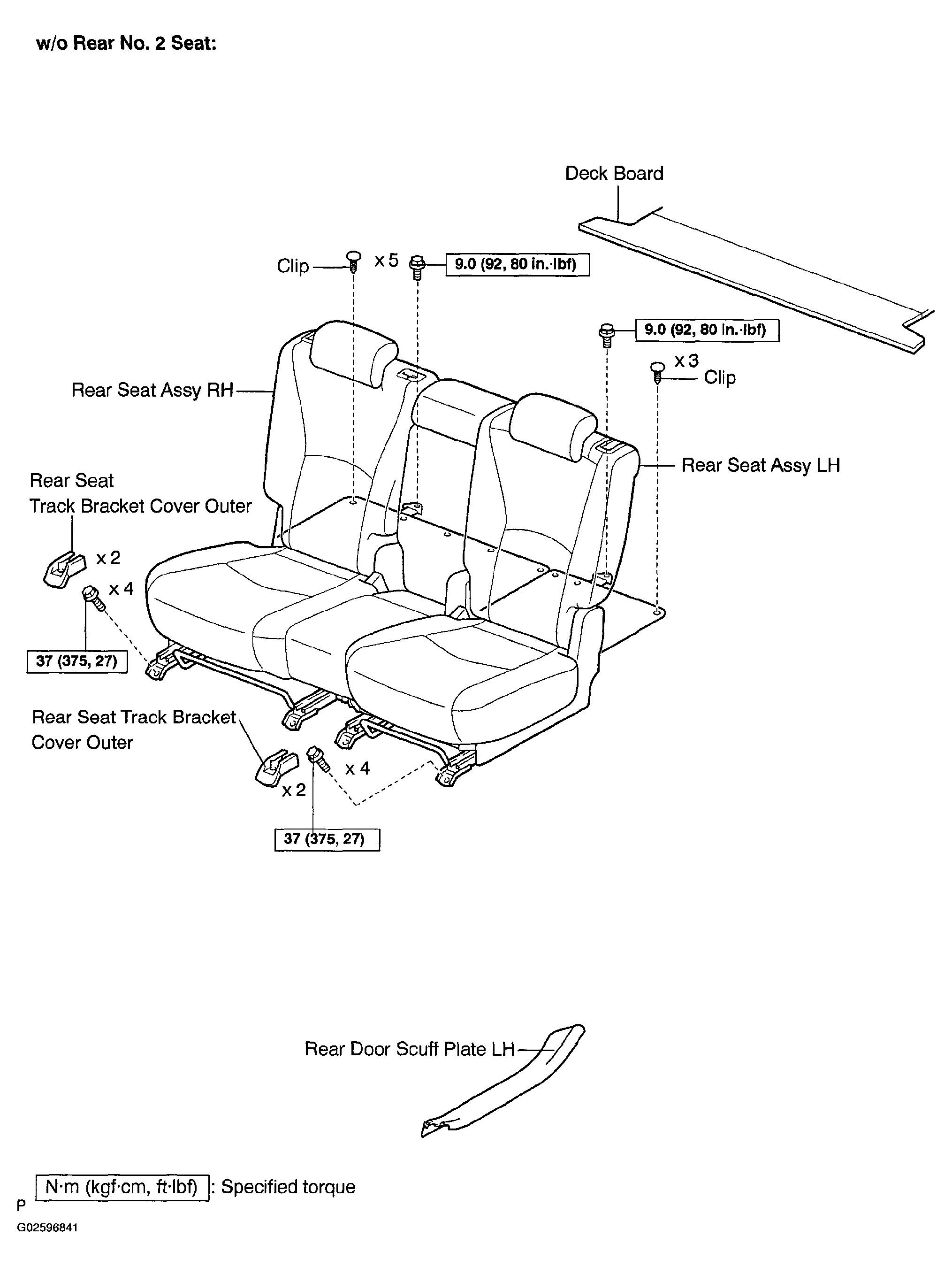

Fig 2: Identifying Fuel Tank Assy Components (2AZ-FE) (2 Of 6)
G02596841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

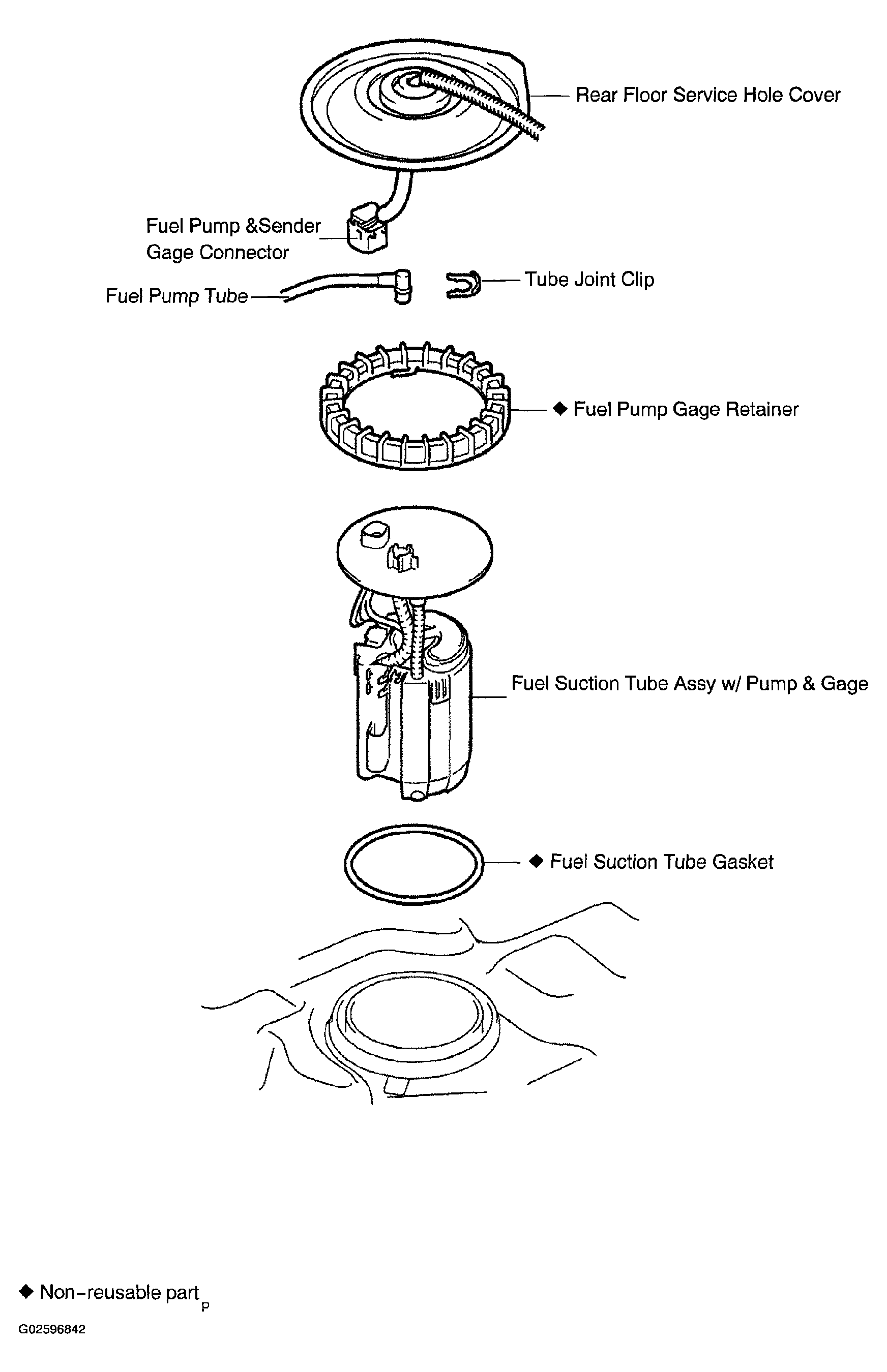

Fig 3: Identifying Fuel Tank Assy Components (2AZ-FE) (3 Of 6)
G02596842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

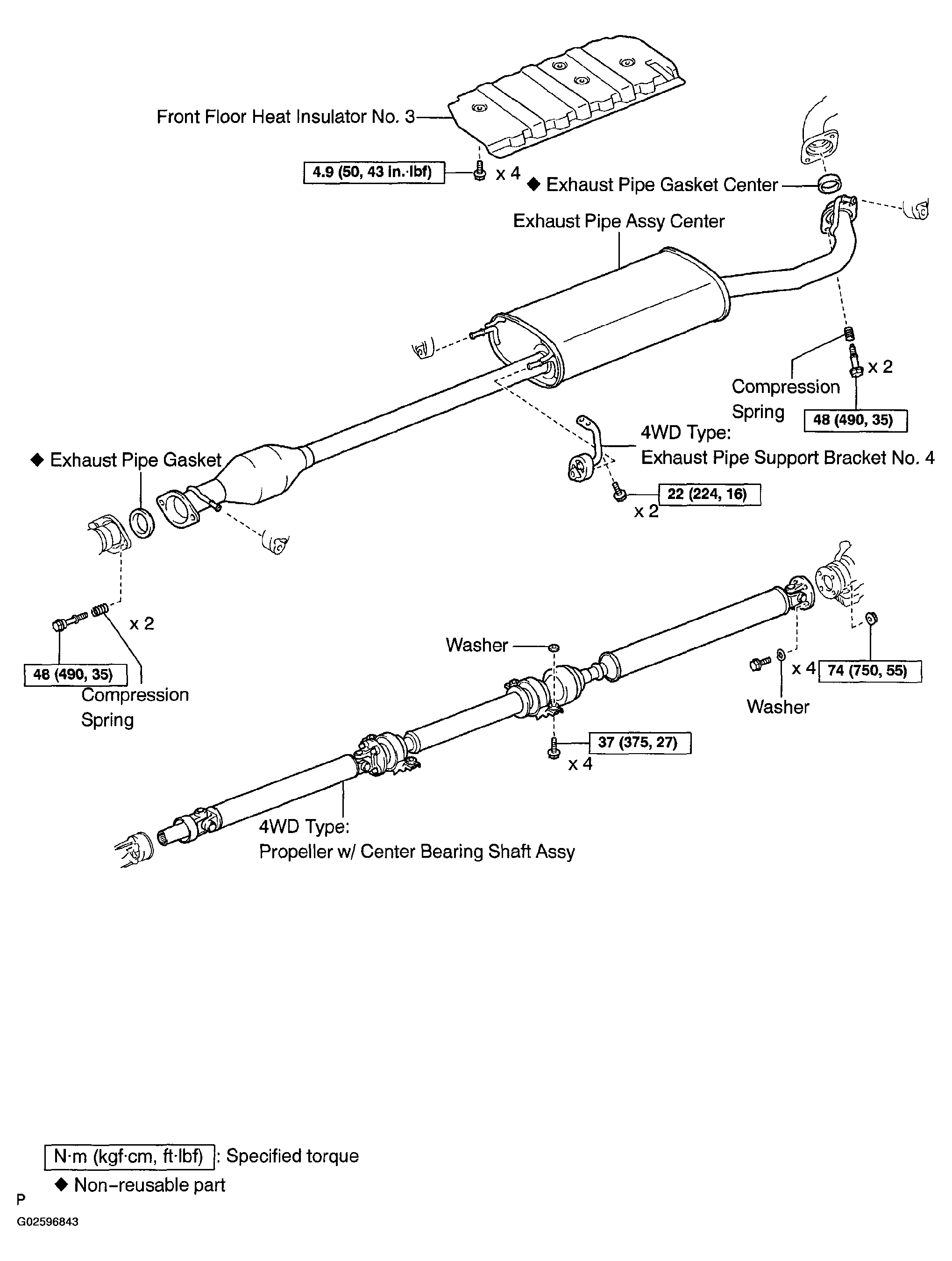

Fig 4: Identifying Fuel Tank Assy Components (2AZ-FE) (4 Of 6)
G02596843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

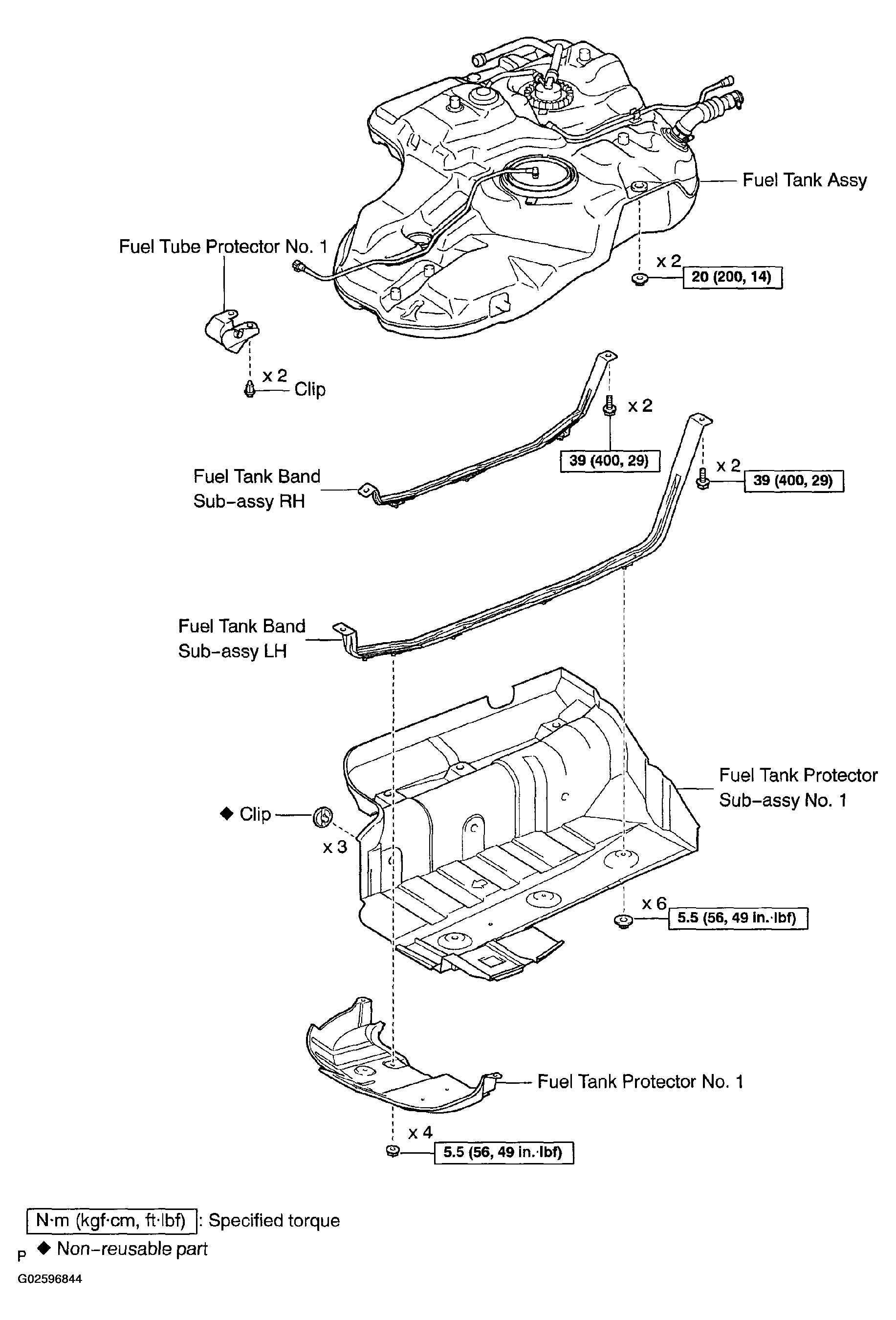

Fig 5: Identifying Fuel Tank Assy Components (2AZ-FE) (5 Of 6)
G02596844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

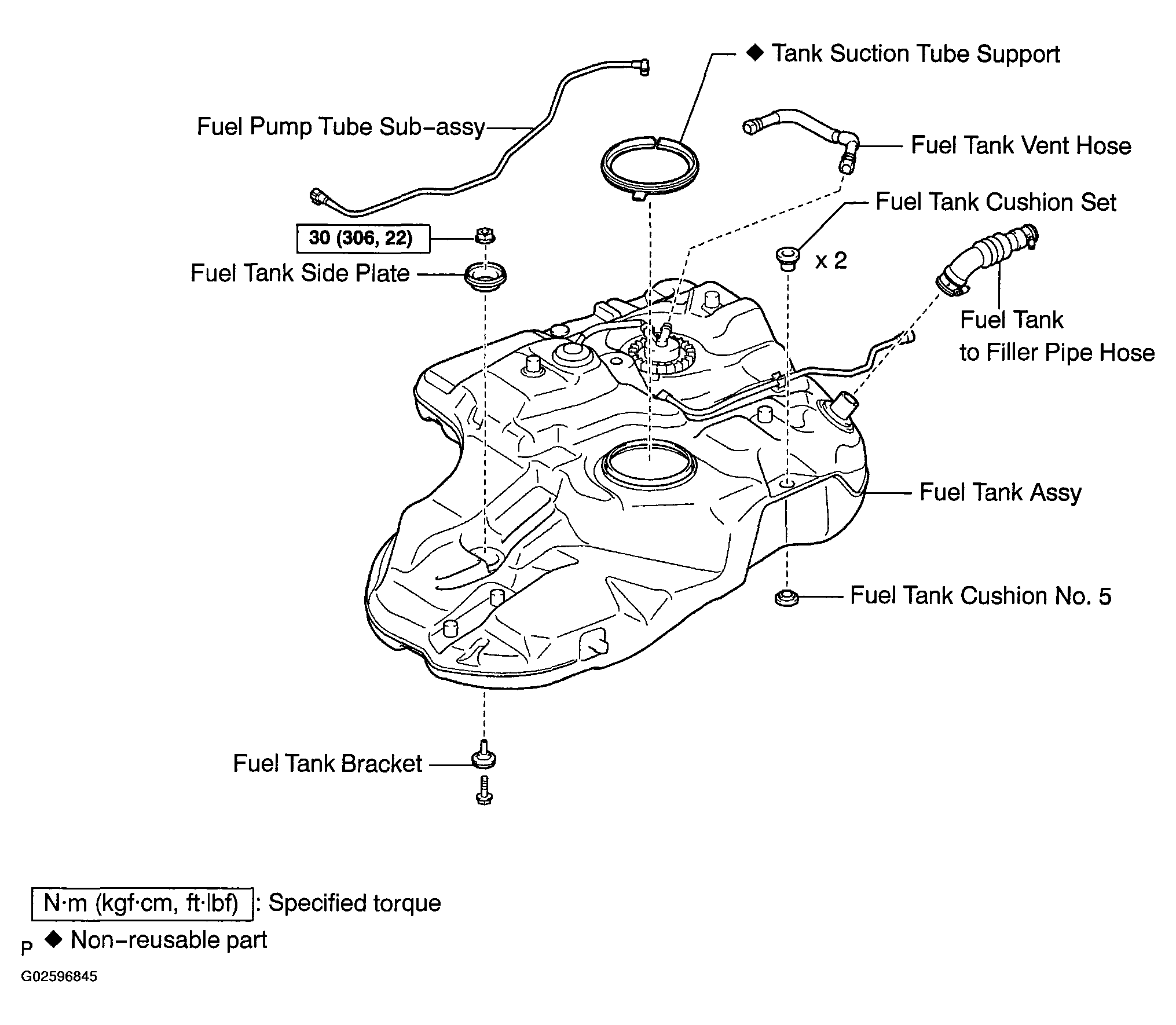

Fig 6: Identifying Fuel Tank Assy Components (2AZ-FE) (6 Of 6)
G02596845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
