On-Vehicle Inspection

CHECK FUEL PUMP OPERATION AND FUEL LEAKS
1. When using the hand-held tester:
  Check fuel pump operation.
  1. Connect the hand-held tester to the DLC3.
  2. Turn the ignition switch ON and push the hand-held tester main switch ON.
    NOTE: Do not start the engine.
  3. Select the ACTIVE TEST mode on the hand-held tester.
  4. Please refer to the hand-held tester's instruction manual for further details.
  5. Turn the ignition switch OFF.
  6. Disconnect the hand-held tester from the DLC3.
2. When not using the hand-held tester:
  Check fuel pump operation.
  1. Remove the circuit opening relay from the R/B sub-assy.
  2. Using a service wire, connect terminals FP and +B of the R/B sub-assy.

    Fig 1: Removing Circuit Opening Relay From R/B Sub-Assy
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE: Pay close attention to the terminal connecting position to avoid a malfunction.
  3. Turn the ignition switch ON and check that the fuel pump operates.
  NOTE: Do not start the engine.
3. Check that there are no fuel leaks after doing maintenance anywhere on the fuel system.
4. Turn the ignition switch OFF.
5. Remove the service wire from the R/B sub-assy.
6. Install the circuit opening relay to the R/B sub-assy.
Fig 2: Identifying Fuel Tube Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK FUEL PRESSURE
1. Check that the battery positive voltage is above 12 V.
2. Disconnect the negative (-) terminal cable from the battery.
3. Purchase a new fuel tube and take out the fuel tube connector from its pipe.
  Fuel tube: Part No. 23801-20180
4. Remove the fuel pipe clamp No. 1 from the fuel tube connector.

  Fig 3: Removing Fuel Pipe Clamp No. 1 From Fuel Tube Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disconnect the fuel tube connector from the fuel pipe by pinching part A with fingers, as shown in the illustration.
  CAUTION:
  - Always read the precautions (see FUEL SYSTEM (3MZ-FE) ) before disconnecting the fuel tube connector (quick type).
  - The fuel pipe line may spray fuel as a result of retained pressure that remains in it. Do not allow fuel to be sprayed in the engine compartment.
  Fig 4: Disconnecting Fuel Tube Connector From Fuel Pipe
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install SST (pressure gauge) and fuel tube connector using SST as shown in the illustration.
  SST 09268-41047, 09268-45014 (09268-41250)
7. Wipe up any gasoline.
8. Reconnect the negative (-) battery cable.
9. When using the hand-held tester:
  Operate the fuel pump (see step 1 (a)).
10. When not using the hand-held tester:
  Operate the fuel pump (see step 1 (b)).
11. Measure the fuel pressure.

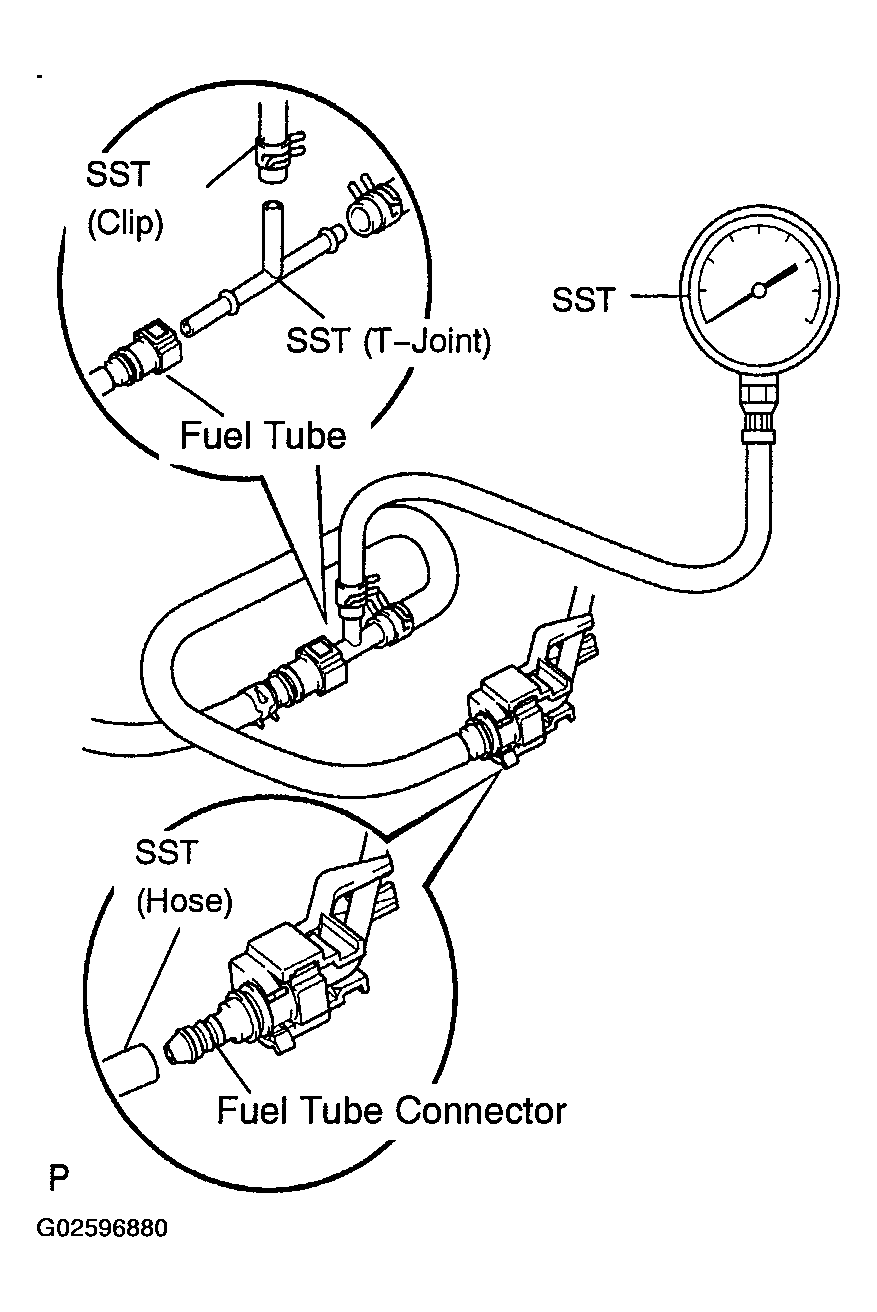

  Fig 5: Installing SST (Pressure Gauge) And Fuel Tube Connector Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fuel pressure:

  304 to 343 kPa (3.1 to 3.5 kgf/cm ² , 44 to 50 psi)

  If the pressure is high, replace the fuel pressure regulator. If the pressure is low, check the fuel hoses and connections, fuel pump, fuel filter and fuel pressure regulator.
12. Start the engine.
13. Measure the fuel pressure at idle.
  Fuel pressure:

  304 to 343 kPa (3.1 to 3.5 kgf/cm ² , 44 to 50 psi)
14. Stop the engine.
15. Check that the fuel pressure remains as specified for 5 minutes after the engine has stopped.
  Fuel pressure: 147 kPa (1.5 kgf/cm ² , 21 psi)

  If the pressure is not as specified, check the fuel pump, pressure regulator and/or injectors.
16. After checking the fuel pressure, disconnect the negative (-) battery cable and carefully remove SST and fuel tube connector to prevent gasoline from spraying.
17. Reconnect the fuel inlet tube (fuel tube connector).
CAUTION: Always read the precautions (see FUEL SYSTEM (3MZ-FE) ) before connecting the fuel tube connector (quick type).
