Fuel Pump ASSY (2AZ-FE): Components

Fig 1: Identifying Fuel Pump Assy Components (2AZ-FE) (1 Of 4)
G02596814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Pump Assy Components (2AZ-FE) (2 Of 4)
G02596815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

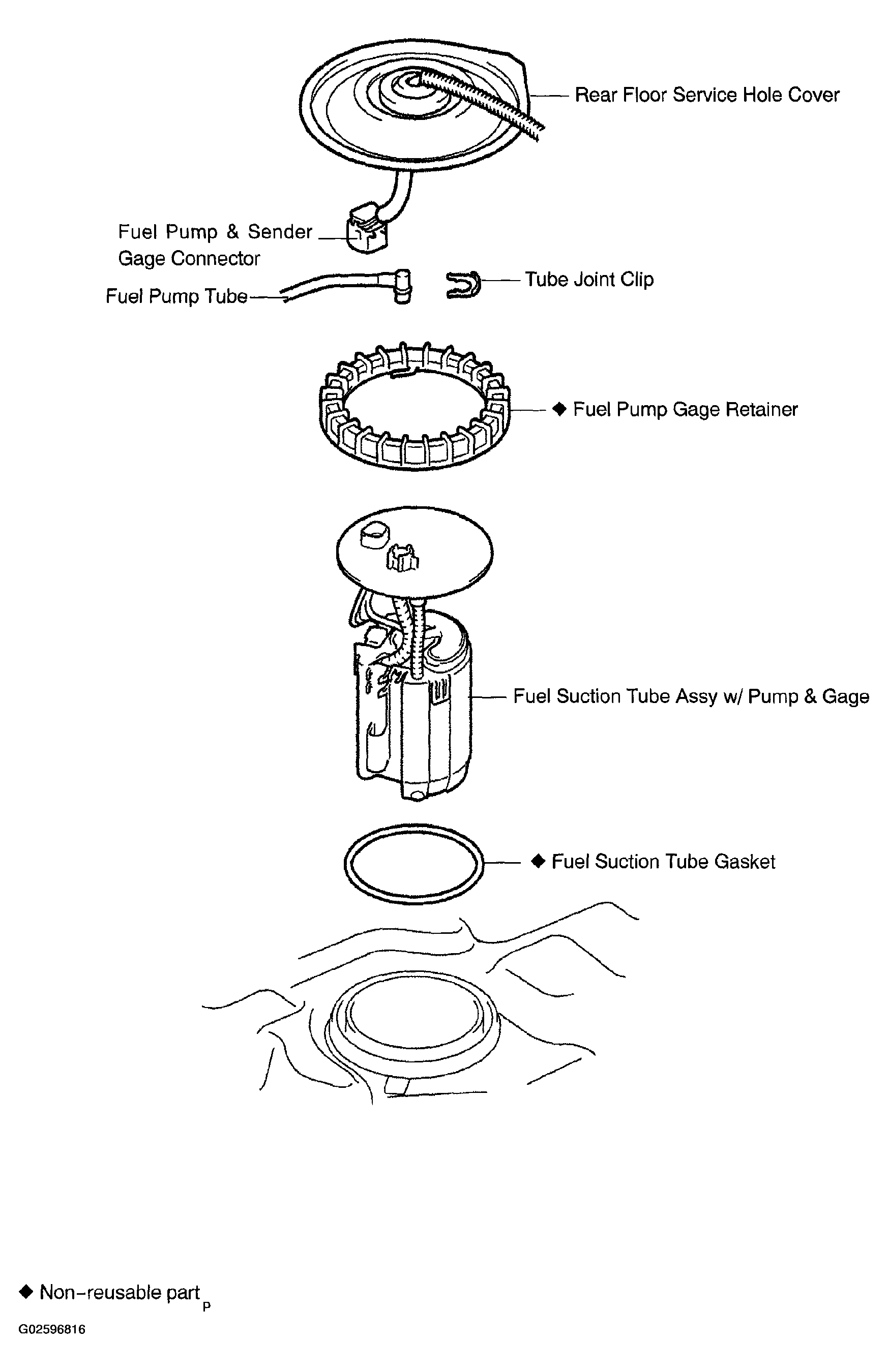

Fig 3: Identifying Fuel Pump Assy Components (2AZ-FE) (3 Of 4)
G02596816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

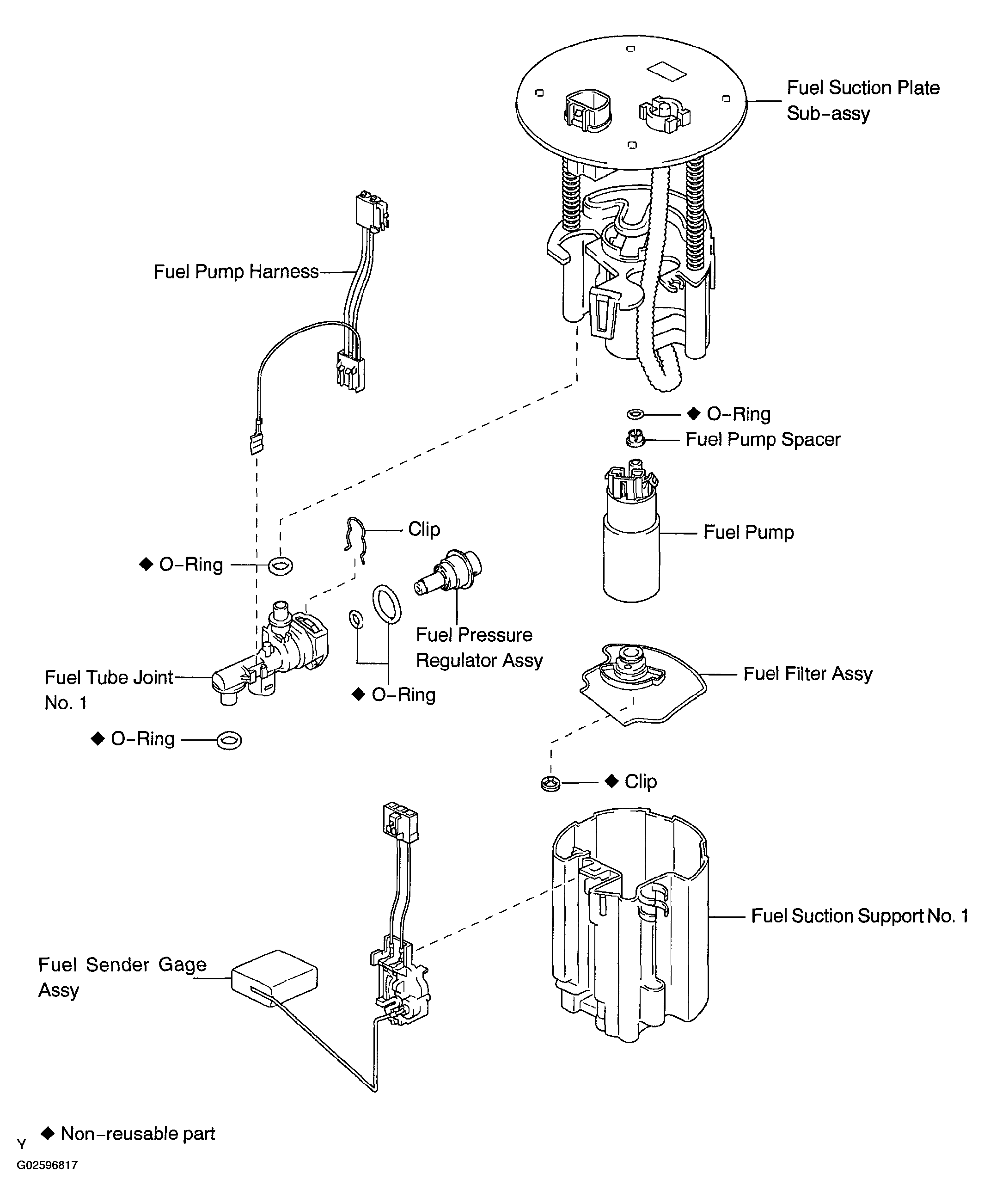

Fig 4: Identifying Fuel Pump Assy Components (2AZ-FE) (4 Of 4)
G02596817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
