Engine Control System (SFI) - Diagnostics (3MZ-FE)
>>
Problem Symptoms Table
Problem Symptoms Table

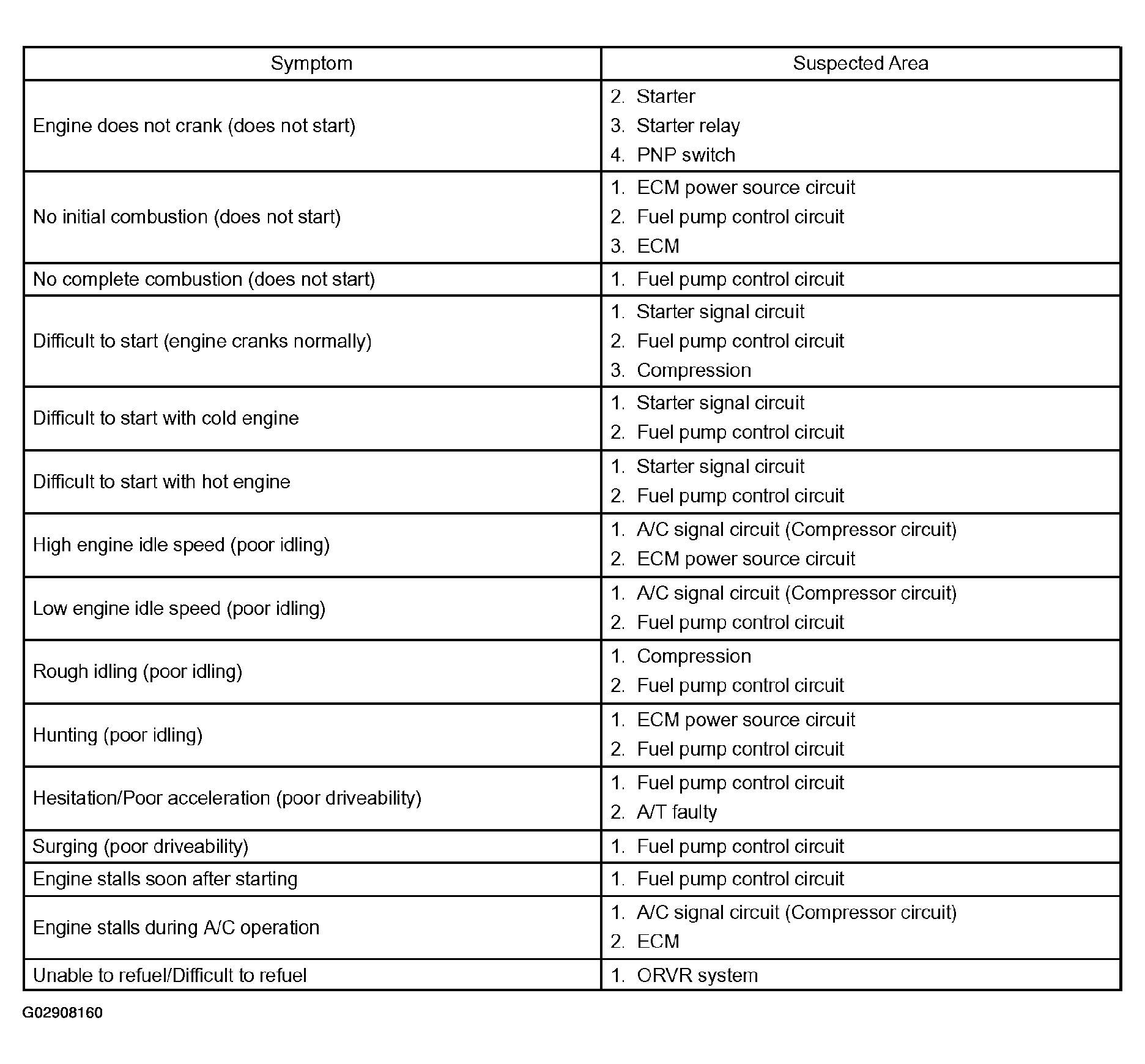

Fig 1: SFI System Problem Symptom Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
