Customer Problem Analysis Check
Customer Problem Analysis Check

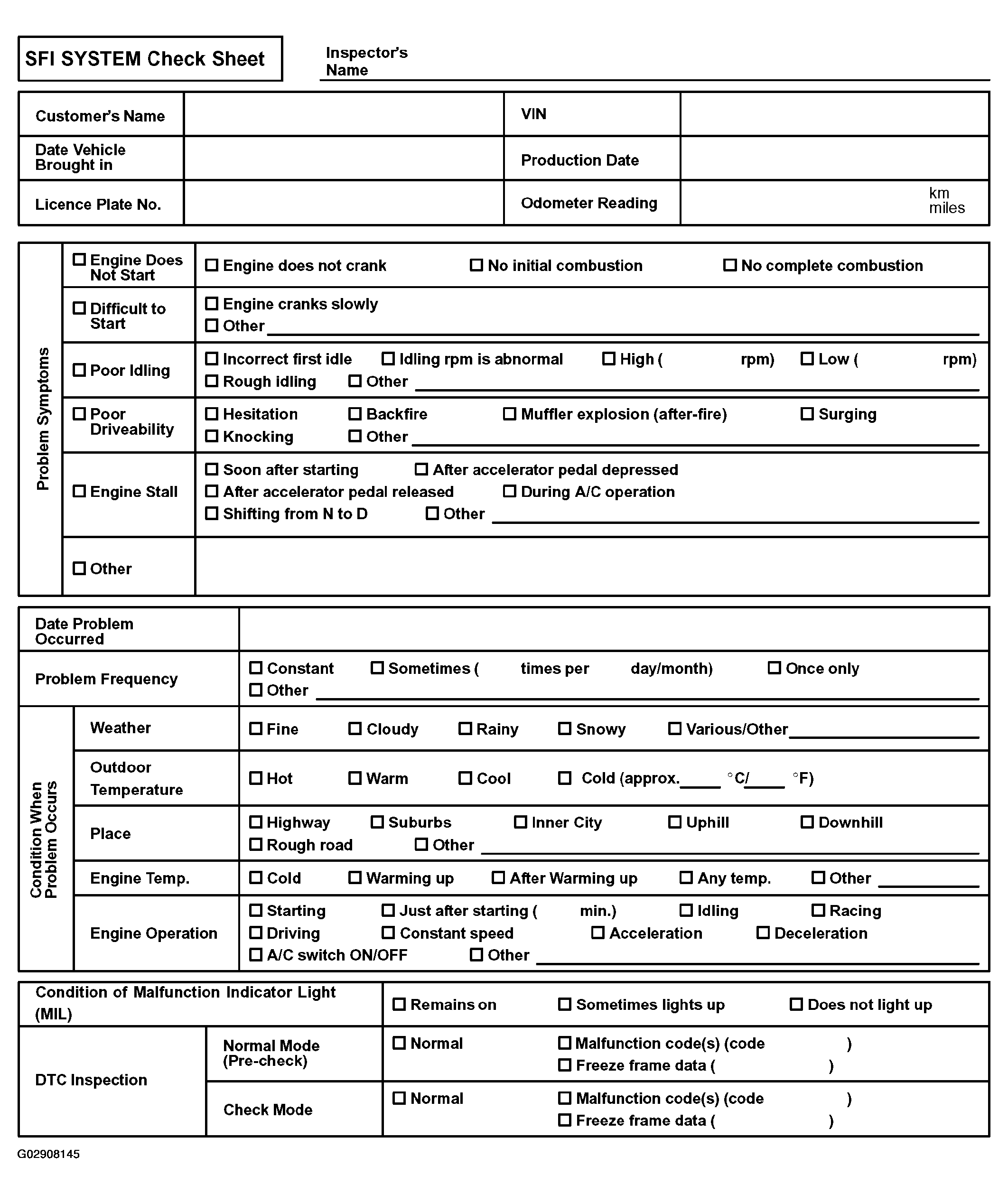

Fig 1: SFI System Customer Problem Analysis Check Sheet Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
