Home >> Toyota >> 2004 >> Highlander Limited, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control System (SFI) - Diagnostics (3MZ-FE) >> Active Control Engine Mount >> Location

Active Control Engine Mount: Location

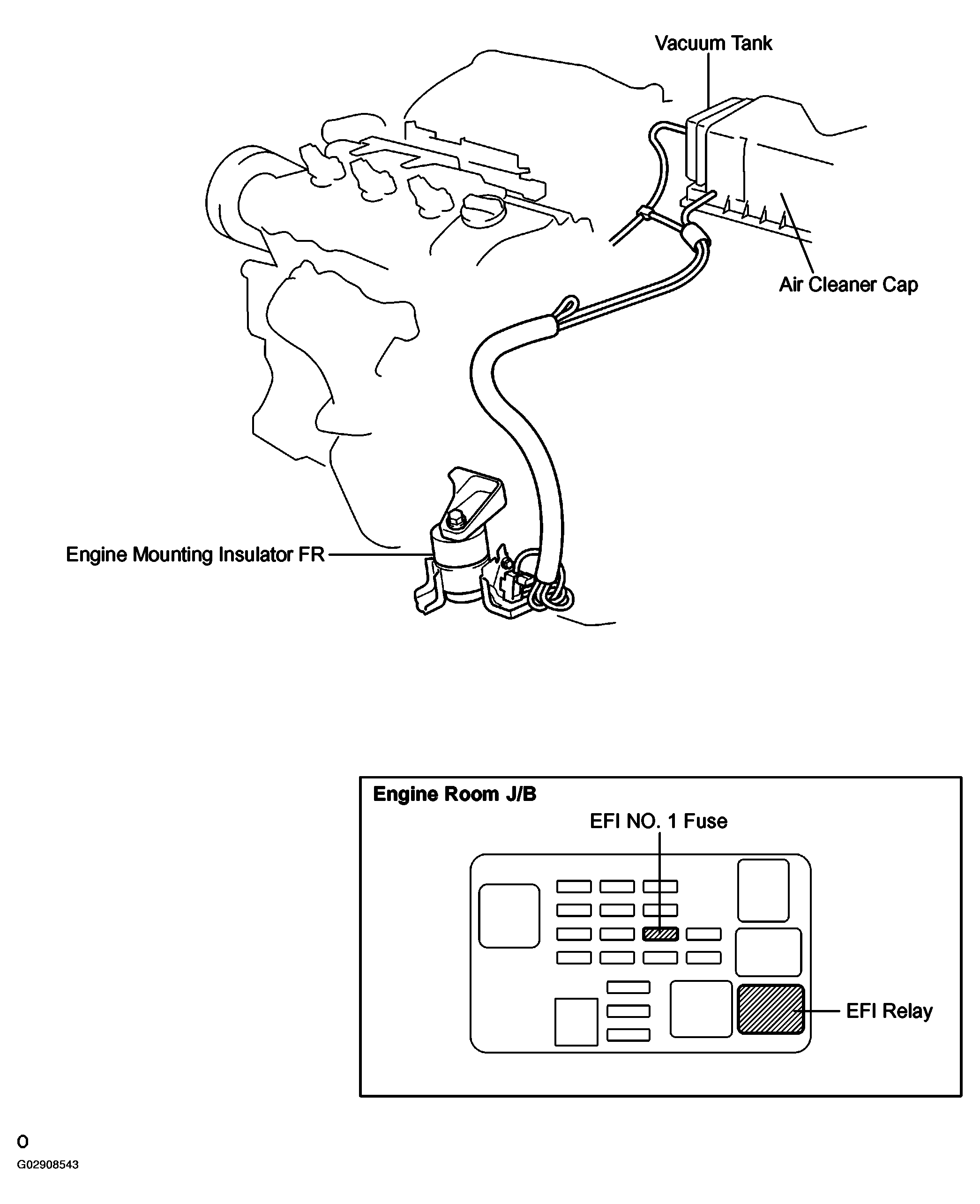

Fig 1: Locating Active Control Engine Mount Components

G02908543

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
