Driver Power Window Does Not Operate: Wiring Diagram

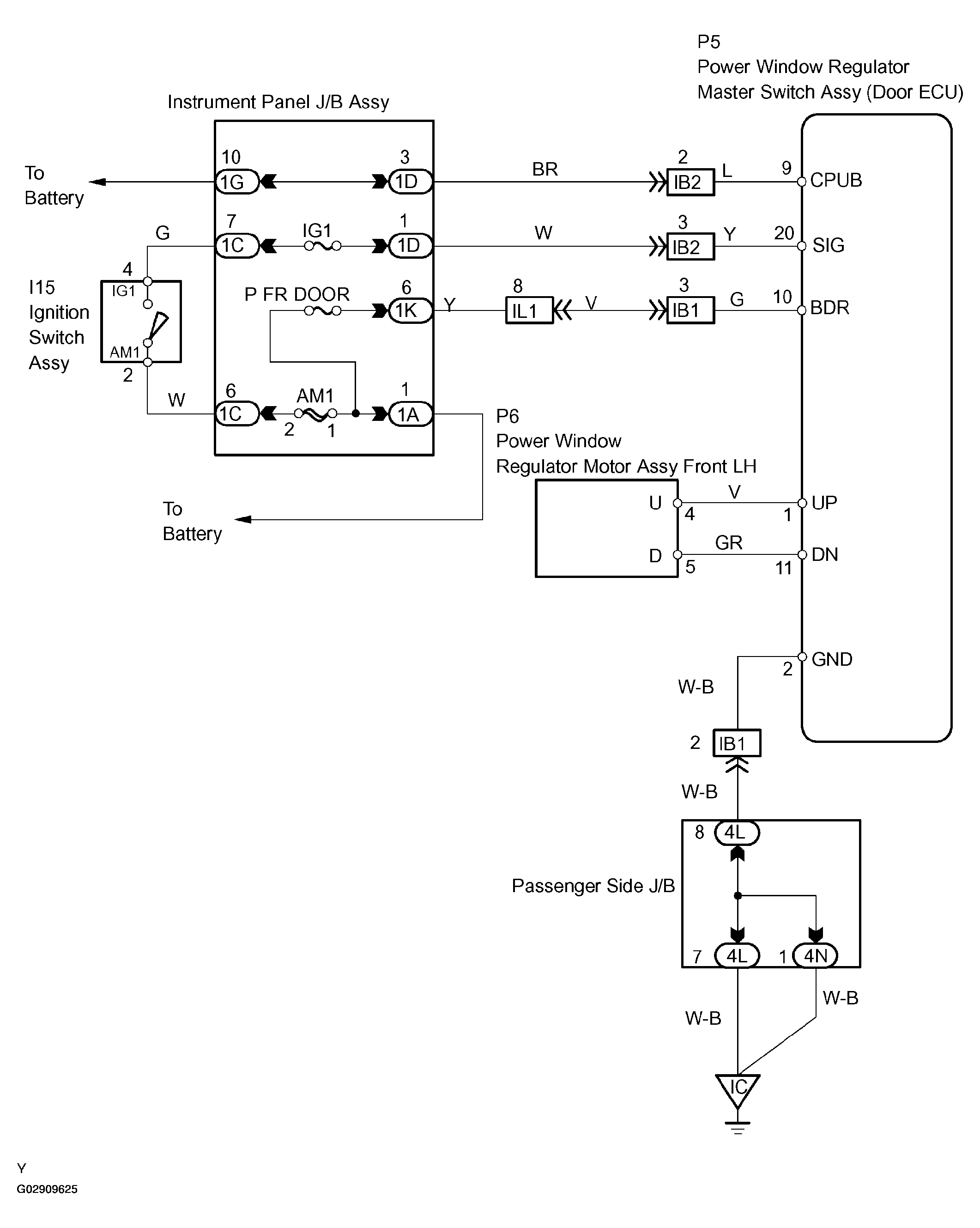

Fig 1: Identifying Power Window Regulator Master Switch Assy (Door ECU) Wiring Diagram

G02909625

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
