Fuel Tank ASSY (3MZ-FE): Components

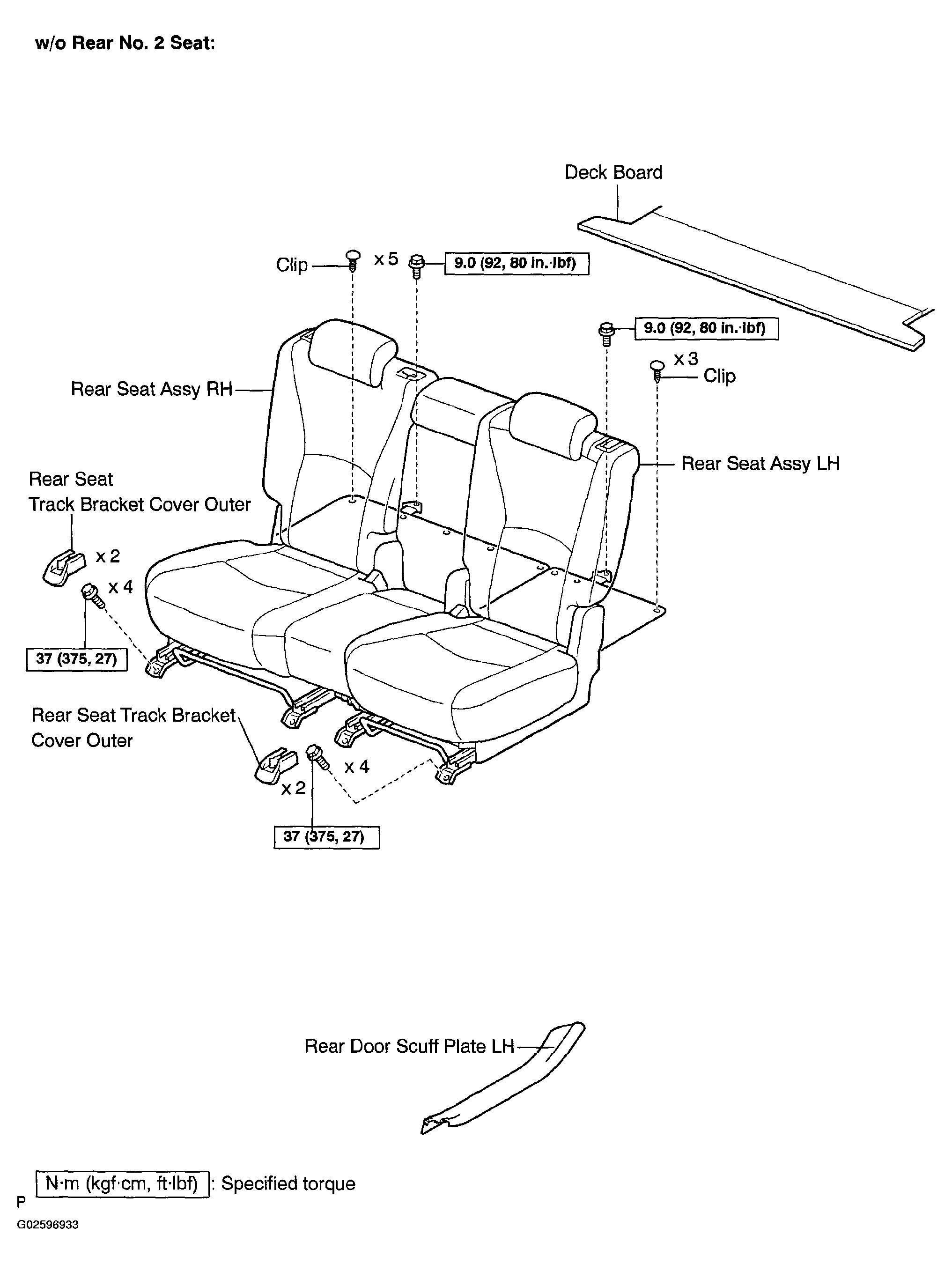

Fig 1: Identifying Fuel Tank Assy Components (3MZ-FE) (1 Of 6)
G02596932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

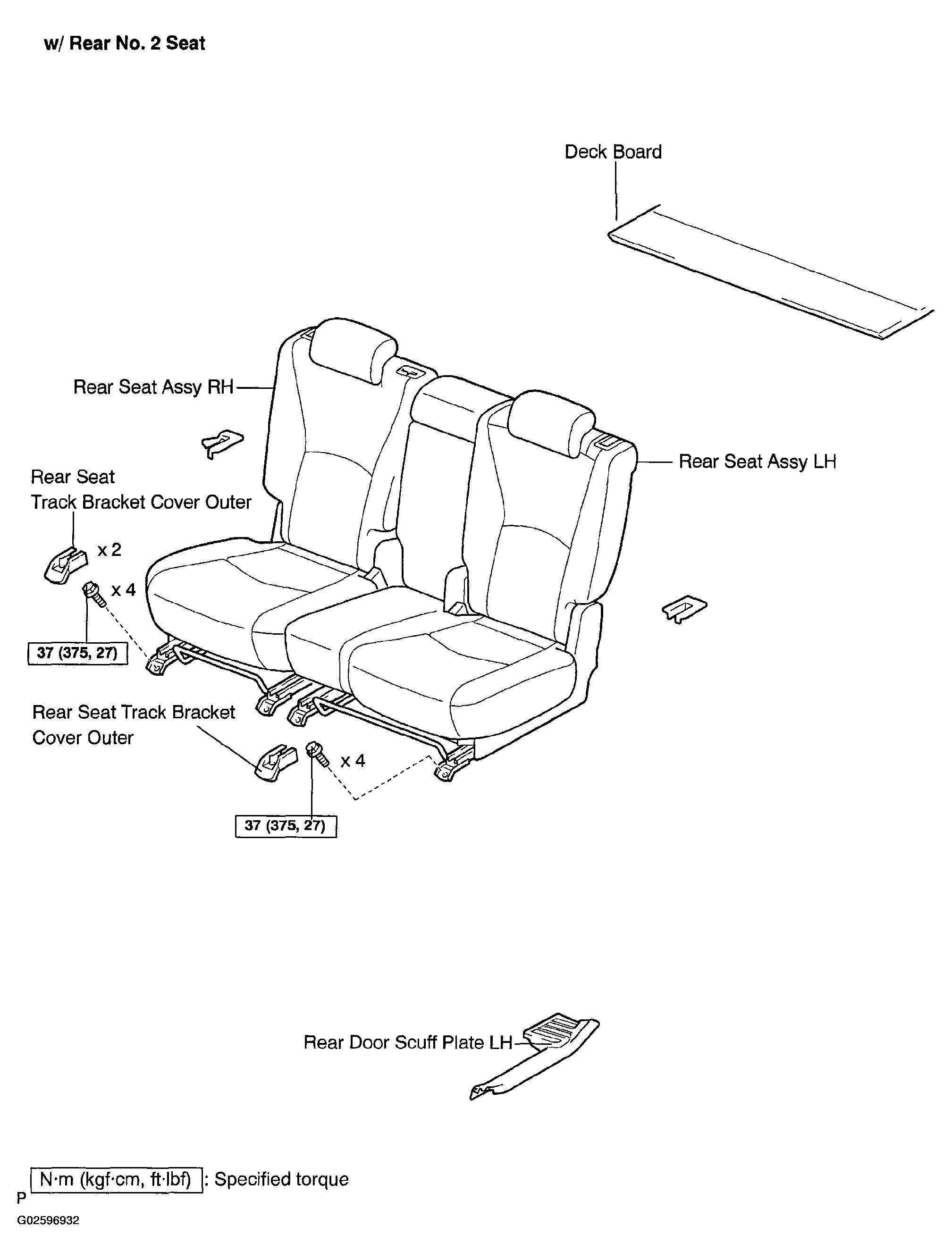

Fig 2: Identifying Fuel Tank Assy Components (3MZ-FE) (2 Of 6)
G02596933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

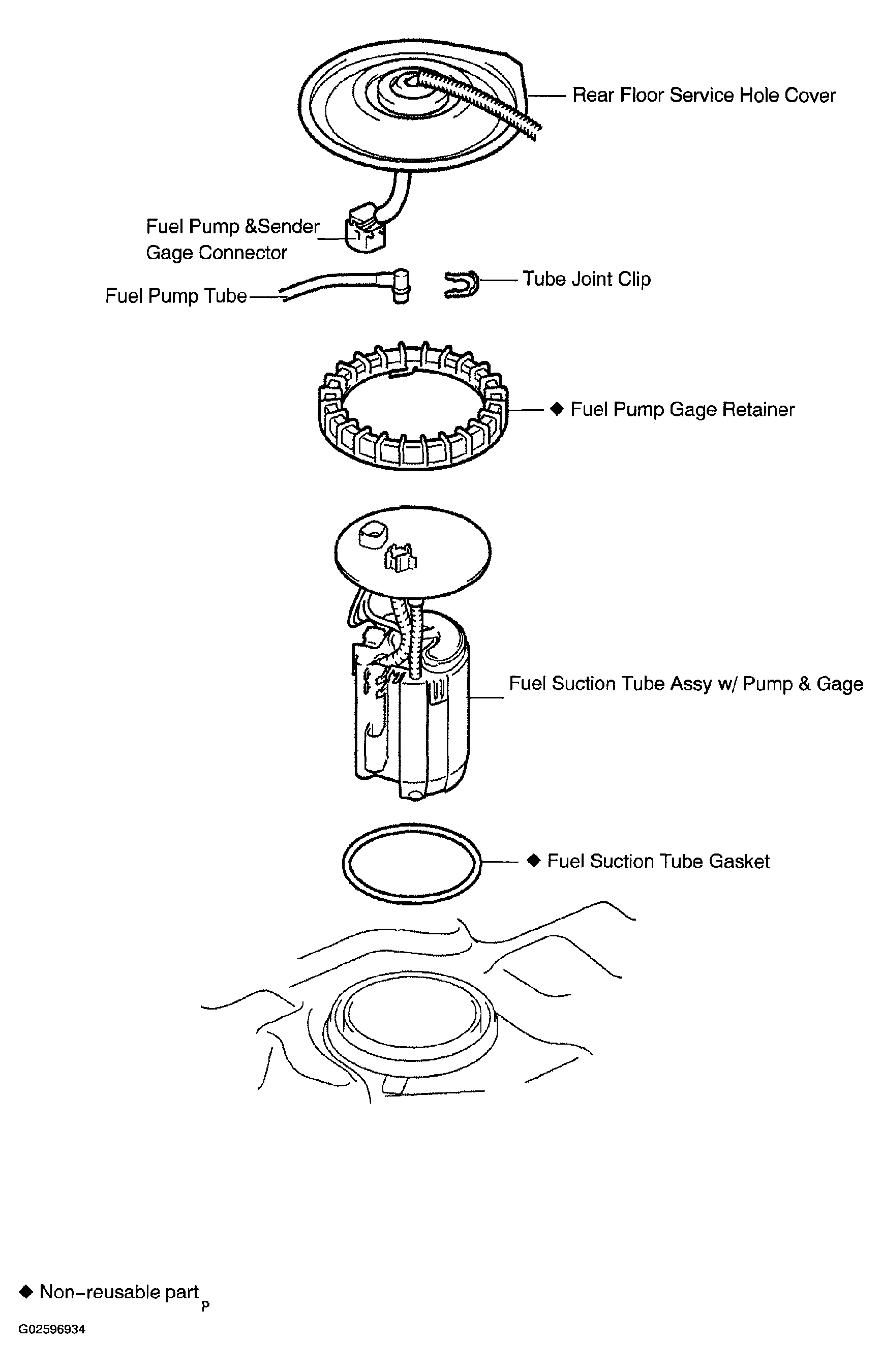

Fig 3: Identifying Fuel Tank Assy Components (3MZ-FE) (3 Of 6)
G02596934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Fuel Tank Assy Components (3MZ-FE) (4 Of 6)
G02596935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

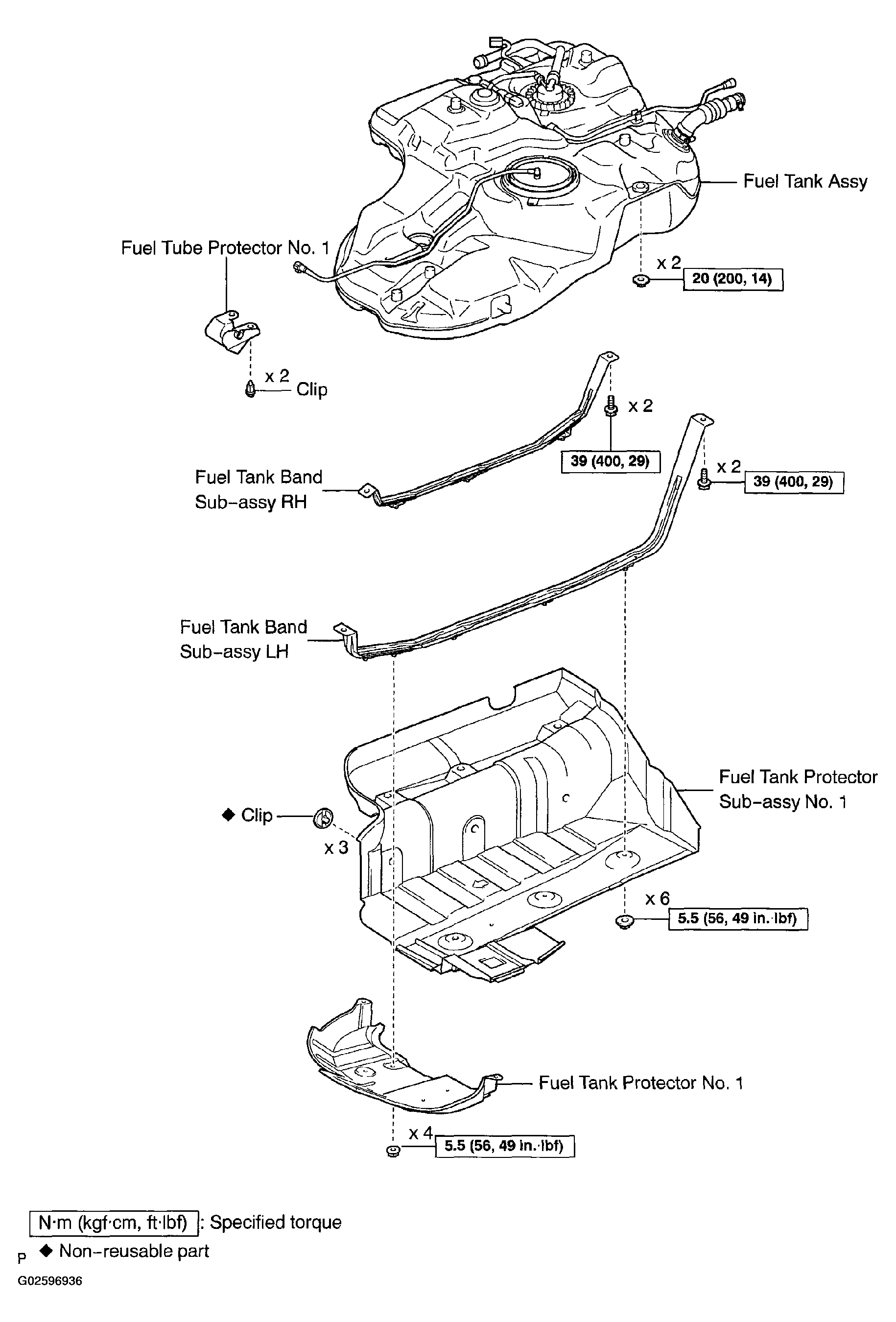

Fig 5: Identifying Fuel Tank Assy Components (3MZ-FE) (5 Of 6)
G02596936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

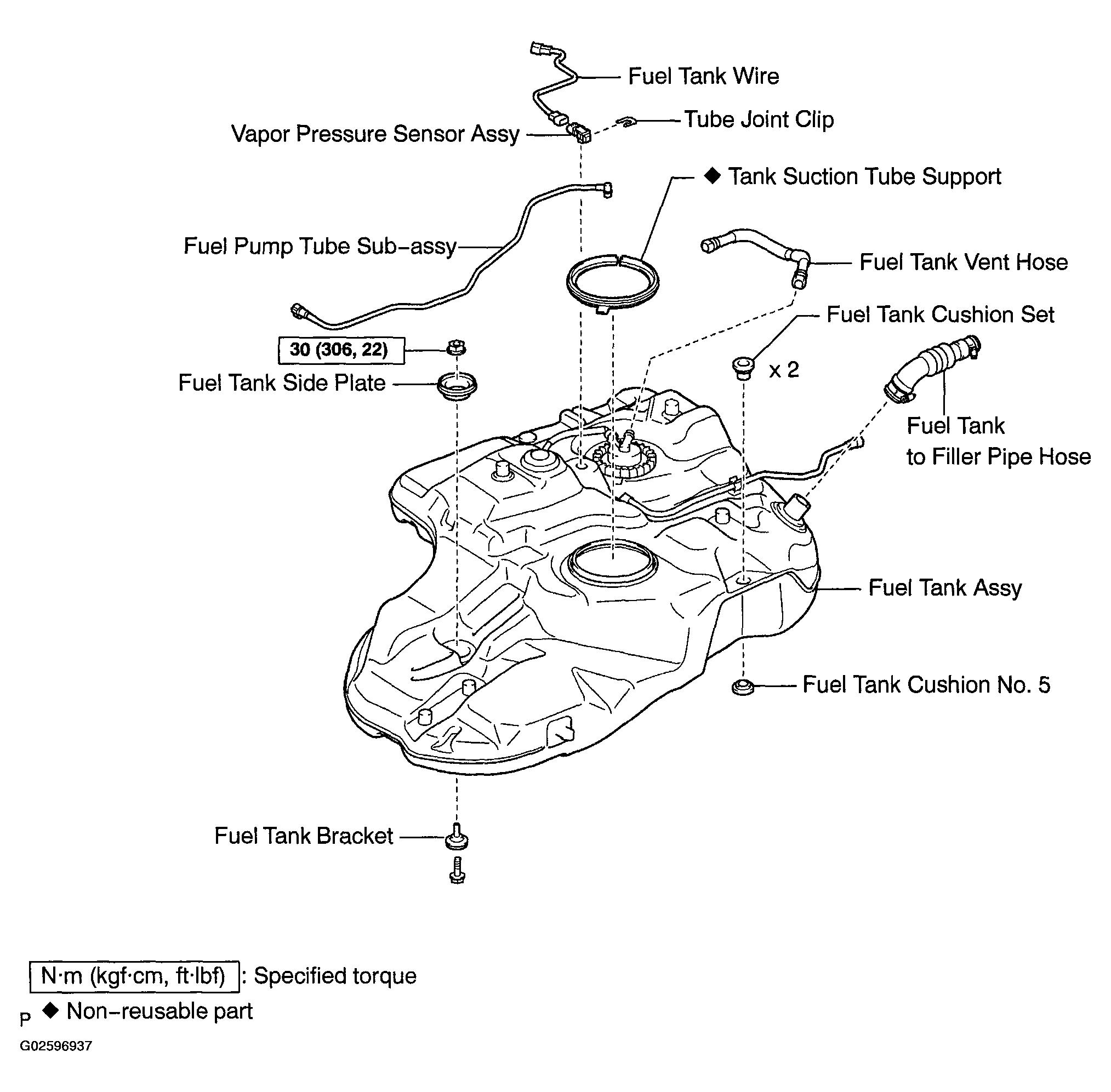

Fig 6: Identifying Fuel Tank Assy Components (3MZ-FE) (6 Of 6)
G02596937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
