Fuel Pump ASSY (3MZ-FE): Components

Fig 1: Identifying Fuel Pump Assy Components (3MZ-FE) (1 Of 4)
G02596906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Fuel Pump Assy Components (3MZ-FE) (2 Of 4)
G02596907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

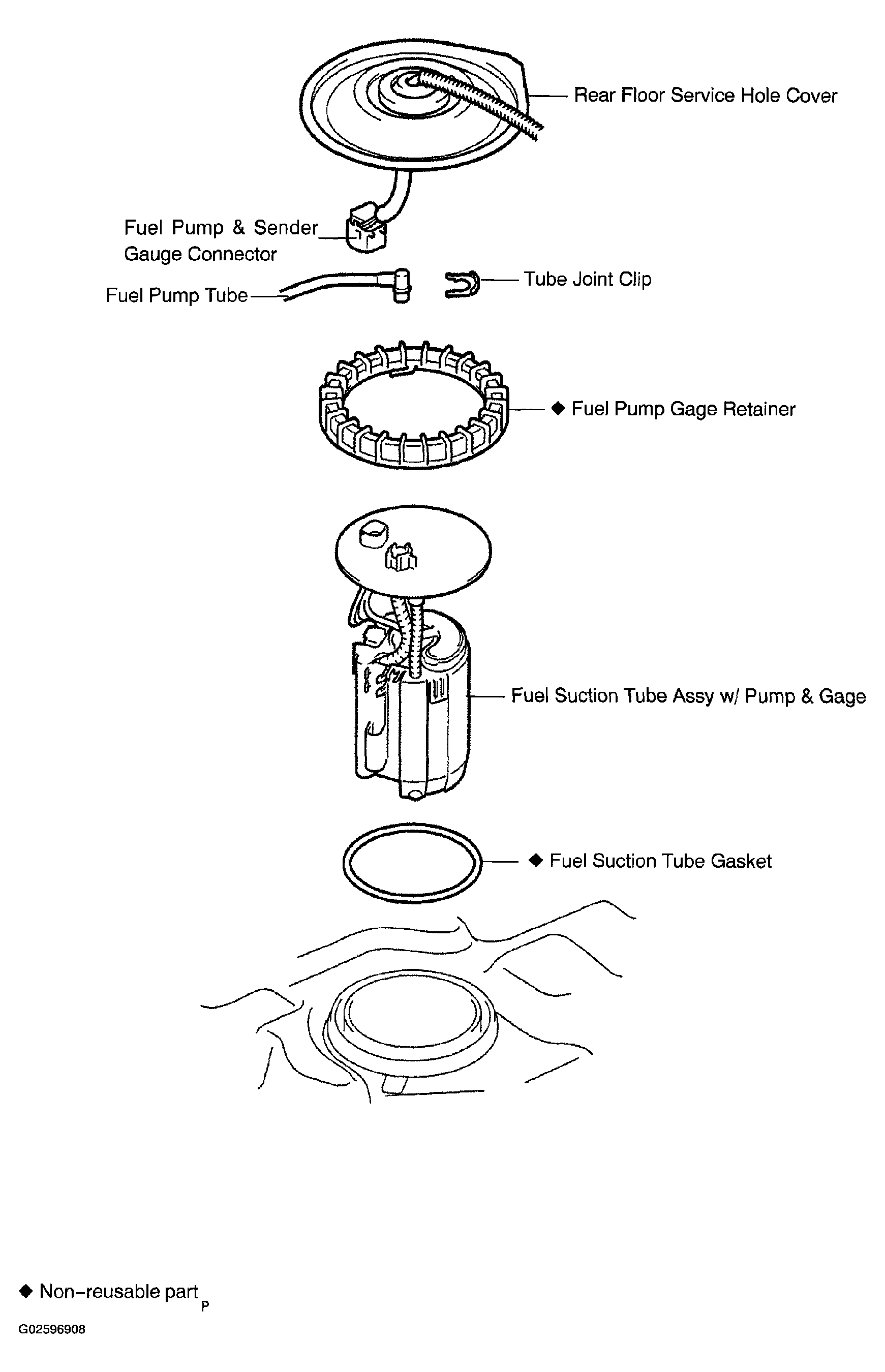

Fig 3: Identifying Fuel Pump Assy Components (3MZ-FE) (3 Of 4)
G02596908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

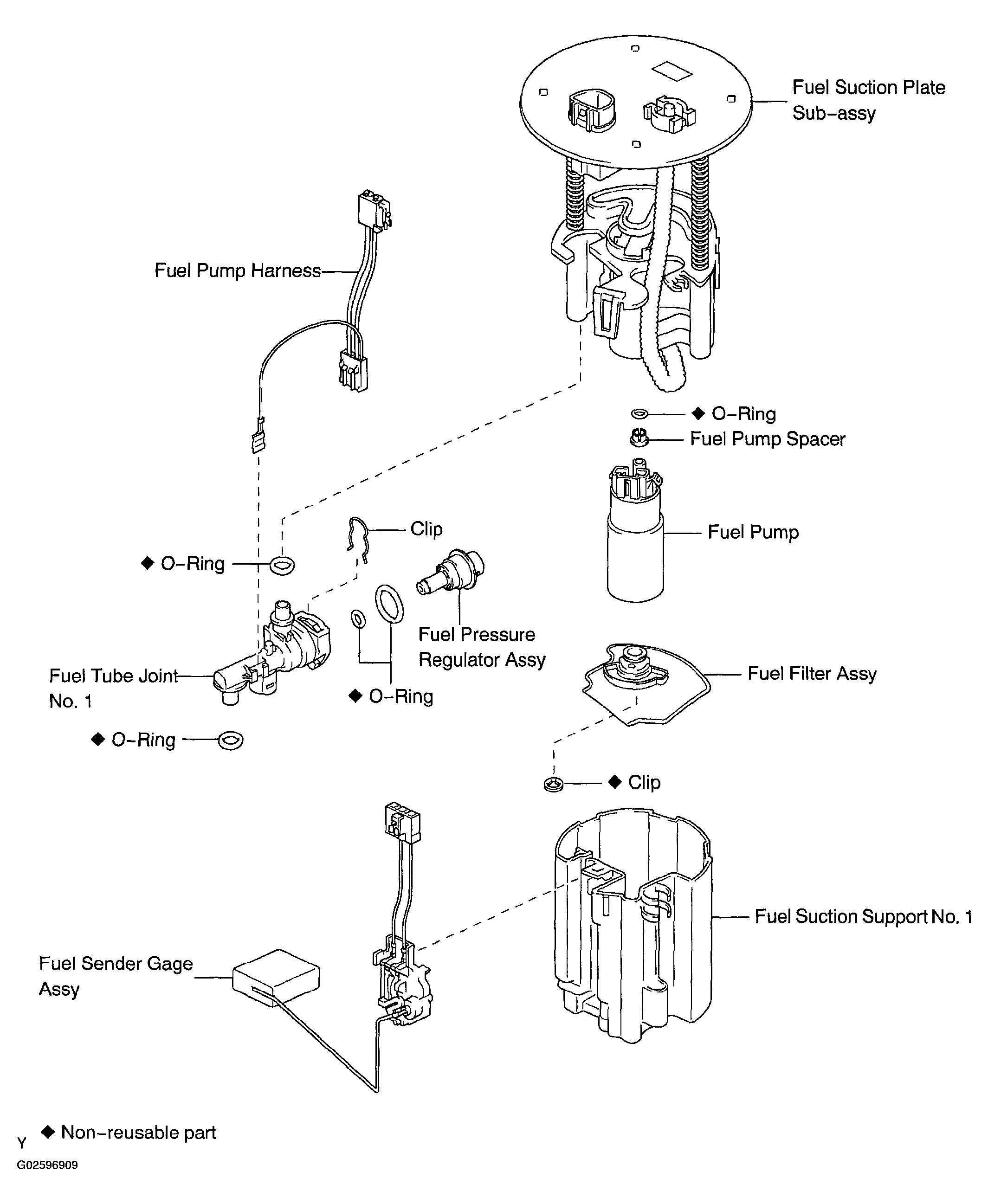

Fig 4: Identifying Fuel Pump Assy Components (3MZ-FE) (4 Of 4)
G02596909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
