Fuel Injector ASSY (2AZ-FE): Components

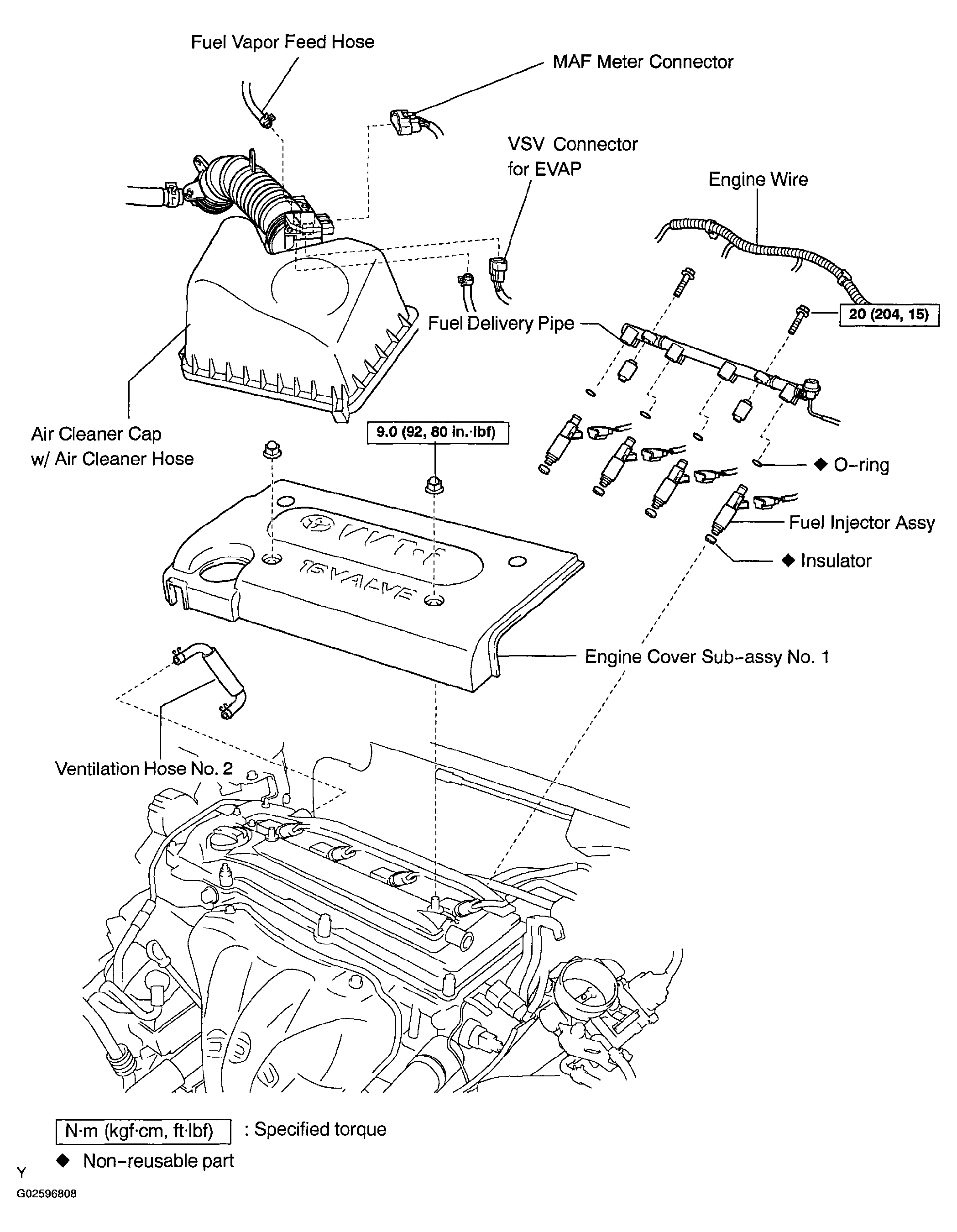

Fig 1: Identifying Fuel Injector Assy Components (2AZ-FE)

G02596808

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
