Problem Symptoms Table

Warning Lights:

PROBLEM SYMPTOMS TABLE - WARNING LIGHTS

Symptom Suspect Area
Check Engine warning light does not come on.
  1. ECM
  2. Wire Harness or Connector
  3. Combination Meter Assy
Discharge warning light does not come on.
  1. ECM
  2. Wire Harness or Connector
  3. Combination Meter Assy
Brake warning light does not come on.
  1. Skid control ECU
  2. Wire Harness or Connector
  3. Combination Meter Assy
ABS warning light does not come on.
  1. ABS ECU
  2. Wire Harness or Connector
  3. Combination Meter Assy
SRS warning light does not come on.
  1. Airbag Sensor Assy Center
  2. Wire Harness or Connector
  3. Combination Meter Assy
Open Door warning light does not come on.
  1. Refer to troubleshooting
  2. Wire Harness or Connector
  3. Combination Meter Assy
Fuel Level warning light does not come on.
  1. Refer to troubleshooting
  2. Wire Harness or Connector
  3. Combination Meter Assy
Low Oil Pressure warning light does not come on.
  1. Low Oil Pressure Warning Switch
  2. Wire Harness or Connector
  3. Combination Meter Assy
Driver's seat belt warning light does not come on.
  1. Refer to troubleshooting
  2. Wire Harness or Connector
  3. Combination Meter Assy
"OIL LEVEL" warning light does not come on.
  1. Low Oil Level Sensor
  2. Wire Harness or Connector
  3. ECM
  4. Combination Meter Assy
"TIRE AIR PRESS" warning light does not come on.
  1. Wire Harness or Connector
  2. Skid Control ECU
  3. Combination Meter Assy

Indicator lights:

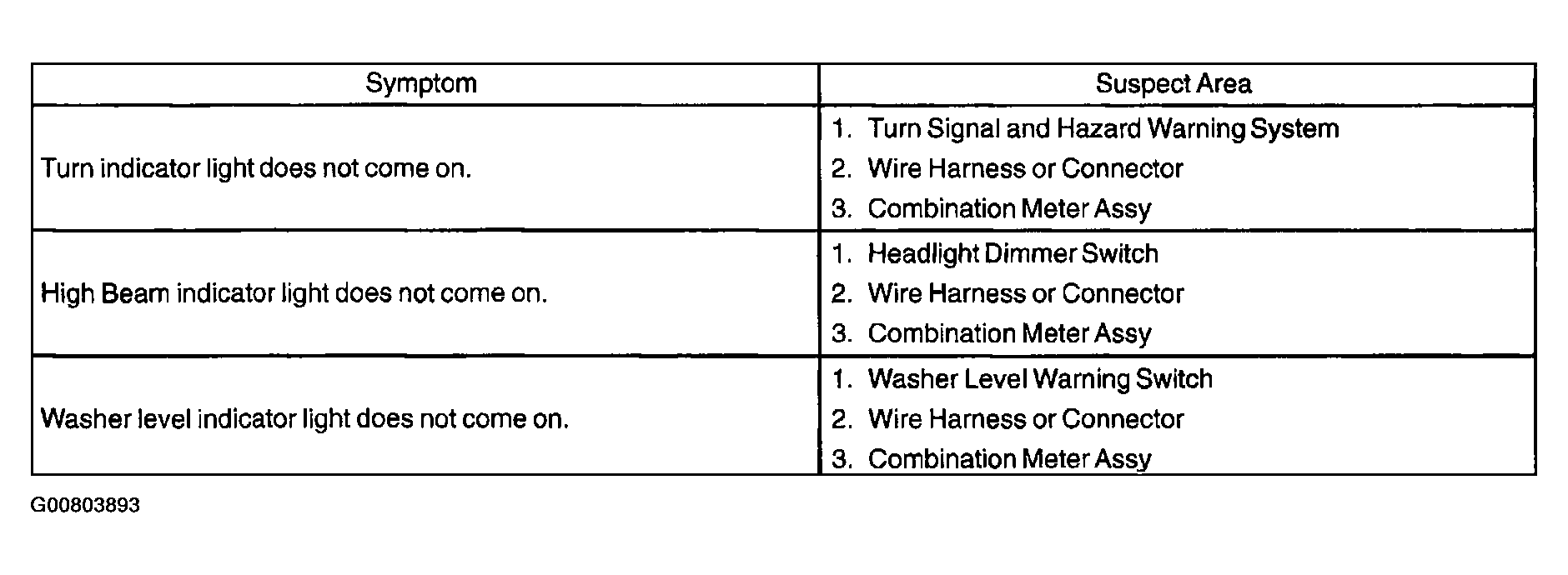

Fig 1: Indicator Lights Problem Symptoms Table (1 Of 2)
G00803893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

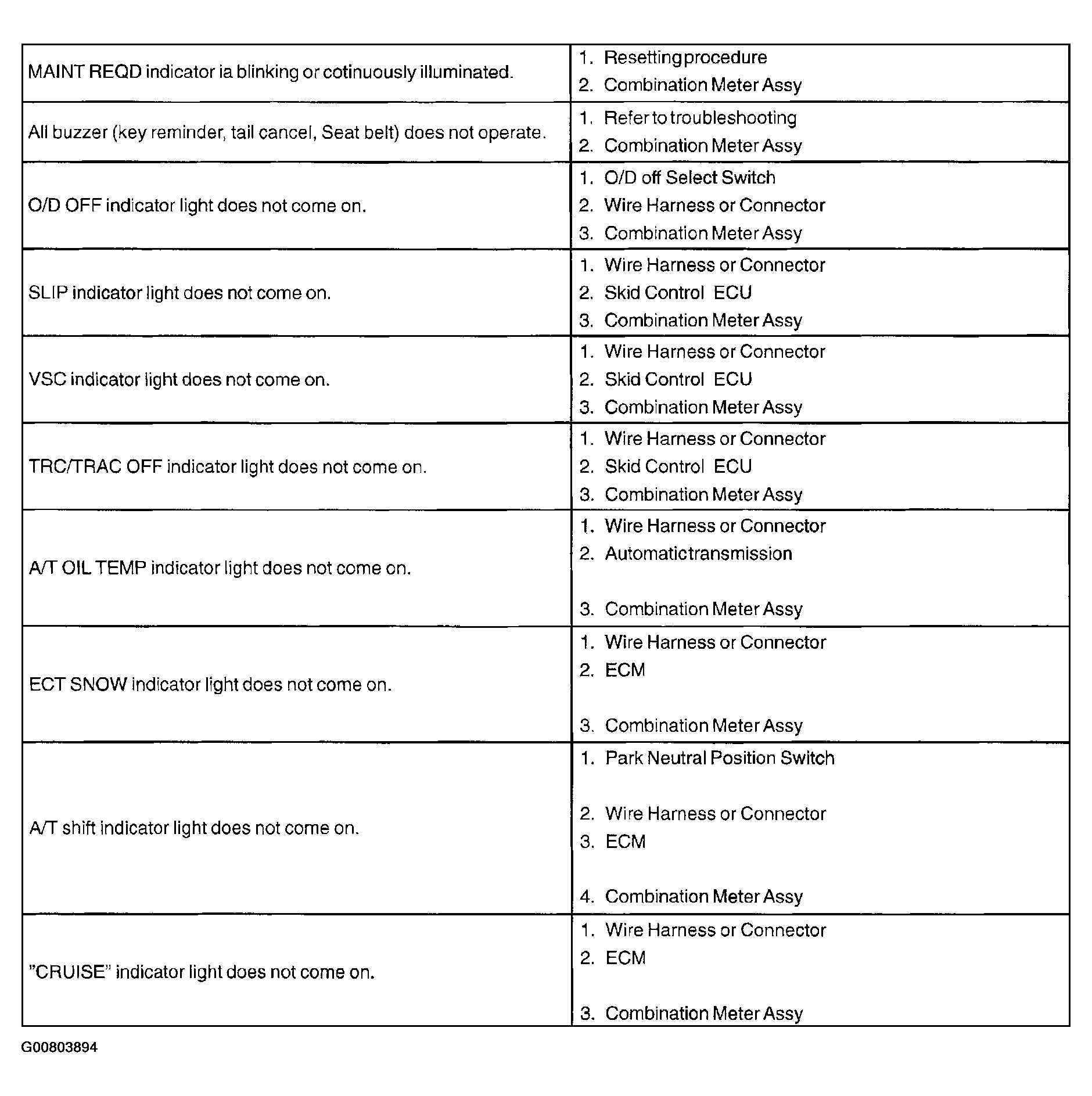

Fig 2: Indicator Lights Problem Symptoms Table (2 Of 2)
G00803894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Meter Gauges:

PROBLEM SYMPTOMS TABLE - METER GAUGES

Symptom Suspect Area
Speedometer does not operate.
  1. Refer to troubleshooting
Tachometer does not operate.
  1. Refer to troubleshooting
Fuel Gauge does not operate or operates abnormally.
  1. Refer to troubleshooting
Water temperature does not operate.
  1. Refer to troubleshooting
