Brake Actuator Assembly: Replacement

DISCONNECT BATTERY NEGATIVE TERMINAL
DRAIN BRAKE FLUID
NOTE: Wash brake fluid off immediately if it adheres to any painted surface.
REMOVE BRAKE ACTUATOR WITH BRACKET

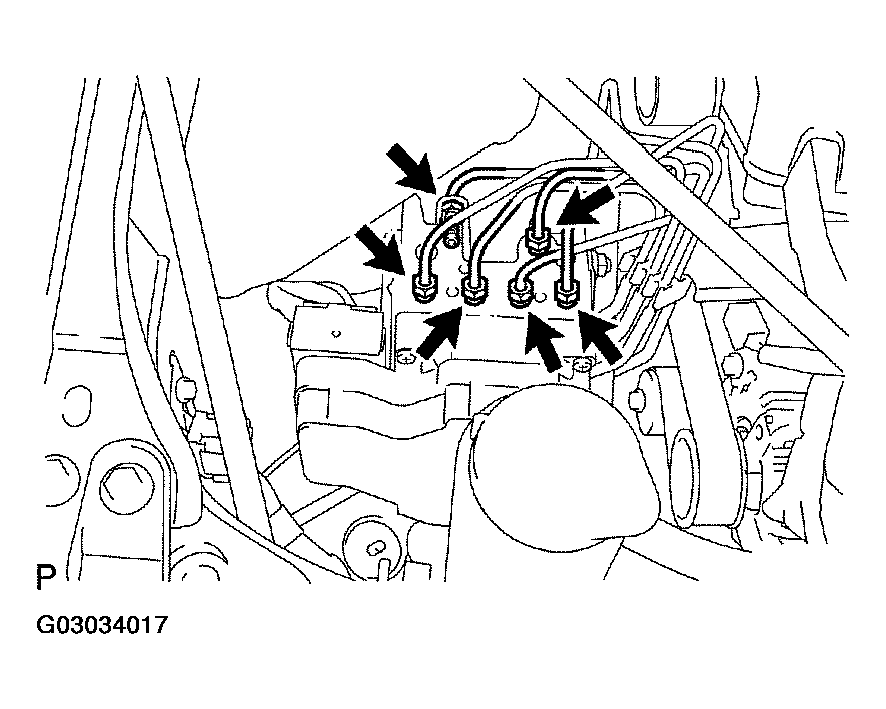

1. Using SST, disconnect the 6 brake tubes from the actuator with bracket.
  SST 09023-00100

  Fig 1: Disconnecting Brake Tubes From Actuator With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Use tags or make a memo to identify the places to reconnect.

  Fig 2: Using Tags To Identify Places To Reconnect
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

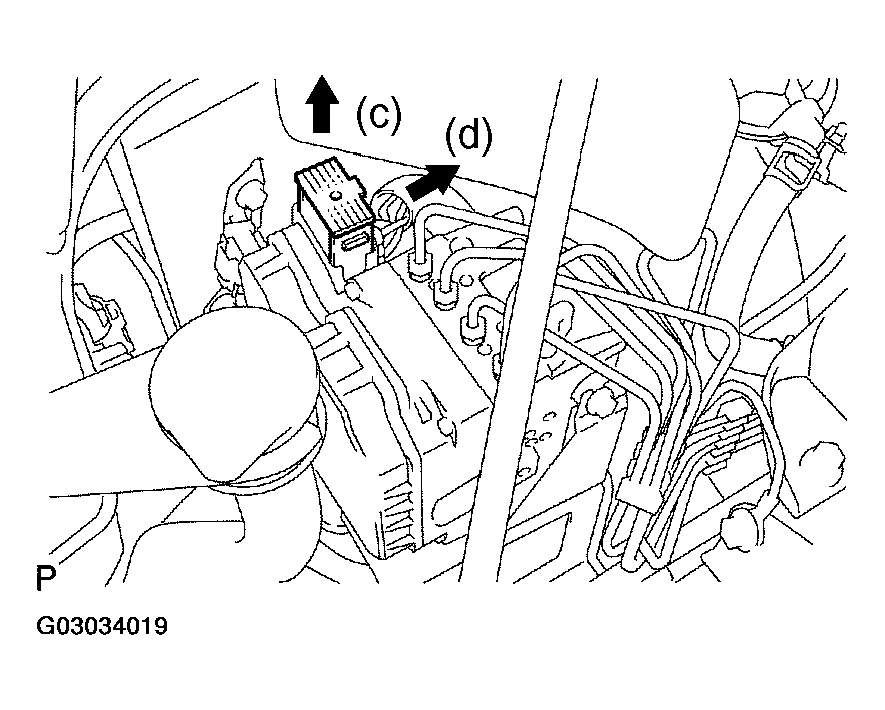

3. Pull the lock lever upward.
4. Disconnect the actuator connector.

  Fig 3: Disconnecting Actuator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

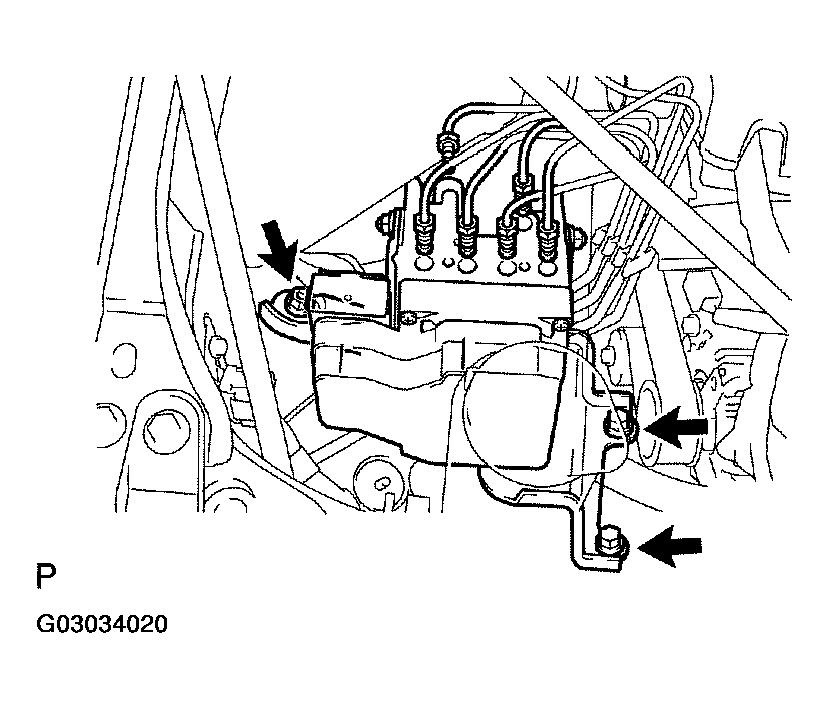

5. Remove the 2 bolts, the nut and the actuator with bracket.
  NOTE: Be careful not to damage the brake tubes and wire harness.
Fig 4: Removing Actuator With Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE ACTUATOR ASSY
1. Remove the 2 nuts and the brake actuator assy from the brake actuator bracket.
INSTALL BRAKE ACTUATOR ASSY
1. Install the brake actuator assy with the 2 nuts.
  Torque: 5.4 NVm (55 kgfVcm, 48 in.Vlbf)
INSTALL BRAKE ACTUATOR WITH BRACKET
1. Install the actuator with bracket and the 2 bolts and the nut.
  Torque: 19 NVm (194 kgfVcm, 14 ftVlbf)

  NOTE: Be careful not to damage the brake tubes and wire harness.
2. Connect the actuator connector.

  Fig 5: Installing Actuator With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

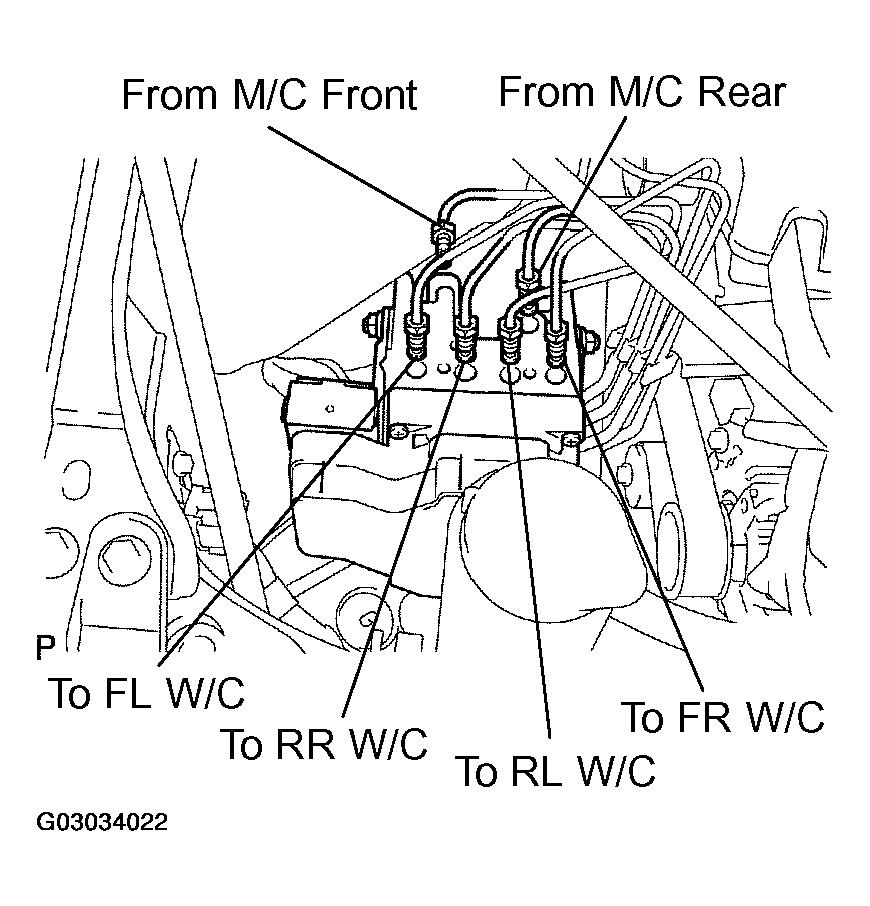

3. Using SST, connect each brake tube to correct positions of the actuator with bracket, as shown in the illustration.
  SST 09023-00100

  Torque: 15 NVm (155 kgfVcm, 11 ftVlbf)
Fig 6: Connecting Brake Tube To Correct Positions Of Actuator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FILL RESERVOIR WITH BRAKE FLUID (See BLEEDING BRAKE SYSTEM )
BLEED MASTER CYLINDER (See BLEEDING BRAKE SYSTEM )
SST 09023-00100
BLEED BRAKE LINE (See BLEEDING BRAKE SYSTEM )
BLEED BRAKE ACTUATOR ASSY (See BLEEDING BRAKE SYSTEM )
CHECK BRAKE FLUID LEAKAGE
CHECK FLUID LEVEL IN RESERVOIR (See BLEEDING BRAKE SYSTEM )
CONNECT BATTERY NEGATIVE TERMINAL
PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION (See PRE-CHECK )
CHECK BRAKE ACTUATOR WITH HAND-HELD TESTER (See ON-VEHICLE INSPECTION )
