Toyota
>>
2004
>>
Highlander Base, 2.4 D, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Windshield Glass
>>
Components
Windshield Glass: Components

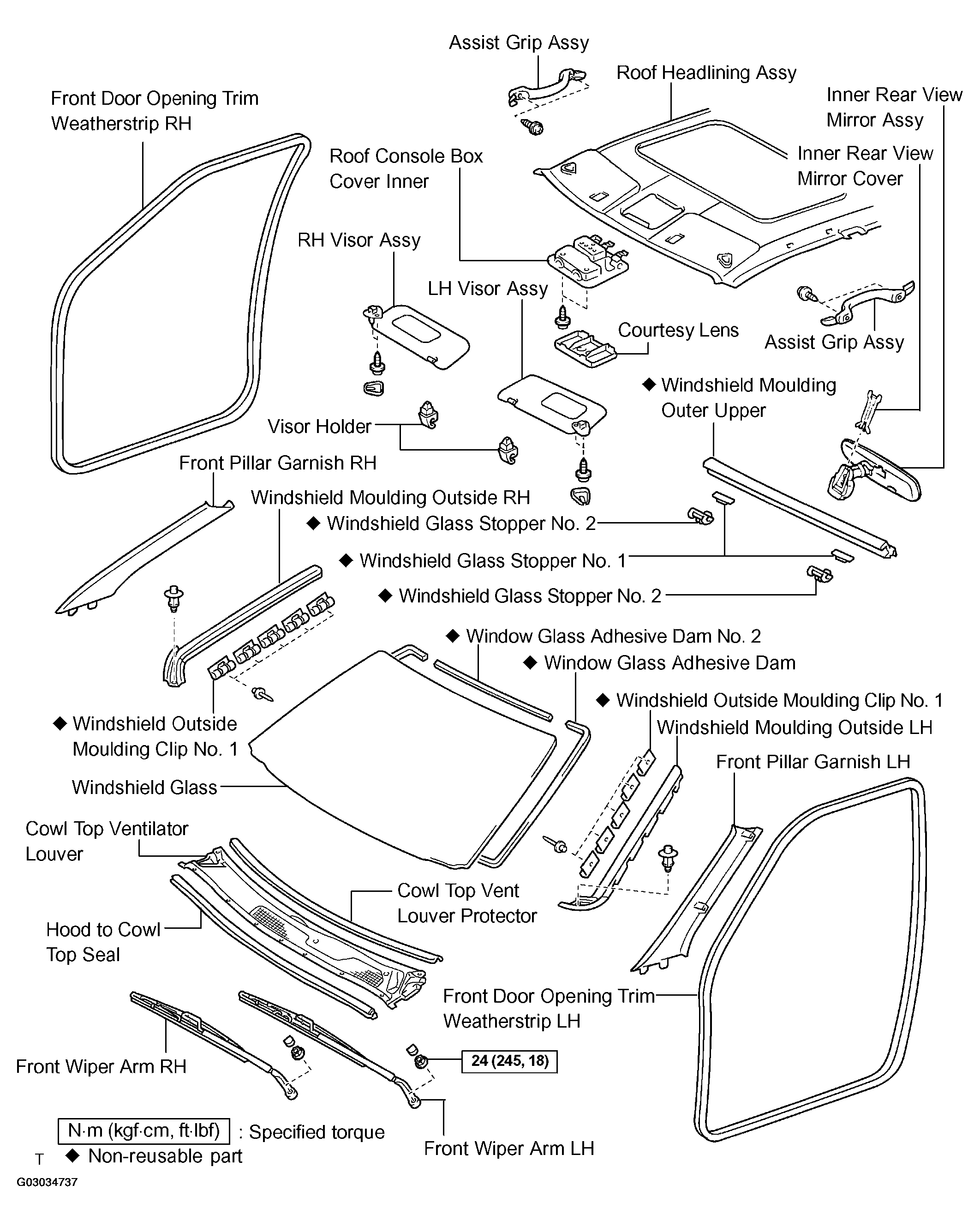

Fig 1: Exploded View of Wind Shield Glass
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
