Rear Door: Components

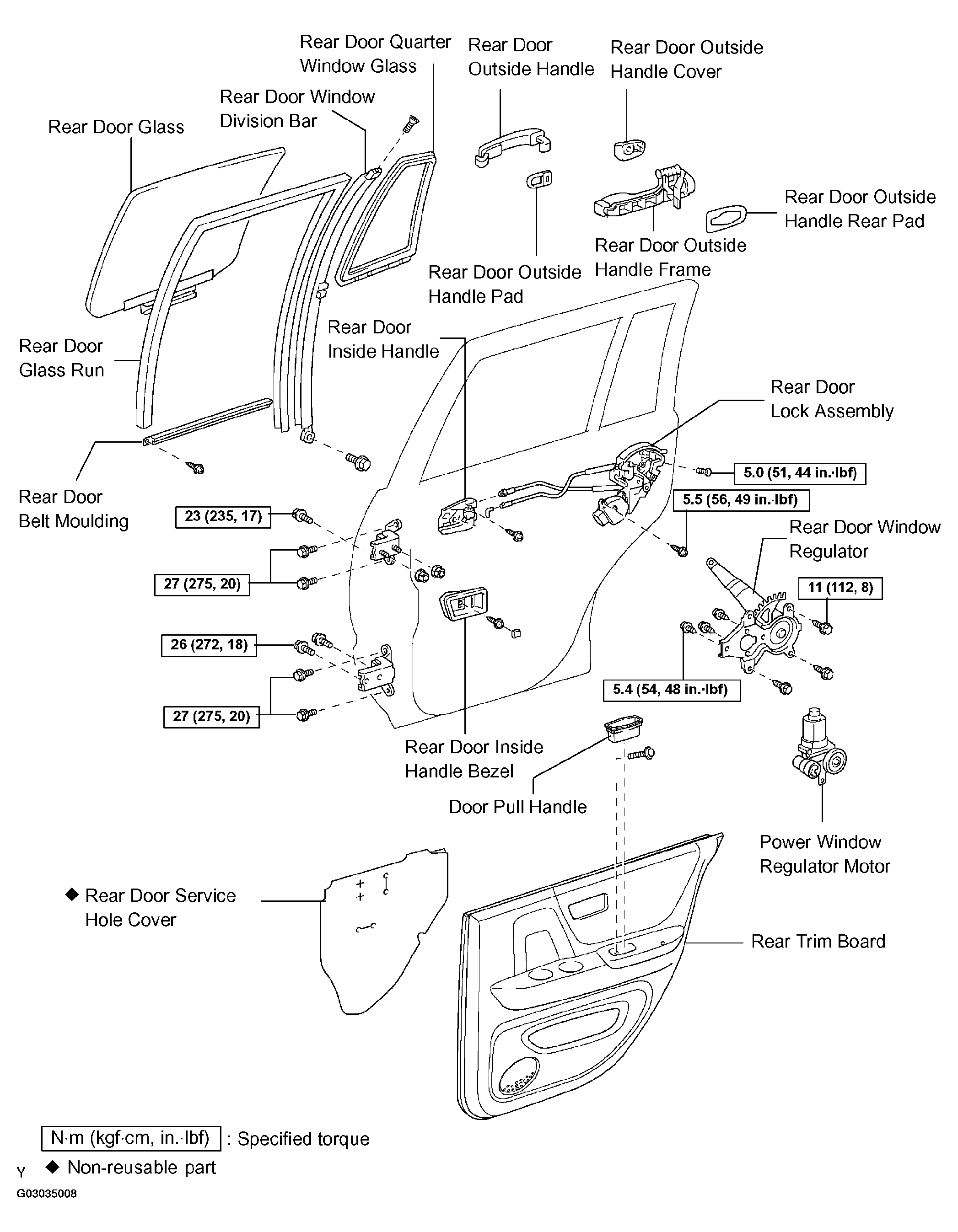

Fig 1: Identifying Rear Door Components

G03035008

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
