Home >> Toyota >> 2004 >> Highlander Base, 2.4 D, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Back Door >> Components

Back Door: Components

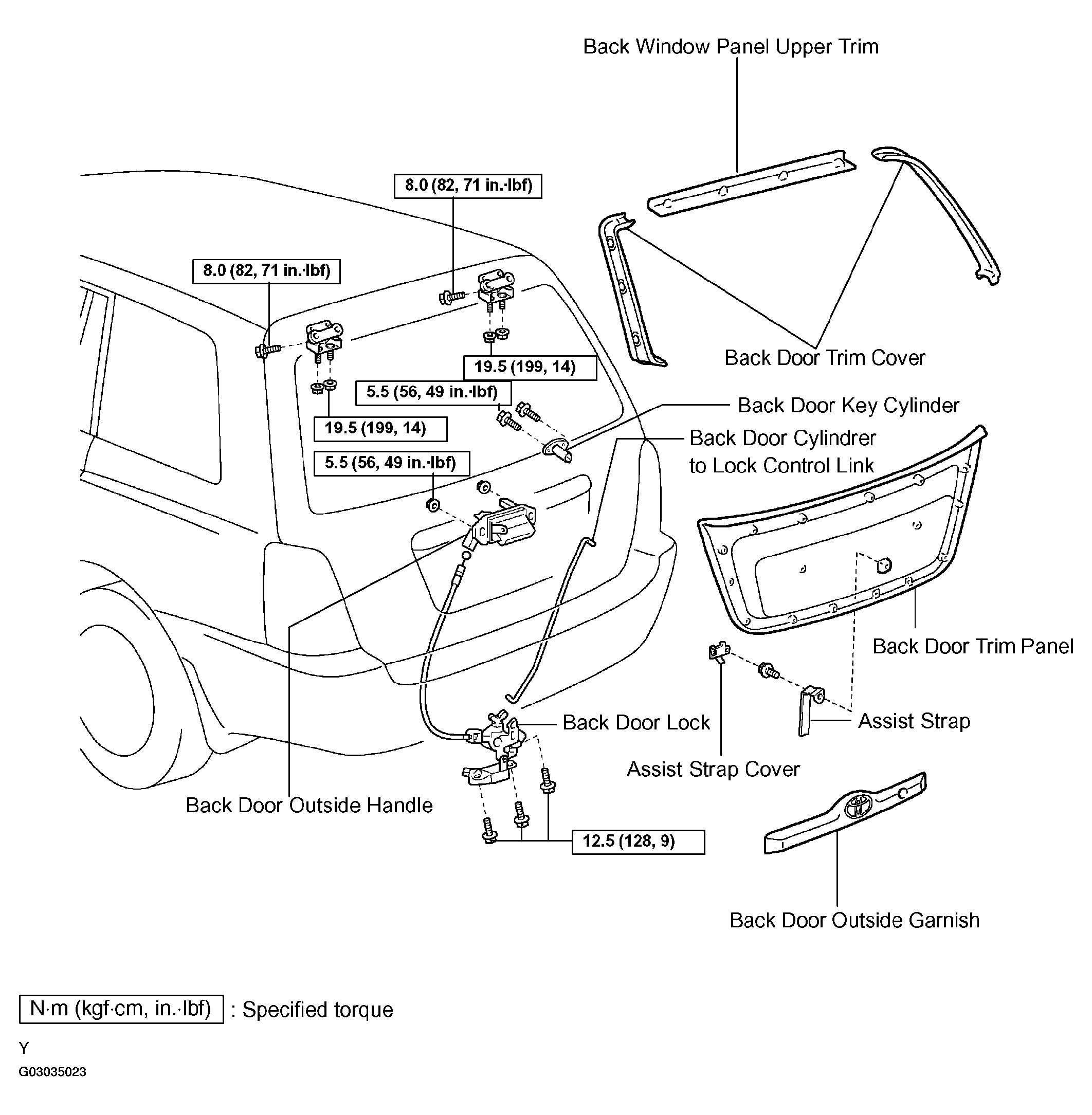

Fig 1: Locating Back Door Components

G03035023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
