Manual Transaxle Unit: Components

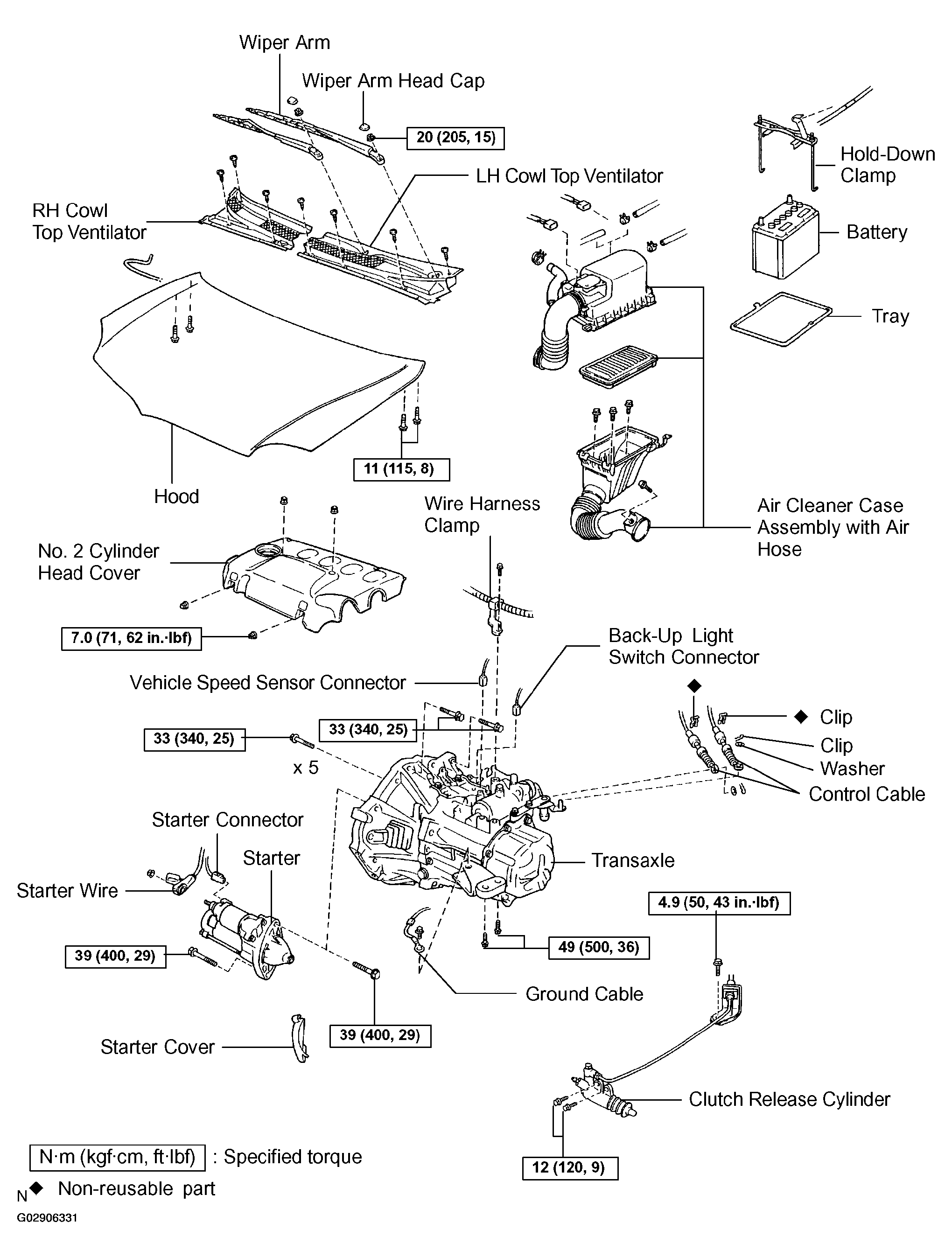

Fig 1: Identifying Manual Transaxle Unit Components (1 Of 2)
G02906331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

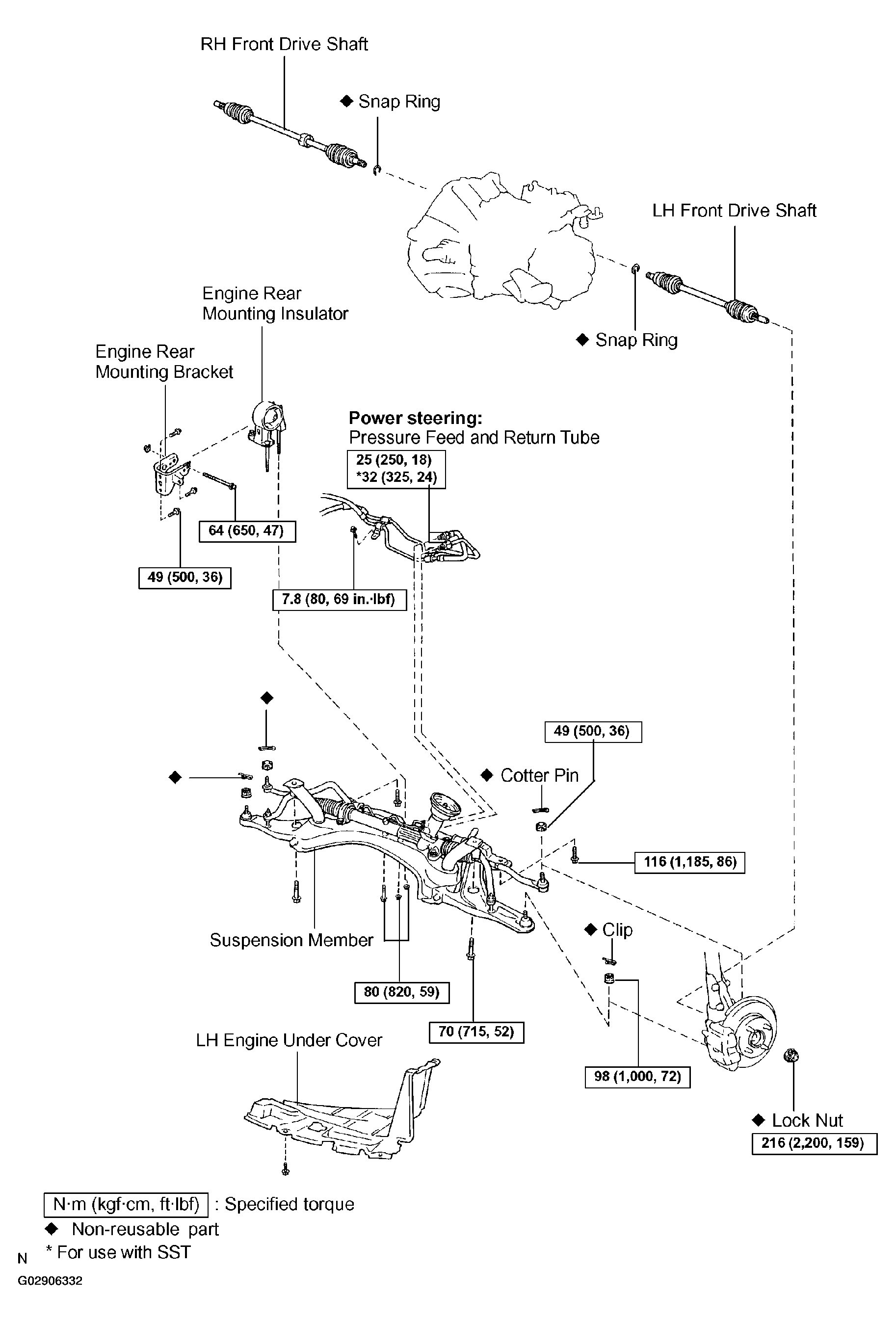

Fig 2: Identifying Manual Transaxle Unit Components (2 Of 2)
G02906332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
