Home >> Toyota >> 2004 >> ECHO 4D Sedan, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle >> Input Shaft >> Components

Input Shaft: Components

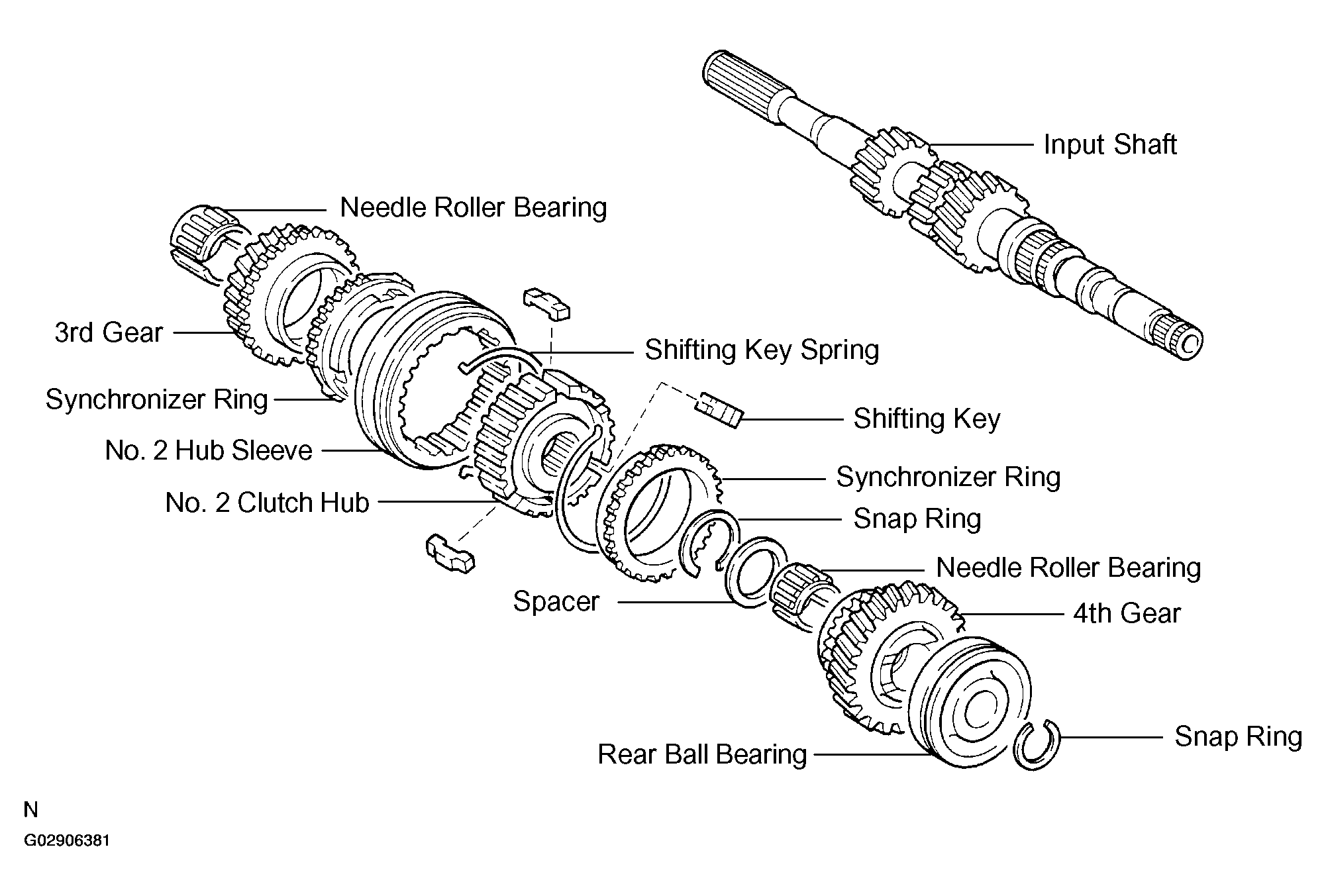

Fig 1: Exploded View Of Input Shaft

G02906381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
