Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

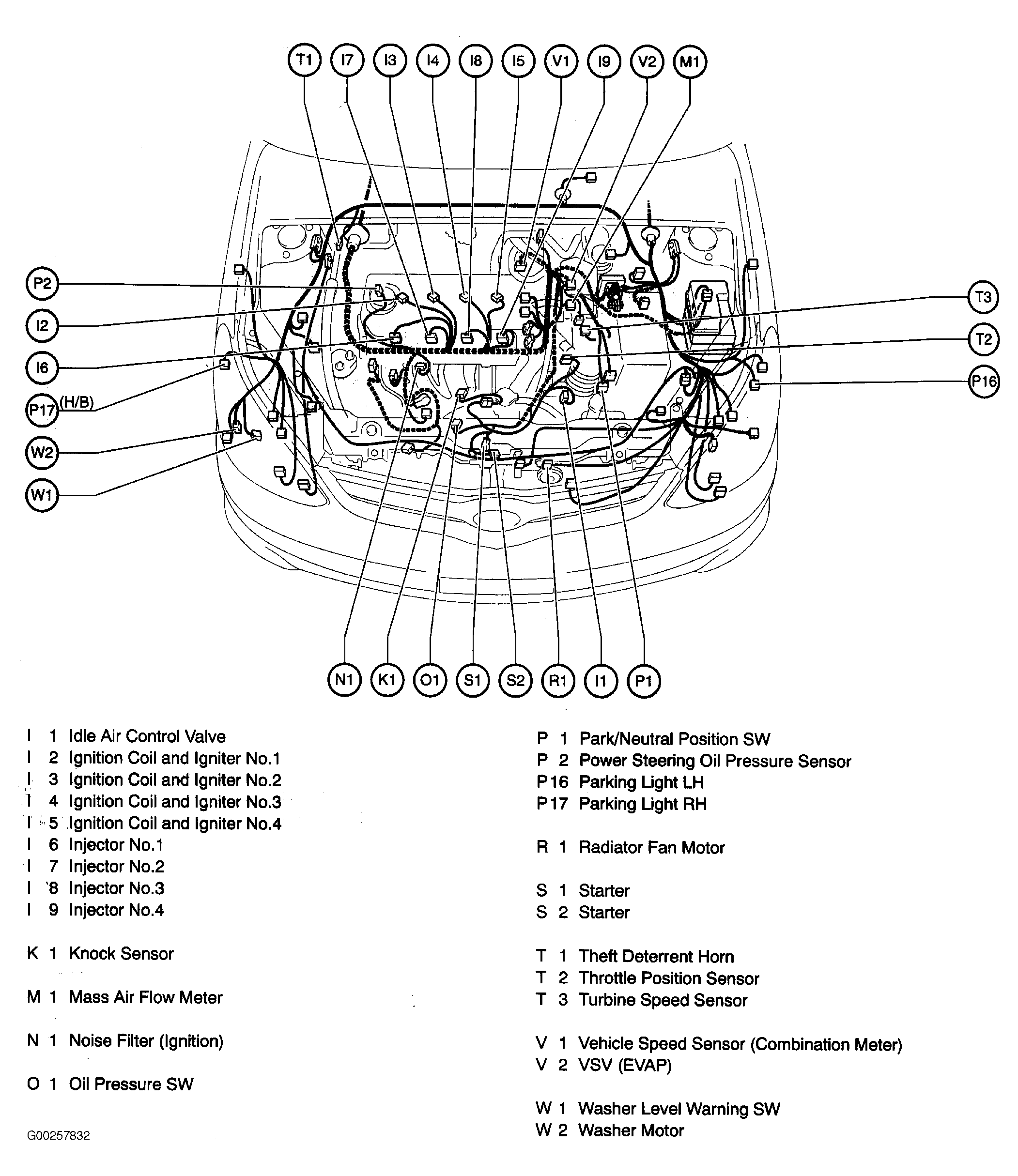

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

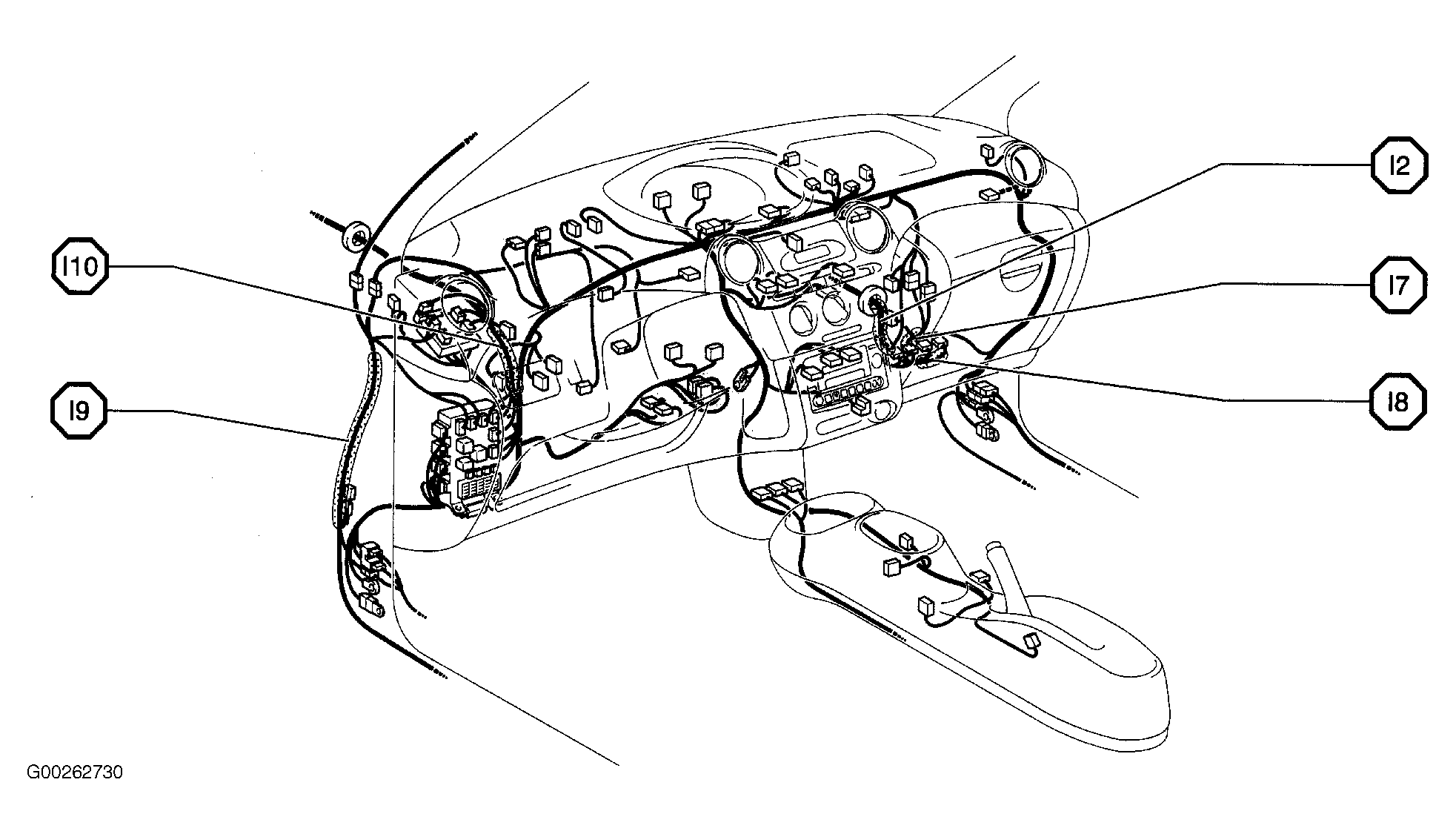

Fig 3: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

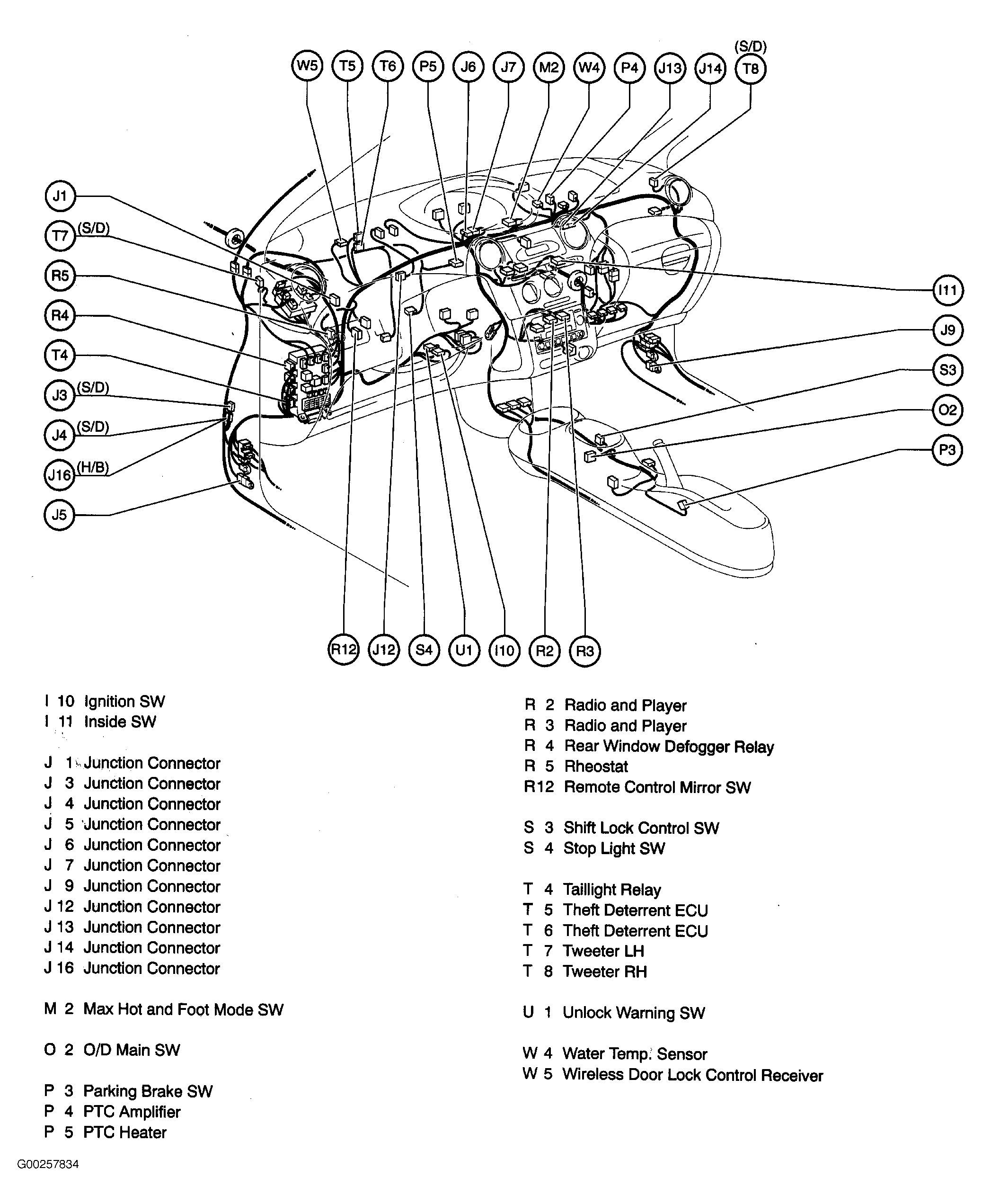

Fig 4: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

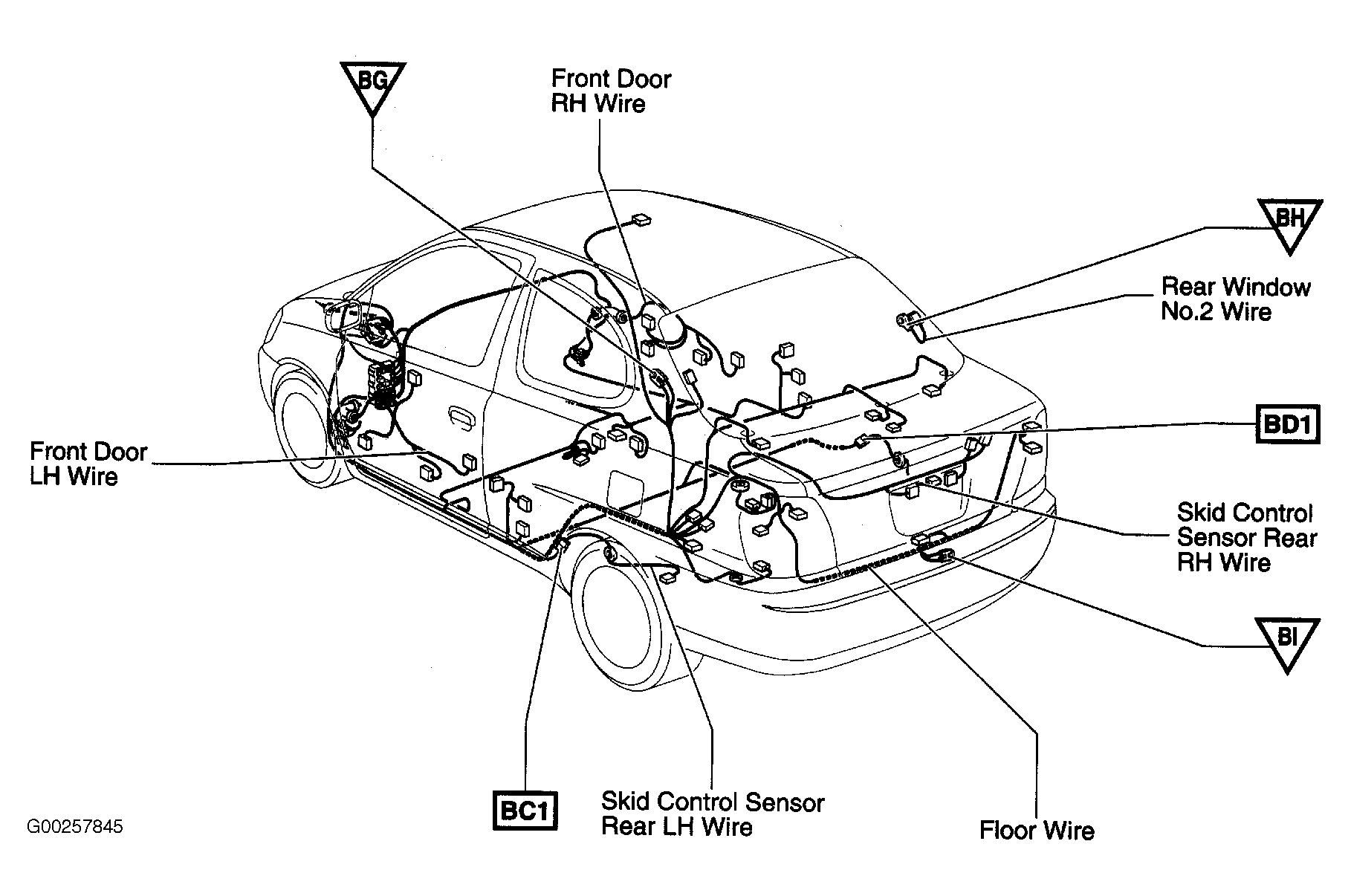

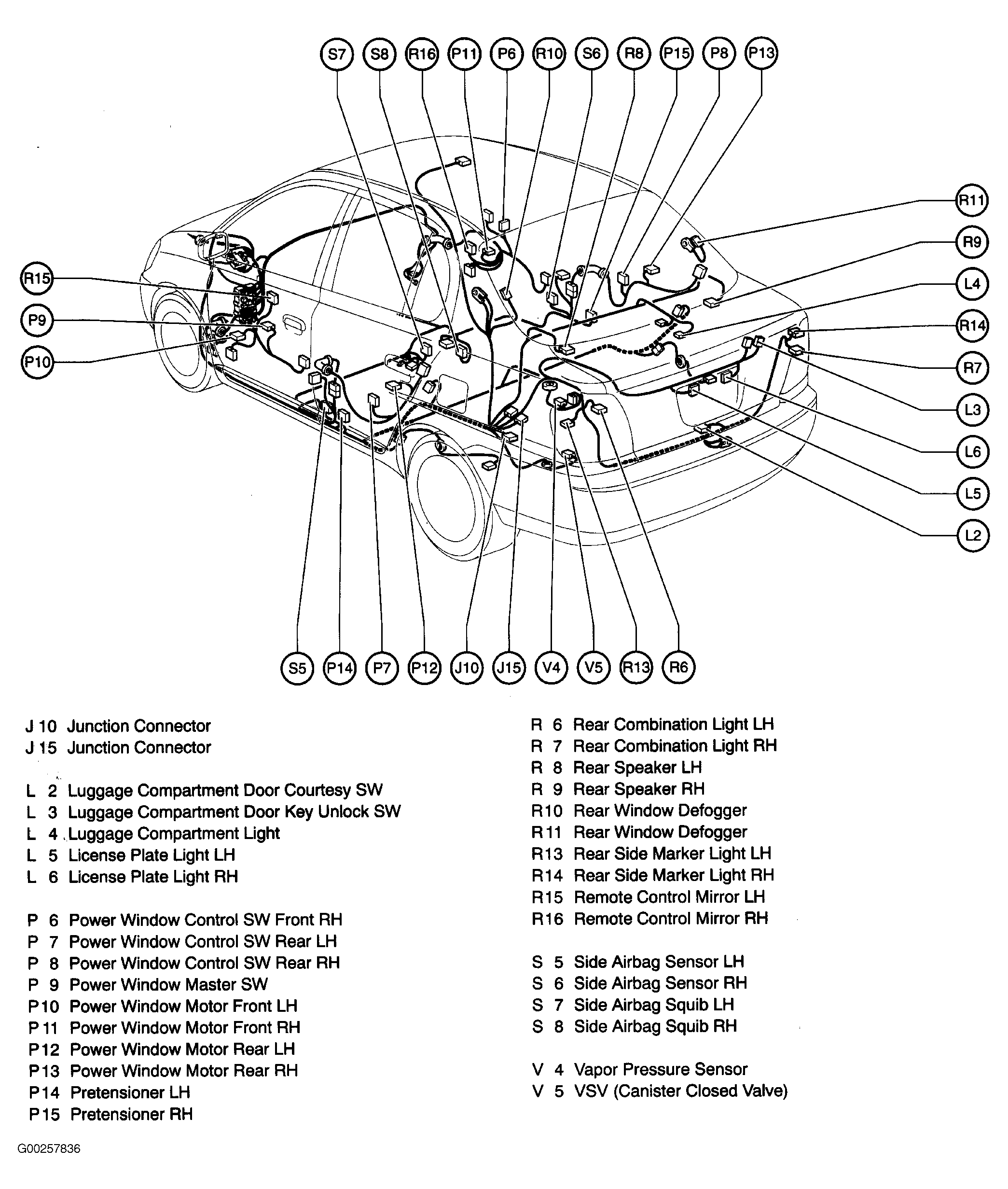

Fig 5: Vehicle Overview (4 Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

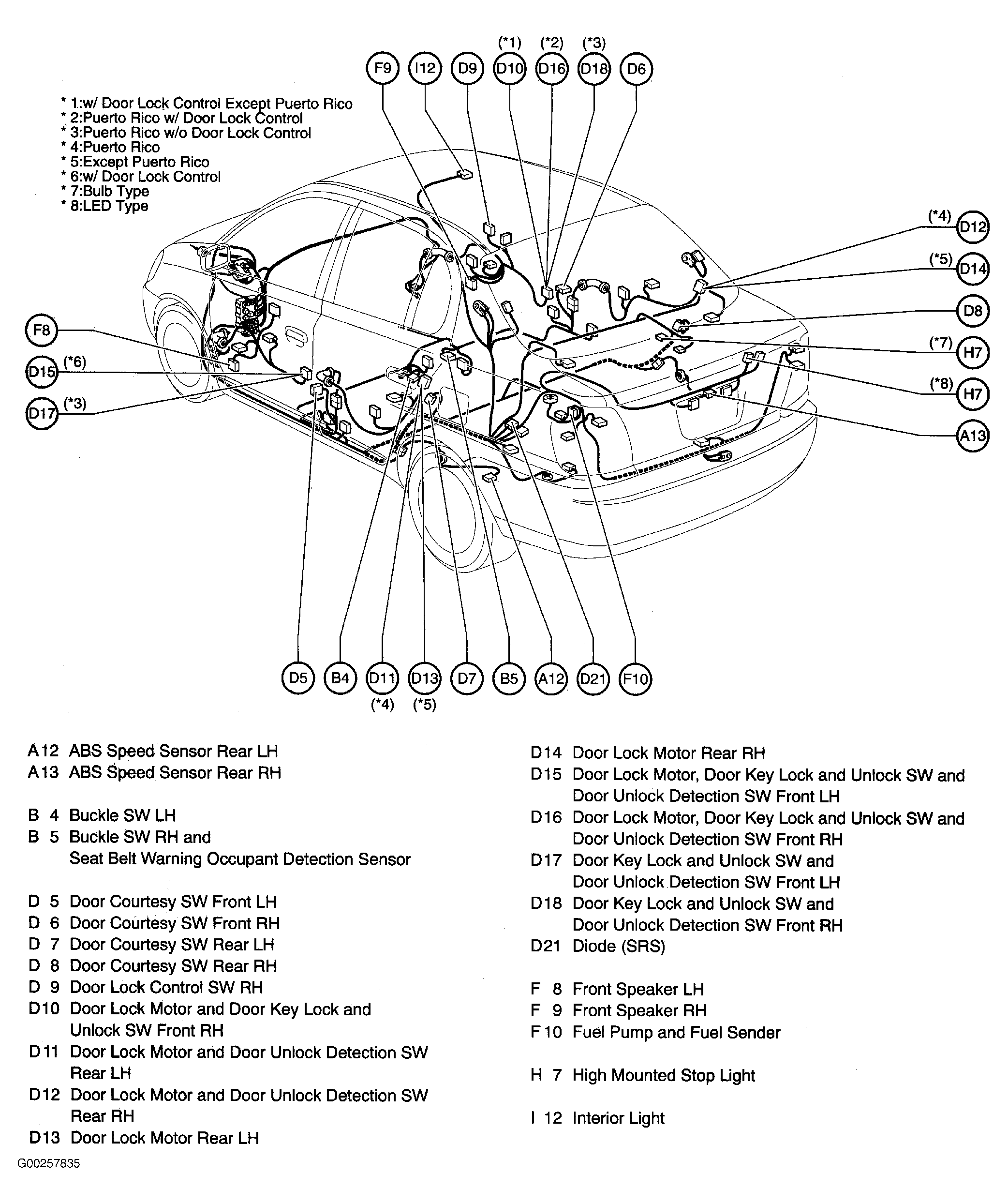

Fig 6: Vehicle Overview (4 Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Vehicle Overview (2 Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

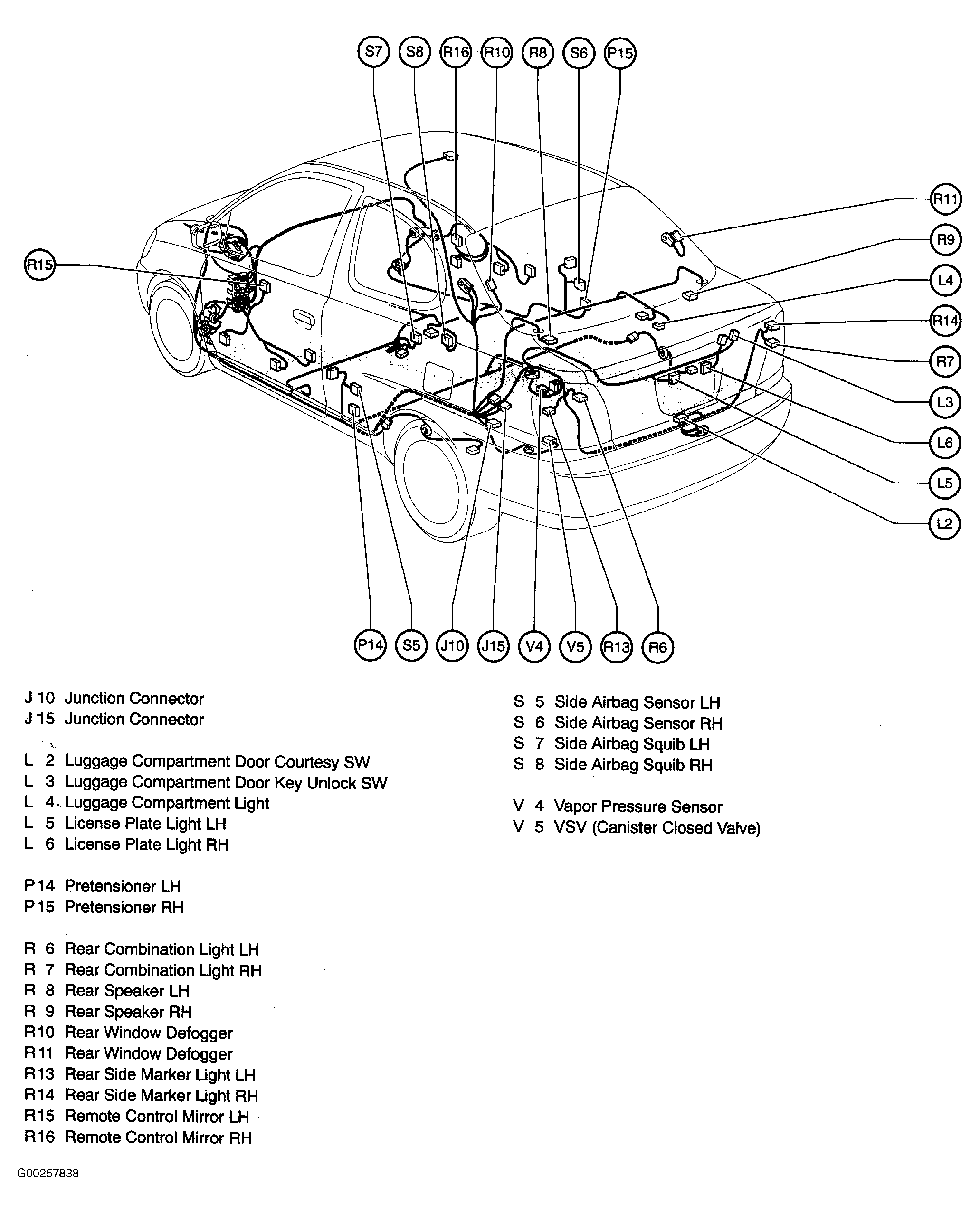

Fig 8: Vehicle Overview (2 Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

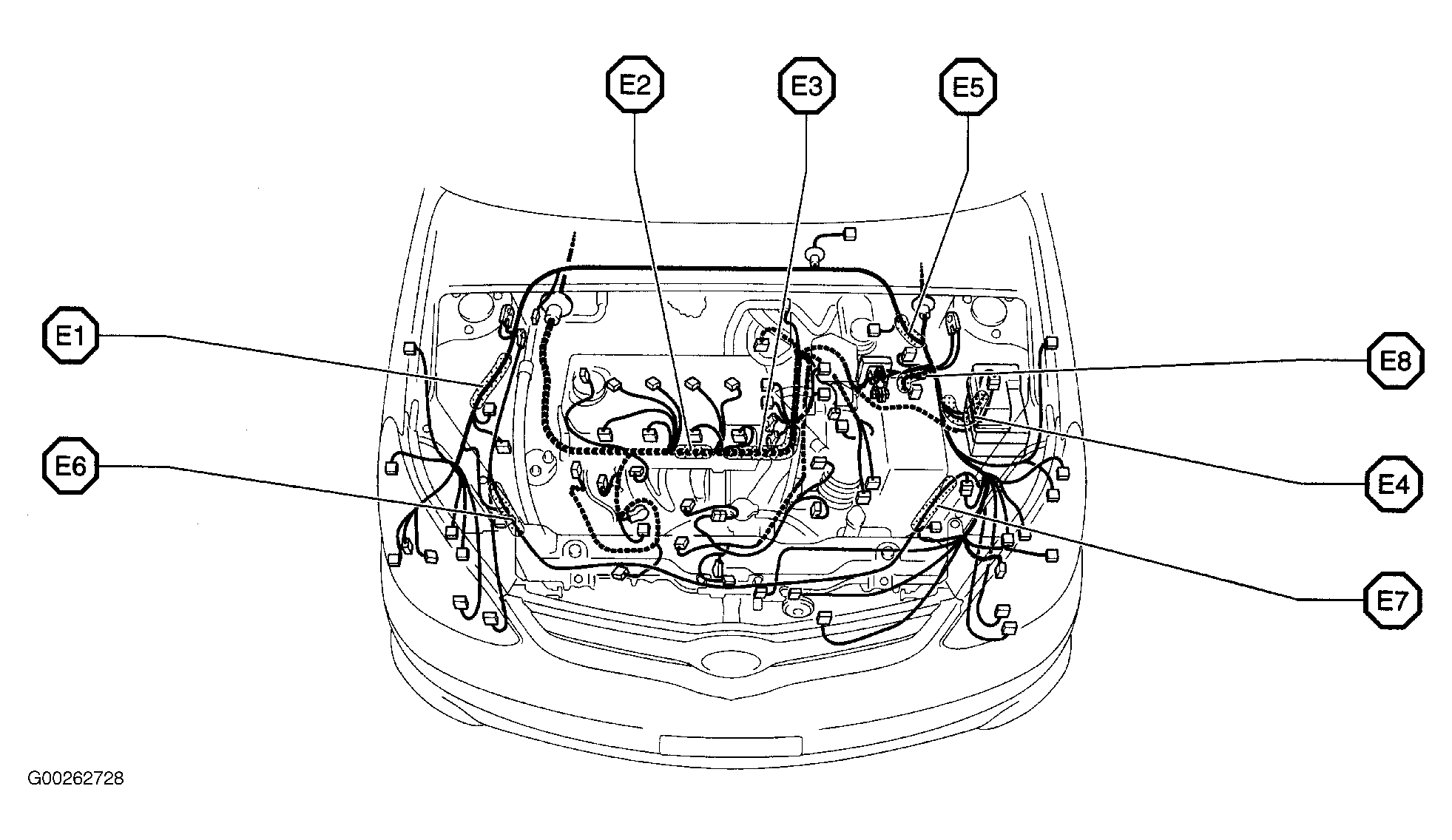

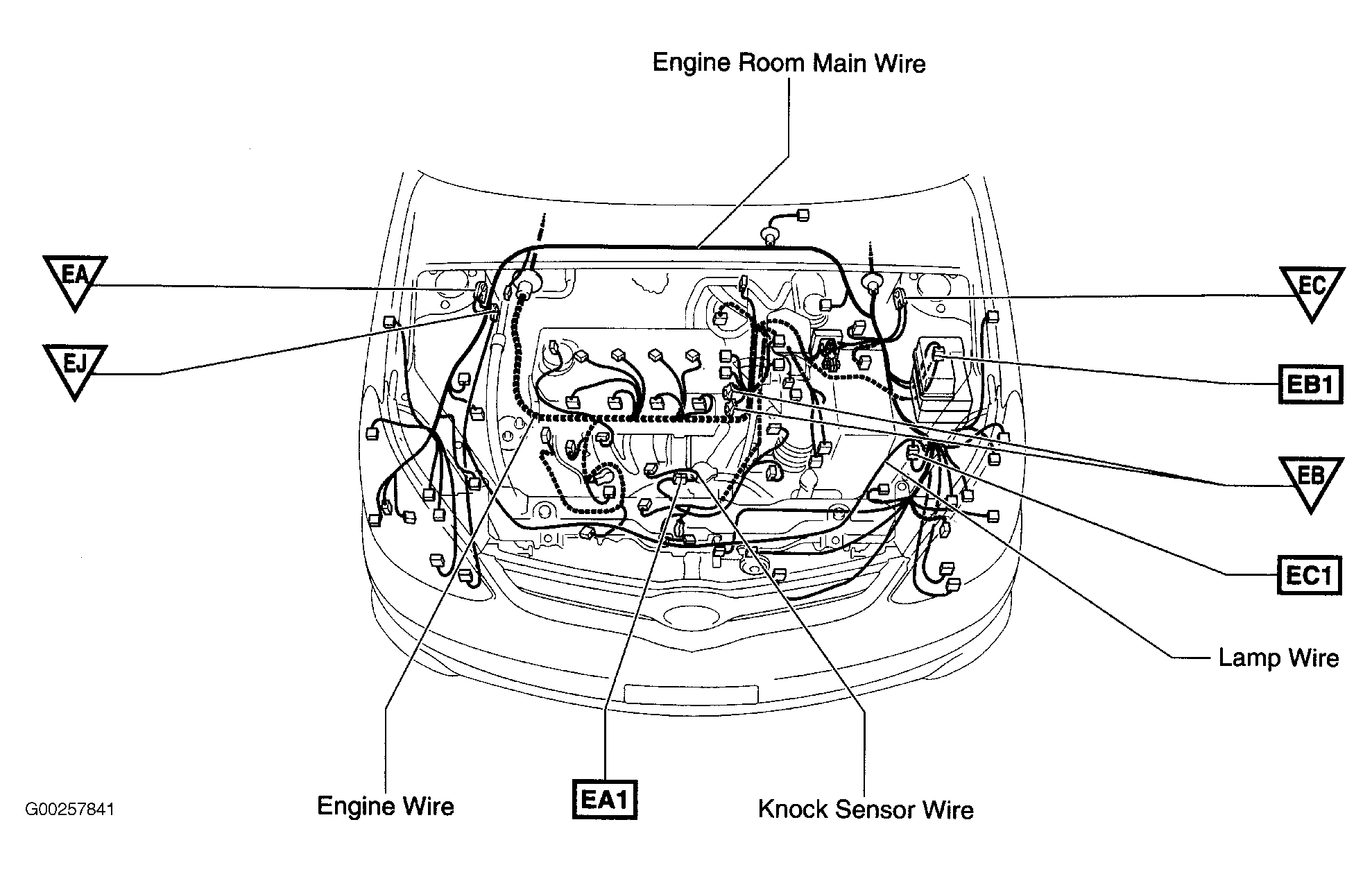

Fig 9: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

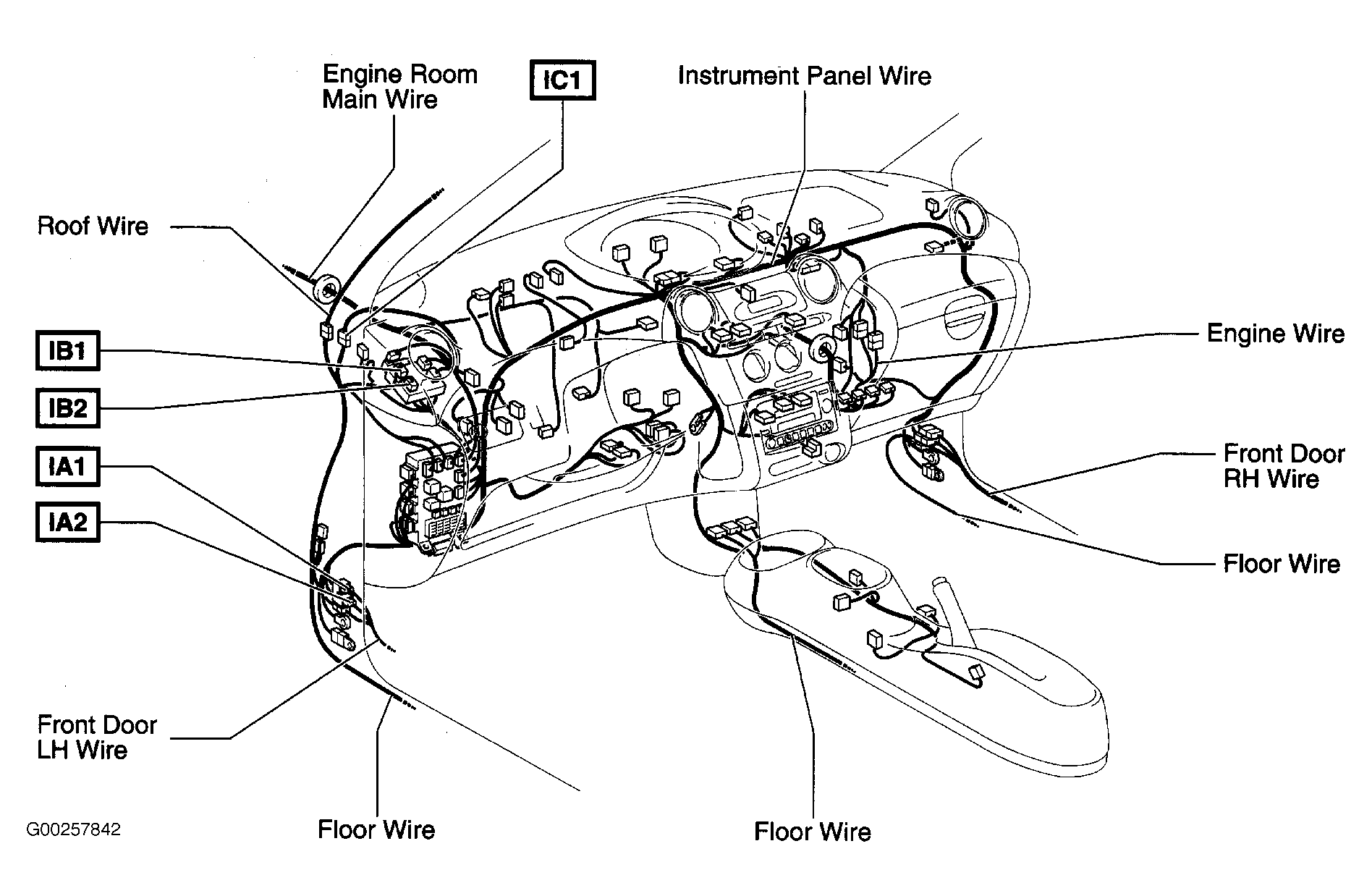

Fig 10: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

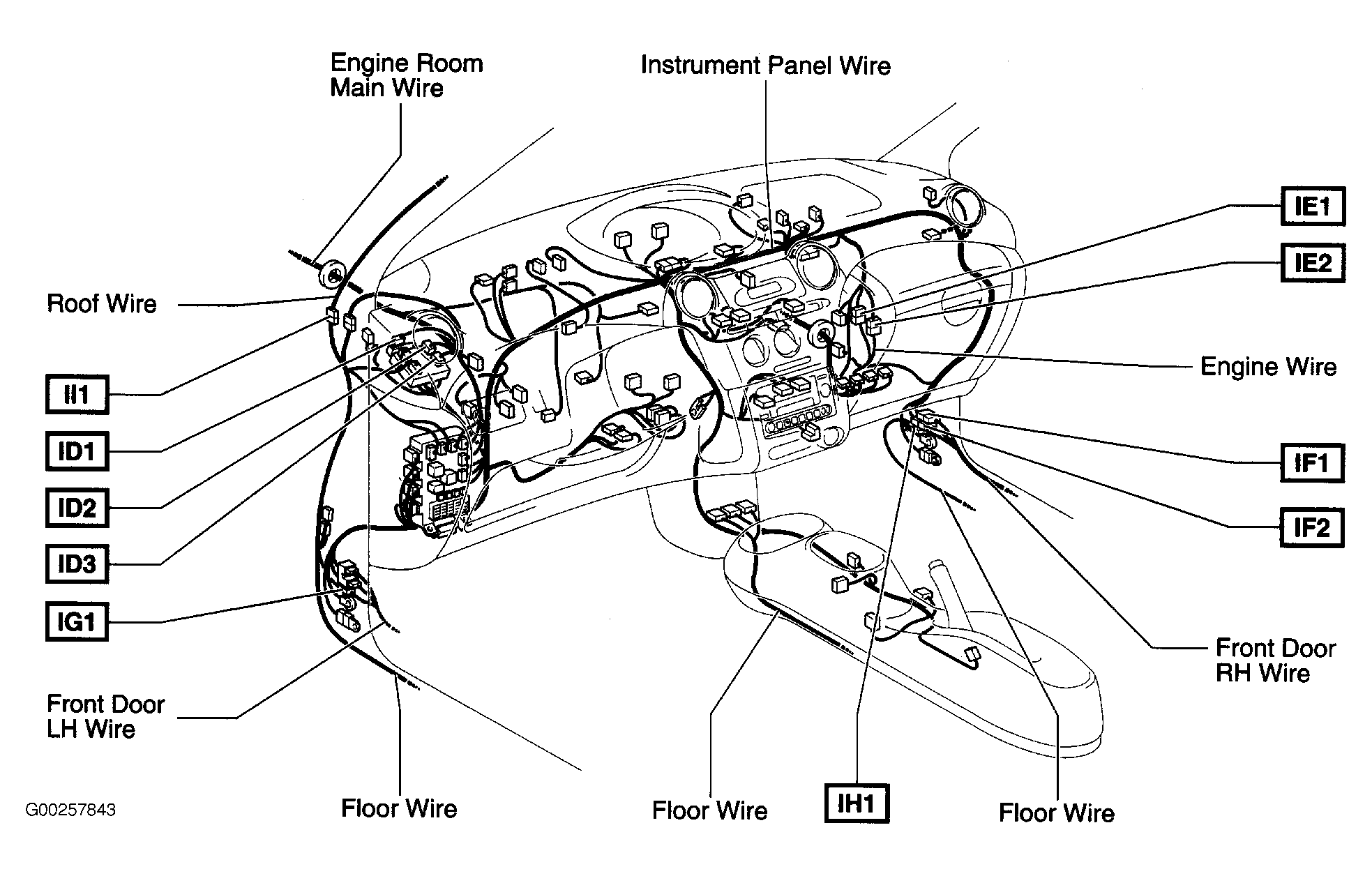

Fig 11: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

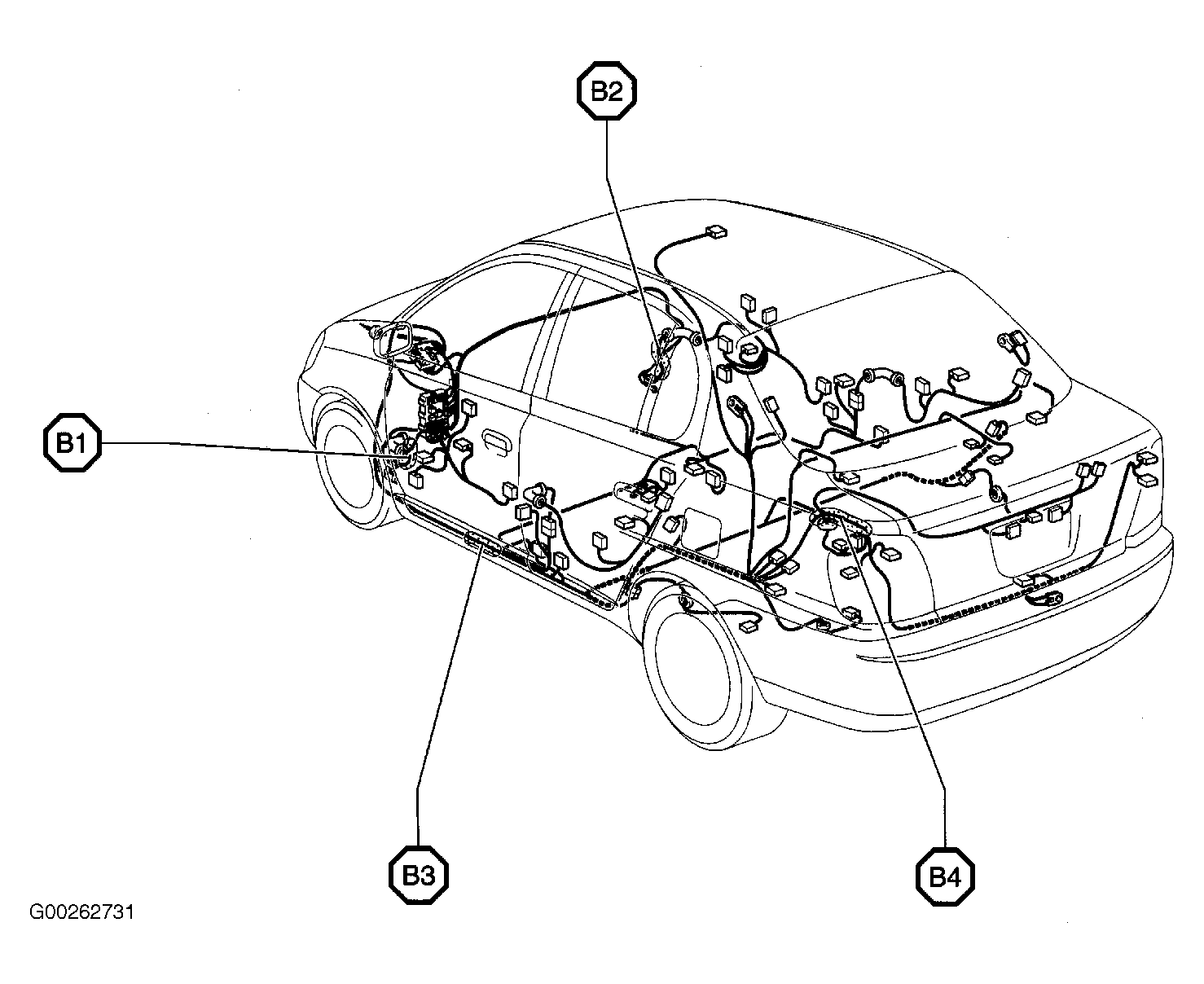

Fig 12: Vehicle Overview (4 Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

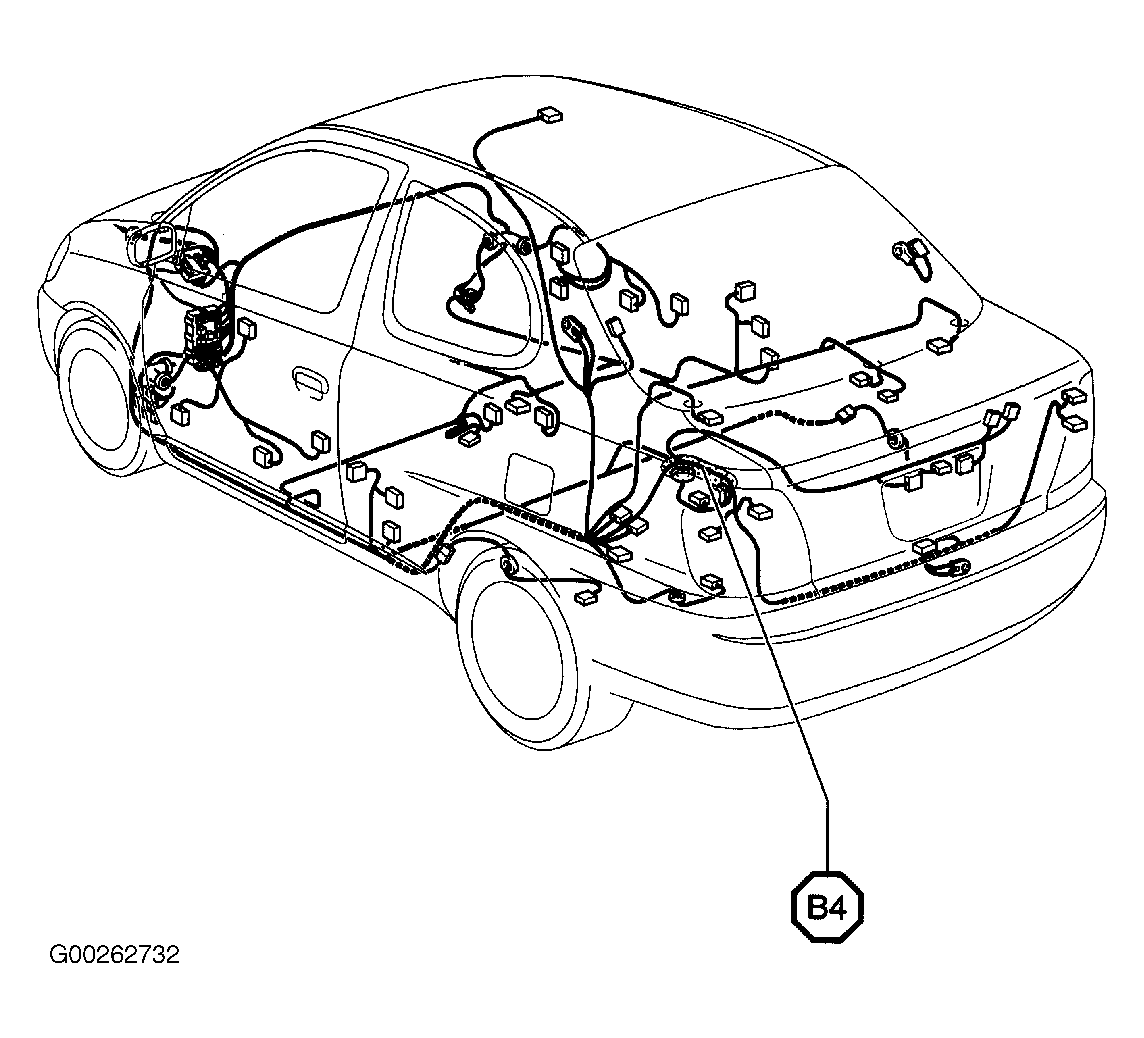

Fig 13: Vehicle Overview (2 Door)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

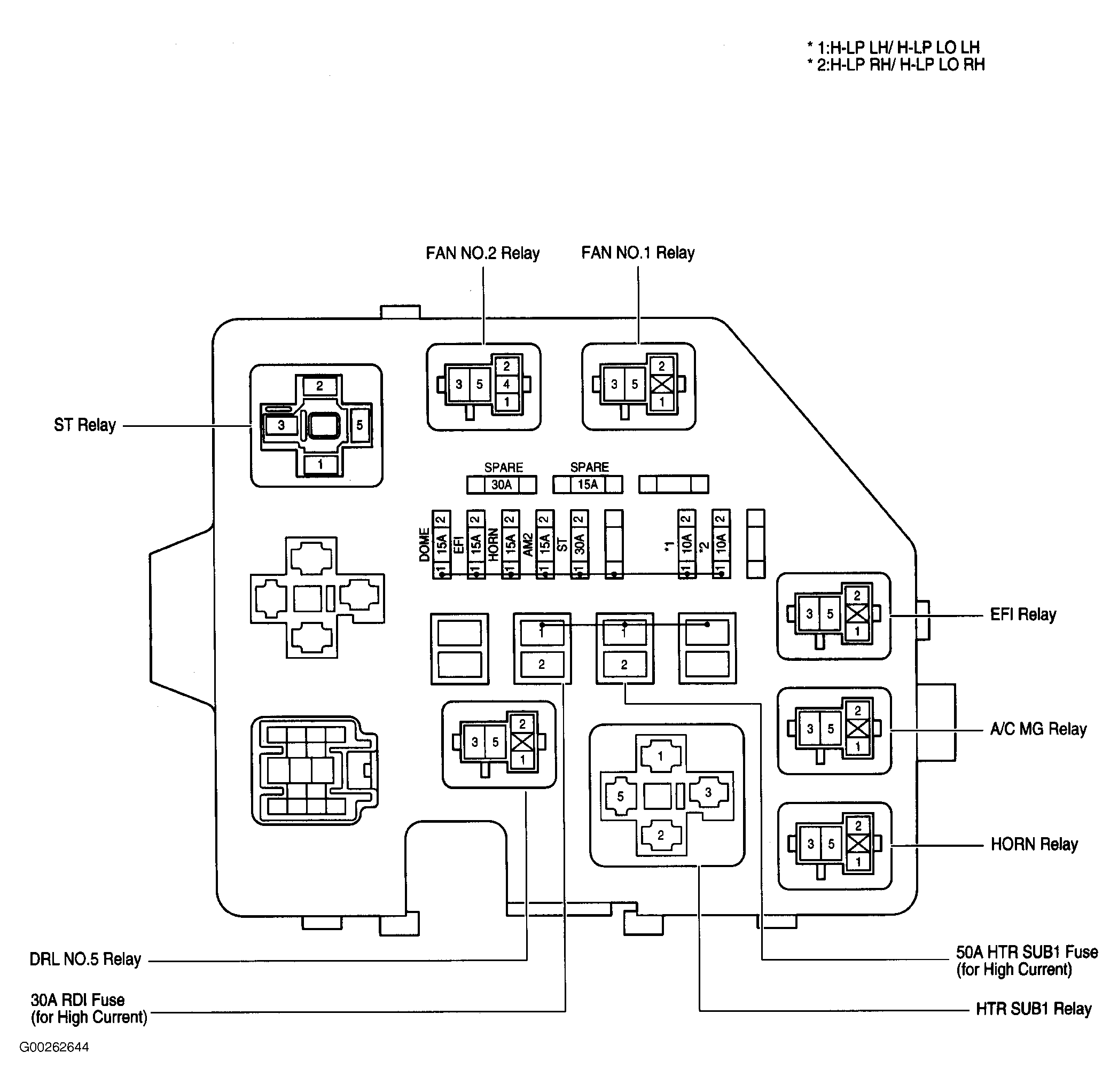

Fig 15: Engine Room R/B

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM RELAY BLOCK RELAY IDENTIFICATION

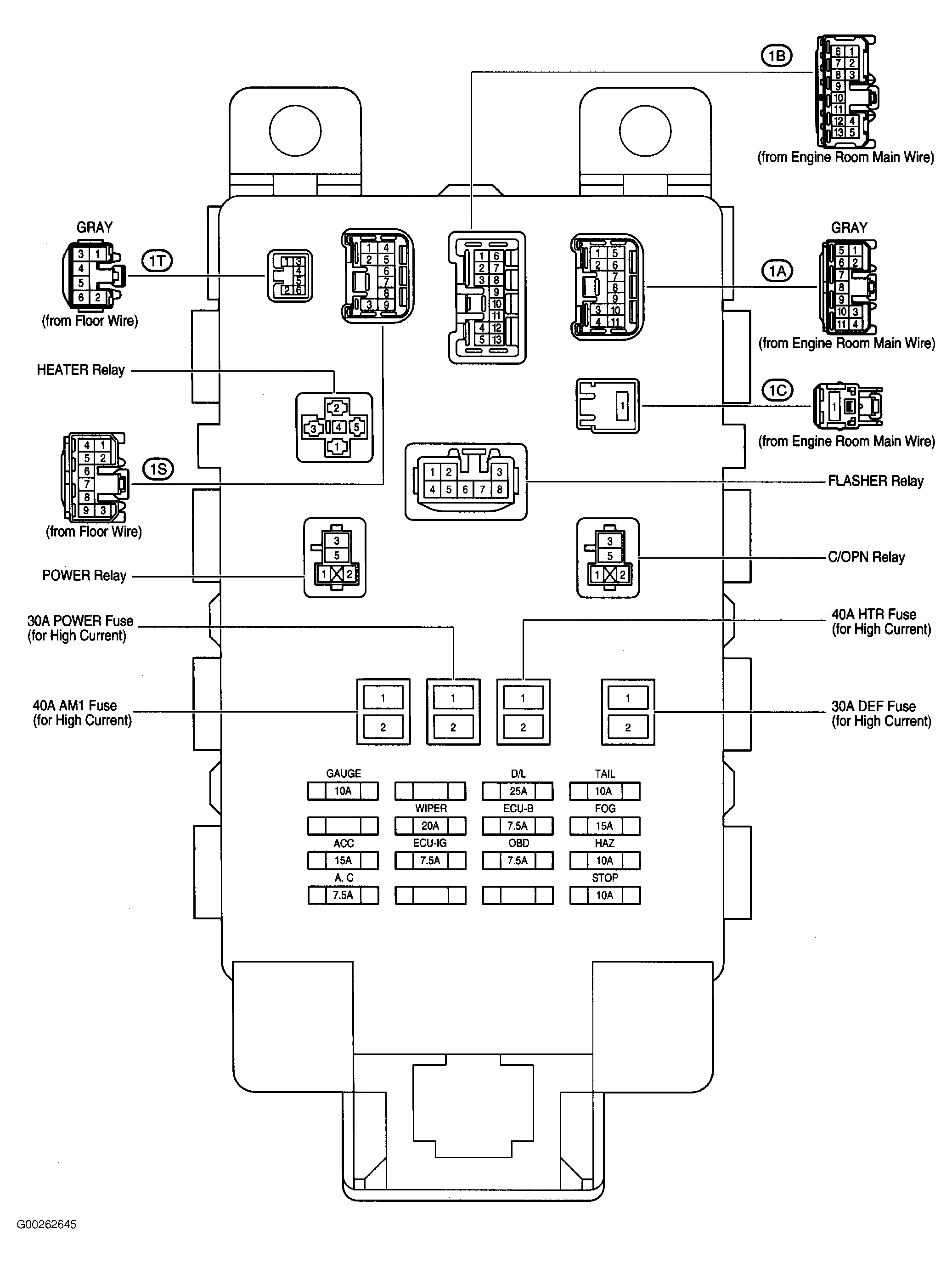

Fig 16: Instrument Panel J/B

INSTRUMENT PANEL JUNCTION BLOCK RELAY IDENTIFICATION

Fig 17: Engine Compartment

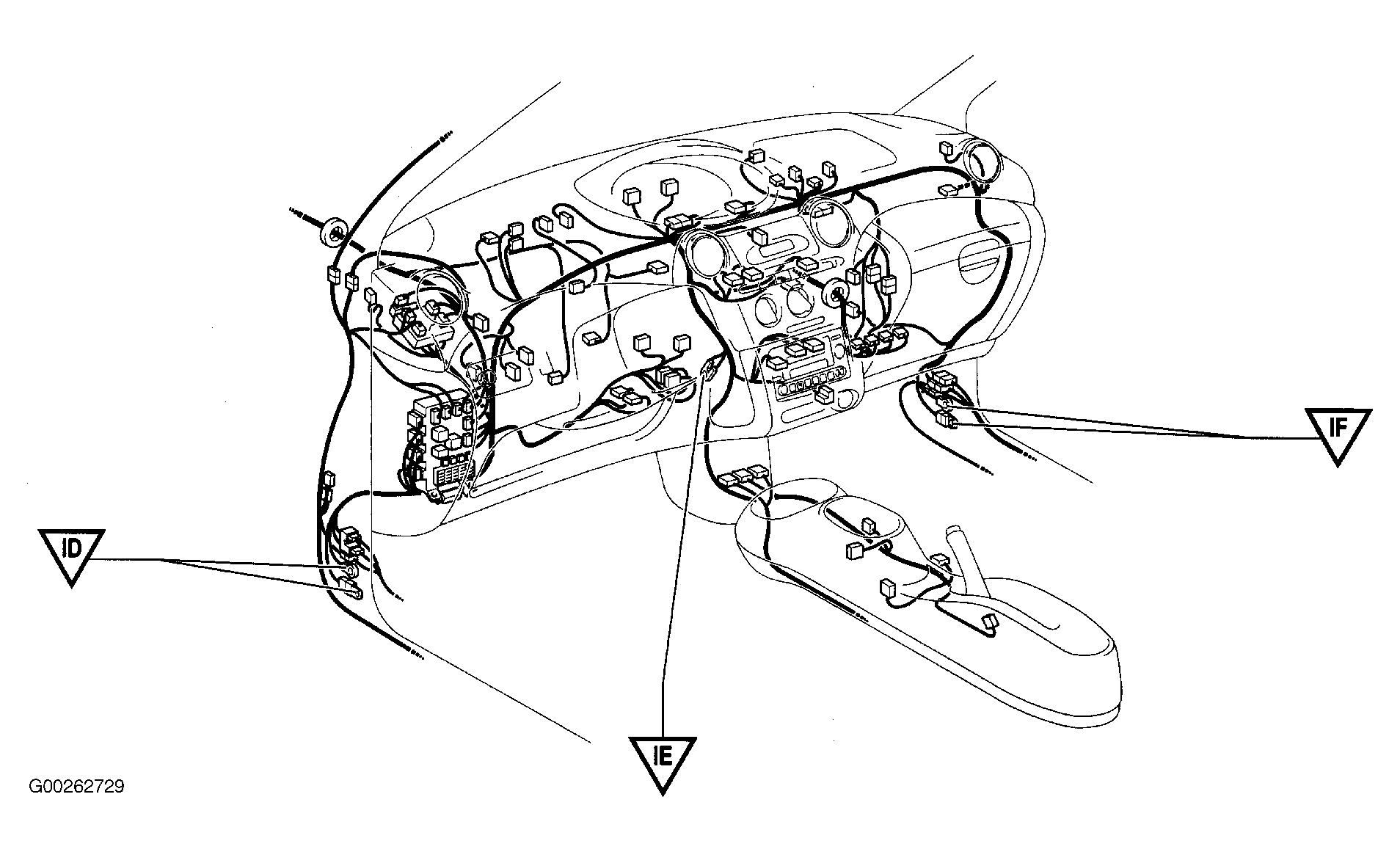

Fig 18: Dash

Fig 19: Dash

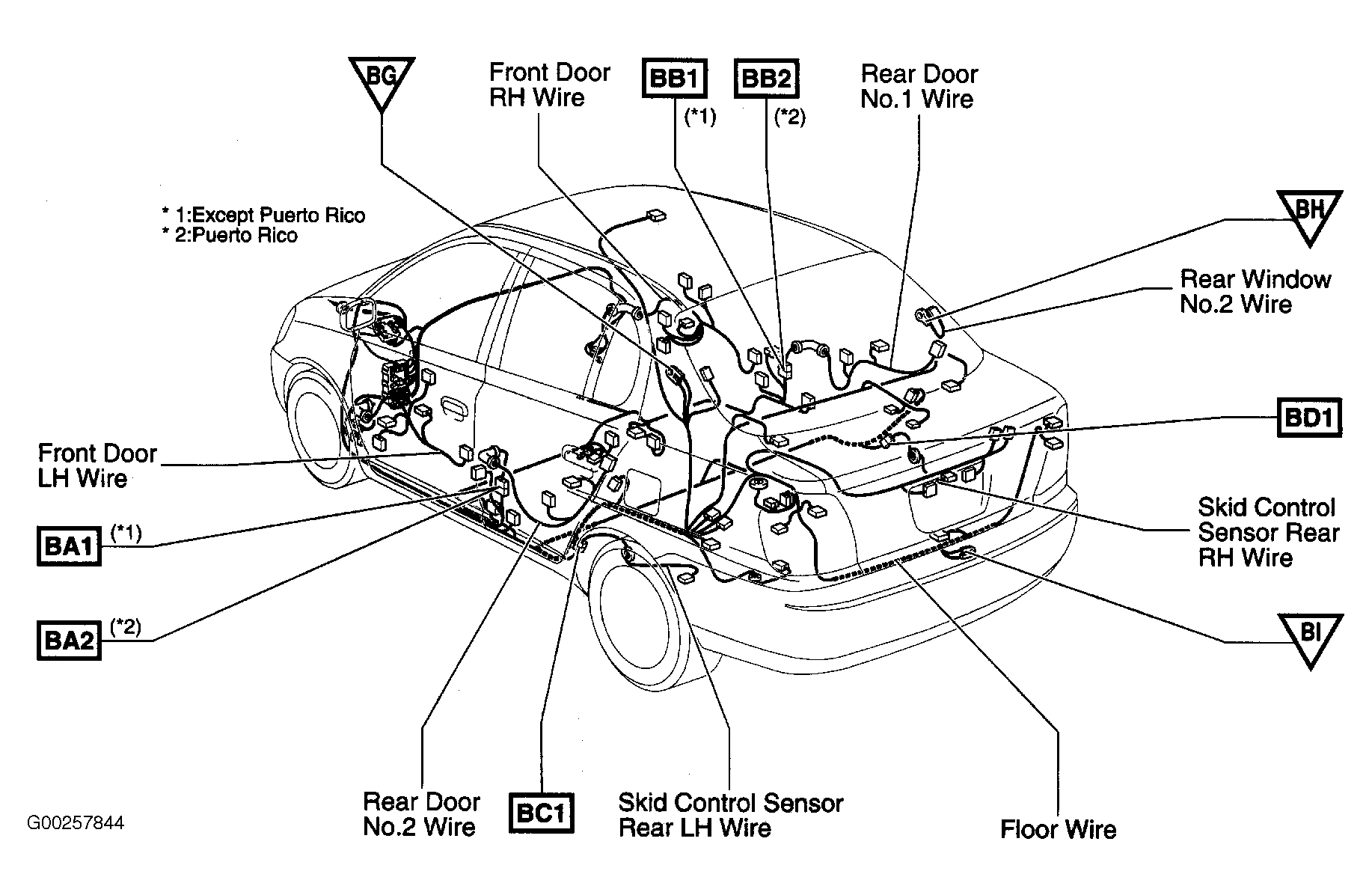

Fig 20: Vehicle Overview (4 Door)

Fig 21: Vehicle Overview (2 Door)
