Fuel Pump Control Circuit: Wiring Diagram

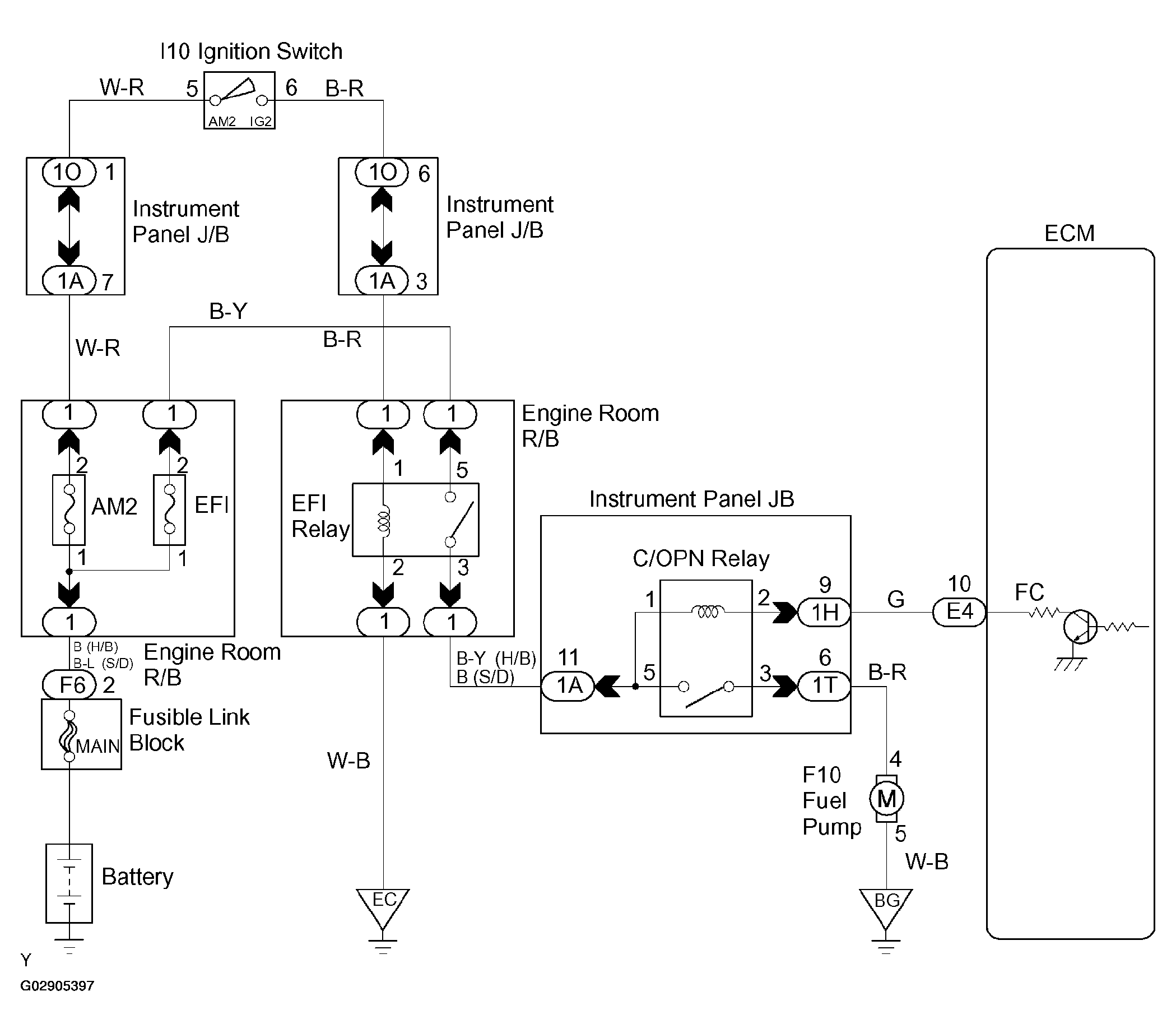

Fig 1: Wiring Diagram

G02905397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
