ECM Power Source Circuit: Wiring Diagram

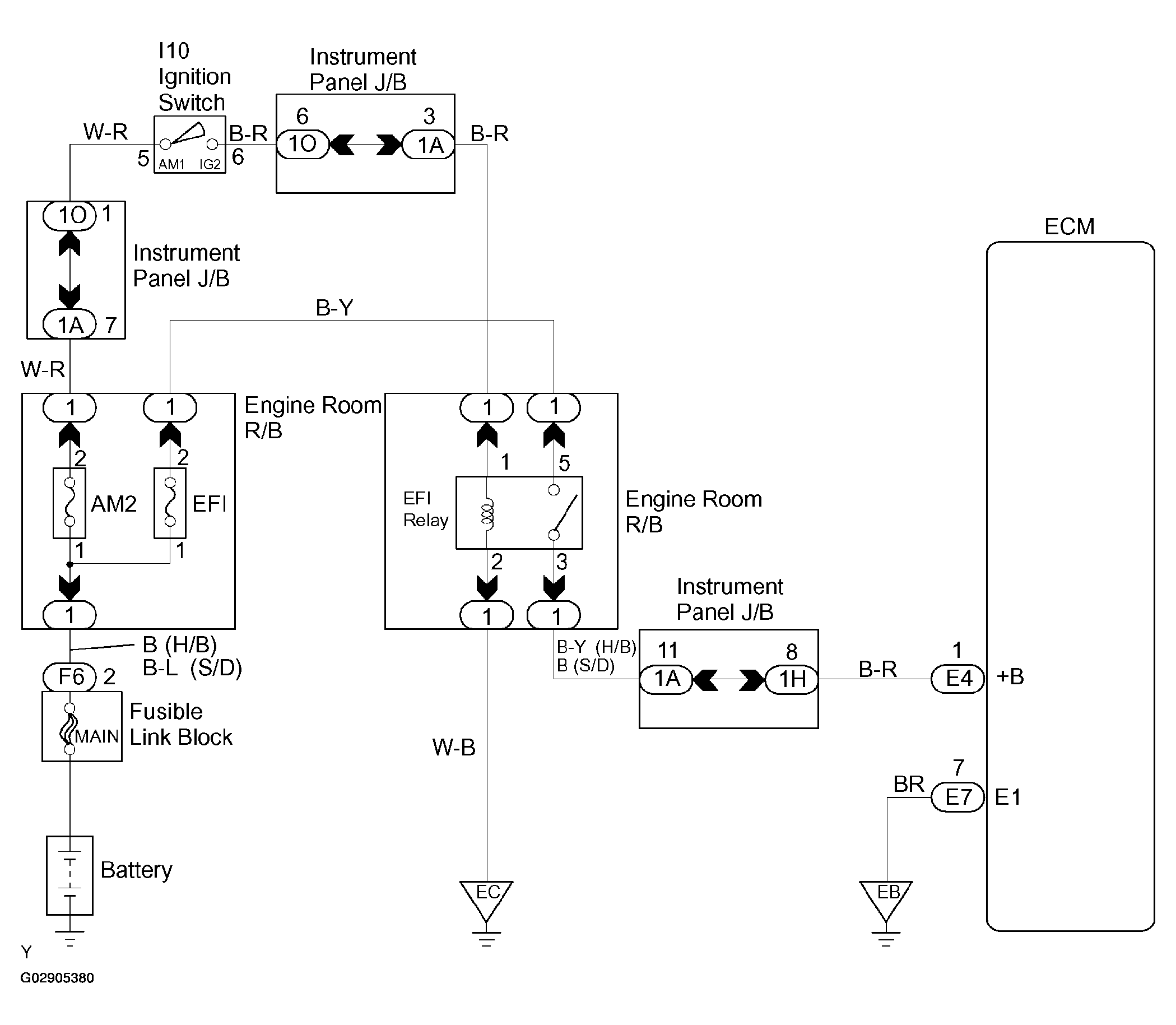

Fig 1: ECM Power Source Wiring Diagram

G02905380

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
