Idle Air Control (IAC) Valve: Components

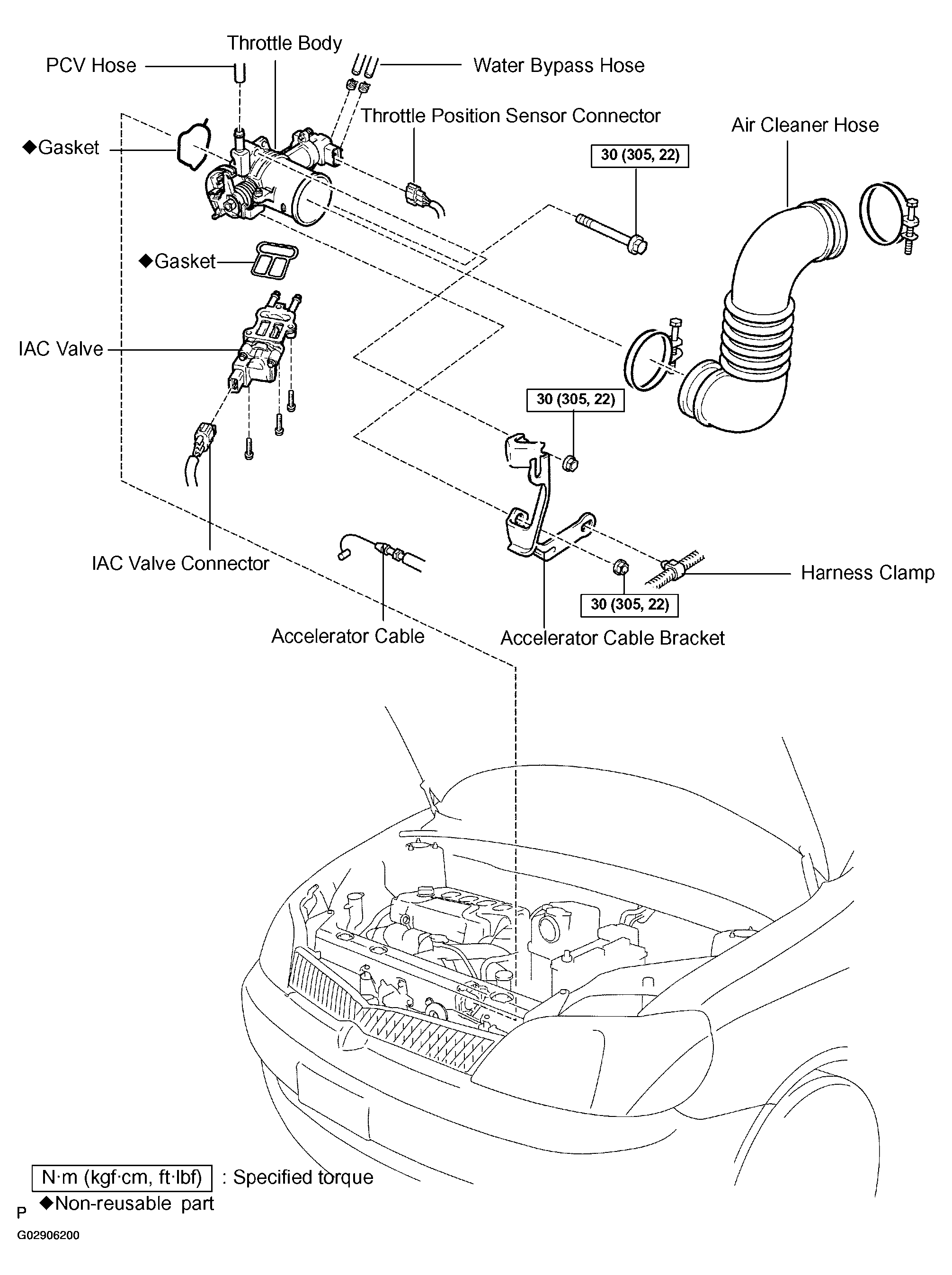

Fig 1: Identifying Idle Air Control (IAC) Valve

G02906200

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
