On-Vehicle Inspection

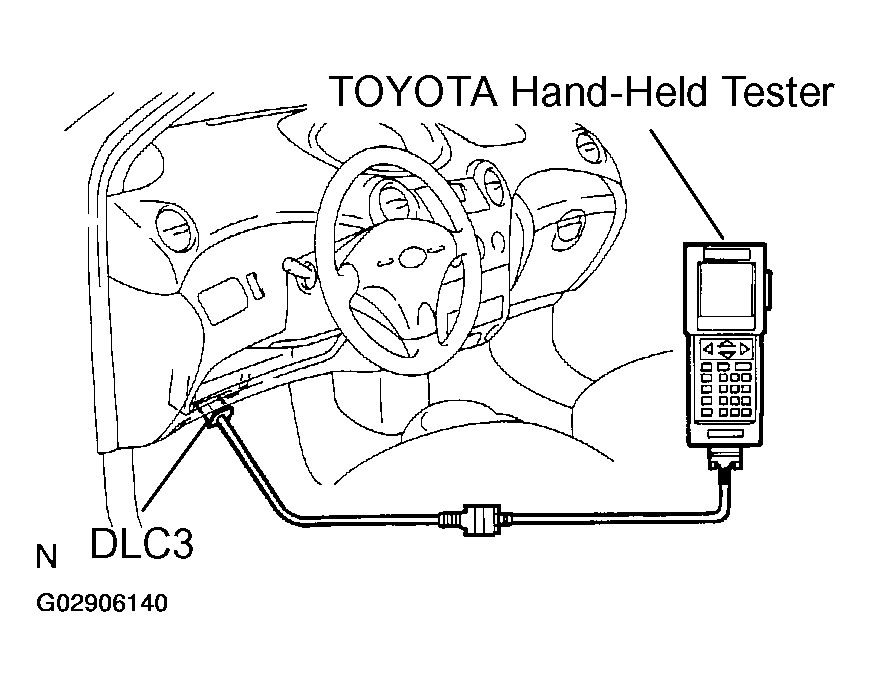

1. Connect the TOYOTA hand-held tester to the DLC3.
2. Turn the ignition switch ON and TOYOTA hand-held tester main switch ON.
   NOTE: Do not start the engine.
3. Select the active test mode on the TOYOTA hand-held tester.
4. Refer to the TOYOTA HAND-HELD TESTER Operator's Manual for further details.
   Fig 1: Connecting Toyota Hand-Held Tester To DLC3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

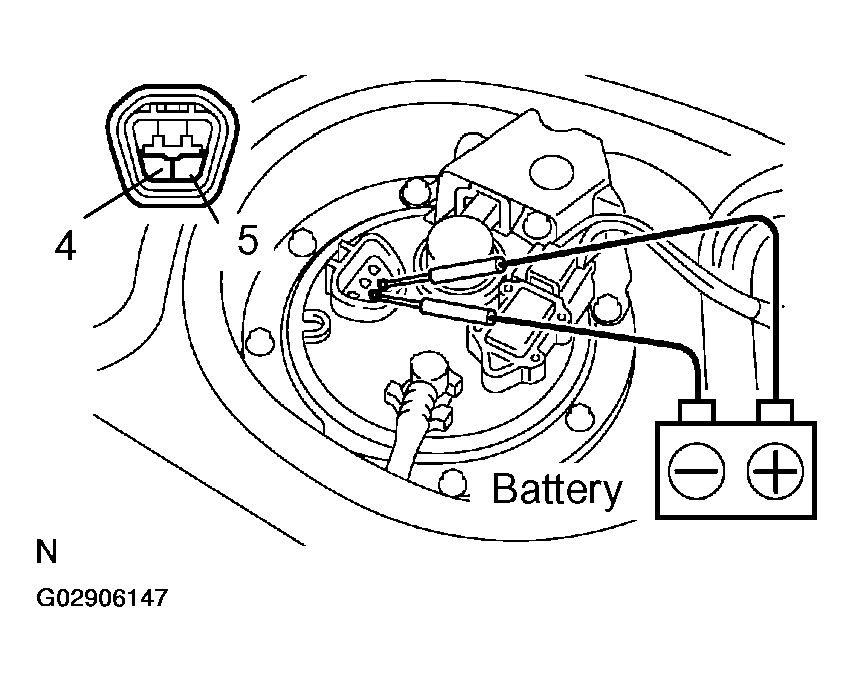

5. If you do not have a TOYOTA hand-held tester, connect the positive (+) lead from the battery to terminal 4 of the connector, and the negative (-) lead to terminal 5.
   Fig 2: Connecting Positive (+) Lead From Battery To Terminal 4 Of Connector, And Negative (-) Lead To Terminal 5

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Check that there is pressure in the fuel inlet pipe connected to the fuel line.

   HINT:

   If there is fuel pressure, you will hear the sound of fuel flowing. If there is no pressure, check the following parts, fusible link, fuses, EFI main relay, fuel pump, ECM, and witting connector.

7. Turn the ignition switch to LOCK.
8. Disconnect the TOYOTA hand- held tester from the DLC3.
   Fig 3: Connecting Fuel Inlet Pipe To Fuel Line

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the battery positive voltage is above 12 V.
2. Disconnect the negative (-) terminal cable from the battery.

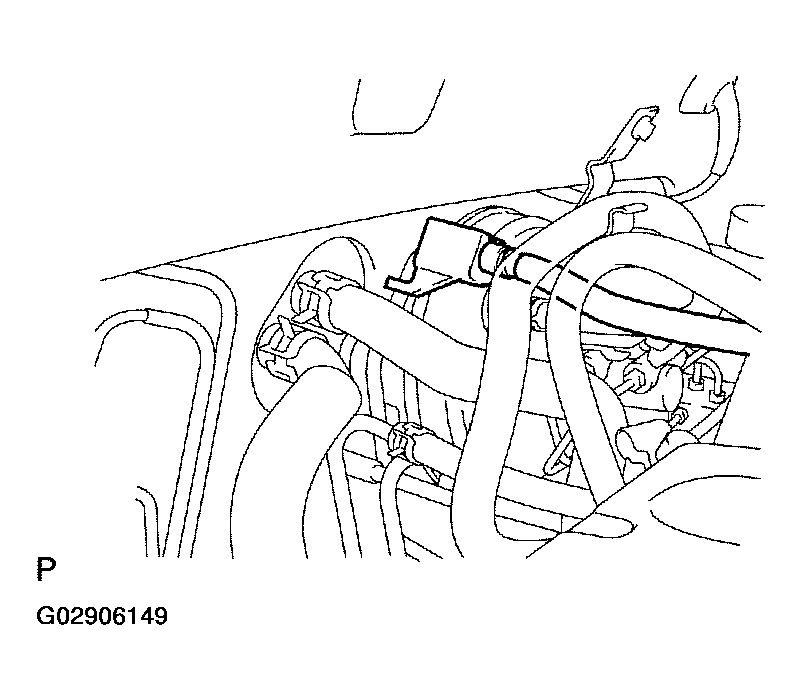

3. Prepare a new fuel tube and remove the old fuel tube connector from the pipe.

   Part No. 23901-21020

   Fig 4: Identifying Fuel Tube Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

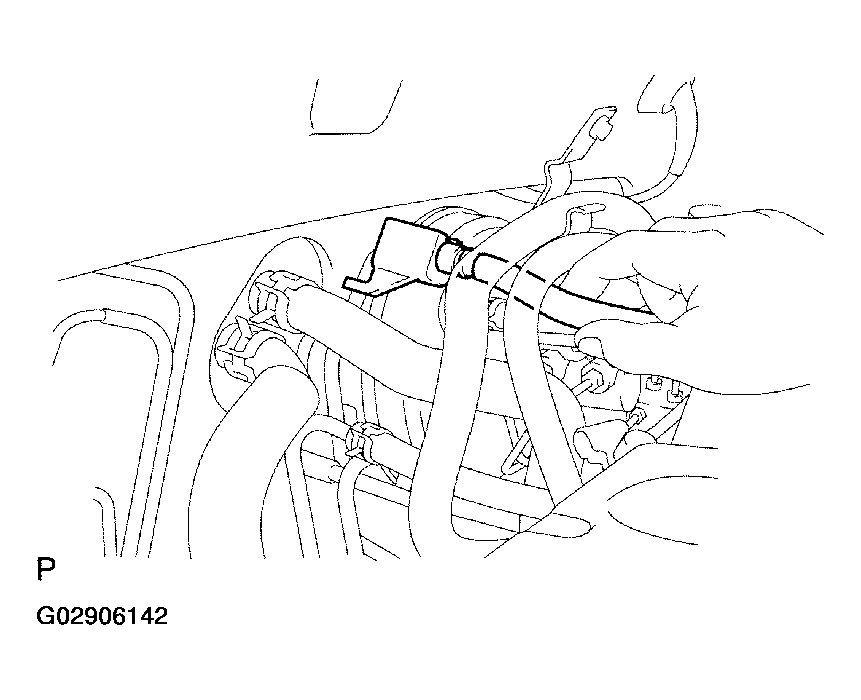

4. Remove the fuel pipe clamp.
   Fig 5: Removing Fuel Pipe Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

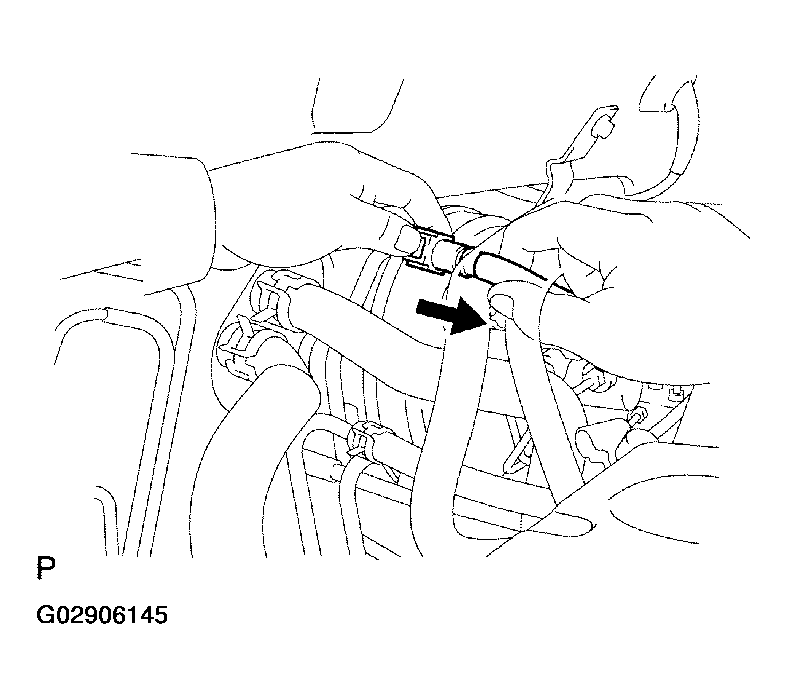

5. Disconnect the fuel tube (fuel tube connector) from the fuel pipe.
   CAUTION:

   • Perform disconnection of the fuel tube connector (quick type) after observing the precautions.
   • As there is retained pressure in the fuel pipe line, prevent if from splashing inside the engine comportment.
     Fig 6: Disconnecting Fuel Tube From Fuel Pipe

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

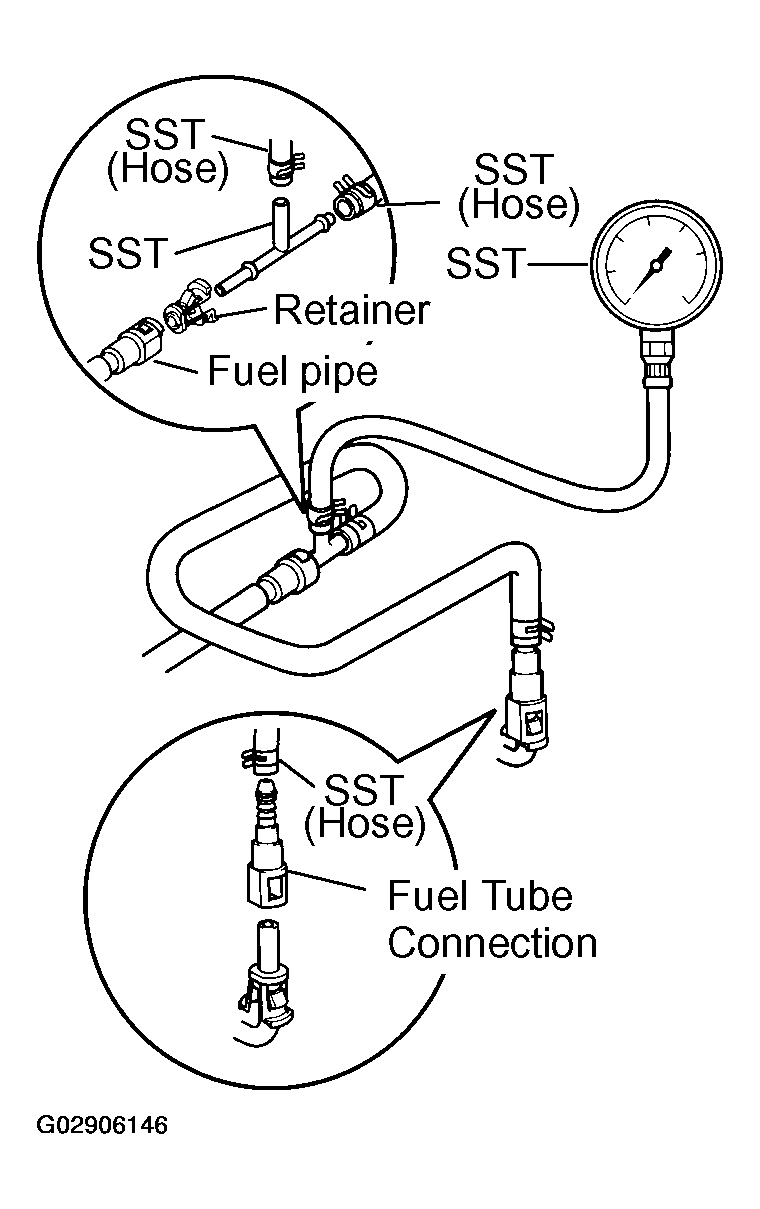

6. Install SST (pressure gauge) as shown in Fig 7 0 by using SST and fuel tube connector.

   SST 09268-41047 (95336-08070), 09268-45014 (09268-41200, 09268-41220, 09268-41250)

7. Wipe off any splattered gasoline.
8. Reconnect the negative (-) terminal cable to the battery.
   Fig 7: Installing SST

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Connect the TOYOTA hand-held tester to the DLC3. If you do not have the TOYOTA hand-held tester, connect the positive (+) lead from the battery to terminal 4 of the connector, and the negative (-) lead to terminal 5.
10. Measure the fuel pressure.

    Fuel pressure:

    301 - 347 kPa (3.1 - 3.5 kgf/cm ²  , 44 - 50 psi)

    Fig 8: Connecting Positive (+) Lead From Battery To Terminal 4 Of Connector, And Negative (-) Lead To Terminal 5

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If pressure is high, replace the fuel pressure regulator. If pressure is low, check the Fuel hoses and connections, Fuel pump, Fuel filter, and Fuel pressure regulator

11. Disconnect the TOYOTA hand- held tester from the DLC3.
12. Start the engine
13. Measure the fuel pressure at idle.

    Fuel pressure:

    301 - 347 kPa (3.1 - 3.5 kgf/cm ²  , 44 - 50 psi)

14. Stop the engine
15. Check that the fuel pressure remains as specified for 5 minutes after the engine has stopped.

    Fuel pressure:

    147 kPa (1.5 kgf/cm ²  , 21 psi) or more

    If pressure is not as specified, check the fuel pump, pressure regulator and/or injectors

16. After checking fuel pressure, disconnect the negative (-) terminal cable from the battery and carefully, remove the SST and fuel tube connector to prevent gasoline from splashing.

    SST 09268-41047 (95336-08070), 09268-45014 (09268-41200, 09268-41220, 09268-41250)

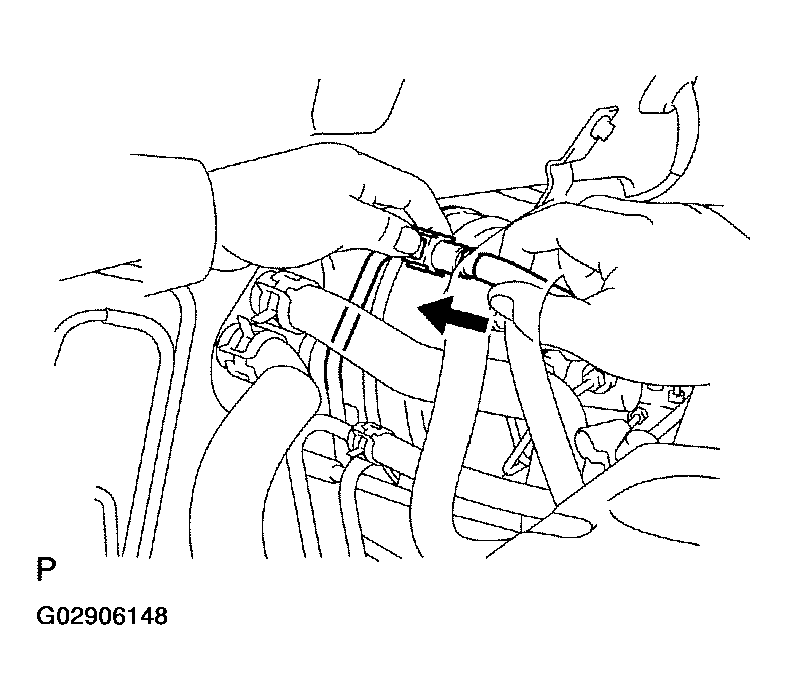

17. Reconnect the fuel tube (fuel tube connector).
    CAUTION: Perform connection of the fuel tube connector (quick type) after observing the precautions.
    Fig 9: Connecting Fuel Tube

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. Install the fuel pipe clamp.
19. Reconnect the negative (-) terminal cable to the battery.
20. Check for fuel leakage.

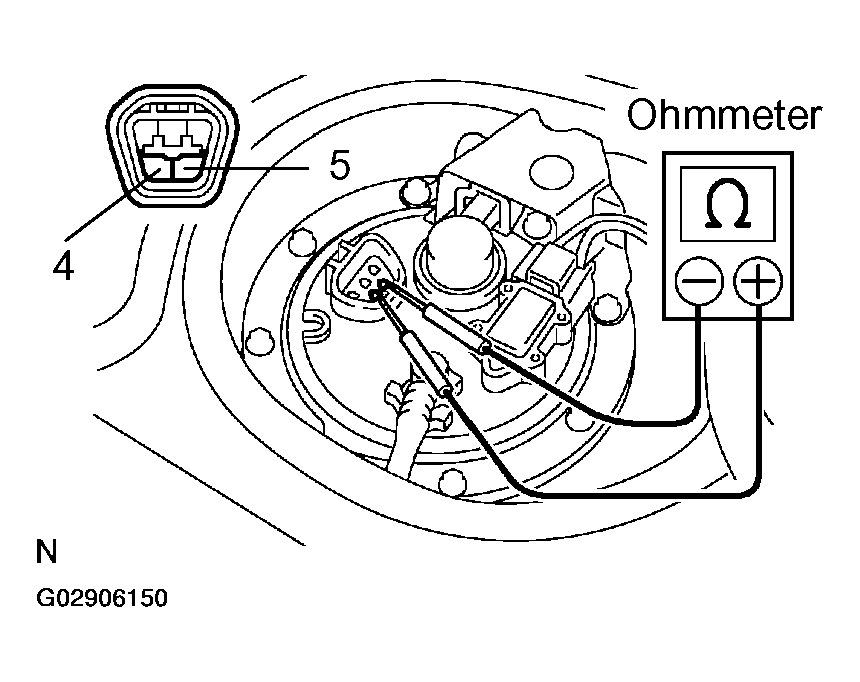

Using an ohmmeter, measure the resistance between terminals 4 and 5.

Resistance:

0.2 - 3.0 Ω at 20 °C (68 °F)

If the resistance is not as specified, replace the fuel pump.

Fig 11: Inspecting Fuel Pump Resistance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the positive (+) lead from the battery to terminal 4 of the connector and the negative (-) terminal 5. Check that the pump operates.

Fig 12: Inspecting Fuel Pump Operation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, replace the fuel pump or lead wire.
