Camshaft Timing Oil Control Valve: Removal

Remove the 4 nuts and No. 2 cylinder head cover.

Remove the bolt, nut and generator bracket.

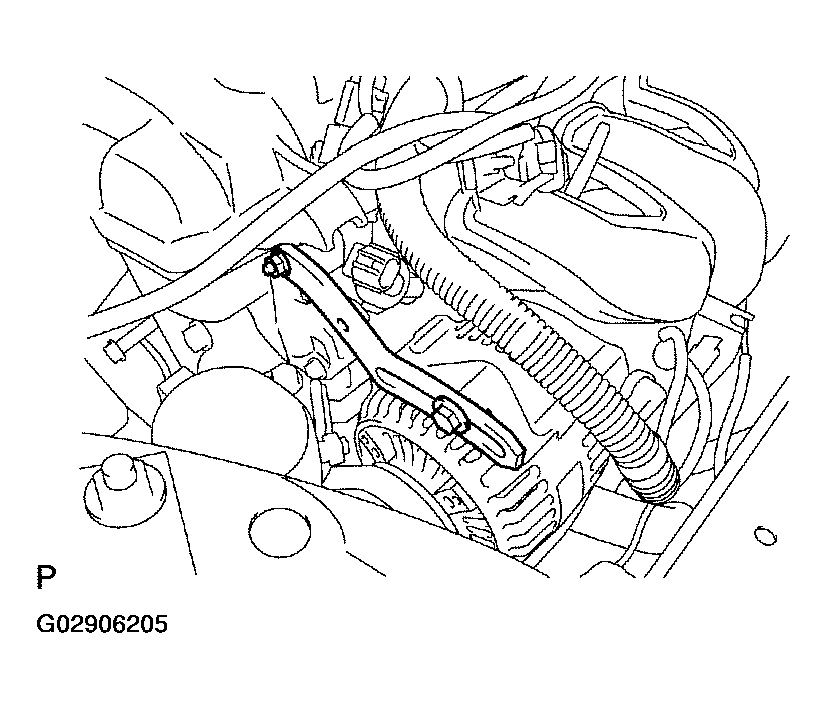

Fig 1: Removing Generator Bracket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the oil control valve connector.
2. Remove the bolt, oil control valve and O-ring.

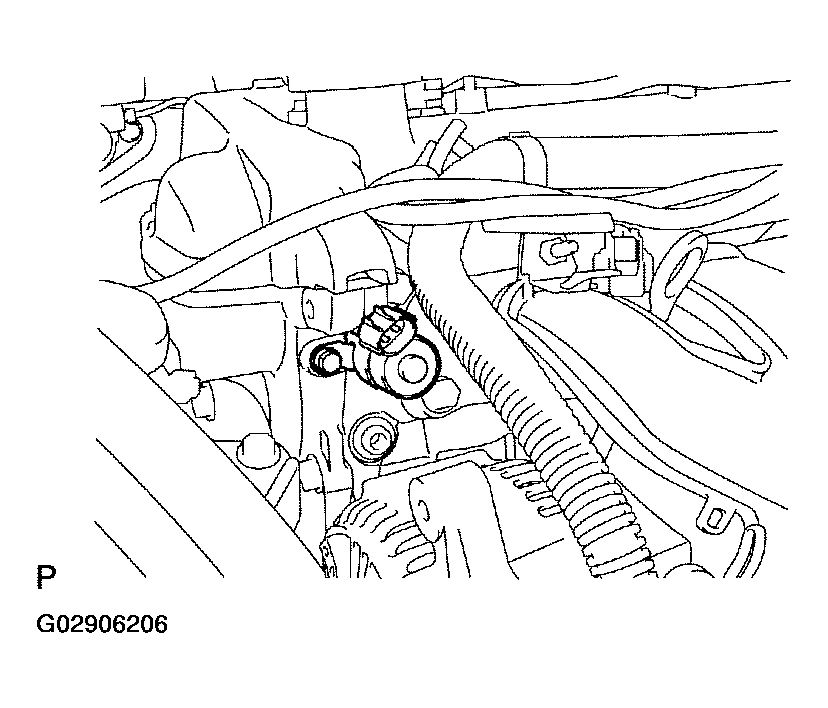

   Fig 2: Removing Camshaft Timing Oil Control Valve
