Camshaft Timing Oil Control Valve: Installation

1. Install the bolt, oil control valve and O-ring.

   Torque: 7.5 N.m (74 kgf.cm, 66 in.lbf)

2. Connect the oil control valve connector.

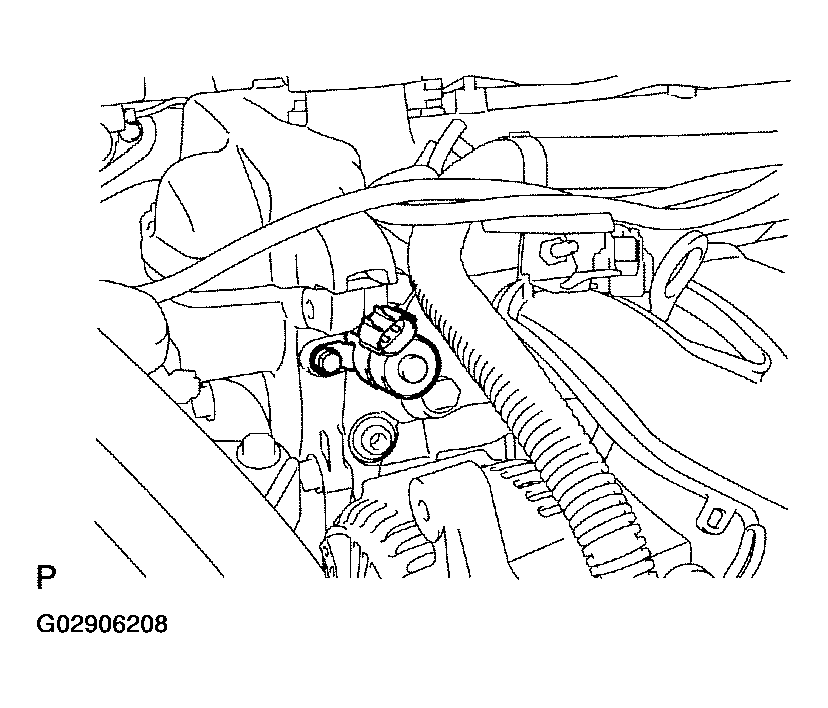

   Fig 1: Installing Camshaft Timing Oil Control Valve

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the generator bracket with the nut.

   Torque:11 N.m (110 kgf.cm, 8 ft.lbf)

2. Adjust the belt tension and torque the bolt (See BELT TENSION ).

   Torque:18 N.m (185 kgf.cm, 14 ft.lbf)

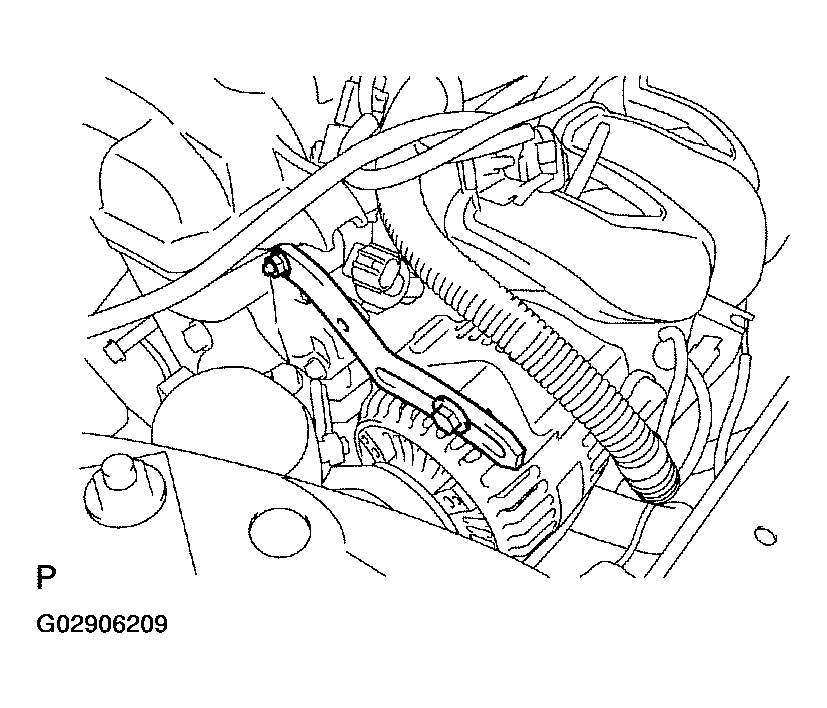

   Fig 2: Installing Generator Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the 4 nuts and No. 2 cylinder head cover.

Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)
