Engine Exhaust Assembly: Components

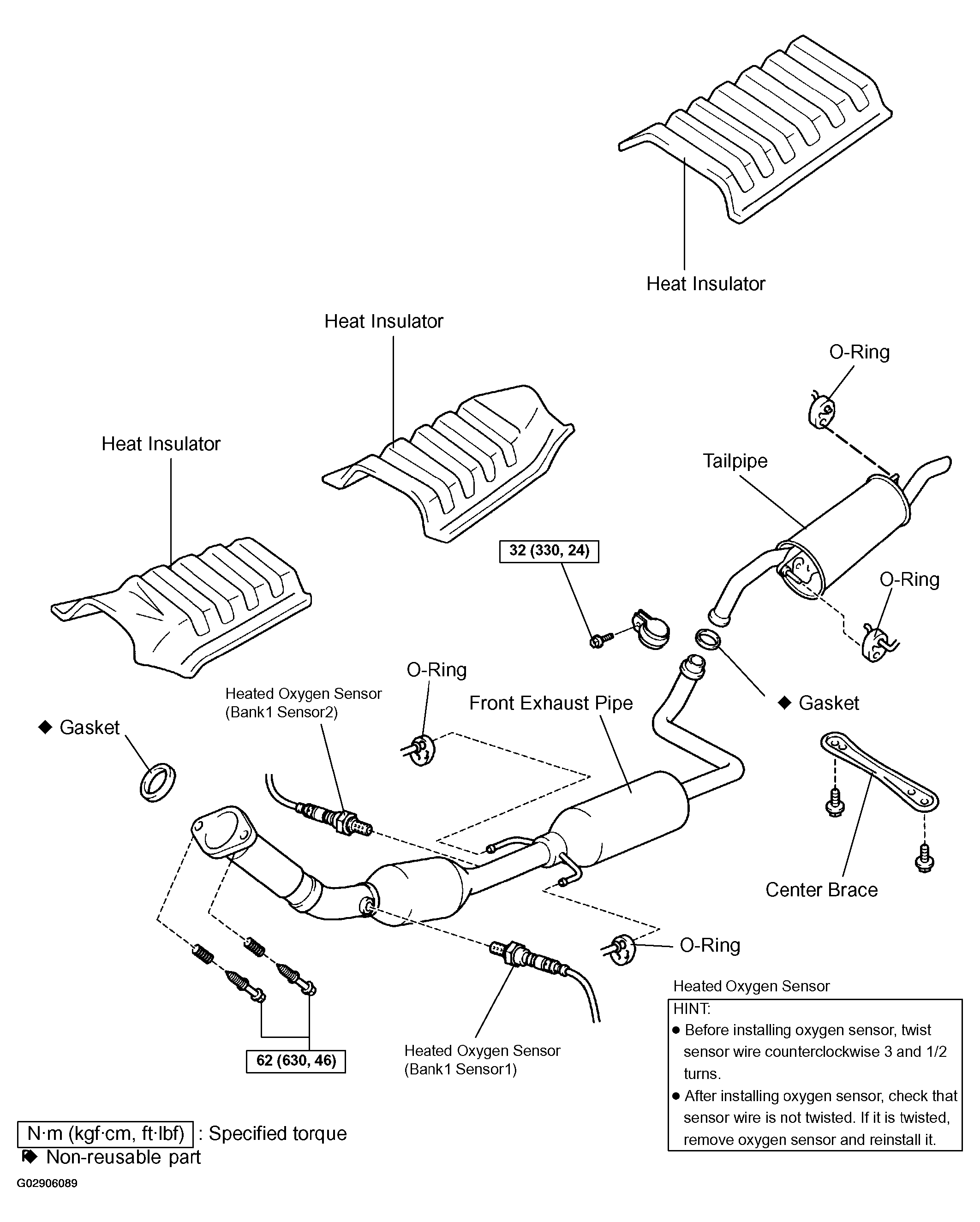

Fig 1: Identifying Exhaust System Components

G02906089

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
