Home >> Toyota >> 2004 >> ECHO 4D Sedan, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Front Brake Speed Sensor >> Components

Front Brake Speed Sensor: Components

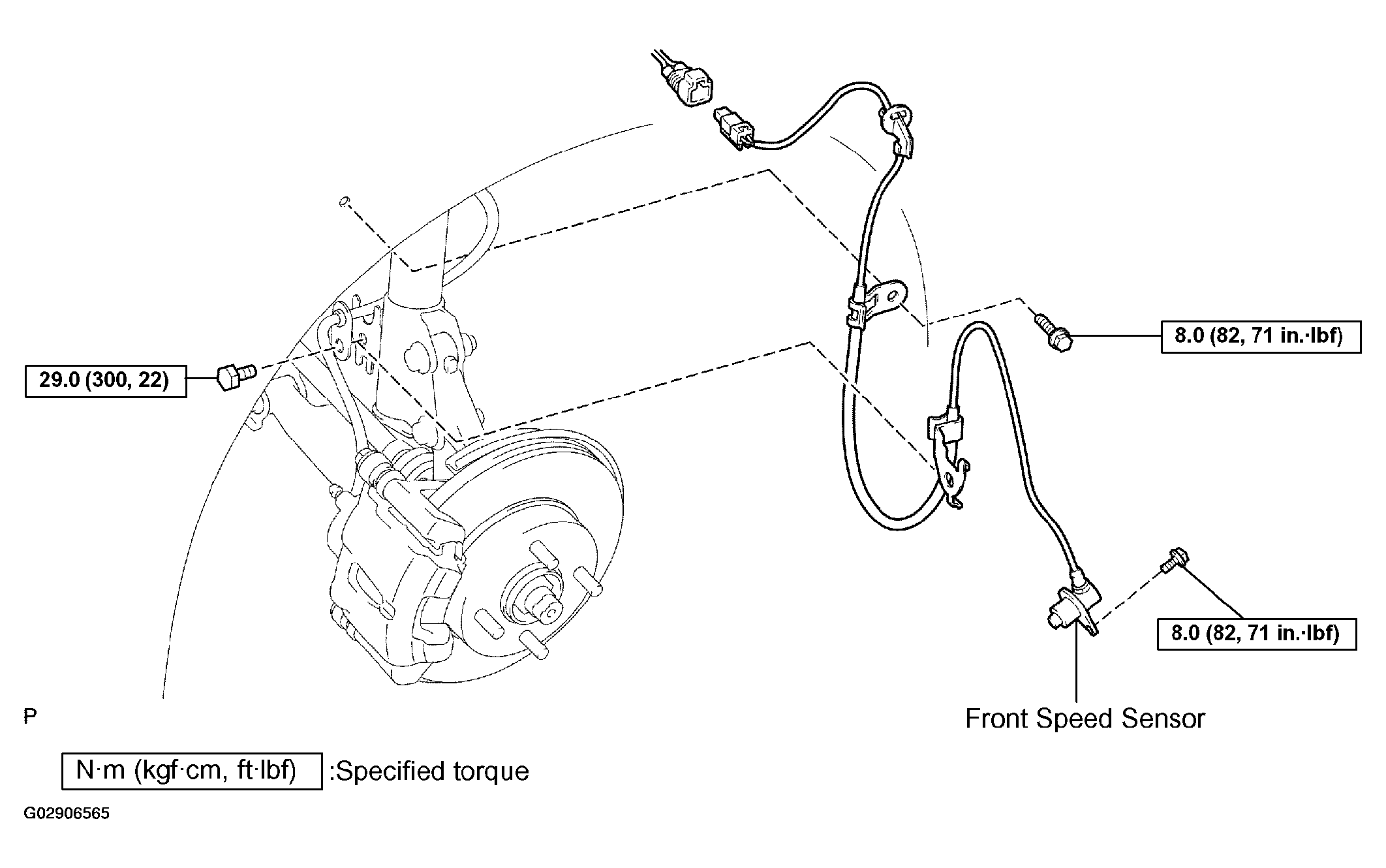

Fig 1: Identifying Front Speed Sensor

G02906565

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
