Home >> Toyota >> 2004 >> ECHO 4D Sedan, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield >> Components

Body & Frame: Windows: Windshield: Components

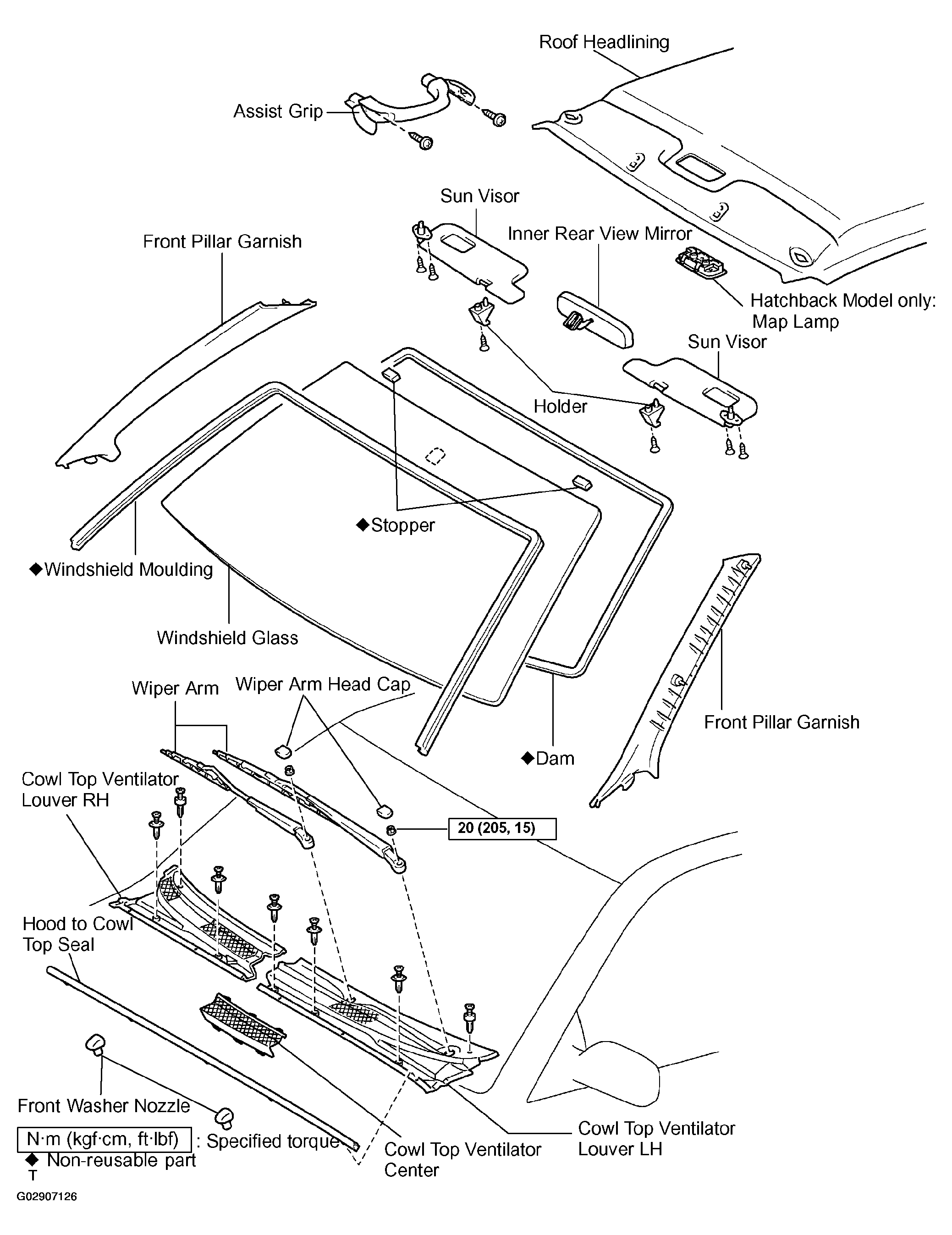

Fig 1: Exploded View Of Windshield Components & Torque Specifications

G02907126

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
