Home >> Toyota >> 2004 >> ECHO 4D Sedan, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Window Control System (Sedan) >> Location

Power Window Control System (Sedan): Location

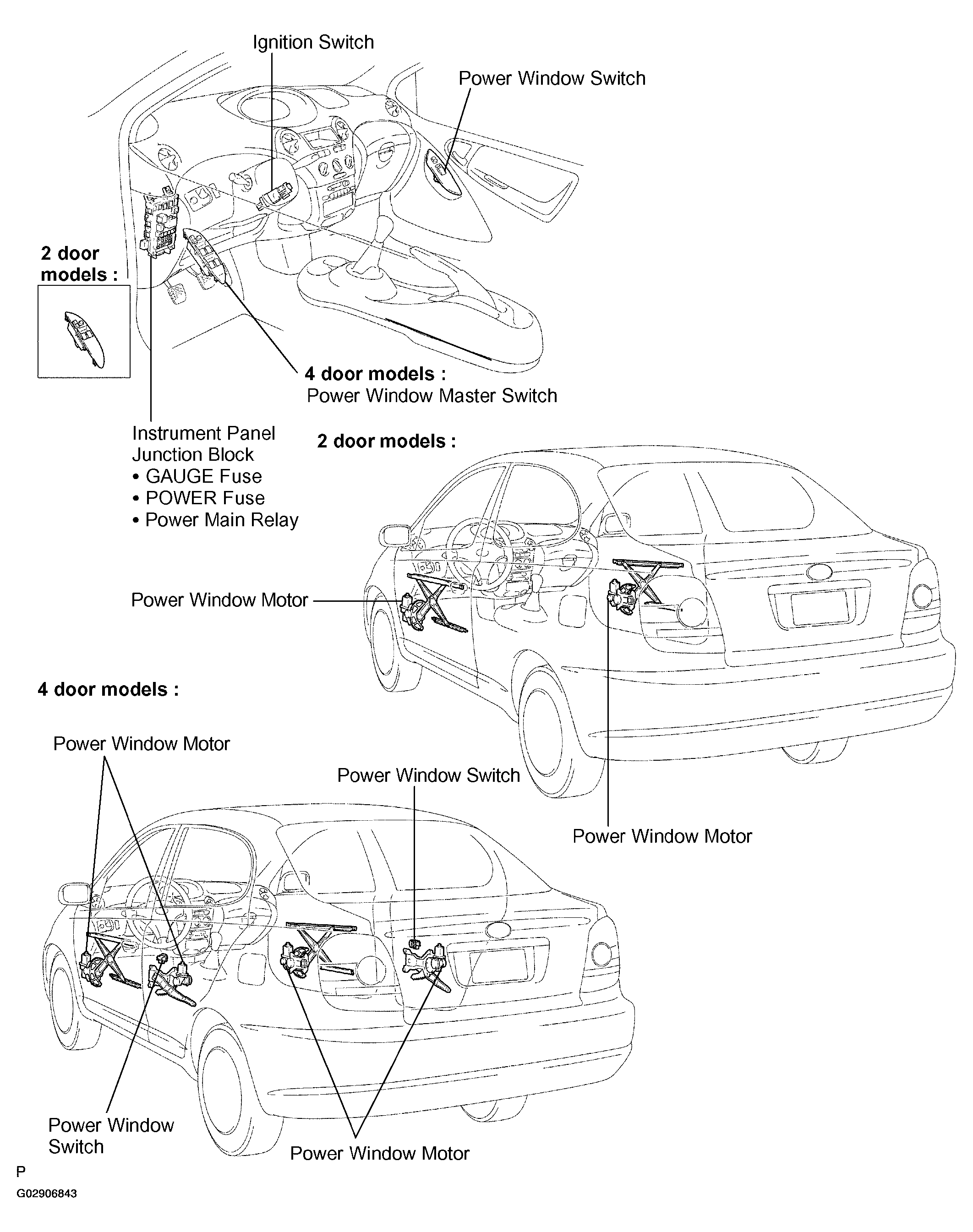

Fig 1: Locating Power Window Control System Components

G02906843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
