LEMON Manuals: Even more car manuals for everyone
Home >> Toyota >> 2004 >> ECHO 2D Sedan, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Diagnostics >> DTC Tests >> DTC P0101: Mass or Volume Air Flow Circuit Range/Performance Problem >> Circuit Description

Circuit Description

Refer to DTC P0100  .

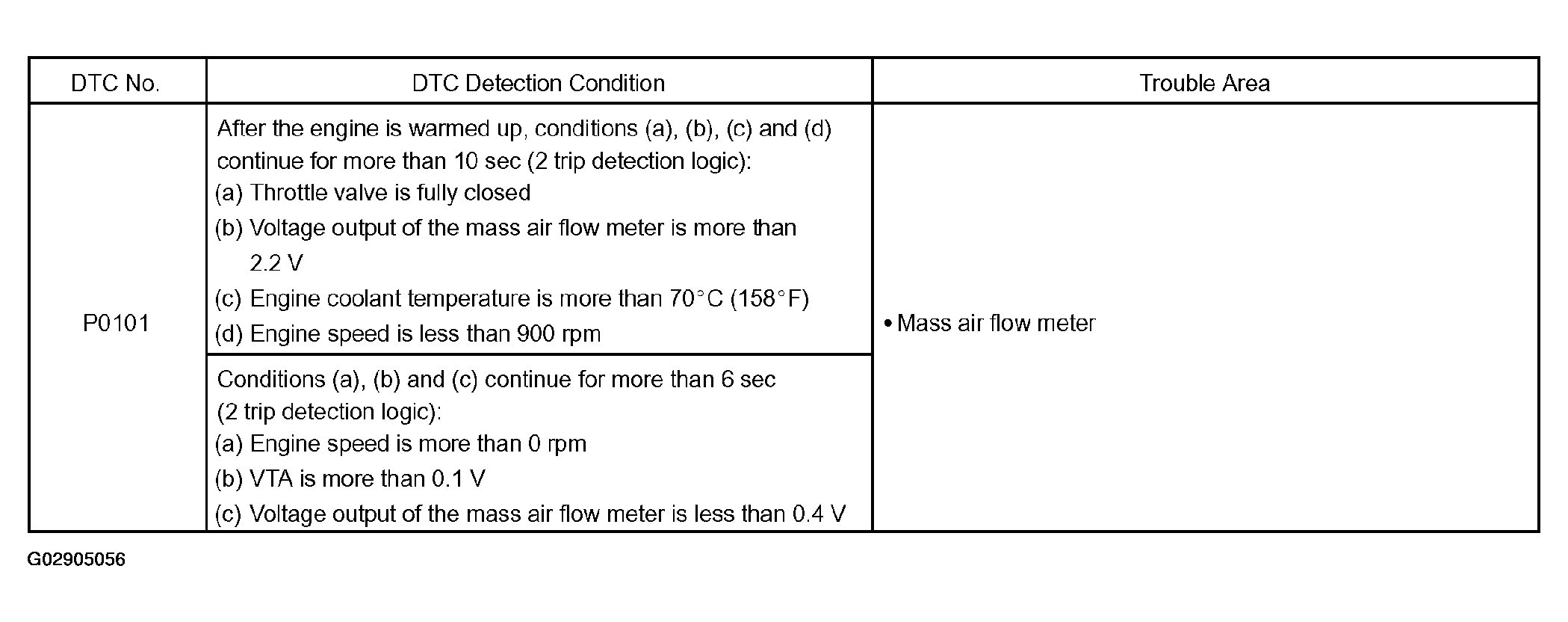

Fig 1: DTC Detection Condition Table
G02905056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
