On-Vehicle Repair

  1. REMOVE AIR CLEANER ASSEMBLY
  2. DISCONNECT VEHICLE SPEED SENSOR CONNECTOR
  3. REMOVE VEHICLE SPEED SENSOR ASSEMBLY
    1. Remove the bolt and vehicle speed sensor assembly.

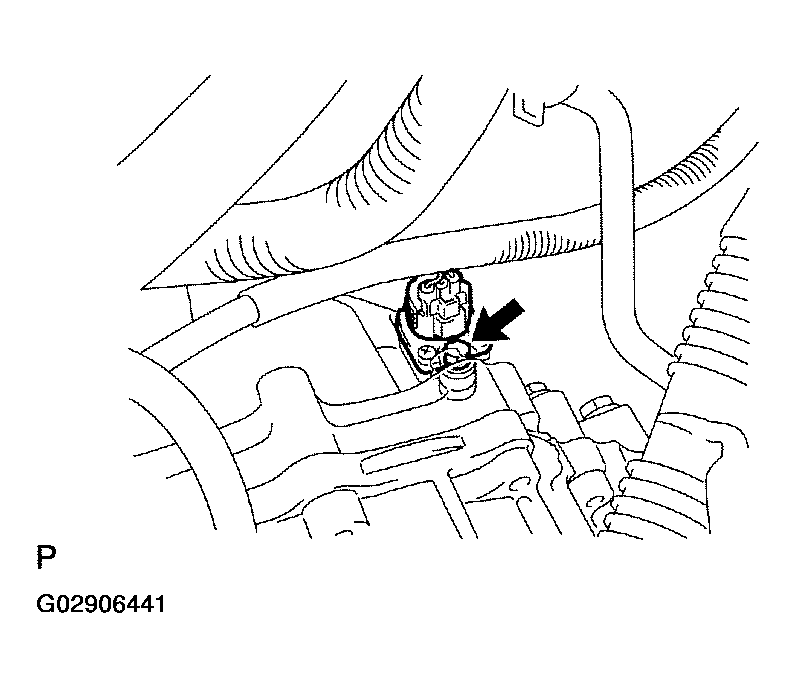

      Fig 1: Removing Vehicle Speed Sensor Assembly
      G02906441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip and driven gear from the vehicle speed sensor.
      3. Fig 2: Removing Clip And Driven Gear From The Vehicle Speed Sensor
      G02906442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the vehicle speed sensor.
  4. INSTALL VEHICLE SPEED SENSOR ASSEMBLY
    1. Coat a new O-ring with ATF and install it to the vehicle speed sensor.
    2. Install the driven gear to the vehicle speed sensor with the clip.
    3. Install the vehicle speed sensor assembly with the bolt.

      Torque: 7.0 N.m (71 kgf.cm, 5 ft.lbf)

  5. CONNECT VEHICLE SPEED SENSOR CONNECTOR
  6. INSTALL AIR CLEANER ASSEMBLY
