Automatic Transmission System: Operation

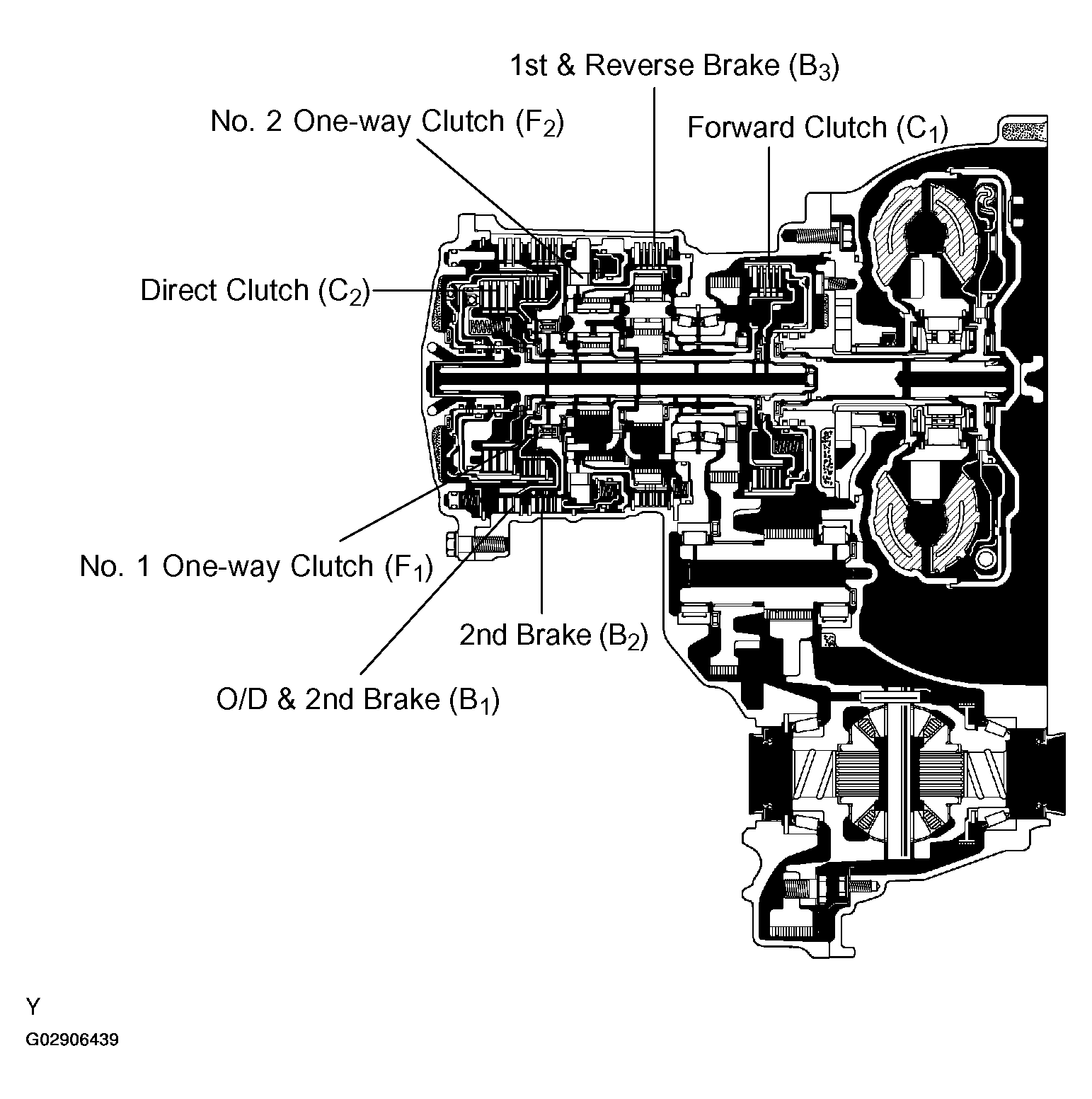

Fig 1: Automatic Transaxle Operating Chart (1 Of 2)
G02906439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

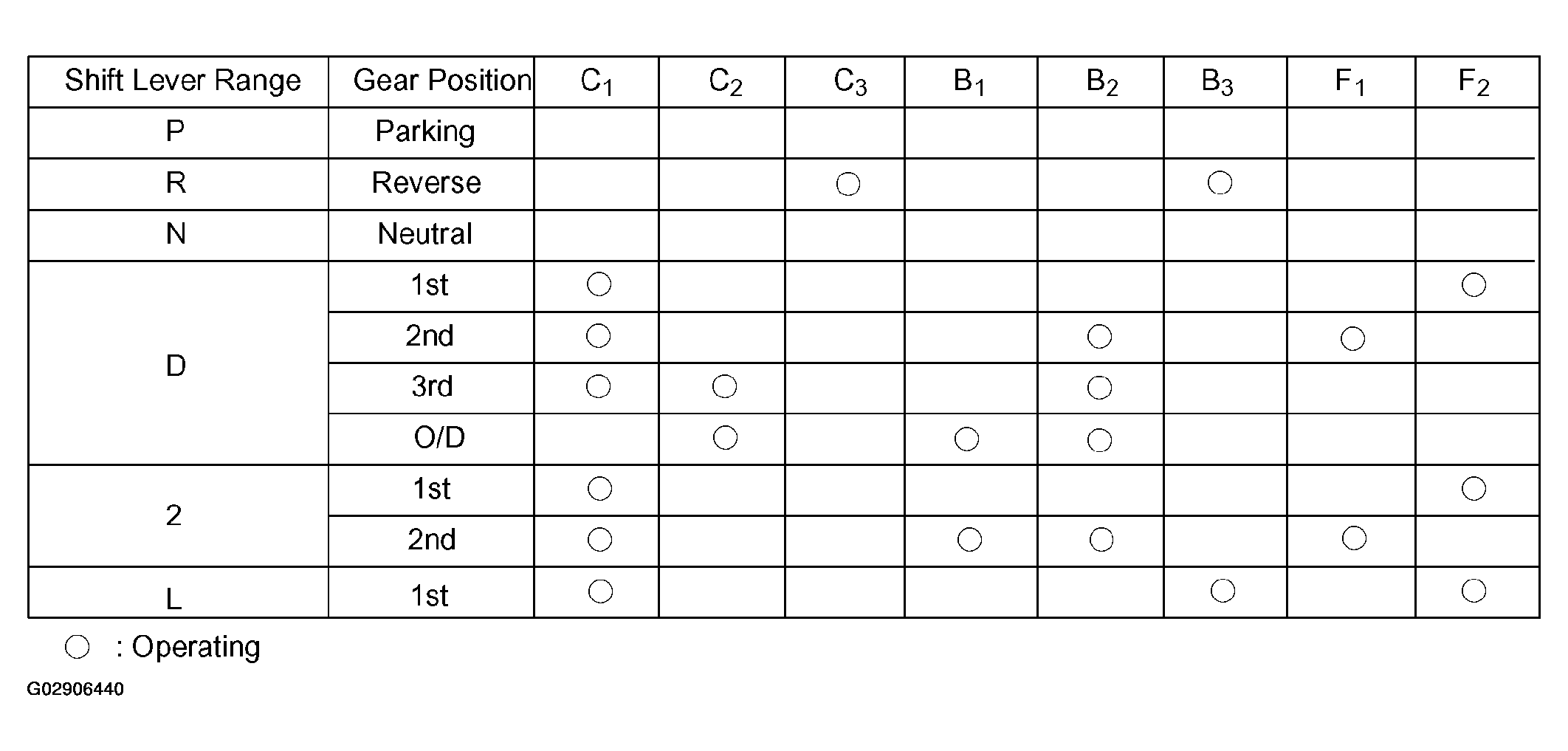

Fig 2: Automatic Transaxle Operating Chart (2 Of 2)
G02906440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
