Floor Shift Assembly: Removal

REMOVE REAR CONSOLE BOX
REMOVE COLUMN COVER (See REMOVAL )
REMOVE KEY INTERLOCK CABLE
1. Release the adjust lock cap.
  HINT:

  Rotate it clockwise by 90° facing to the front of the vehicle.
2. Remove the cable end from the rod on the shift lever side.
3. Remove the cable on the shift lever side.

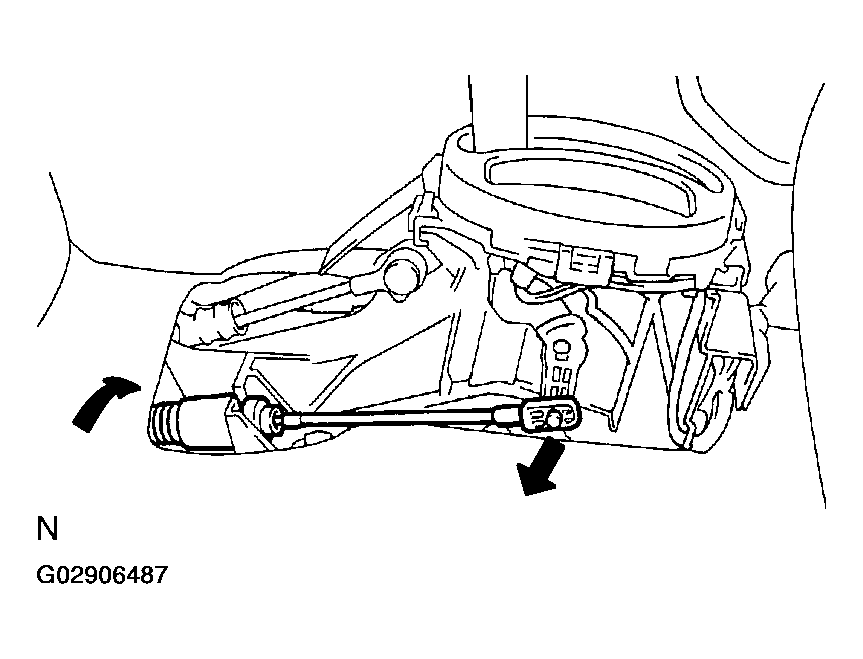

  Fig 1: Removing Key Interlock Cable On Shift Lever Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the cable from the clamp for No. 1 instrument panel box.
5. With the key in ACC, remove the cable cap claw from the key interlock and pull it.

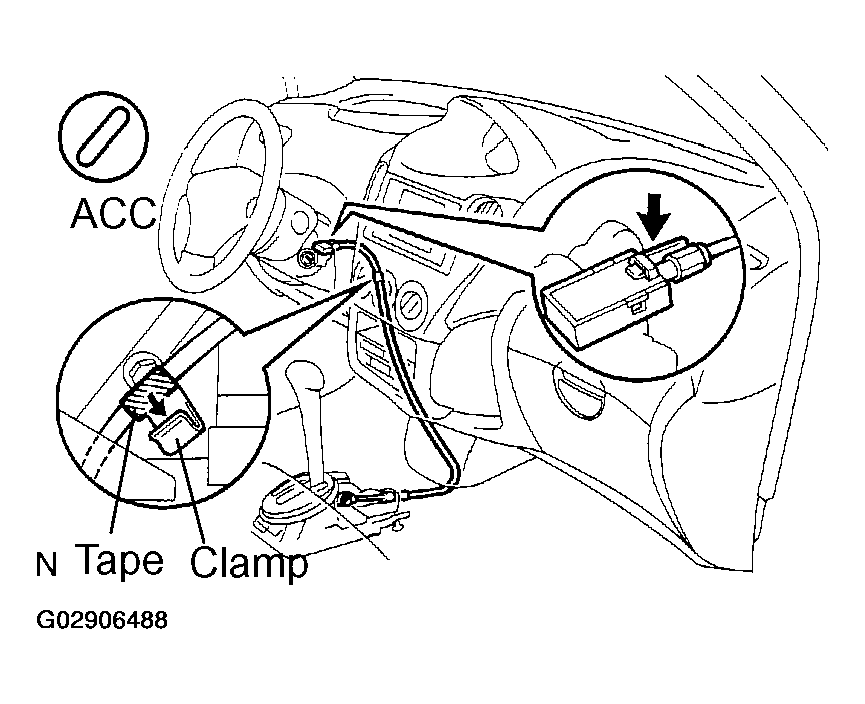

Fig 2: Removing Key Interlock Cable From Clamp For No. 1 Instrument Panel Box

G02906488

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FLOOR SHIFT ASSEMBLY
1. Disconnect the 2 connectors.
2. Remove the nut and disconnect the transaxle control cable.

  Fig 3: Removing Transaxle Control Cable Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 wire harness clamps from the shift lever assembly.
4. Remove the bolts and floor shift lever assembly.

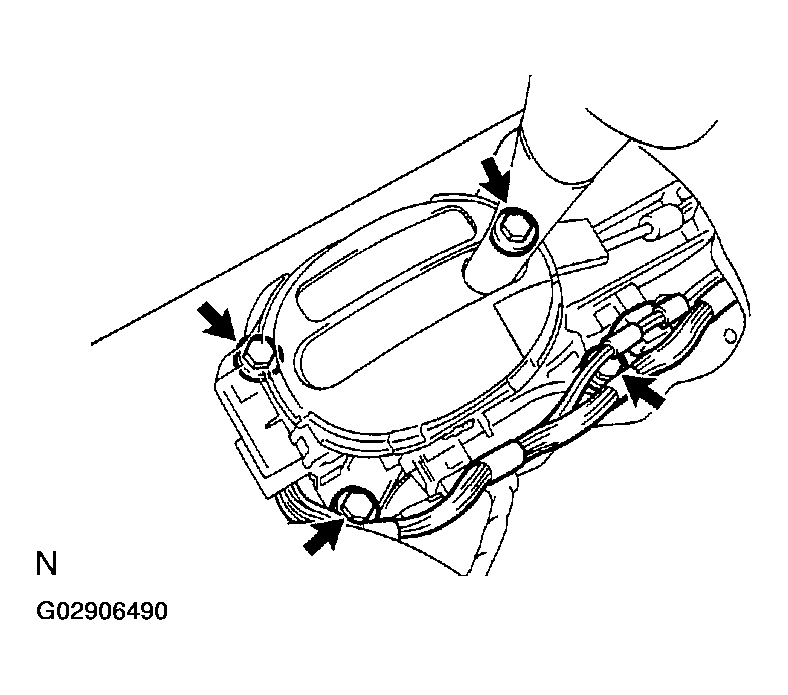

  Fig 4: Removing Floor Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
