Floor Shift Assembly: Reassembly

  1. INSTALL SPRING AND SHIFT LOCK RELEASE BUTTON
  2. INSTALL SHIFT LEVER SUB-ASSEMBLY
    1. Apply MP grease on the control shaft, shift lever sub-assembly, grooved pin, spring and detent rod.
    2. Install the shift lever sub-assembly and control shaft to the shift lever plate.
    3. Install the spring and detent rod.

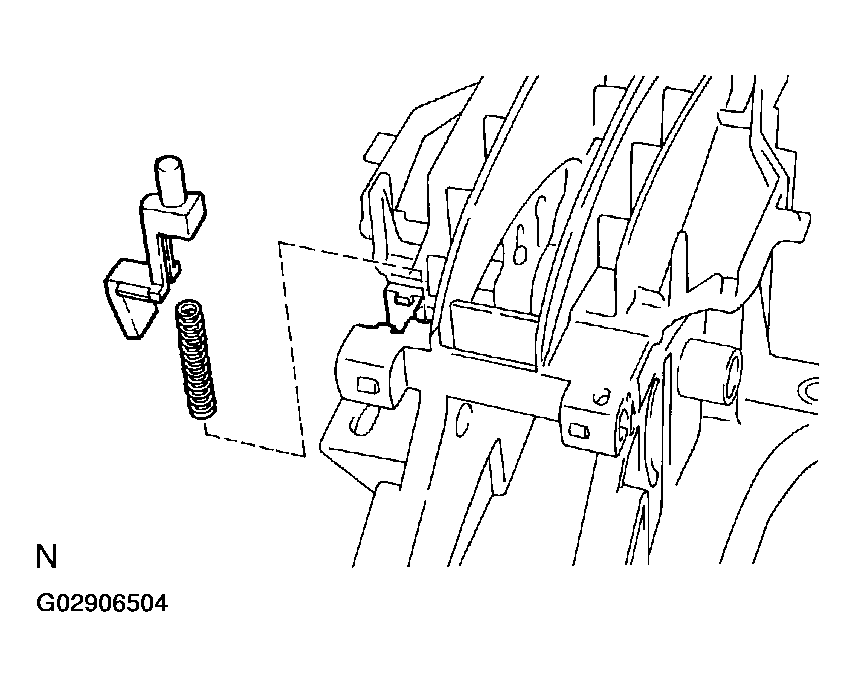

      Fig 1: Installing Shift Lock Release Button And Spring
      G02906504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a punch and hammer, install the grooved pin to the detent rod pin hole.

      A: 29.5 +/- 0.5 mm (1.161 +/- 0.020 in.)

      5. Fig 2: Installing Grooved Pin
      G02906505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Check the detent rod operation.
  3. INSTALL SHIFT LOCK SOLENOID ROD
  4. INSTALL KEY INTERLOCK CABLE ROD

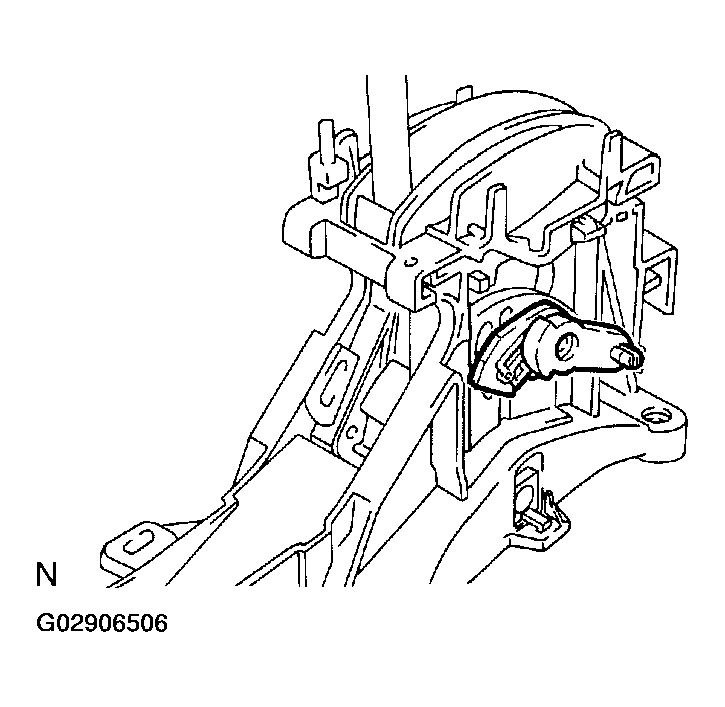

    Fig 3: Installing Key Interlock Cable Rod
    G02906506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL INDICATOR LIGHT WIRE

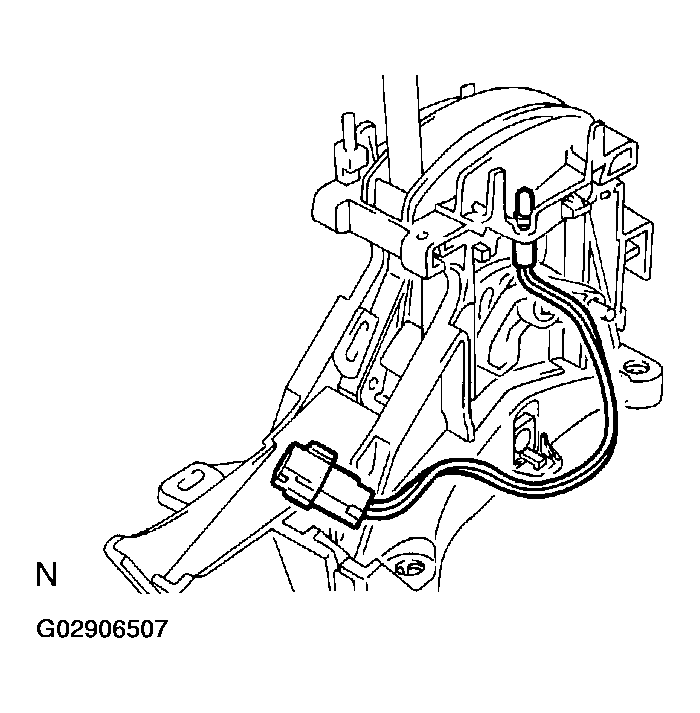

    Fig 4: Installing Indicator Light Wire
    G02906507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL SHIFT LOCK UNIT
    1. Install the solenoid.

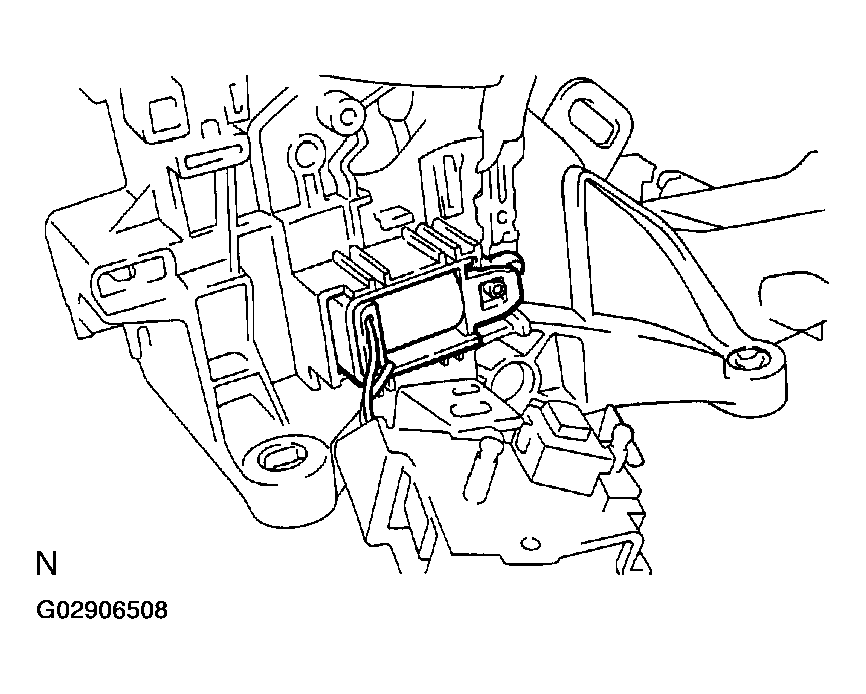

      Fig 5: Installing Solenoid
      G02906508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the shift lock unit with the screw.
      Fig 6: Installing Shift Lock Unit
      G02906509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL POSITION INDICATOR HOUSING
    1. Install the position indicator plate to the position indicator housing.
    2. Install the position indicator slide cover to the shift lever plate.
    3. Install the position indicator housing to the shift lever plate.
    4. Install the cover to the position indicator housing.
      Fig 7: Installing Position Indicator Housing
      G02906510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Apply MP grease on the shift lever knob button and spring.
    2. Install the O/D main switch.
    3. Install the spring and shift lever knob button.
    4. Install the shift lever knob cover.
    5. Install the shift lever sub-assembly with the 2 screws.

      HINT:

      Coat the threads of screws with sealant.

      Fig 8: Installing Shift Lever Sub-Assembly
      G02906511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Sealant:

      Part No. 08833-00080, THREE BOND 1344, LOCTITE

      242 or equivalent

      NOTE: Make sure not to catch O/D main switch wire harness.
    6. Clamp the wire harness to the shift lever plate.
  9. INSTALL O/D MAIN SWITCH TERMINAL

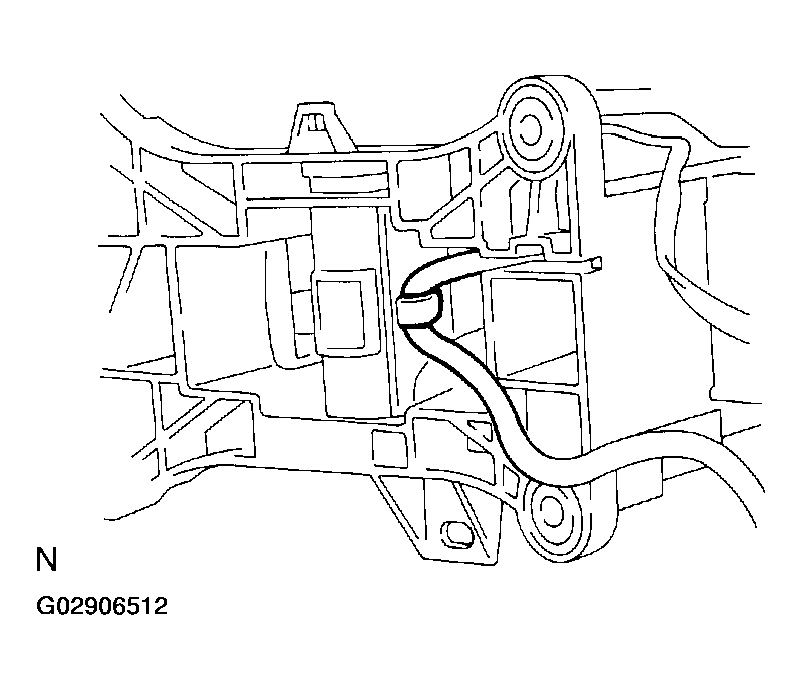

    Fig 9: Installing O/D Main Switch Terminal
    G02906512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
