Floor Shift Assembly: Disassembly

REMOVE O/D MAIN SWITCH TERMINAL
1. Remove the connector from the shift lever plate.

  Fig 1: Removing Connector From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O/D main switch connector from the shift lever plate.
3. Disengage the secondary locking device.
4. Release the locking lug of the terminals 2 and 4, and pull the terminals out from the rearward.

  Fig 2: Removing O/D Main Switch Terminal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

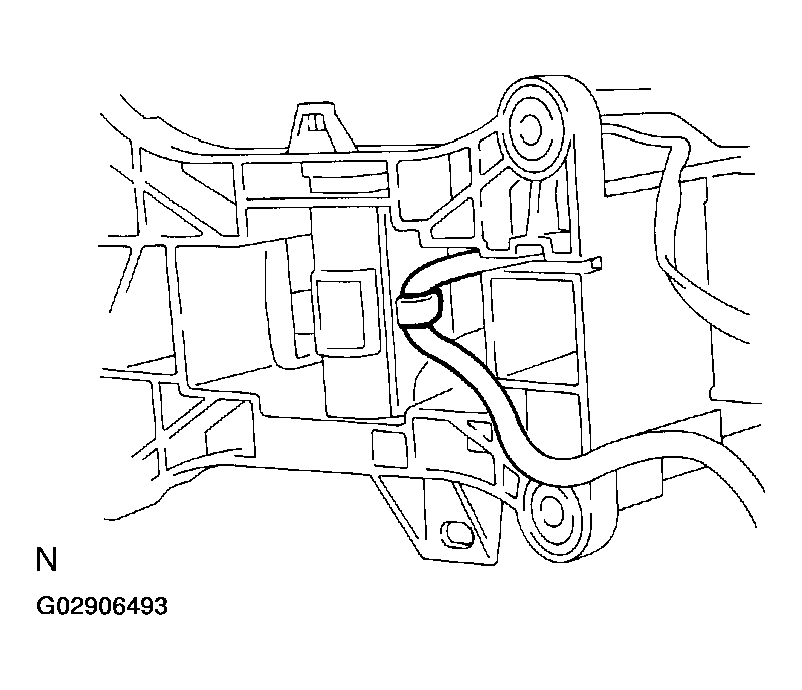

1. Remove the wire harness of the O/D main switch from the shift lever plate.

  Fig 3: Removing Wire Harness Of O/D Main Switch From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 screws and shift lever knob sub-assembly.
  NOTE: Pay attention not to apply unnatural load to O/D main switch wire harness.
3. Remove the shift lever knob cover.
4. Remove the shift lever button and spring.
5. Remove the O/D main switch.

  Fig 4: Removing Shift Lever Knob Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POSITION INDICATOR HOUSING
1. Remove the position indicator housing from the shift lever plate.
2. Remove the cover from the position indicator housing.
3. Remove the position indicator slide cover from the shift lever plate.
4. Remove the position indicator plate from the position indicator housing.

  Fig 5: Removing Position Indicator Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

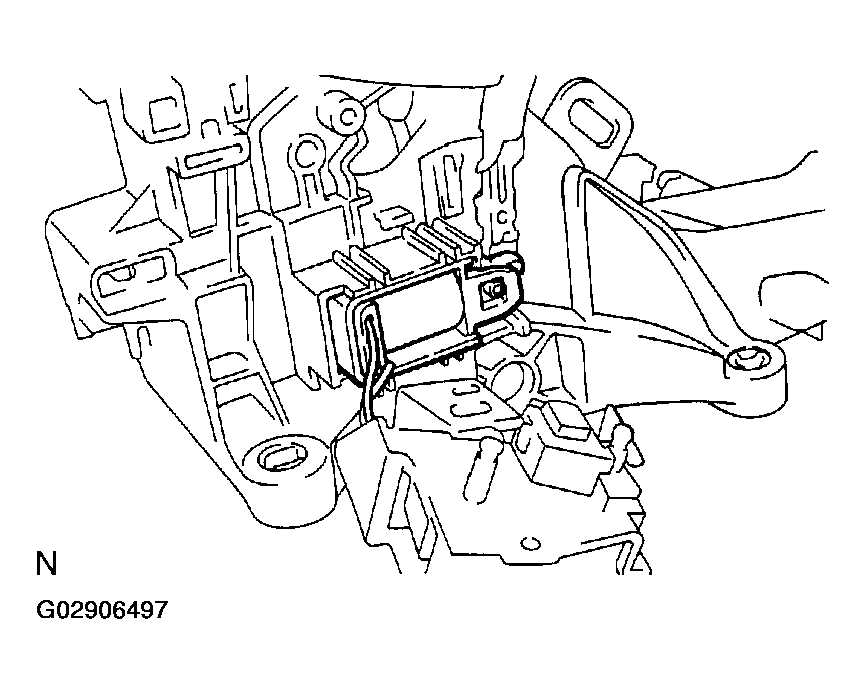

REMOVE SHIFT LOCK UNIT
1. Remove the screw and shift lock unit.

  Fig 6: Removing Shift Lock Unit Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

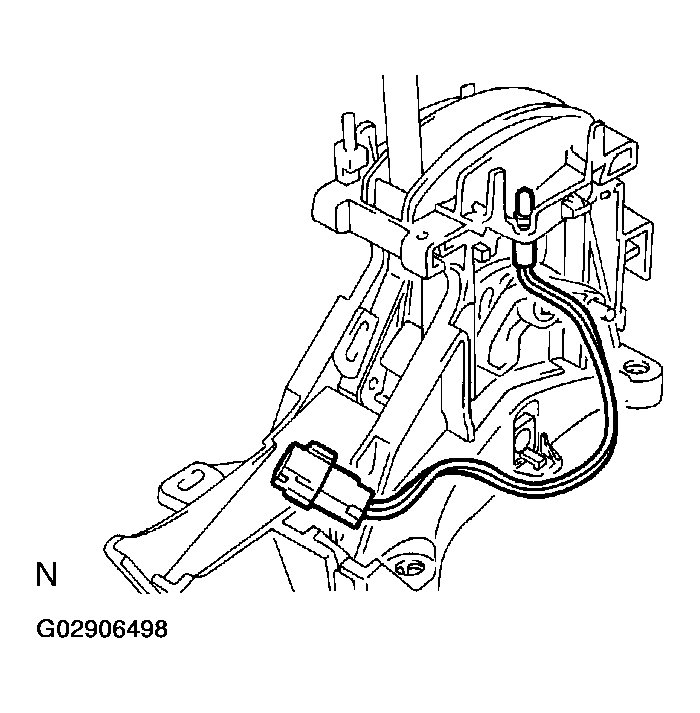

2. Remove the solenoid from the shift lever plate.

  Fig 7: Removing Solenoid From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

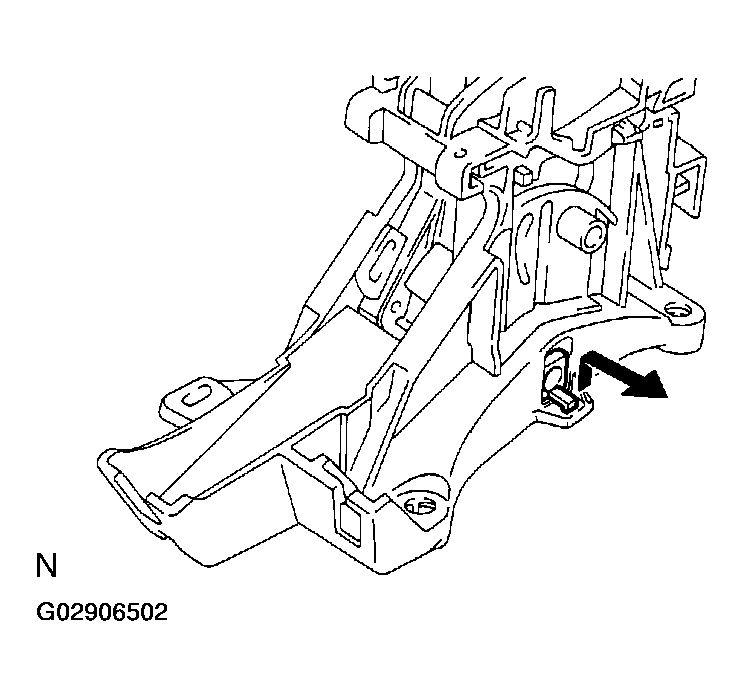

REMOVE INDICATOR LIGHT WIRE

Fig 8: Removing Indicator Light Wire
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

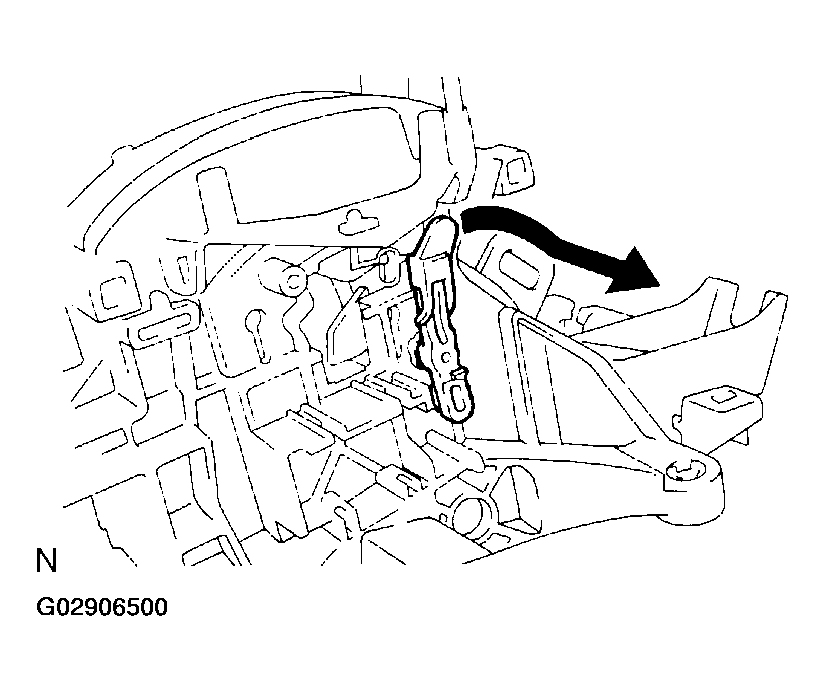

REMOVE KEY INTERLOCK CABLE ROD

Fig 9: Removing Key Interlock Cable Rod
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

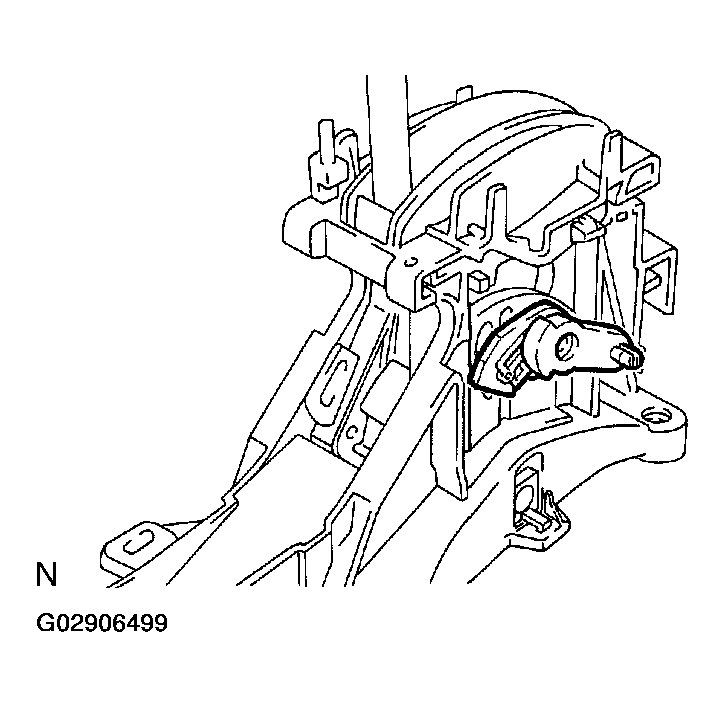

REMOVE SHIFT LOCK SOLENOID ROD

Fig 10: Removing Shift Lock Solenoid Rod
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER SUB-ASSEMBLY

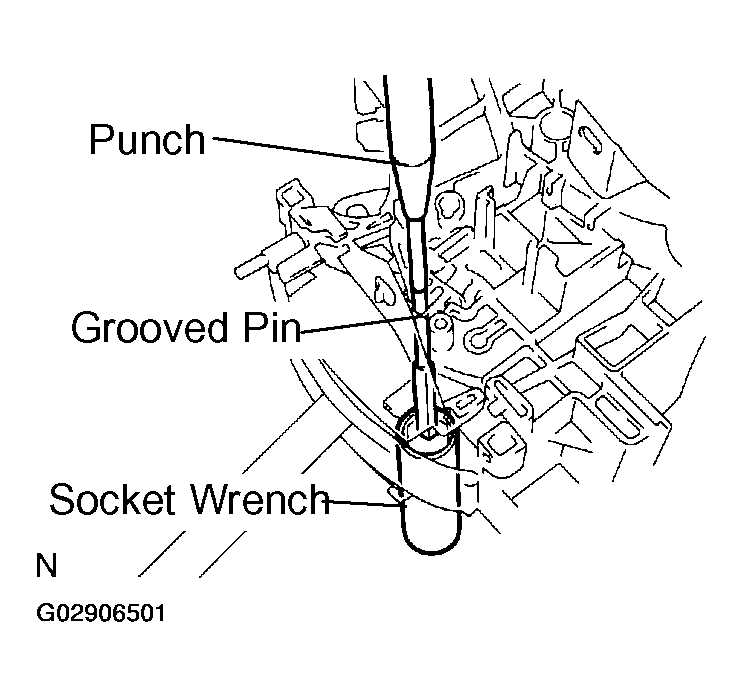

1. Set a 14 mm deep socket wrench.
2. Using a punch and hammer, remove the grooved pin.
3. Remove the detent rod and spring.

  Fig 11: Removing Grooved Pin
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screwdriver, remove the control shaft and shift lever sub-assembly.

  Fig 12: Removing Control Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

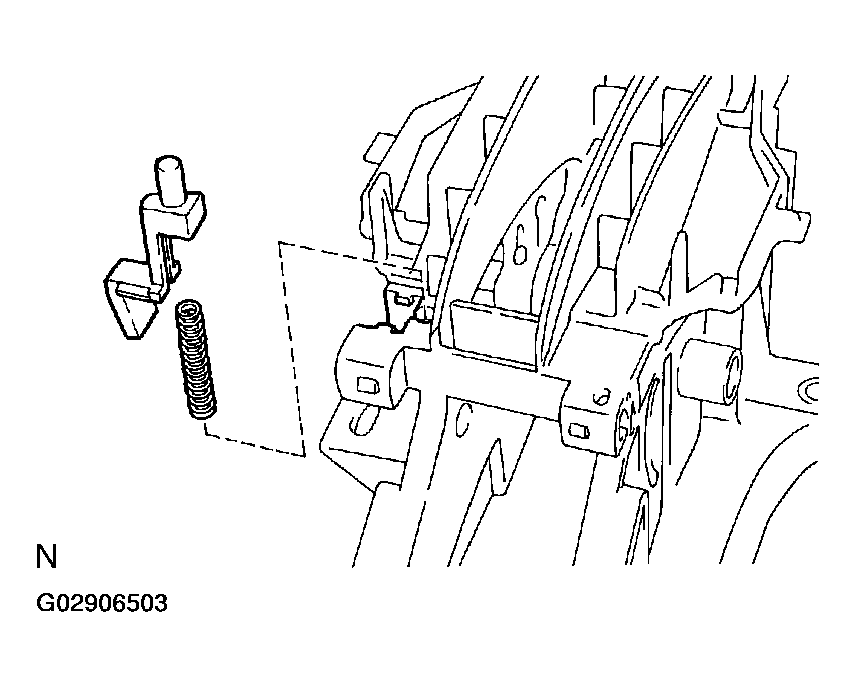

REMOVE SHIFT LOCK RELEASE BUTTON AND SPRING

Fig 13: Removing Shift Lock Release Button And Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
