On-Vehicle Repair

Remove the 2 bolts and bracket and shift control cable clamp.

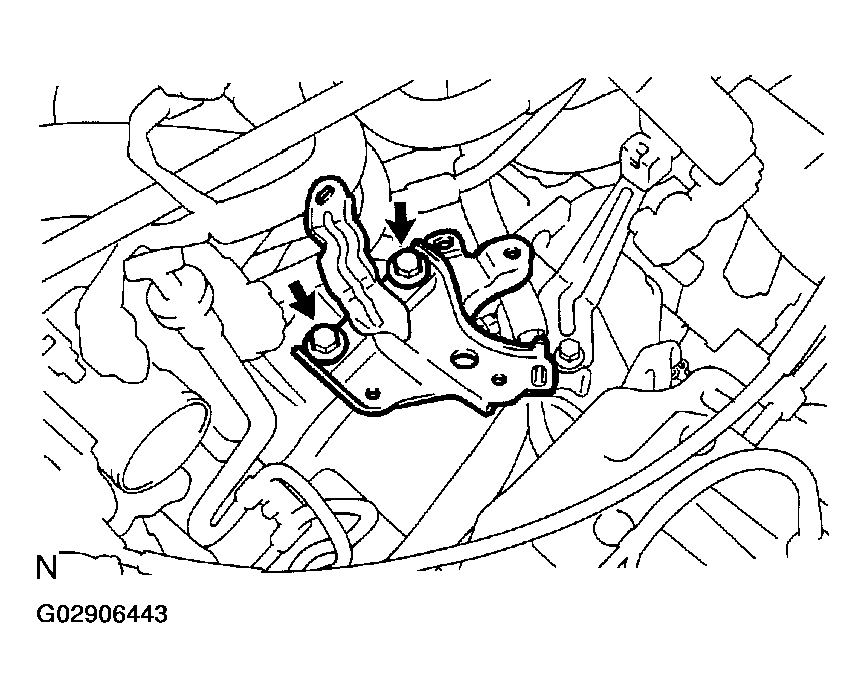

Fig 1: Removing Air Cleaner Assembly Bracket

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector.
2. Remove the bolt and direct clutch speed sensor.

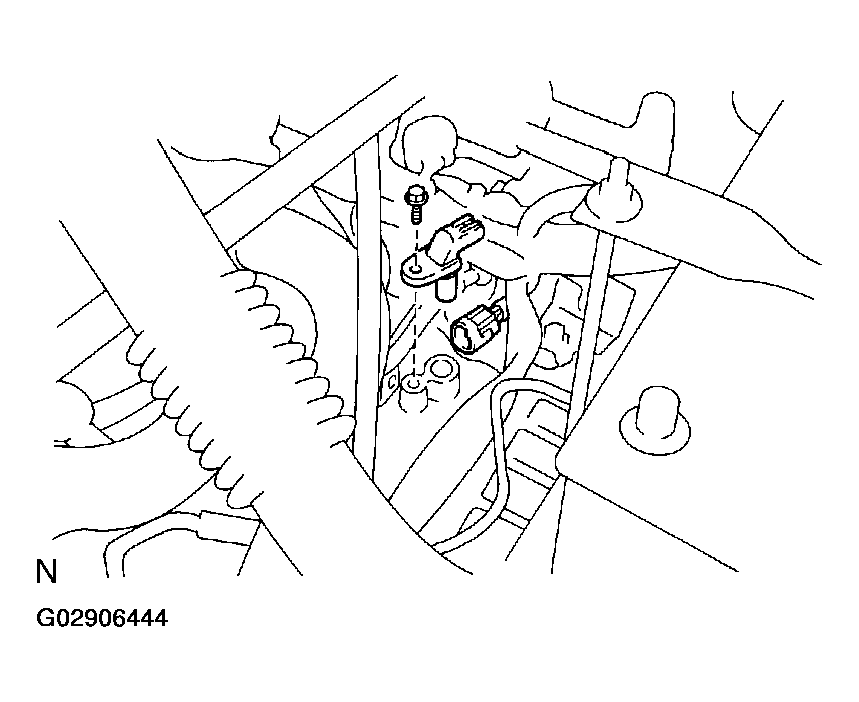

Fig 2: Removing Direct Clutch Speed Sensor Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the O-ring from the direct clutch speed sensor.

1. Coat a new O-ring with ATF and install it to the direct clutch speed sensor.
2. Install the direct clutch speed sensor with the bolt.

   Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

3. Connect the connector.

Install the bracket with the 2 bolts.

Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)
