Tilt Steering Column: Reassembly

NOTE: When using a vise, do not overtighten it.
  1. COAT PARTS INDICATED BY ARROWS WITH MOLYBDENUM DISULFIDE LITHIUM BASE GREASE

    (SEE  COMPONENTS  )

  2. INSTALL MAIN SHAFT ASSEMBLY
    1. Using a snap ring expander, install a new snap ring on the lower side.
    2. Install the main shaft assembly.
    3. Using a snap ring expander, install a new snap ring on the upper side.
  3. INSTALL MAIN SHAFT BUSHING
    1. Coat a new bushing with molybdenum disulfide lithium base grease.
    2. Using SST and a hammer, tap in the main shaft bushing.

      SST 09612-22011

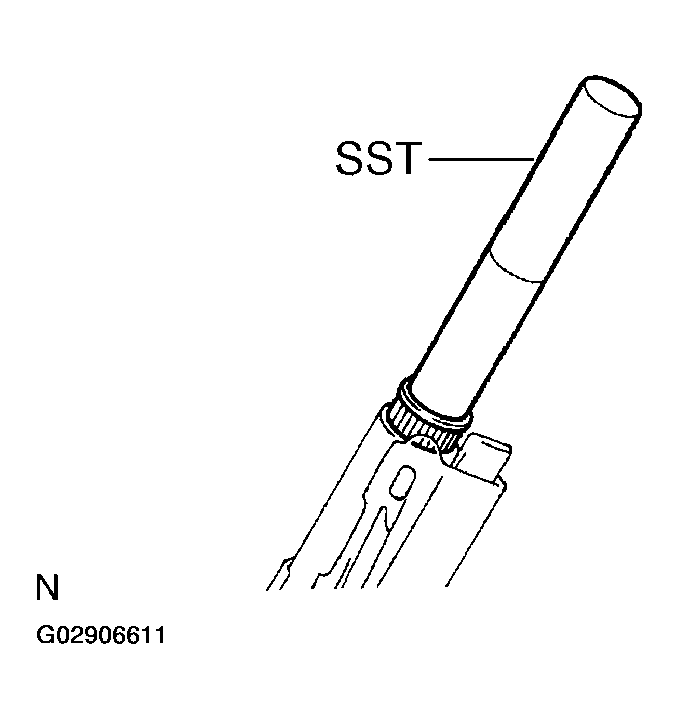

      Fig 1: Tapping In Main Shaft Bushing Using SST & Hammer
      G02906611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL BREAK AWAY BRACKET AND TILT LEVER
    1. Install the clamp and No. 2 support collar to the break away bracket.
    2. Install the break away bracket, tilt lever lock bolt, stopper and tilt lever.

      HINT:

      Align the holes in the column tube with the projections of the tilt lever lock bolt and stopper.

    3. Install the adjusting nut by rotating it counterclockwise in the specified torque so that the locking load (load applied to when a knob is operated) of the tilt lever will be 43 - 91 N (4.4 - 9.3 kgf, 9.7 - 20.5 lbf).

      Torque:  9 N.m - 14 N.m (90 kgf.cm - 145 kgf.cm, 80 in.lbf - 10 ft.lbf)

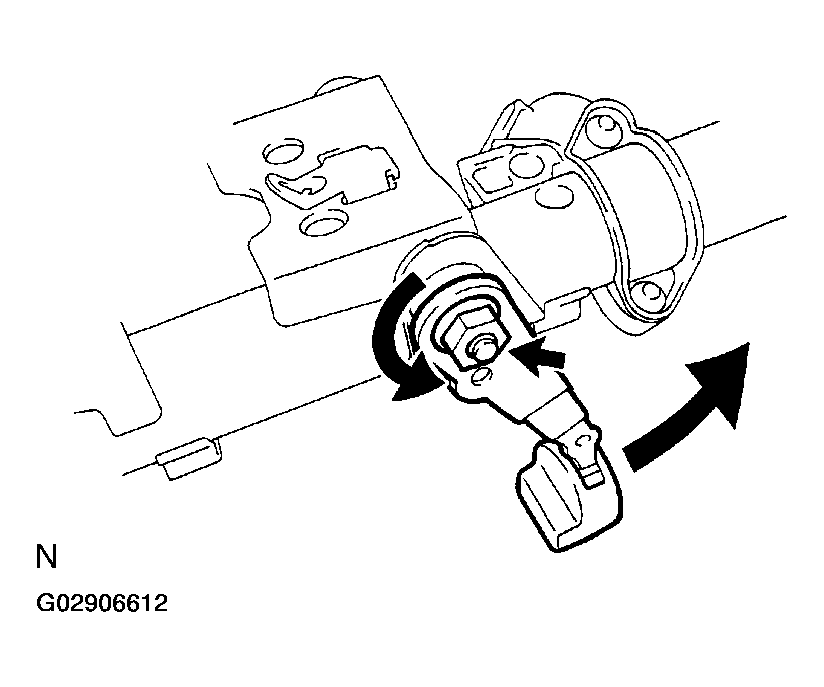

      Fig 2: Installing Adjusting Nut Counterclockwise
      G02906612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the No. 1 support reinforce with the No. 2 tilt lever lock bolt by turning it counterclockwise.

      Torque:  5.4 N.m (55 kgf.cm, 48 in.lbf)

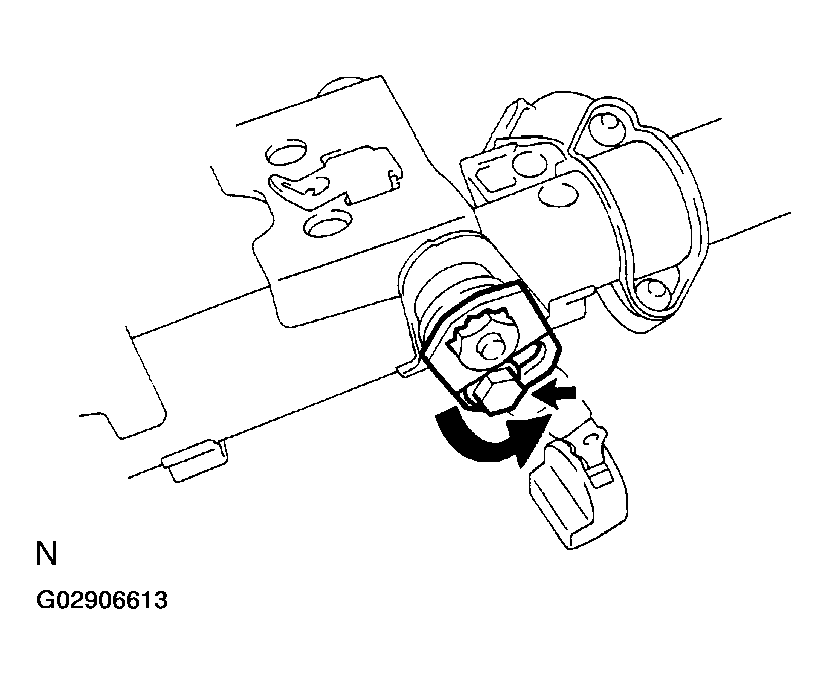

      Fig 3: Installing No. 1 Support Reinforce With No. 2 Tilt Lever Lock Bolt
      G02906613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Align the No. 1 support reinforce with the nut to eliminate looseness by turning the No. 1 support reinforce counterclockwise a little, then torque the No. 2 tilt lever lock bolt.

  5. INSTALL 2 NO. 1 SUPPORT COLLARS AND BRACKET SPACER
    1. Install 2 new No. 1 support collars.
    2. Using an extension bar and a hammer, drive in the bracket spacer.

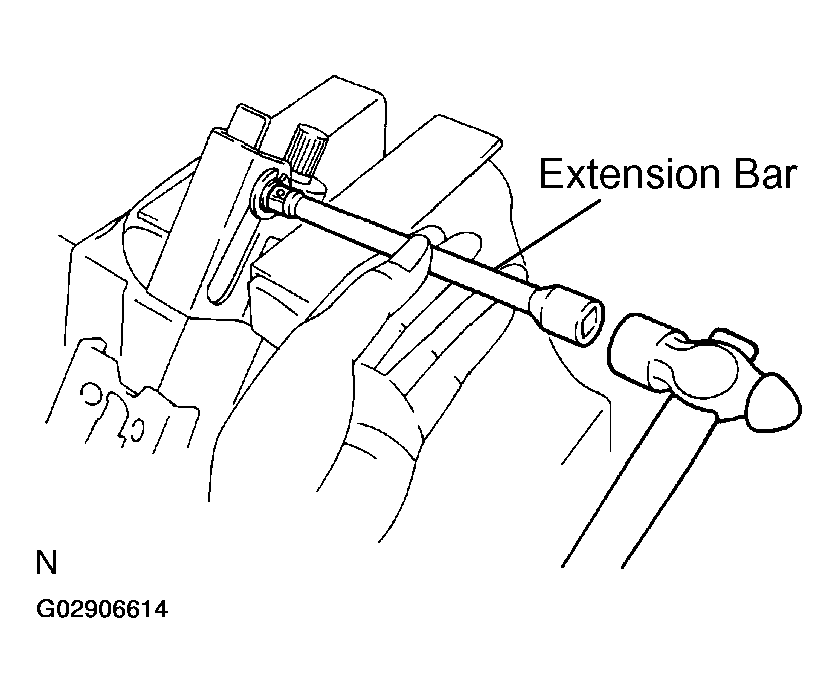

      Fig 4: Driving In Bracket Spacer Using Extension Bar & Hammer
      G02906614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL COLUMN UPPER BRACKET AND COLUMN UPPER CLAMP
    1. Install the column upper bracket and column upper clamp with 2 new tapered-head bolts.
    2. Tighten the 2 tapered-head bolts until the bolt heads break off.

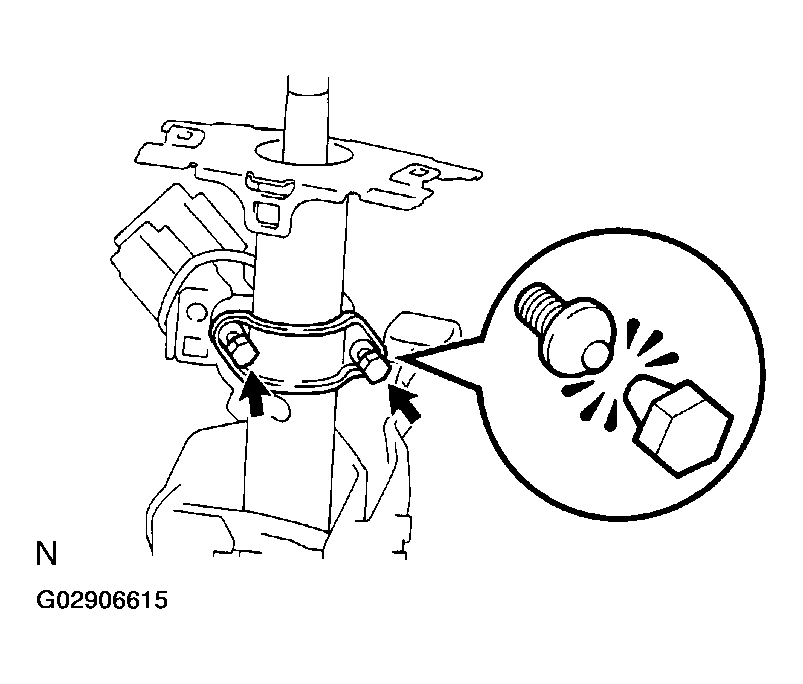

    Fig 5: Tightening Tapered-Head Bolts
    G02906615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
