Tilt Steering Column: Disassembly

1. Using a centering punch, mark the center of the 2 tapered-head bolts.
2. Using a 3 - 4 mm (0.12 - 0.16 in.) drill, drill into the 2 bolts.
3. Using a screw extractor, remove the 2 bolts, column upper bracket and column upper clamp.

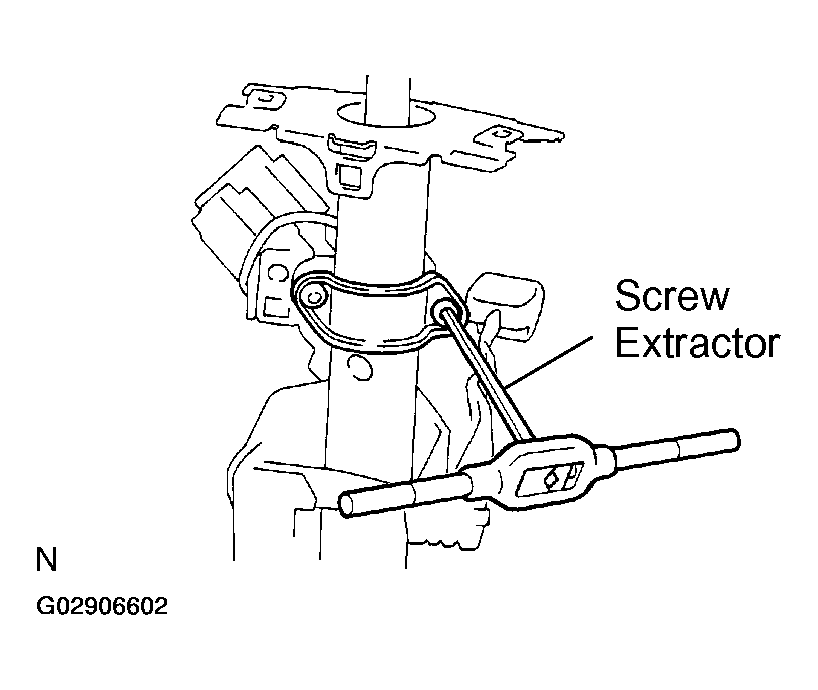

   Fig 1: Removing Column Upper Bracket & Column Upper Clamp Using Screw Extractor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using an extension bar and a hammer, tap out the bracket spacer.

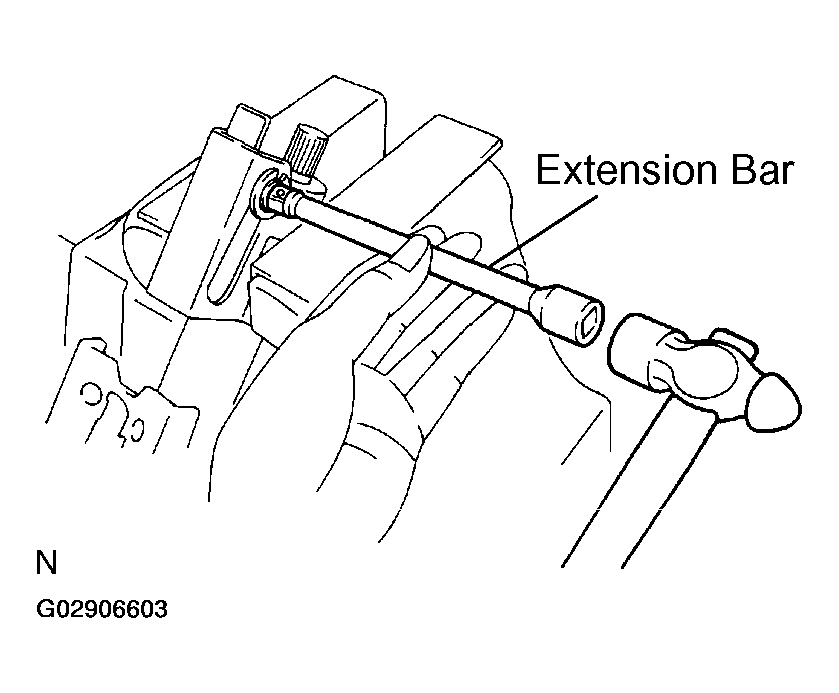

   Fig 2: Tapping Out Bracket Spacer Using Extension Bar & Hammer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver , remove the 2 No. 1 support collars.

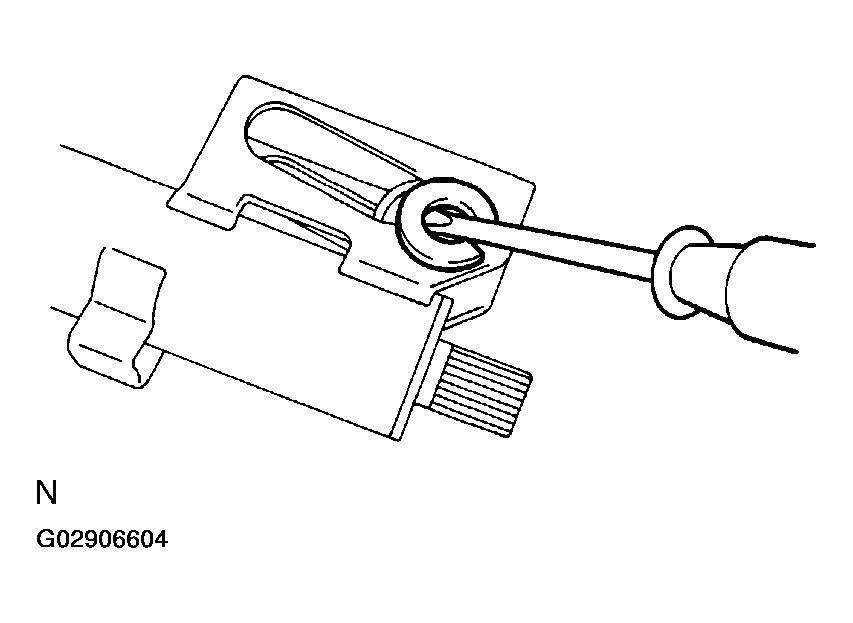

   Fig 3: Removing No. 1 Support Collars Using Screwdriver

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the No. 2 tilt lever lock bolt and No. 1 support reinforce.

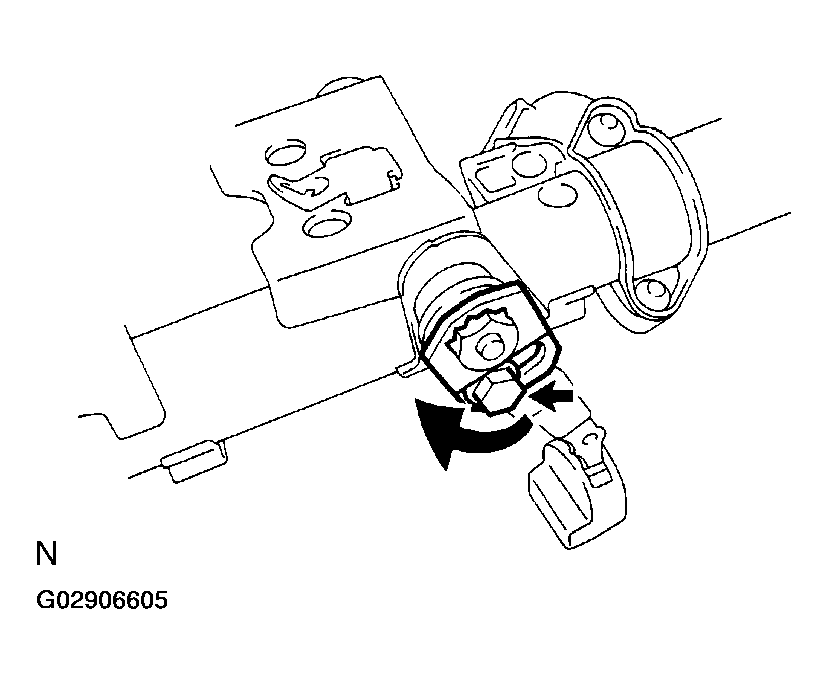

   Fig 4: Removing No. 2 Tilt Lever Lock Bolt & No. 1 Support Reinforce

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

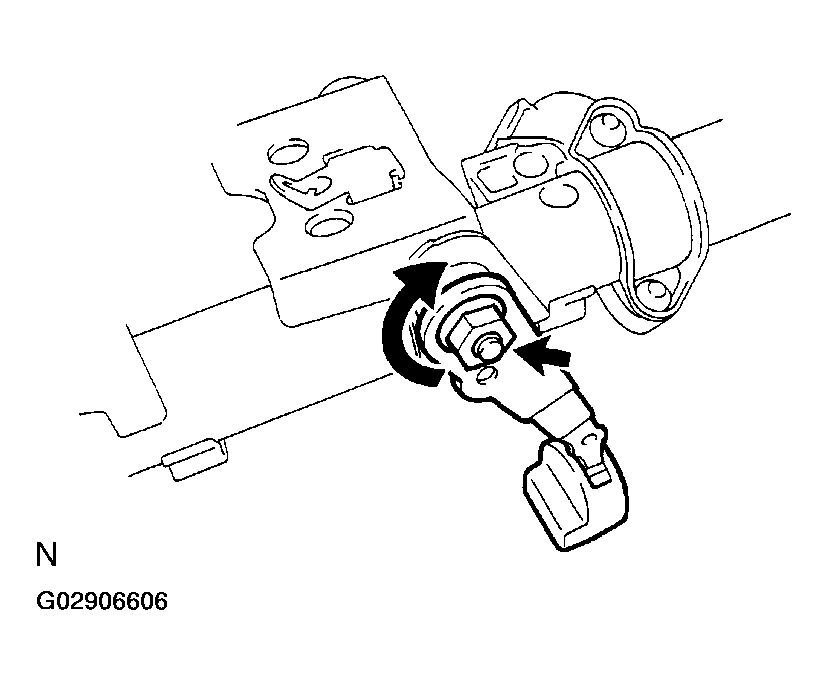

   This bolt is left-handed one.

2. Remove the adjusting nut, tilt lever, stopper, tilt lever lock bolt and break away bracket.
   Fig 5: Removing Tilt Lever Lock Bolt & Break Away Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   This nut is left-handed one.

3. Remove the clamp and No. 2 support collar from the break away bracket.

Using a screwdriver and hammer, tap out the main shaft bushing.

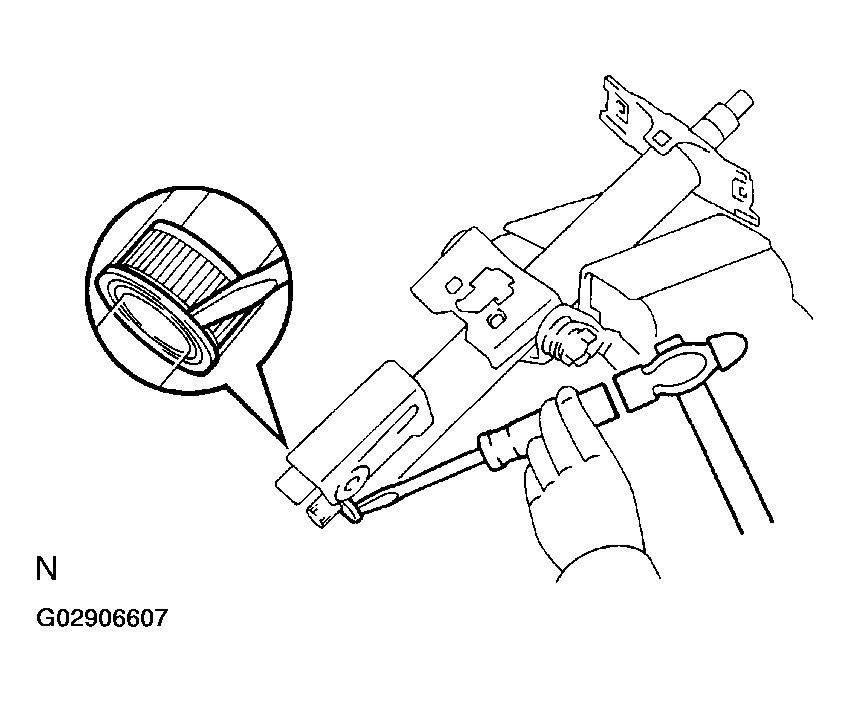

Fig 6: Tapping Out Main Shaft Bushing Using Screwdriver

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a snap ring expander, remove the snap ring on the upper side.
2. Remove the main shaft assembly.
3. Using a snap ring expander, remove the snap ring on the lower side.
