Manual Steering Gear: Components

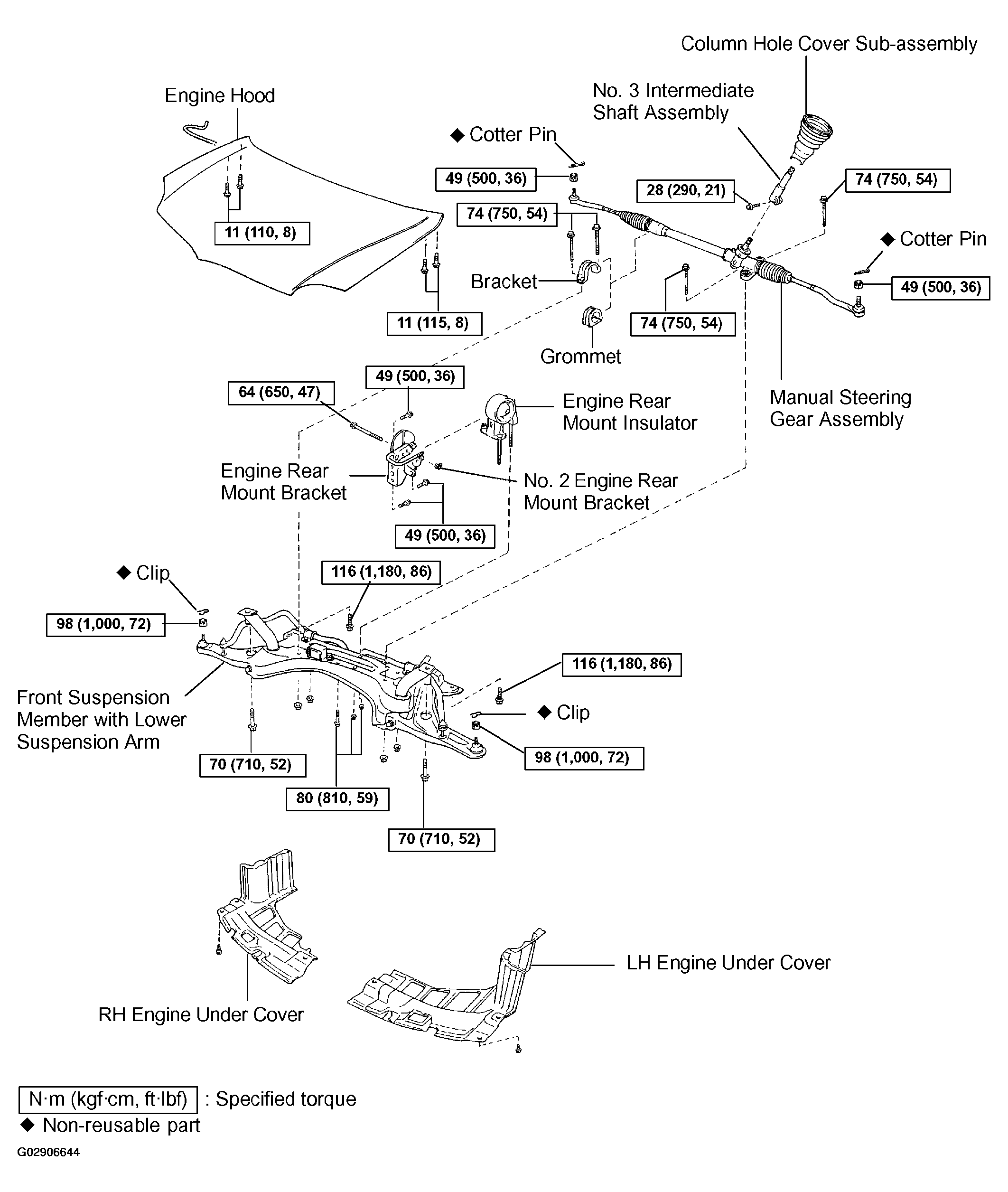

Fig 1: Exploded View Of Manual Steering Gear Components (1 Of 2)
G02906644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

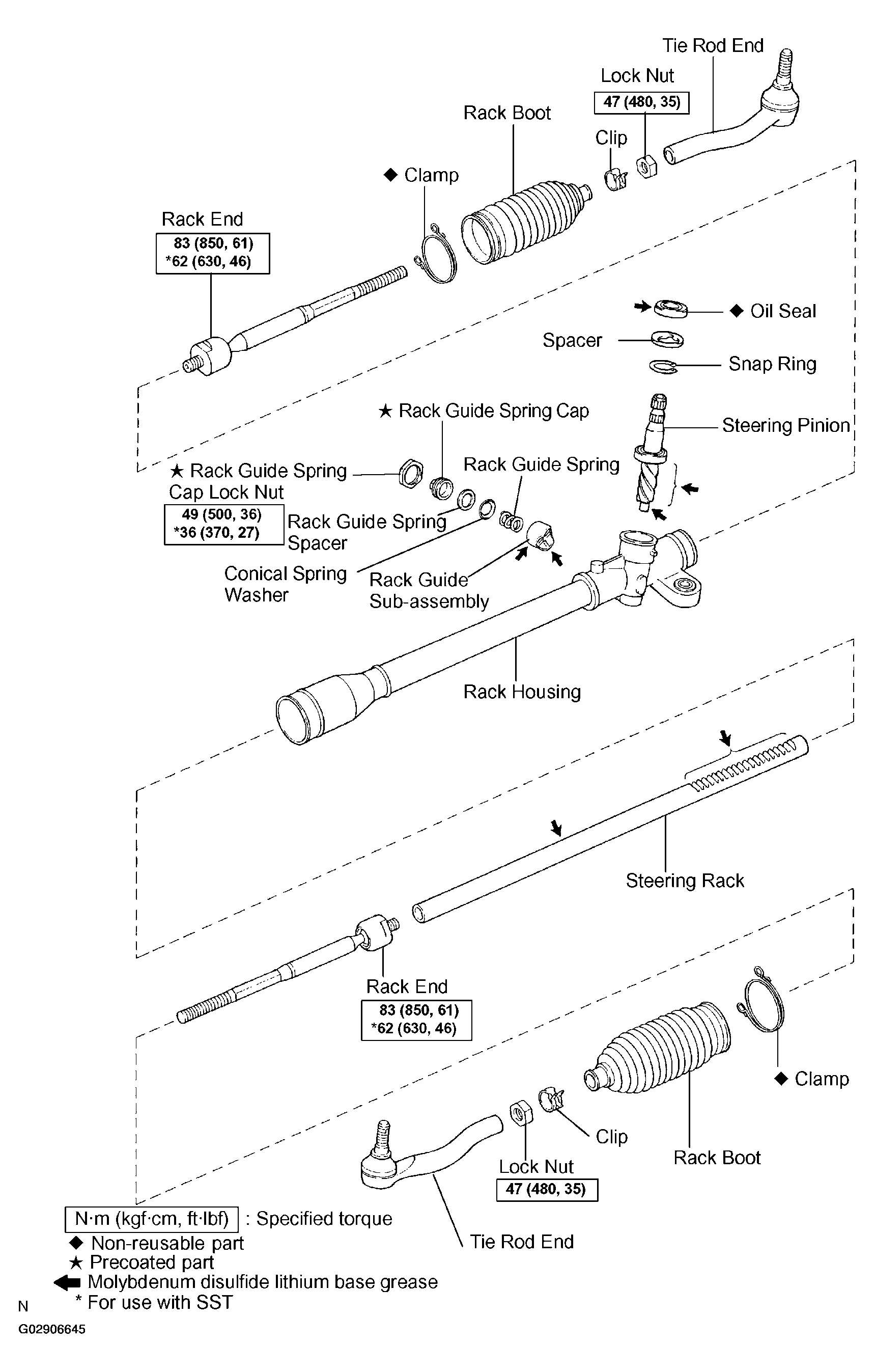

Fig 2: Exploded View Of Manual Steering Gear Components (2 Of 2)
G02906645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
