Home >> Toyota >> 2004 >> ECHO 2D Sedan, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Diagnostics >> DTC Tests >> DTC P0125: Insufficient Coolant Temperature for Closed Loop Fuel Control >> Monitor Strategy

Monitor Strategy

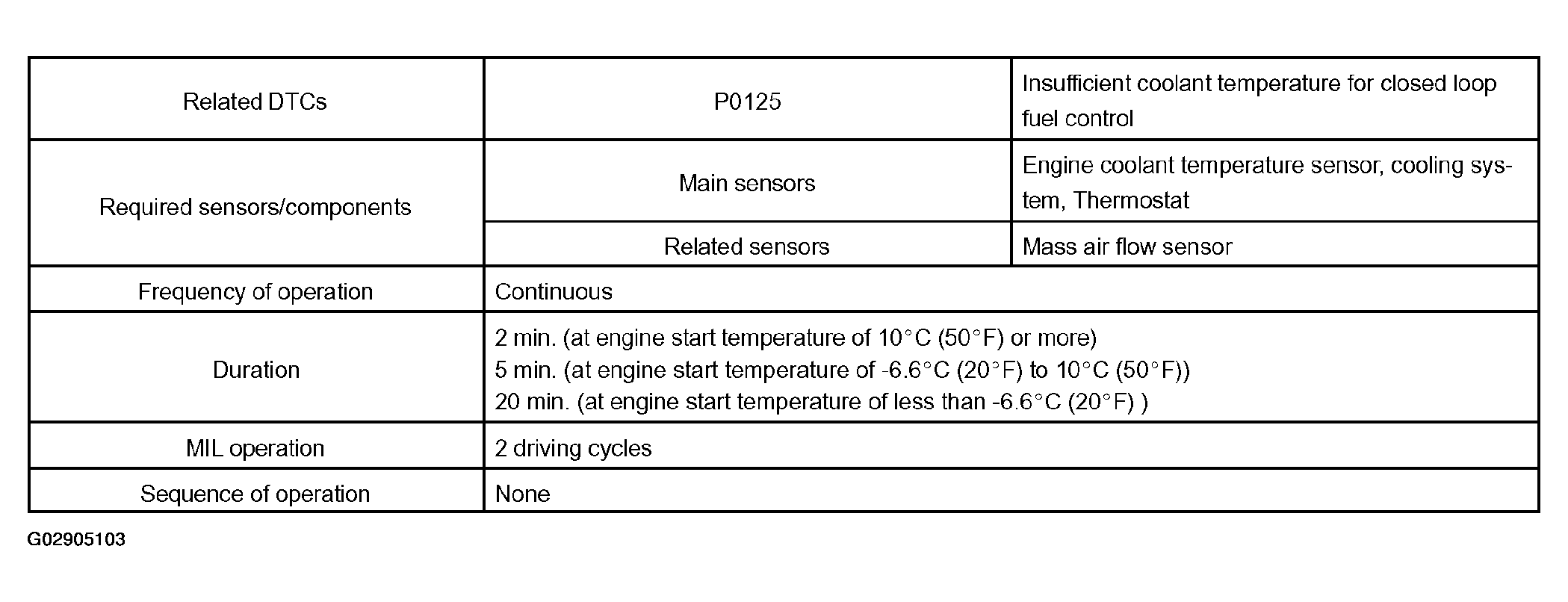

Fig 1: Monitor Strategy Specification Chart
G02905103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
