Parts Layout And Schematic Drawing: Drawing

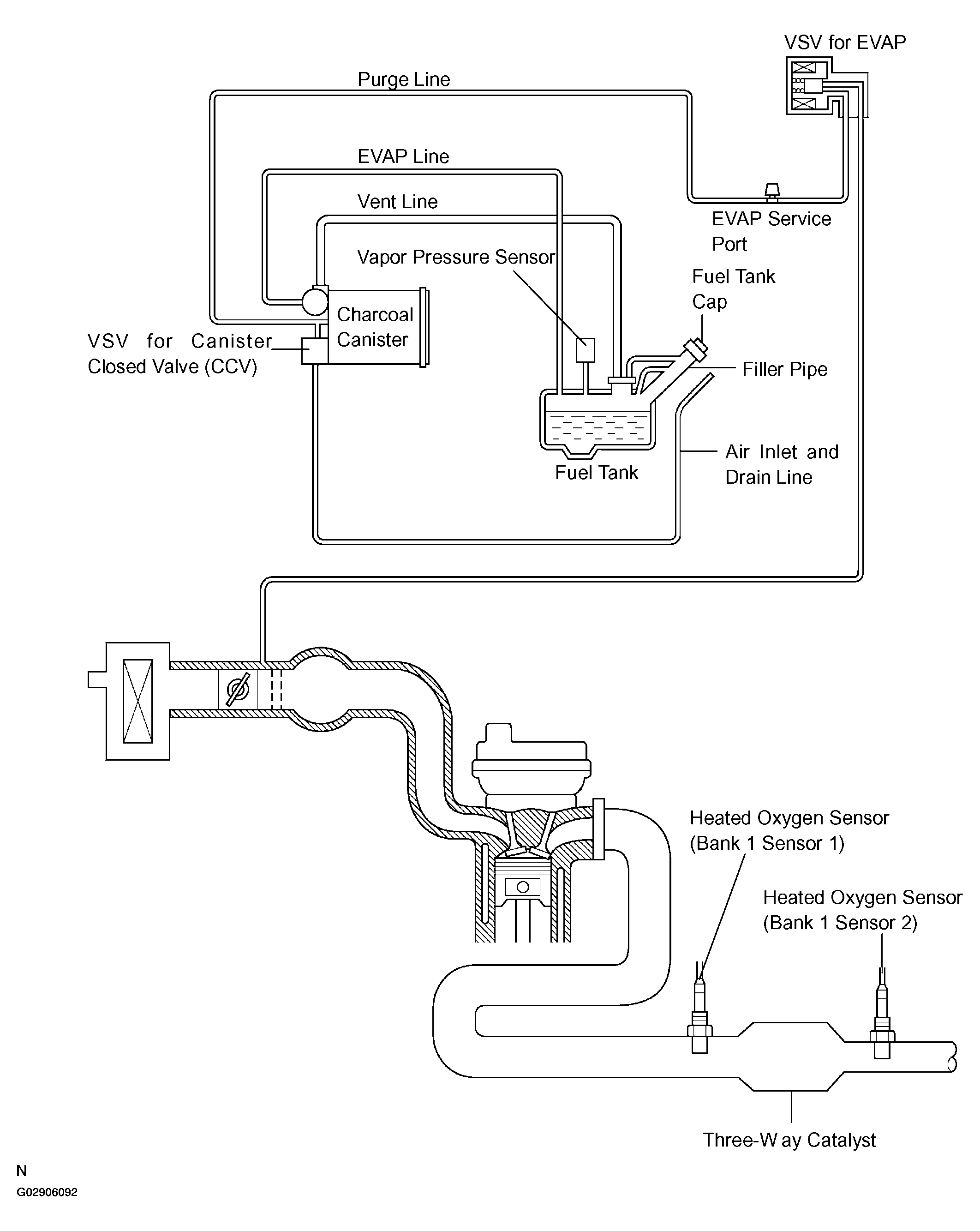

Fig 1: Schematic Drawing - Emission Control System

G02906092

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
