Rear Brake Speed Sensor: Components

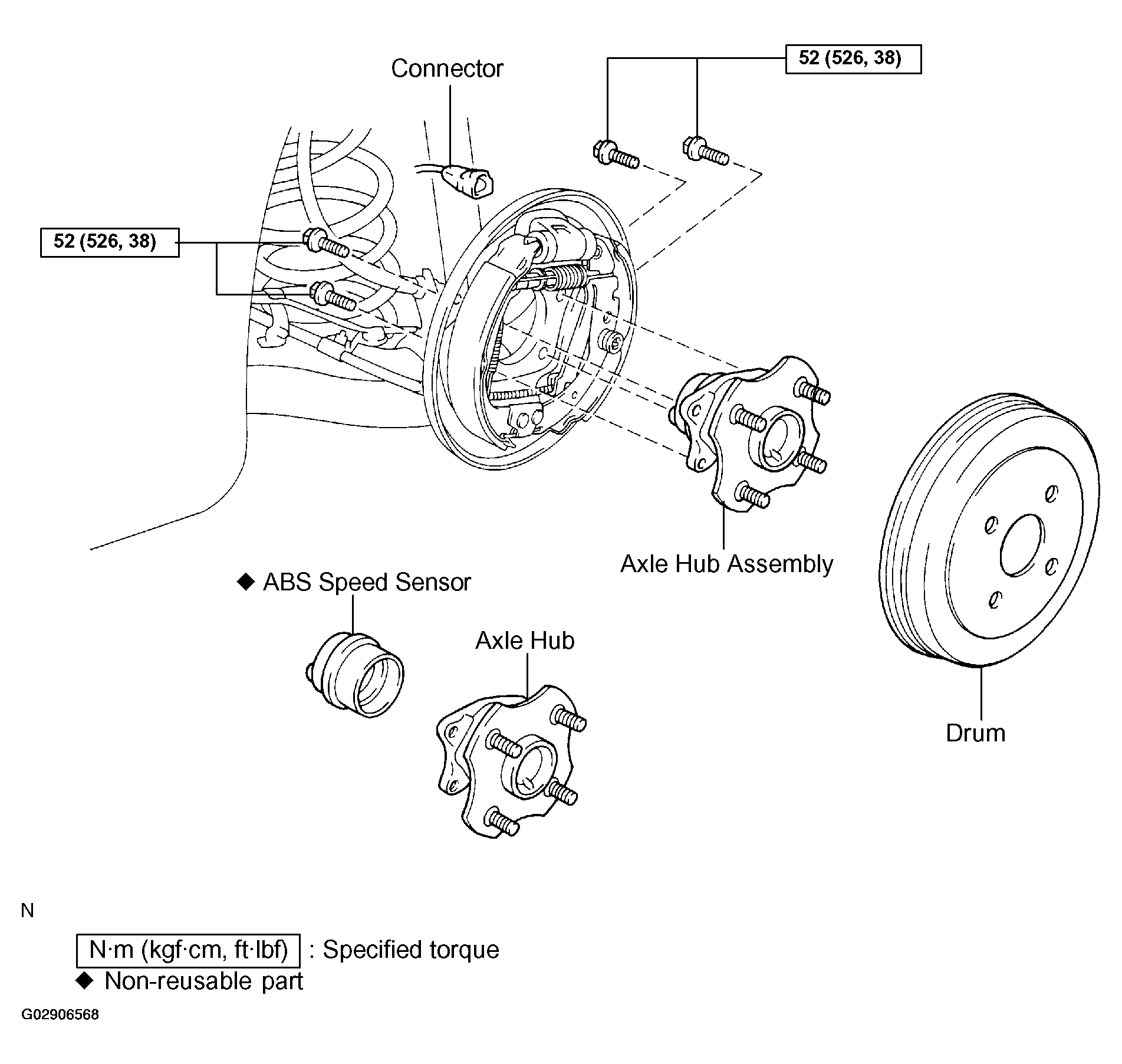

Fig 1: Locating Rear Speed Sensor

G02906568

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
