Wireless Door Lock Control System: Pre-Check

Only wireless function (Remote control) will no operate.

(If a new transmitter or a transmitter of the same type that works properly with the vehicle is not available.

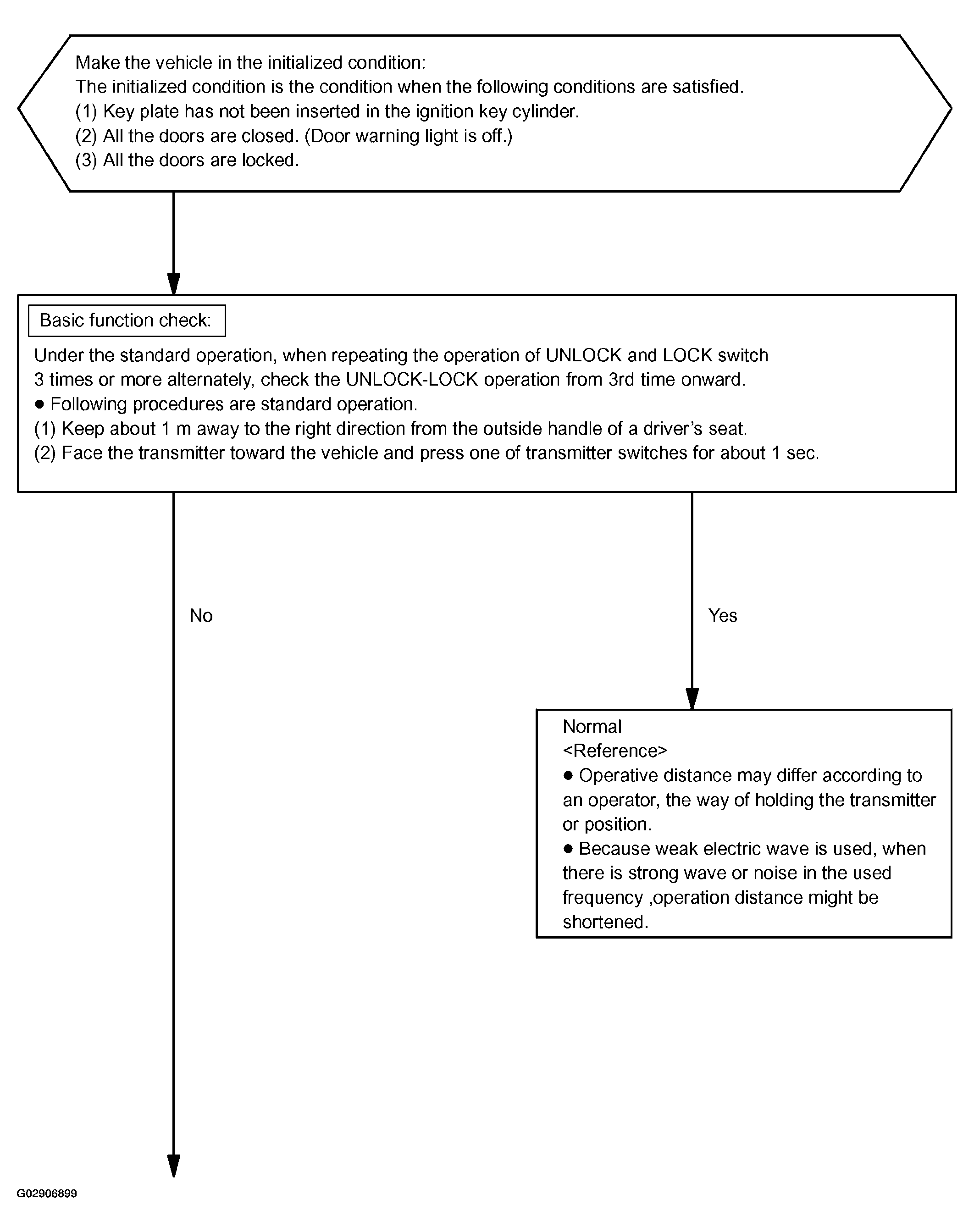

Fig 1: Pre-Checking Procedure (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

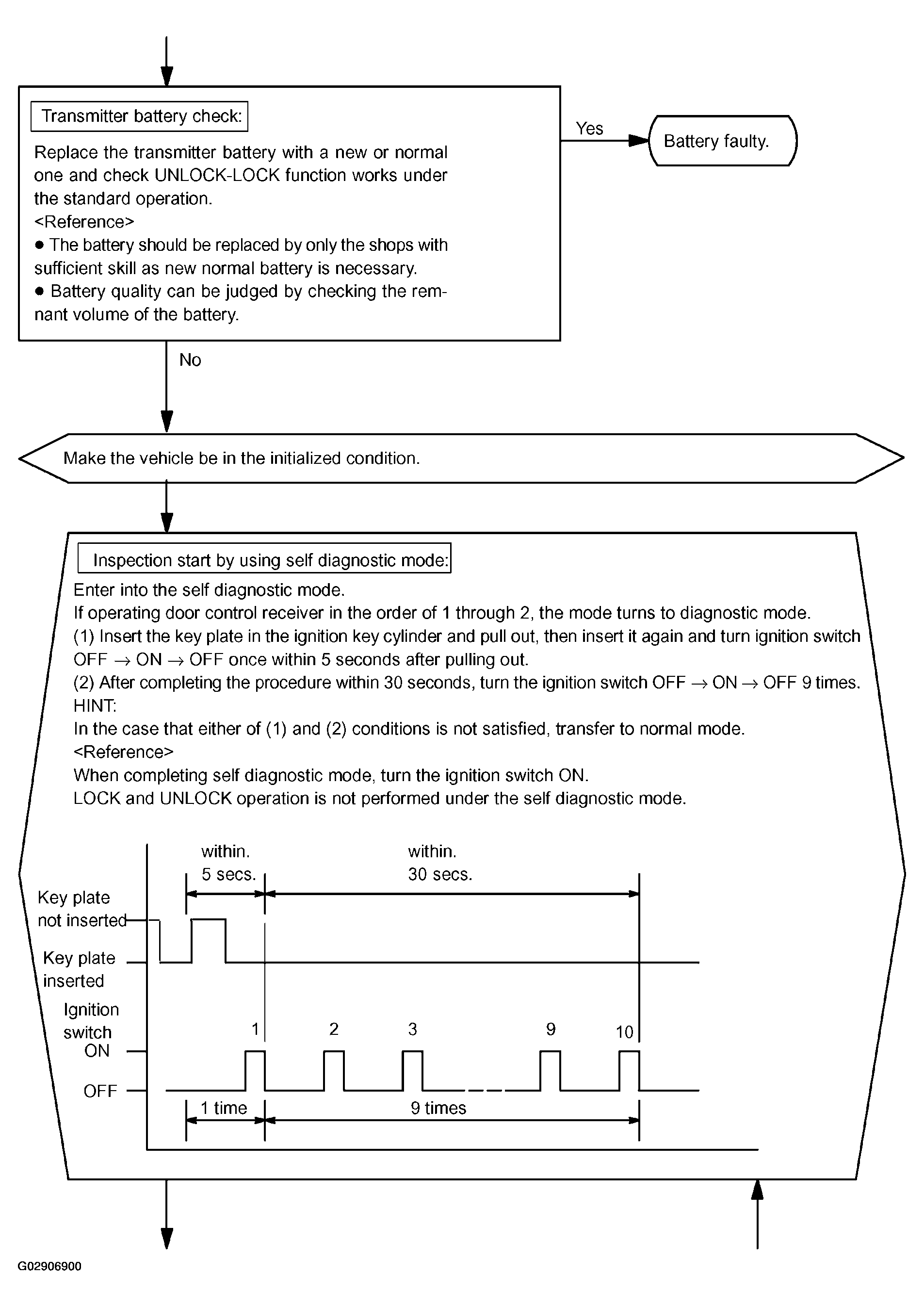

Fig 2: Pre-Checking Procedure (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

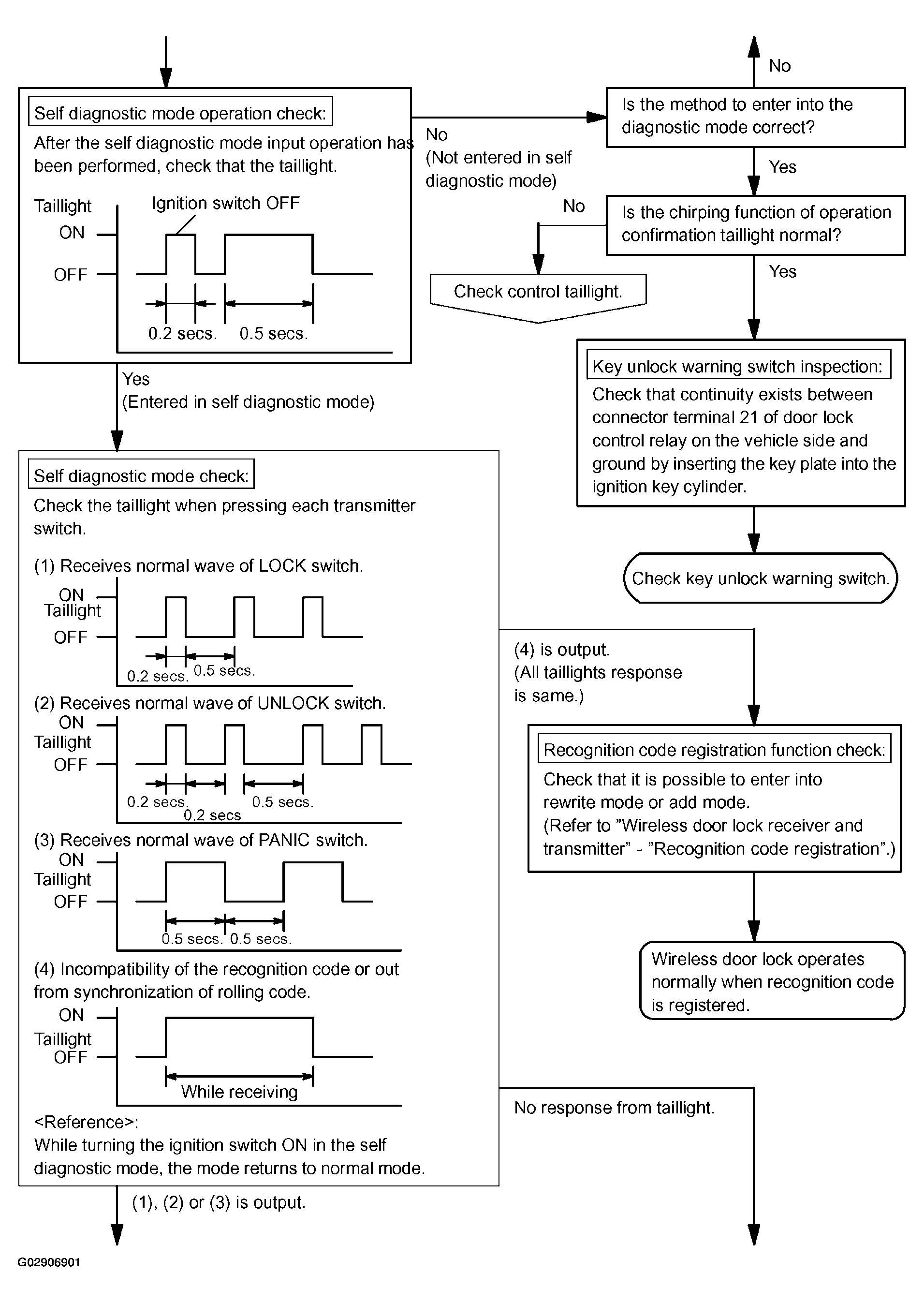

Fig 3: Pre-Checking Procedure (3 Of 5)

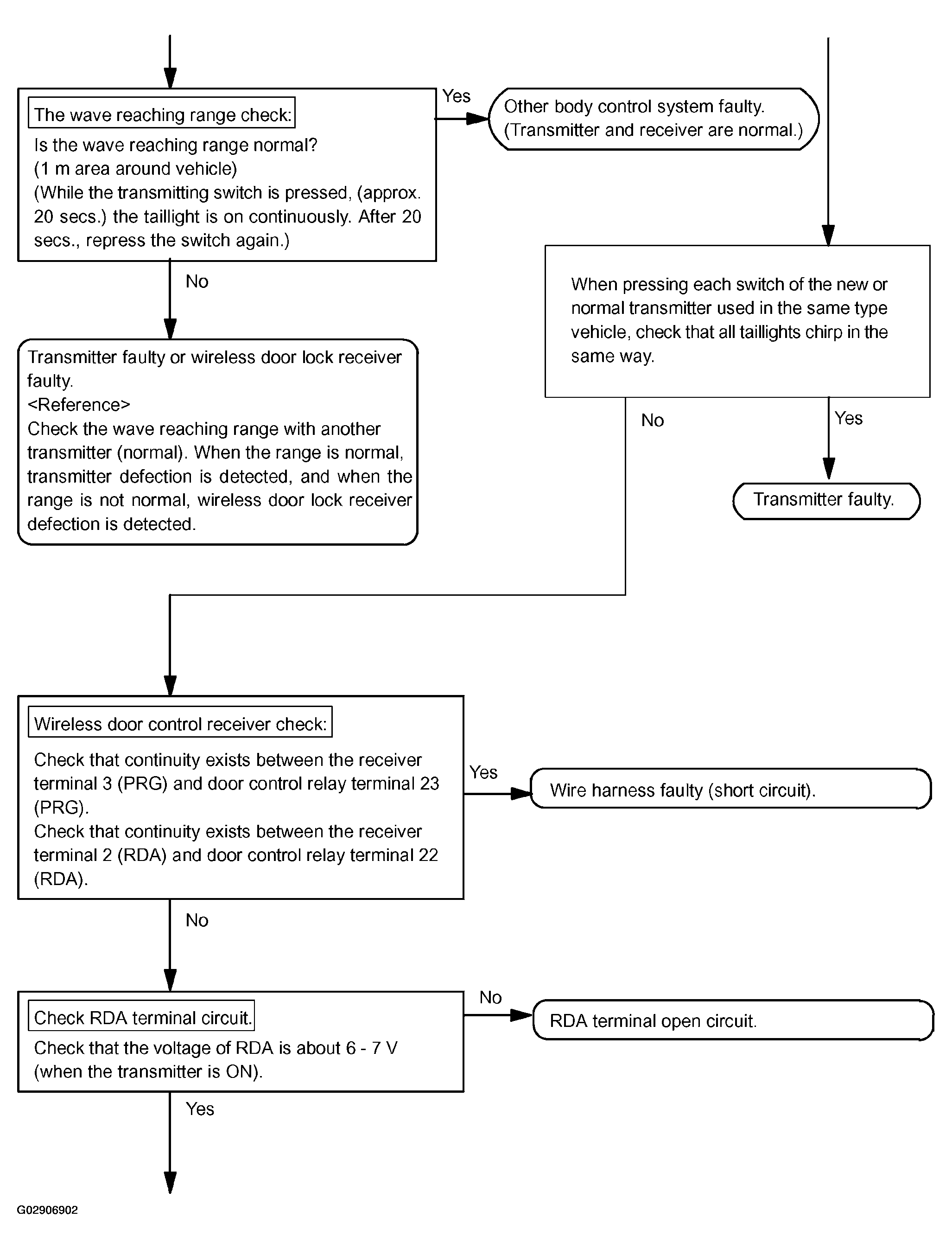

Fig 4: Pre-Checking Procedure (4 Of 5)

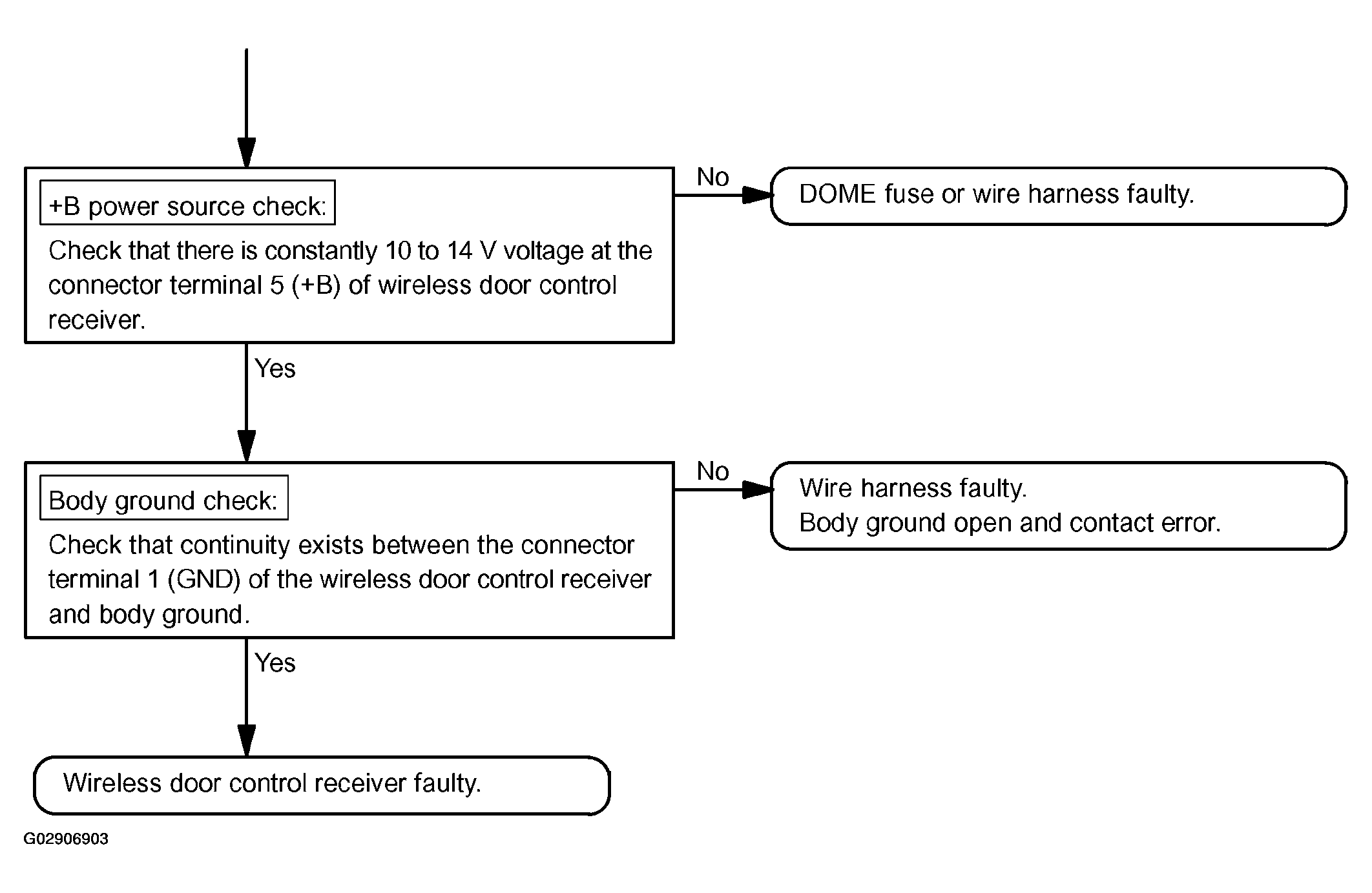

Fig 5: Pre-Checking Procedure (5 Of 5)
