Stop Light Switch Circuit: Wiring Diagram

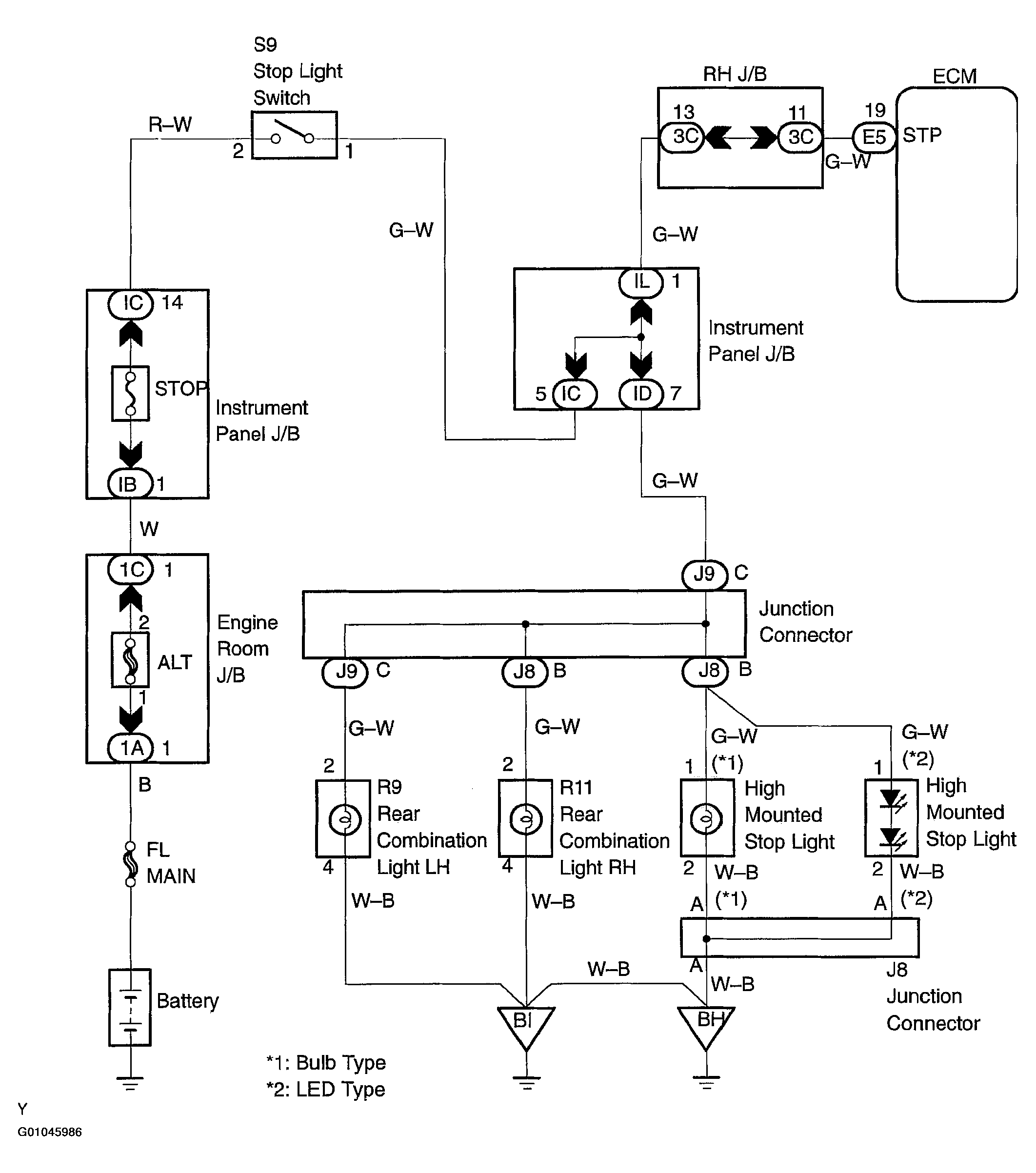

Fig 1: Stop Light Switch Circuit Wiring Diagram

G01045986

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
