Front Axle Hub Sub-ASSY LH: Components

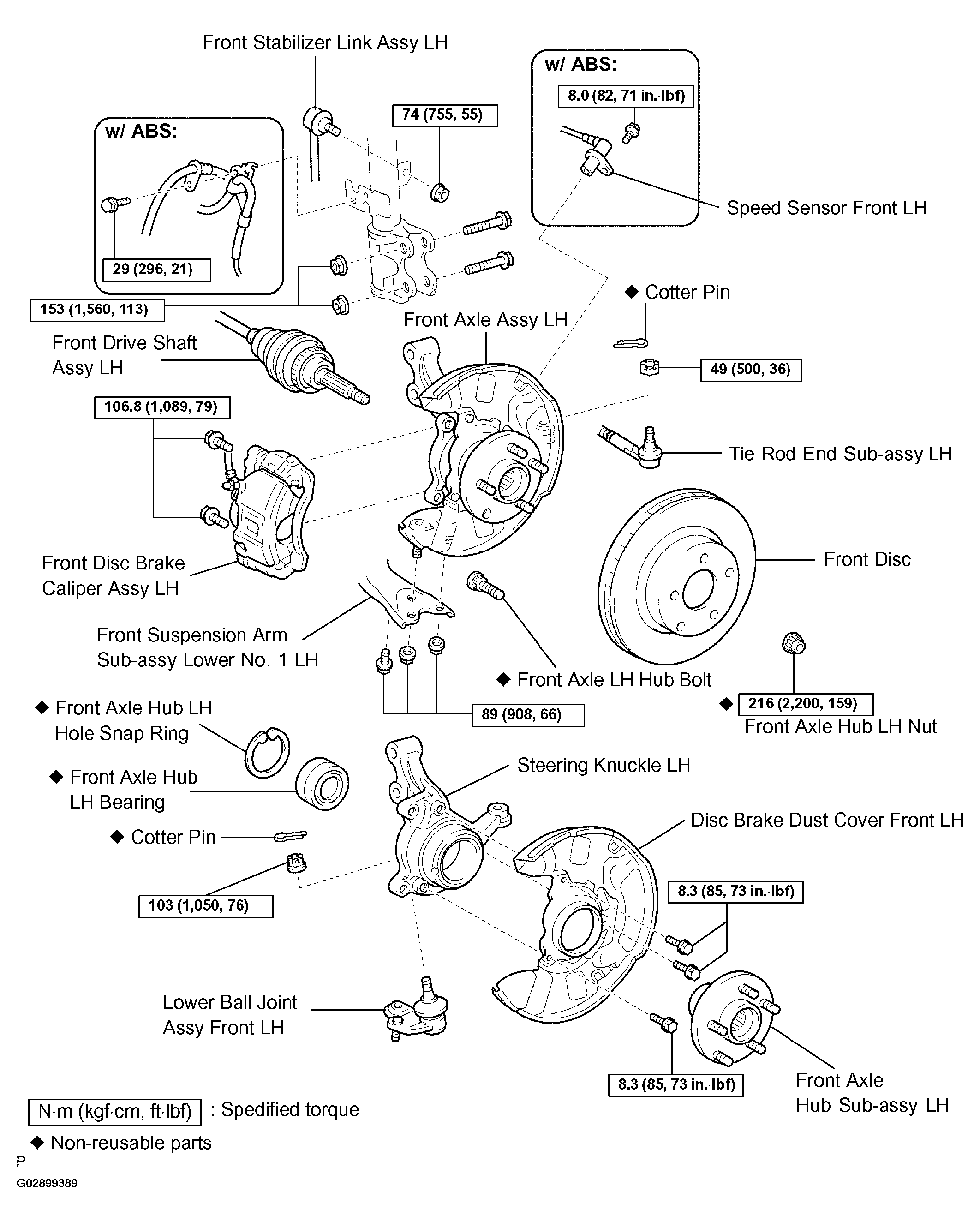

Fig 1: Identifying Front Axle Hub Sub-Assy LH Component

G02899389

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
