Manual Transaxle ASSY: Components

WARNING: This page is about a different variant/trim than selected.

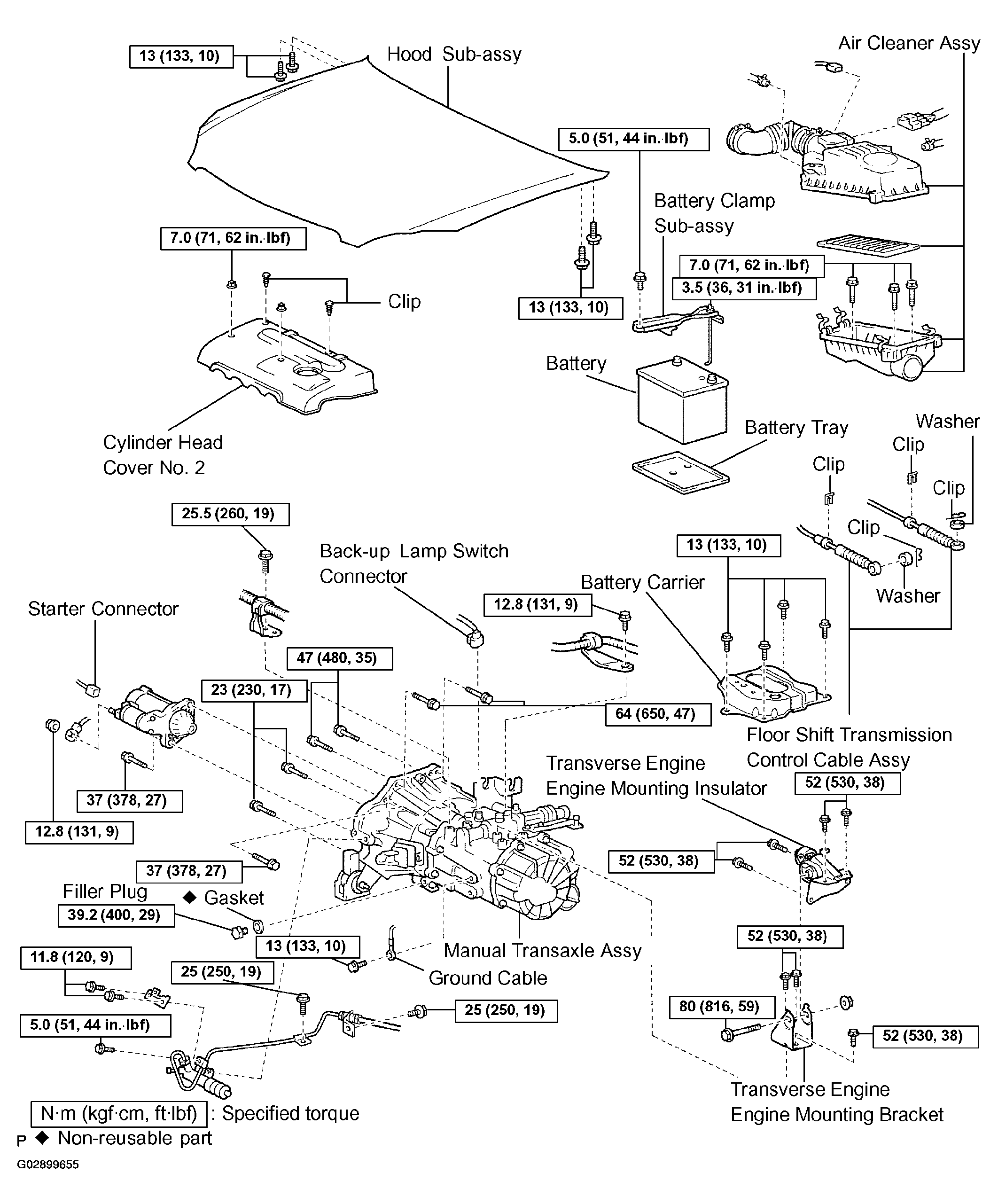

Fig 1: Identifying Manual Transaxle Assy Components (1 Of 2)
G02899655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

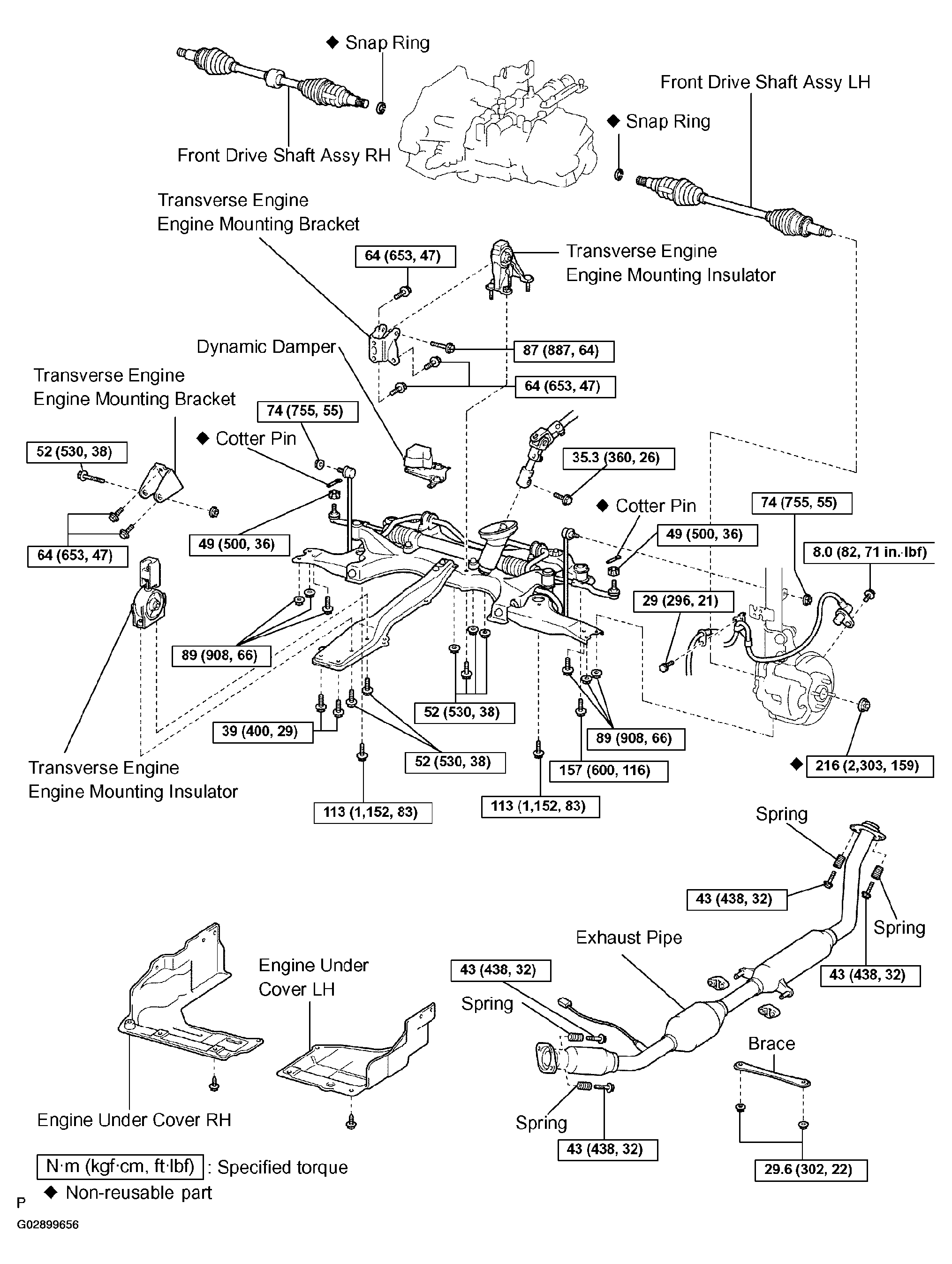

Fig 2: Identifying Manual Transaxle Assy Components (2 Of 2)
G02899656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
